60V 50A 8-Channel Battery Pack Charge Discharge Test System

60V 50A 8-Channel Battery Pack Charge Discharge Test System

Product Description

ACEY-BA6050-8 60V 50A Battery Charge Discharge Tester is designed for programmable charging, discharging, cycling and aging tests of rechargeable battery packs.

The system operates within an 8–60V voltage range and provides an adjustable charge and discharge current from 100mA to 50A. It can be used for battery pack capacity testing, cycle aging, charge/discharge characteristic analysis and production performance verification.

The tester is configured with 8 independent test channels, allowing each channel to run its own charge/discharge program according to different test requirements. Charge, discharge, rest and cycle steps can be freely combined through the control software, while multiple nested cycles are supported for long-duration aging and performance tests.

Voltage and current measurement accuracy reaches ±(0.05%RD + 0.05%FS), with voltage resolution of 1mV and current resolution of 1mA. The system also records voltage, current, capacity, energy, temperature and other test data for subsequent analysis and traceability.

Applications

• Lithium-ion battery pack charge/discharge testing
• LiFePO4 battery pack aging and cycle testing
• Ternary lithium battery pack performance testing
• Lead-acid battery pack testing
• NiMH and NiCd battery pack testing
• Battery pack capacity verification
• Battery module cycle aging
• Battery pack charge/discharge characteristic analysis
• EV and HEV battery system testing
• Battery module production testing
• Battery factory and charging station battery maintenance

The system supports both common-port battery packs and separate charge/discharge port battery packs.

Product Features

• Equipped with 8 independent test channels, allowing each channel to run individually configured charge and discharge programs.
• Supports an 8–60V test range with programmable charge/discharge current from 100mA to 50A.
• Voltage and current accuracy reaches ±(0.05%RD + 0.05%FS) for stable battery performance testing.
• Supports constant-current charging, constant-current/constant-voltage charging, constant-current discharging, resting, stopping and cycle testing.
• Soft-start current output reduces instantaneous current impact when charging or discharging begins.
• Smooth CC-to-CV transition helps avoid current spikes during the charging process.
• Programmable work steps can be combined into different test procedures with multi-layer cycle nesting.
• Supports automatic continuation of unfinished tests after power failure, communication interruption or other abnormal stops.
• Real-time abnormal voltage and current monitoring can trigger alarms and suspend the affected test channel.
• Test logs record the complete testing process and abnormal events for traceability.
• Charge/discharge curves can be freely selected and combined for battery performance analysis.
• Test data can be exported to Excel and chart files for further processing.
• Modular power unit design simplifies equipment maintenance and component replacement.
• Supports optional SMBus, I²C, HDQ, SPI, CAN and RS485 communication interfaces.

Test Functions

Main Technical Parameters

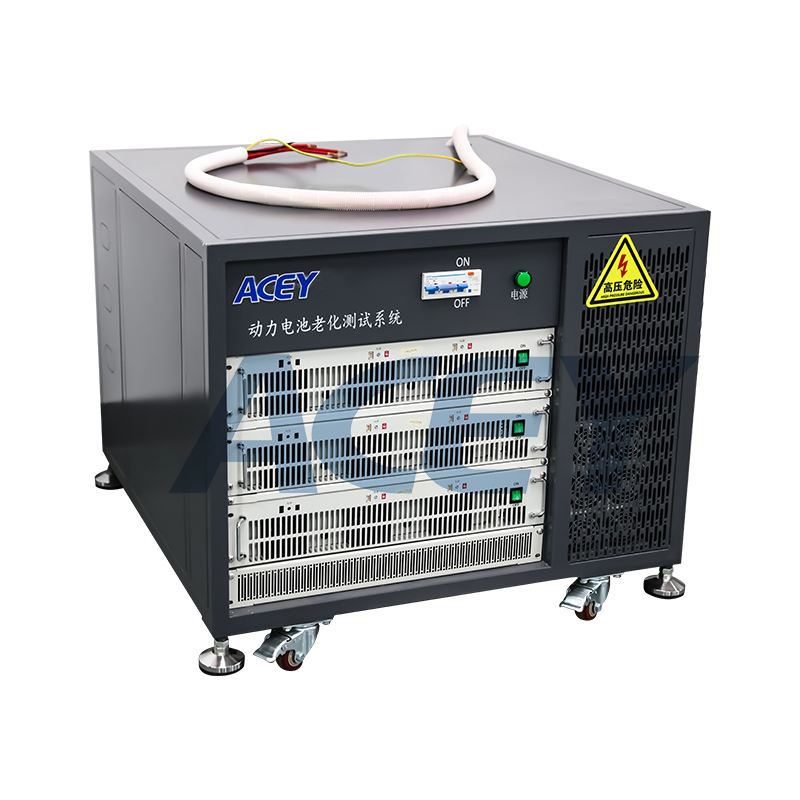

Product Display

FAQ

*What is the ACEY-BA6050-8 Battery Charge Discharge Tester used for?
ACEY-BA6050-8 Battery Charge Discharge Tester is used for battery pack charging, discharging, cycle aging, capacity testing and charge/discharge performance analysis. It can be used for battery production testing, battery module evaluation and long-cycle aging tests.

*What battery voltage and current range does the ACEY-BA6050-8 support?
ACEY-BA6050-8 battery pack charge discharge test system supports an 8–60V battery voltage range with programmable charge and discharge current from 100mA to 50A.

*What battery types can the ACEY-BA6050-8 Battery Aging Tester test?
ACEY-BA6050-8 battery pack aging cabinet can be used for ternary lithium, LiFePO4, lead-acid, NiMH and NiCd battery packs. It supports both common-port and separate charge/discharge port battery configurations.
