70V Aging Cabinet Lithium Battery Pack 5A Charging 10A Discharging Aging Tester

ACEY-BT7010-12 is applied to the integrated charge discharge cycle test system of low string lithium battery pack cycle charge and discharge, battery pack function test and charge discharge data monitoring.

  • Brand:

    ACEY
  • Item No.:

    ACEY-BT7010-12
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

12 Channels 70V 85V 100V Aging Cabinet Lithium Battery Pack 5A Charging 10A Discharging Aging Tester

Description

ACEY-BT7010-12 is applied to the integrated charge discharge cycle test system of low string lithium battery pack cycle charge and discharge, battery pack function test and charge discharge data monitoring. It can be used for 18650, 21700,26650,32650,32700 etc lithium battery pack charge and discharge testing and aging after assembling.The test items includes: battery charging protection voltage, discharge protection voltage, capacity, etc. It has charging, discharging, testing, and circulating 4 test steps. By editing the steps of the plan, the battery can be tested according to the set process.

 Features

*In the network mode, it is connected automatically, without manual connection.
*Use MYSQL database to save data to ensure that data will not be lost, and provide measurement data review function.
*A small number of instruments can communicate with PC software through the serial port.
*Multiple instruments can use the network to communicate with PC software, which reduces the computer interface. Only one network port is needed to control all instruments, ensuring the real-time and complete communication data.
*The instrument number is displayed through LED lights, and the position of the corresponding instrument can be queried intuitively. The number can be modified by software, which reflects the flexibility of the instrument.
*In addition to the P+ and P- interfaces, the instrument also provides CH+ and CH-, which can test special finished batteries and charge and discharge them on one instrument.
*The battery can be charged as long as the battery is in the test range, avoiding the problem that the charger can only charge a specific type of battery.

 Specification

Charging function With constant current and constant voltage charging function
discharge function With constant current and current limiting discharge function
Charge and discharge interface Fully meet the requirements of charging and discharging the same port and separate charging and discharging of the battery pack, that is, 2 wires (P+ P-) and 3 wires (P+ P- C-)
Equipped with a usb interface It is used for scanning gun to collect the ID number of the battery pack, which is convenient for data query after battery aging
Security protection Anti-reverse protection function
Voltage upper and lower limit setting protection
Safe discharge current protection (maximum current 10A)
Charging
requirements
Charging voltage 0-70V, continuously adjustable, accuracy ±1mV(high precision dedicated)
Charging current 0-5000mA, continuously adjustable, accuracy ±1mA (high precision dedicated)
Discharge
requirements
Discharge voltage 0-70V, accuracy ±1mV (high precision dedicated)
Discharge current 0-10A, accuracy ±1mA (high precision dedicated)
Discharge capacity error 1‰ (high precision dedicated)

 Product Display

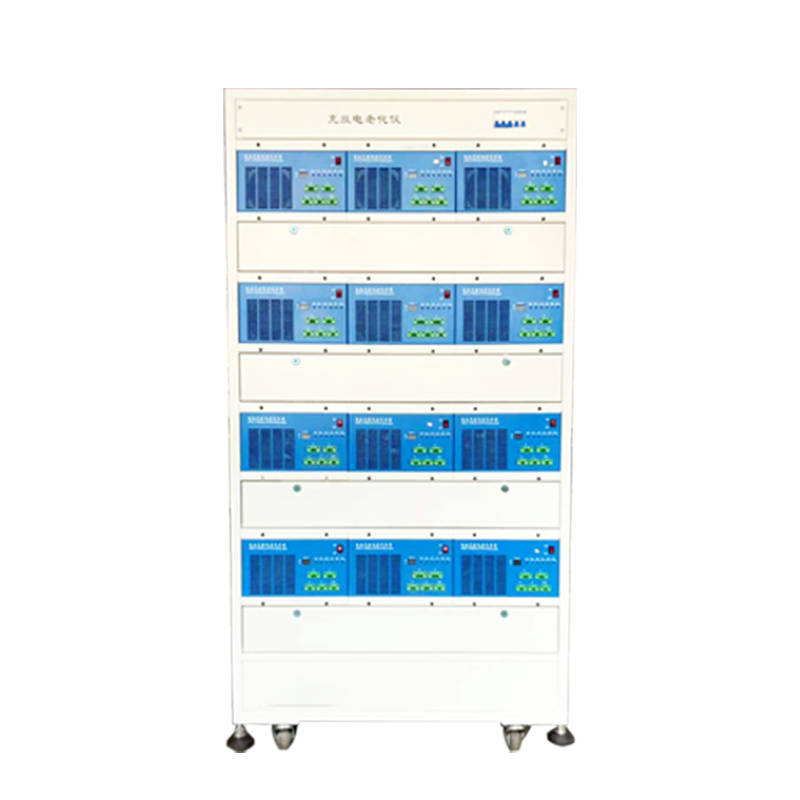

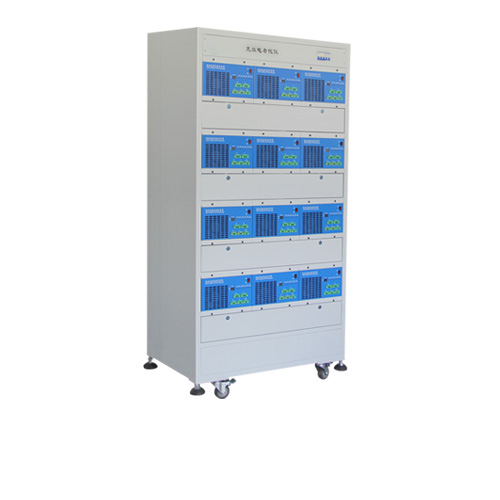

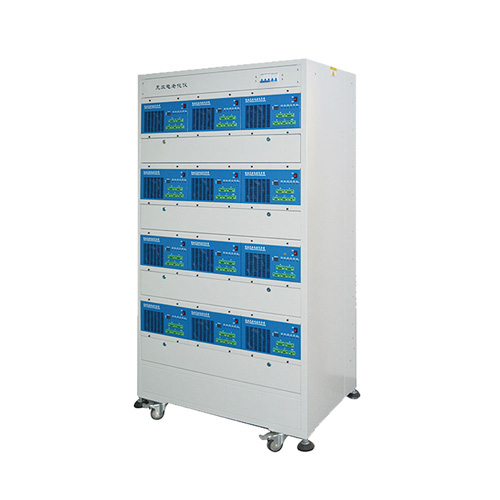

Battery Pack Charging Discharging Aging Tester
