Automatic Heavy Wedge Wire Bonder Equipment Ultrasonic Aluminum Wire Bonding Machine

ACEY-3753A ultrasonic aluminum wire bonding machine is a specialized piece of equipment developed by ACEY specifically for connecting battery tabs to aluminum busbars in lithium battery applications.

  • Brand:

    ACEY
  • Item No.:

    ACEY-3753A
  • Compliance:

    CE Certified
  • Warranty:

    One-year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    T/T
  • Product Origin:

    China
  • Lead Time:

    7-35 days
  • Product Detail

Automatic Heavy Wedge Wire Bonder Equipment Ultrasonic Aluminum Wire Bonding Machine


Product Description

ACEY-3753A ultrasonic wire bonding machine is a high-precision welding equipment designed specifically for the assembly of power batteries, energy storage batteries and various lithium battery modules. It is mainly used for reliable connection between aluminum busbars and battery tabs.


Working Principle

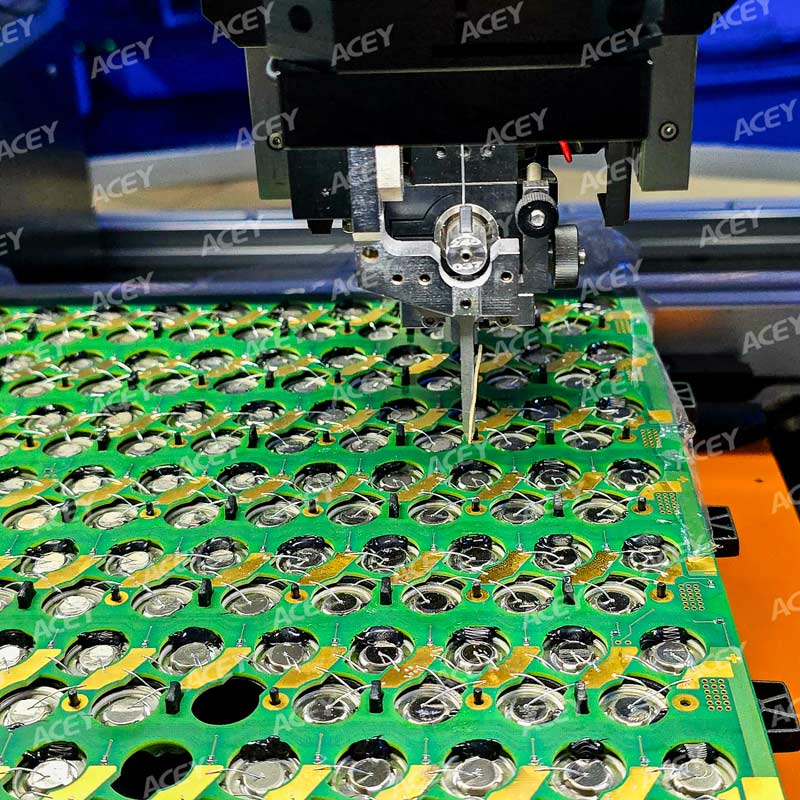

Ultrasonic waves from the ultrasonic generator generate high-frequency vibrations through the transducer, which are then transmitted to the wedge via the amplitude transformer. When the wedge comes into contact with the lead wire and the workpiece to be welded, the surfaces of the metals to be welded rub against each other under the action of pressure and vibration. The oxide film is destroyed and plastic deformation occurs, causing the two pure metal surfaces to come into close contact, achieving atomic-level bonding, and ultimately forming a strong metallic bond.


Features

  • Manual (front-end station) loading, automatic identification and positioning, automatic bonding, manual (flowing into the back-end station) unloading.
  • This assembly machine is dedicated to the bonding production of battery products specified by the customer. Non-universal equipment.
  • If other products are needed, they need to be modified and used according to actual conditions.

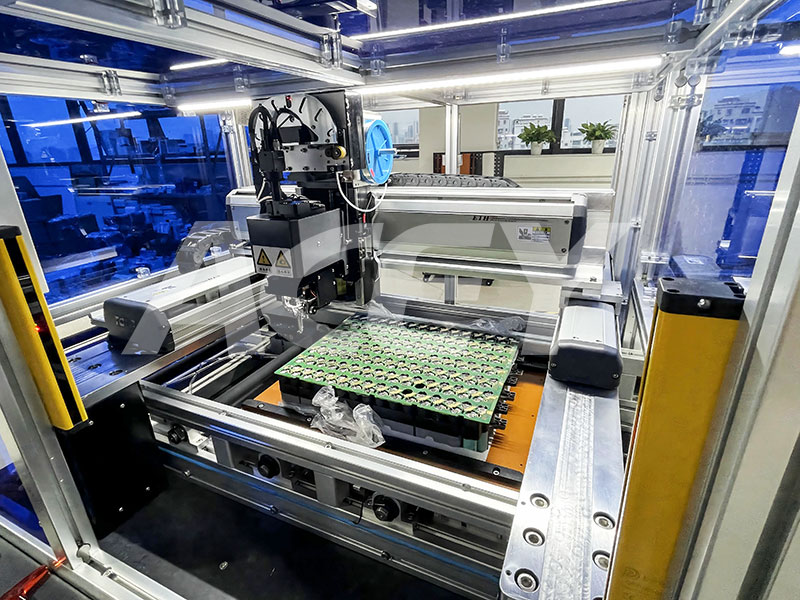

  • This machine is mainly composed of frame assembly, XYZC feeding assembly, automatic feeding mechanism, wire feeding mechanism, jig positioning and pressing assembly, welding head mechanism and console.
  • X Y Z module uses precision ball screw drive, the distance repeat positioning accuracy is less than ±0.02mm, and the angle positioning accuracy is ±1°.
  • The control system adopts industrial computer + motion control card to control the operation of the private server motor. The equipment is easy to operate and maintain, the control interface is friendly, and the parameter setting is digital, it is more flexible.
  • The welding pressure is automatically controlled, and the powerful ultrasonic power guarantees stable and reliable welding quality.
  • The equipment features dual-point welding (first and second welding) capabilities, significantly reducing solder joint resistance and improving reliability when welding large-area power devices.
  • Using quick clamp clamping, single button start, easy and safe for personnel to discharge materials.
  • Left-in and right-out can be used for online multi-section track transmission, which can be directly connected to the production line.


Main Technical Parameters

Power supply 220VAC±10%, 50Hz, reliable grounding, the maximum consumption rate is about 1200W
Ultrasonic power 0~30W, automatic switching between first and second welding
X-axis adopts imported parts-repeat positioning accuracy can reach ±0.02mm, Y and Z-axis adopt precision ball screw drive
Weldable aluminum wire diameter 125~ 500um (5~20mil)
Working area XY axis: maximum: 400 × 400 (can be customized according to customer requirements)
Z axis: max 100mm.
C axis: plus or minus 180°
Ultrasound time 10~500ms, multi-channel
Welding pressure 50~1200g, multi-channel
Welding angle ±90 degrees
Vision system PR microscope magnification is 0.5 times 
PR lighting lampWW White light, adjustable brightness
Overall dimensions About 1500*2200*1650MM(L*W*H)
Weight About 800KG

Product Display

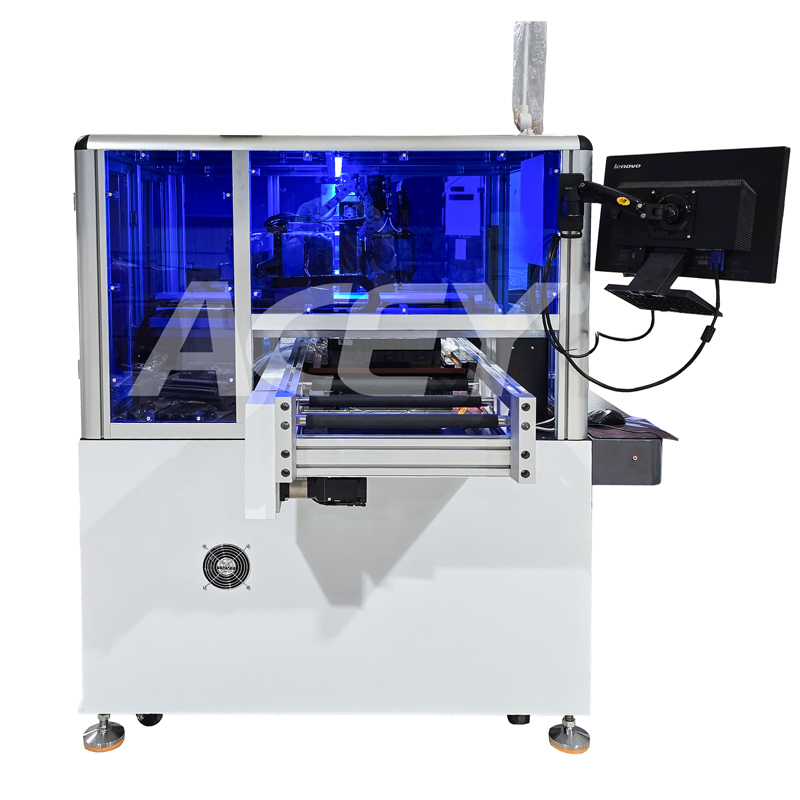

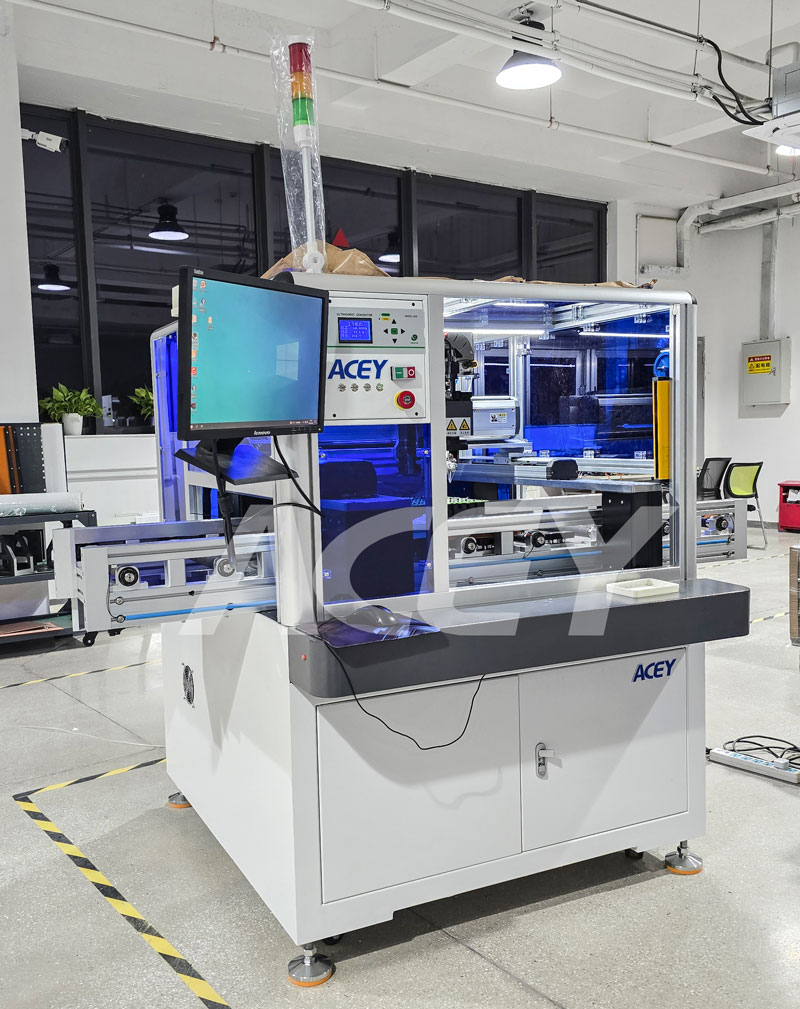

Ultrasonic Wire Bonding Machine

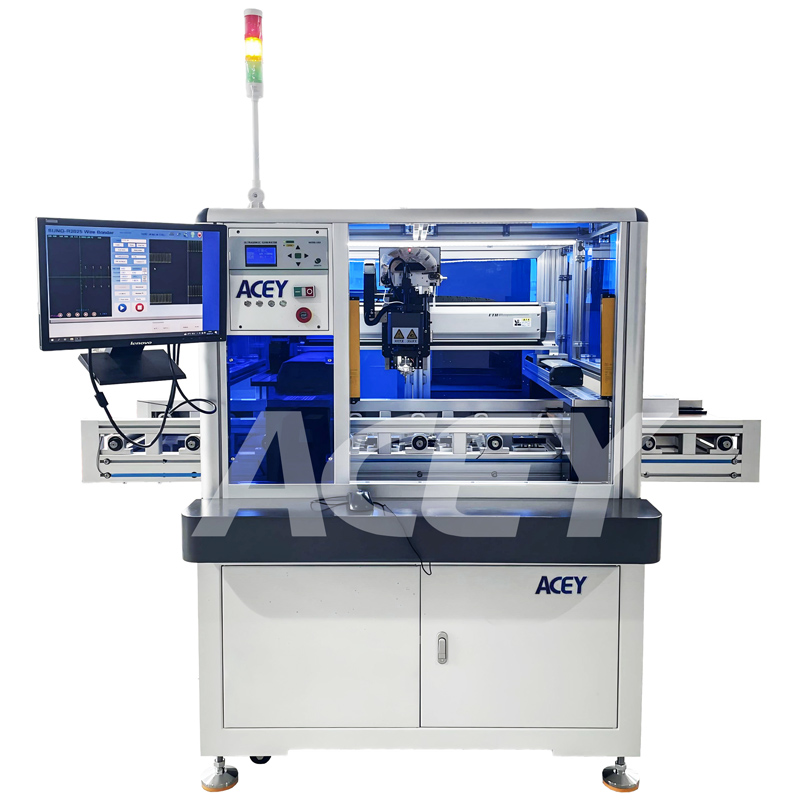

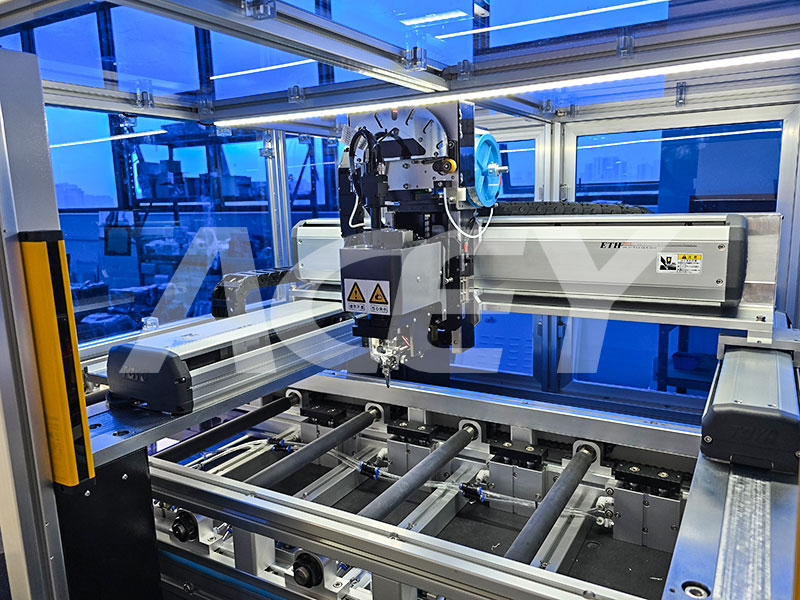

Automatic Wire Bonding Machine

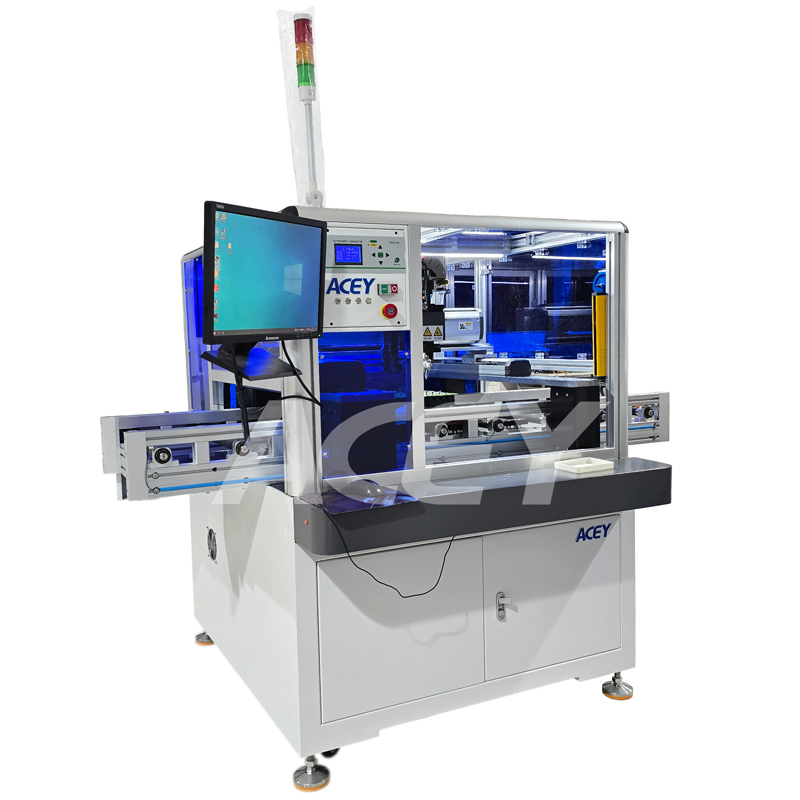

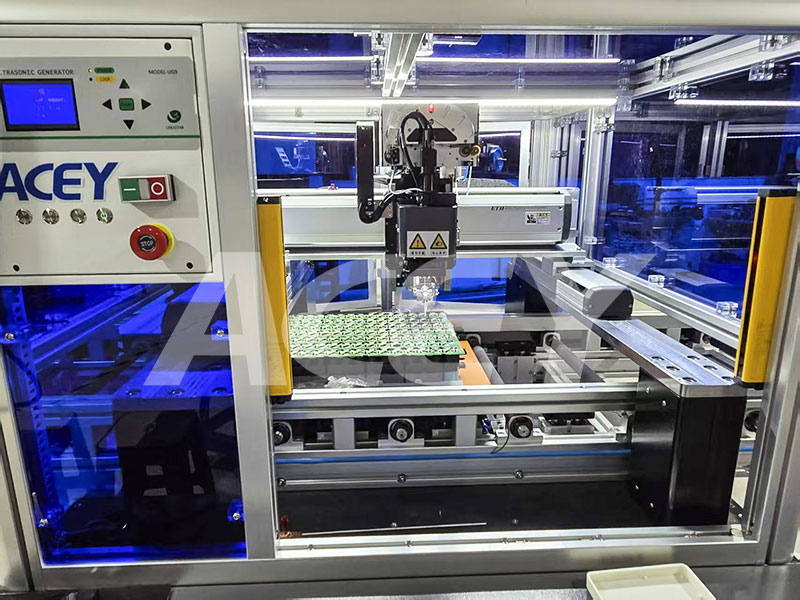

Ultrasonic Wire Bonder


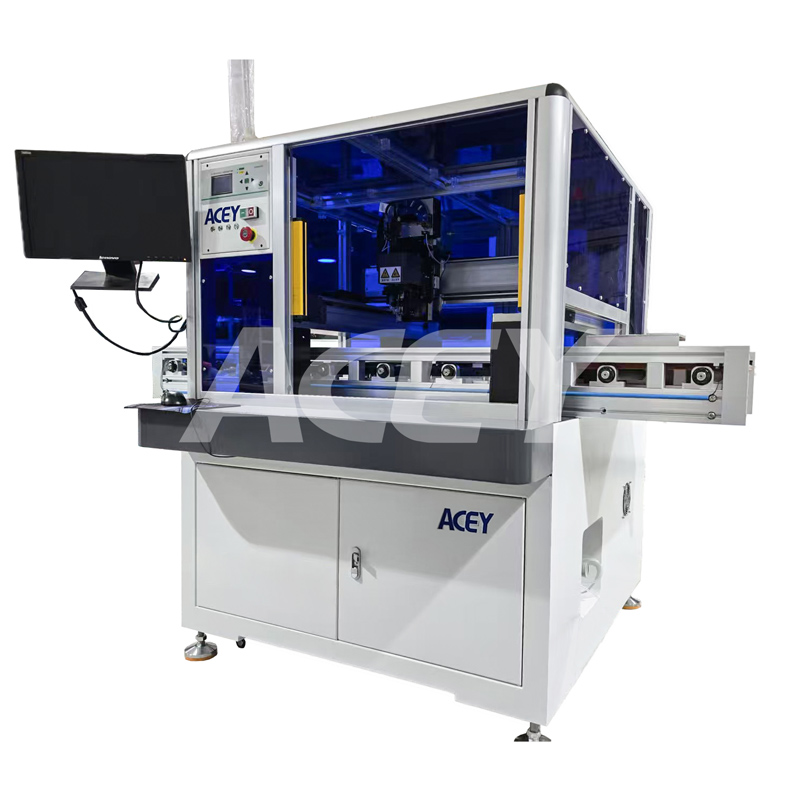

Ultrasonic Wire Bonding Equipment


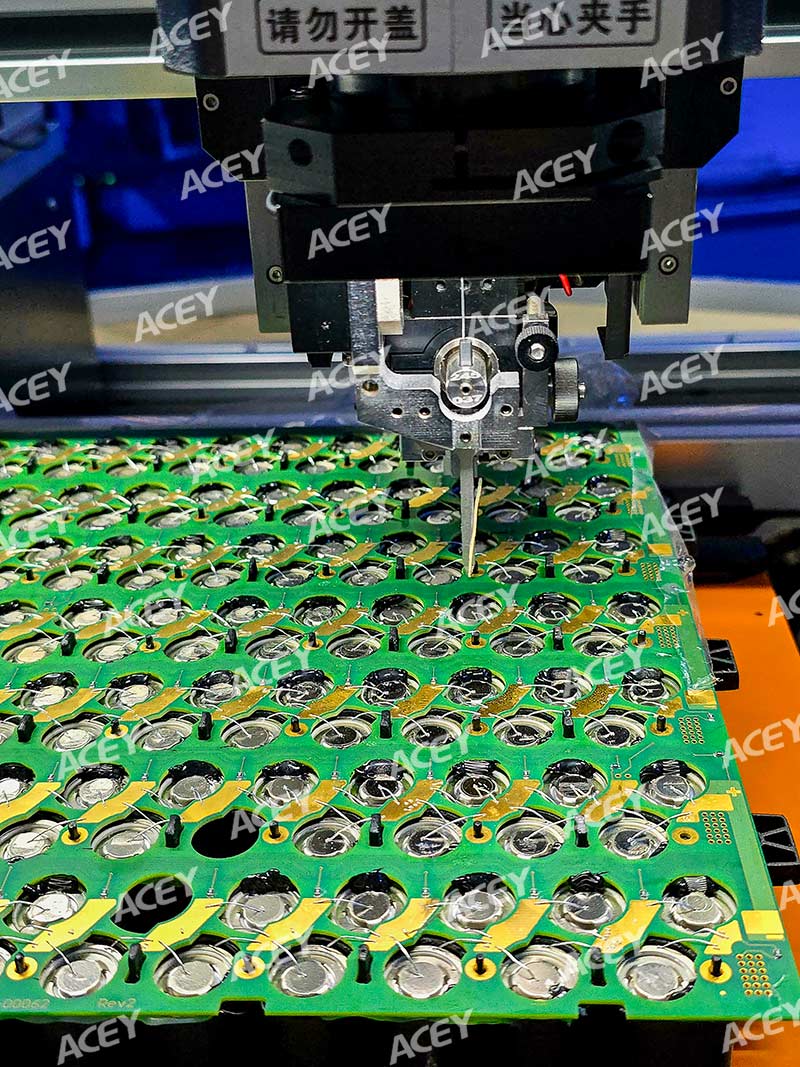

Wedge Wire Bonder
