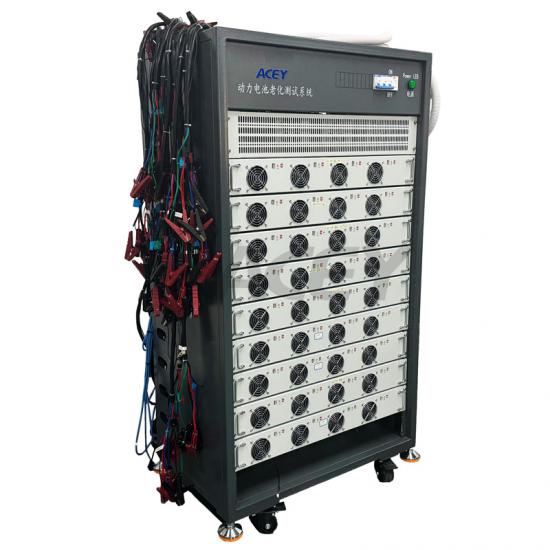

30V 60A 36-Channel Regenerative Battery Pack Cycle Test System

30V 60A 36-Channel Regenerative Battery Pack Cycle Test System

Product Description

ACEY-BA3060-36 Regenerative Battery Pack Charge Discharge Aging Tester is designed for battery pack production testing, capacity verification, cycle-life testing and charge-discharge performance evaluation.

The equipment supports ternary lithium, LiFePO₄, lead-acid, NiMH and NiCd battery packs, as well as battery packs with common or separate charge-discharge ports. It is particularly suitable for battery packs used in vacuum cleaners, power tools and electric scooters.

Each cabinet provides up to 36 fully independent channels, with a 0–30V measurement range, up to ±60A current and continuous output power of 1.8kW per channel.

Product Features

• Up to 36 completely independent test channels.
• Adjustable battery test voltage with a 30V maximum voltage class.
• Charge and discharge current up to ±60A per channel.
• Measurement accuracy of ±(0.05%RD + 0.05%FS).
• Supports CCCV charging with smooth CC-to-CV transition.
• Supports programmable multi-step testing and nested cycle programs.
• Maximum cycle setting up to 9,999 cycles.
• Supports channel grouping and channel parallel operation.
• Supports power-failure protection and automatic test continuation.
• Test data can be exported to Excel for further analysis.
• Supports barcode and QR-code test start.
• MES data upload is supported.
• Optional SMBus, I²C, HDQ, SPI, CAN and RS485 communication.
• Supports real-time BMS data acquisition including cell voltage, temperature, current and capacity.
• Four-wire connection improves voltage measurement accuracy.

Applications

• Power Tool Battery Packs
• Vacuum Cleaner Battery Packs
• Electric Scooter Battery Packs
• Cylindrical Lithium Battery Modules
• Battery Pack Production Testing

Technical Parameter

Product Display

FAQ

1. What battery packs can the ACEY-BA3060-36 Regenerative Battery Cycle Tester test?
It supports ternary lithium, LiFePO₄, lead-acid, NiMH, and NiCd battery packs within the specified voltage and current range.

2. Can each channel of the ACEY-BA3060-36 Regenerative Battery Cycle Tester operate independently?
Yes. The system provides 36 fully independent channels, allowing each channel to run independently programmed charge-discharge conditions.

3. Does the ACEY-BA3060-36 Regenerative Battery Cycle Tester support BMS communication?
Yes. Optional communication interfaces include SMBus, I²C, HDQ, SPI, CAN, and RS485, with support for reading BMS parameters such as cell voltage, temperature, current, and capacity.
