XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/99773fe8081282b4baf3e9daad072524.jpg)
Brand:
ACEYItem No.:
ACEY-CALCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days18650 21700 26650 32700 Cylindrical Battery Pack Assembly Line
Product Description
The Cylindrical Battery Pack Assembly Line is designed for efficient, precise, and flexible production of lithium-ion battery packs using cylindrical cells such as 18650, 21700, 26650, and 32700. The equipment includes Cell Grading Machine, Insulation Paper Sticking Machine, Battery Voltage&IR Sorting Machine, CCD Tester, Manual/Automatic Spot Welding Machine, BMS Tester, Battery Comprehensive Tester and Battery Aging Machine, etc.
Assembly process

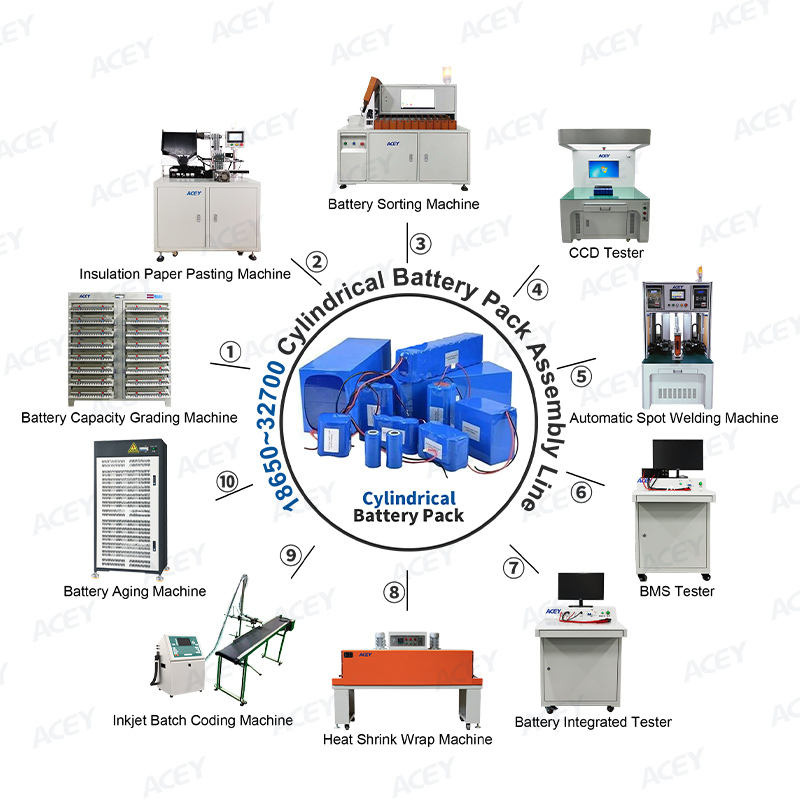

Cell capacity grading → Insulation paper pasting → Cell voltage & IR sorting → CCD testing → Battery pack spot welding → BMS testing → Battery pack comprehensive testing → Shrink film packaging → Inkjet code printing → Battery pack aging testing
Advantages
Supports phased capacity expansion and future upgrades to full automation, reducing initial investment risks.
Product List
18650 21700 26650 32650 32700 Cylindrical Battery Pack Assembly Equipment
Product Name
Description
Battery Capacity Grading Machine
5V 3A/5A/6A optional
Energy-feedback/Liner optional
Insulation Paper Sticking Machine
Sticker Matrials: Barley paper or PVC
Replaceable Mould for 18650/21700/26650/32700
Battery Sorting Machine
5-22 Channels Optional
Barcode Scanner Optional
Suitable for 18650/21700/26650/32700
CCD Visual Inspection Machine
Cylindrical battery positive and negative detection
Conveyor Belt Optional
Manual Spot Welding Machine
Pneumatic AC Spot Welding Machine
(Single Welding Point or Double Welding Point)
AC Pedal Manual Spot Welding Machine
Automatic Spot Welding Machine
Single Side Automatic Spot Welding Machine
Double Sides Spot Welding Machine
BMS Tester
1-52 series Optional
50A~500A
Battery Pack Comprehensive Tester
Voltage: 10V~300V, Current: 60A~600A
Heat Shrink Wrapping Machine
Shrink Film: PP/PE/POF/PVC
250*120MM/350*150MM/400*200MM/450*300MM/ETC
Inkjet batch code printing machine
Drop on Demand/Continue ink jet printer
Battery Aging Machine
Voltage: 8~30V, Current: 0~400A.
High Voltage Series: 500V~1500V, Current: 100A~1000A
Product Display

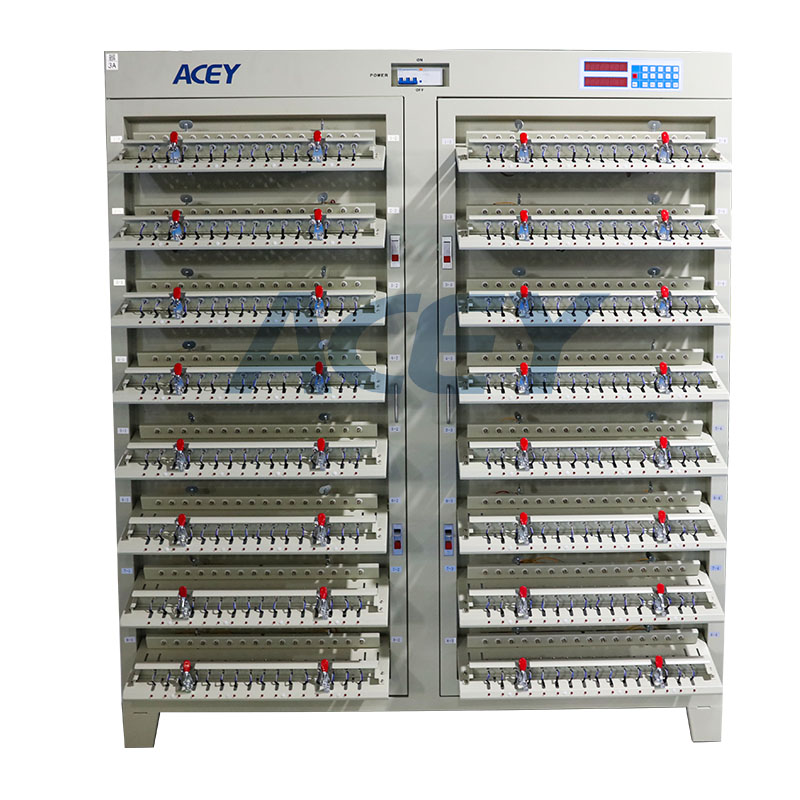

1. Battery charge discharge tester
2. Battery insulation paper sticking machine

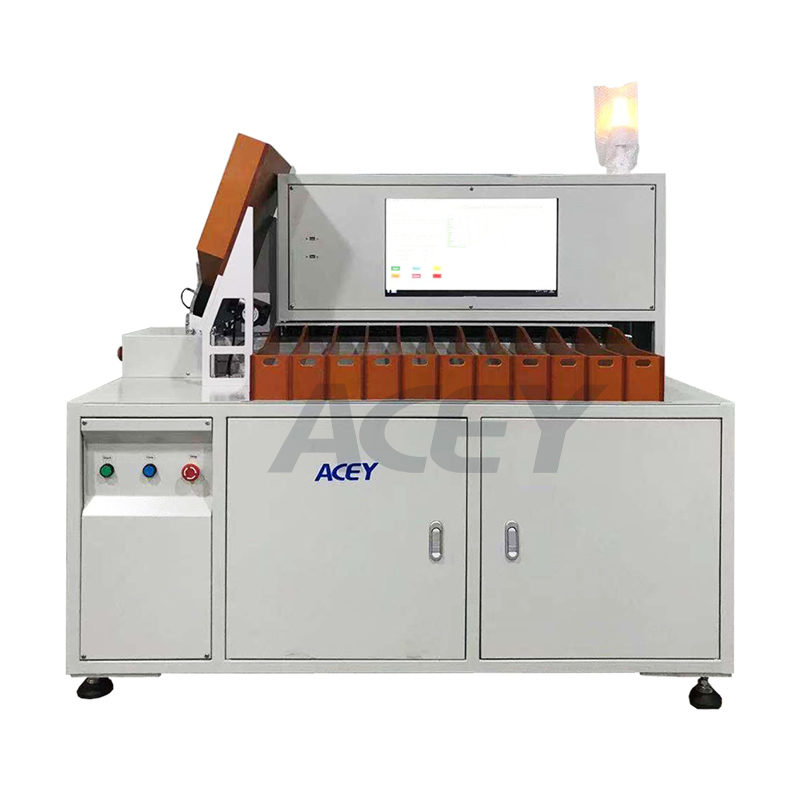

3. Battery sorting machine

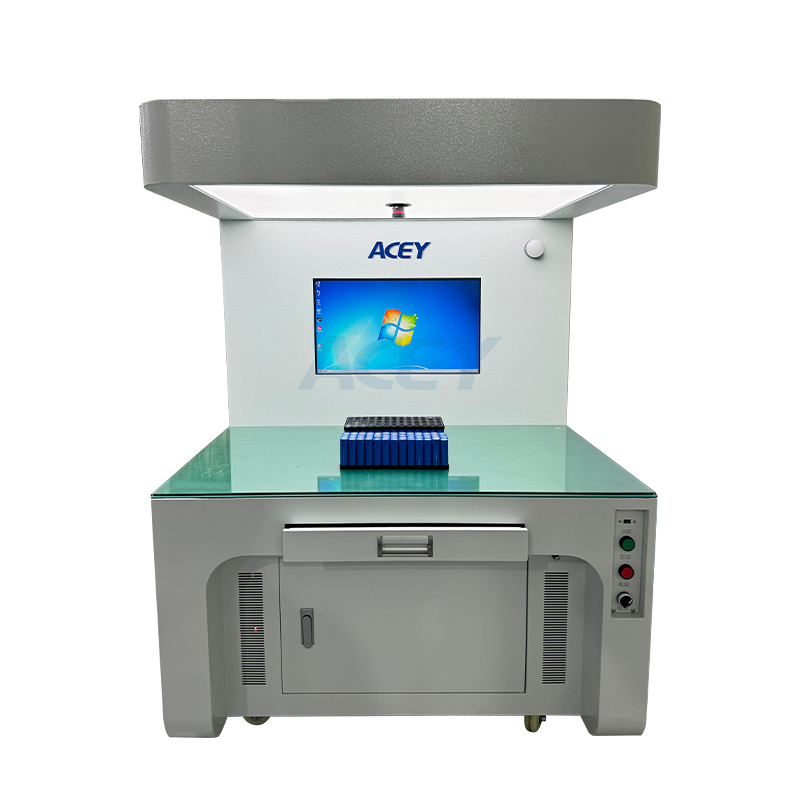

4. CCD visual inspection machine

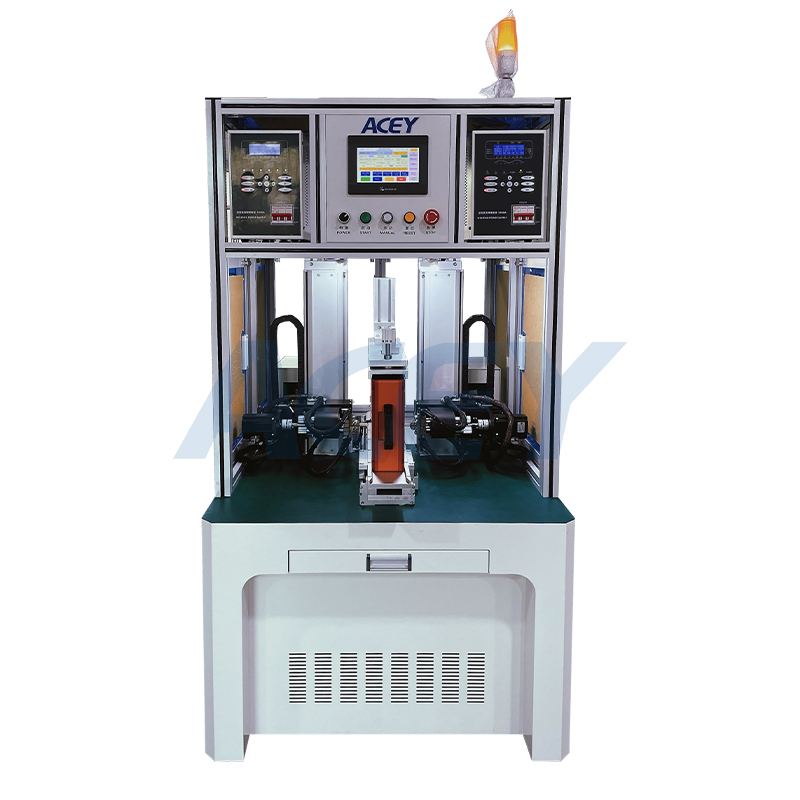

5. Battery pack spot welding machine

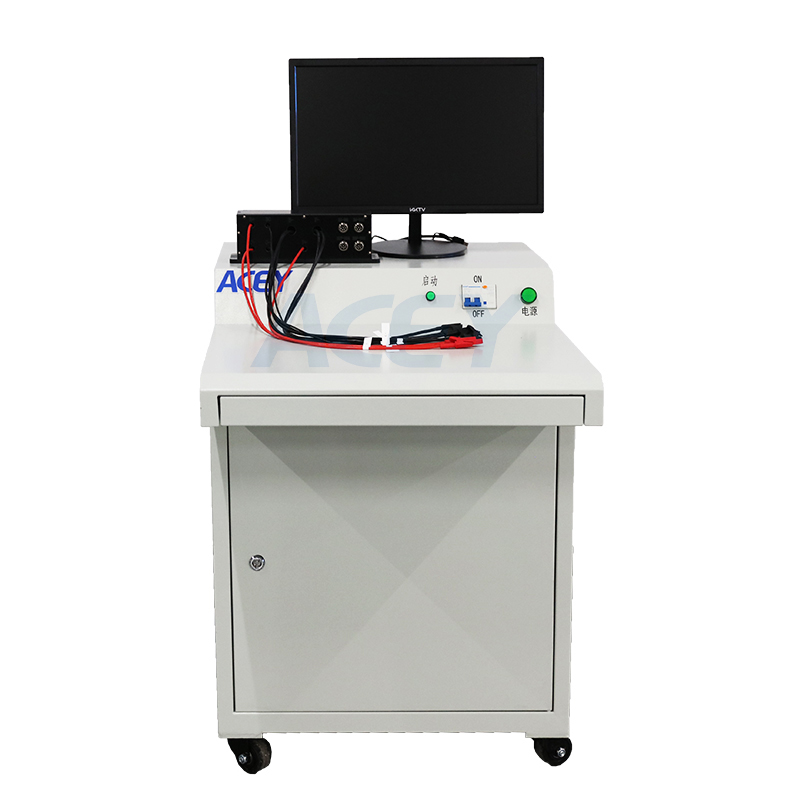

6. BMS tester

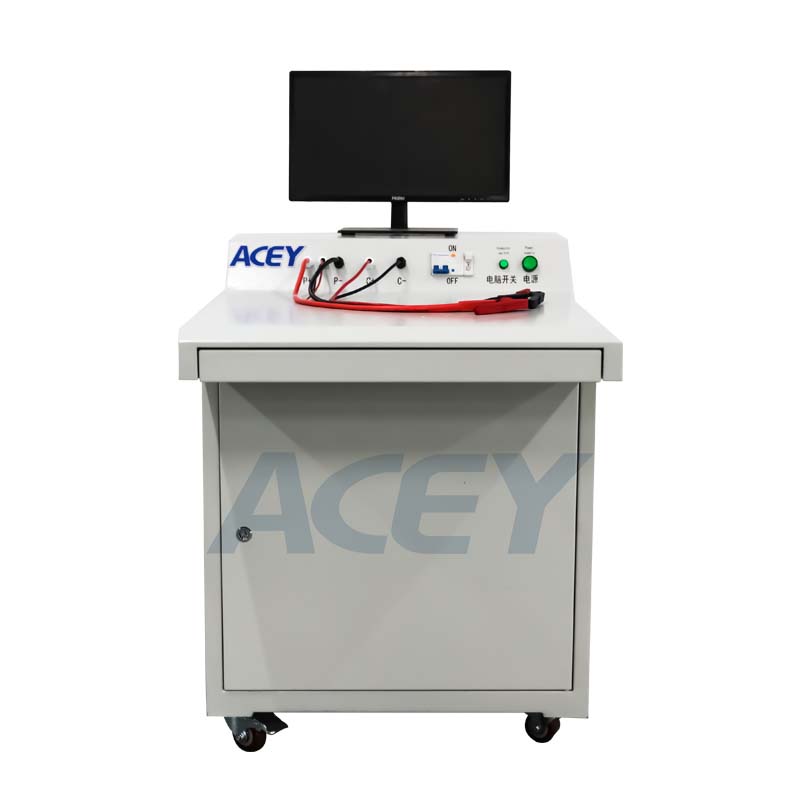

7. Battery integrated tester

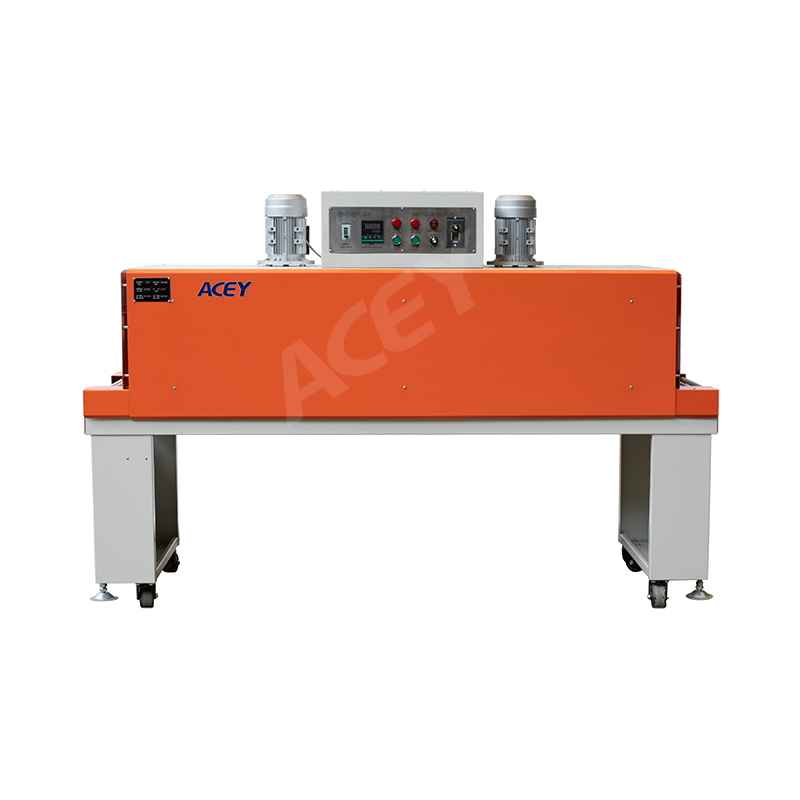

8. Heat shrink wrap machine
9. Expiry date and batch number printing machine
10. Battery pack aging machine
Lithium Ion Battery Manufacturing Machines Cylindrical Battery Pack Line
Acey New Energy can offers the whole cylindrical battery pack assemble equipments for battery laboratory research and manufacturing.
Automatic Lithium Ion Battery Insulation Paper Sticking Machine For Cylindrical Cell
ACEY-BS01 is an automatic equipment for pasting barley paper on cylindrical batteries.
Automatic 5 Channel Cylinder Batteries Sorting Machine For 18650 Battery Pack Line
ACEY-AS5S can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting.
11 Channel 18650-32700 Lithium Battery Cell Sorting Machine For Cylindrical Cell
ACEY-AS11S Battery sorter can automatically sort the batteries according to the specified requirements, and has the characteristics of rapid and accurate sorting. Auto sorting machine fundamentally avoids unreliable factors such as human misoperation and misclassification in the battery sorting process, and improves the quality and efficiency of battery sorting.
11 Channel Battery Sorting Machine For Battery Internal Resistance and VoltageTesting
This 18650 battery automatic sorting machine is used for cylindrical battery pack assembly line.
Multifunction 2 In 1 Insulation Paper Sticker And Sorting Machines For Battery Pack Assembly
The cylindrical 18650 battery automatic sticker sorting machine is a test sorting device for checking the internal resistance and voltage of the cylindrical battery after the surface mat, and comes with a high-precision internal resistance and voltage automatic test system.
Single Side Fully Automatic Electric Spot Welder For Cylindrical Battery Pack Welding
ACEY-S200B is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.
Automatic Single Side Rotary 18650 Lithium Battery Pack Spot Welding Machine
ACEY-S200C with welding head rotation function, is suitable for battery pack spot welding and assembly in the factory for 14500 / 18650 / 21700 / 26650 / 32700 multi-parallel multi-series combination.
