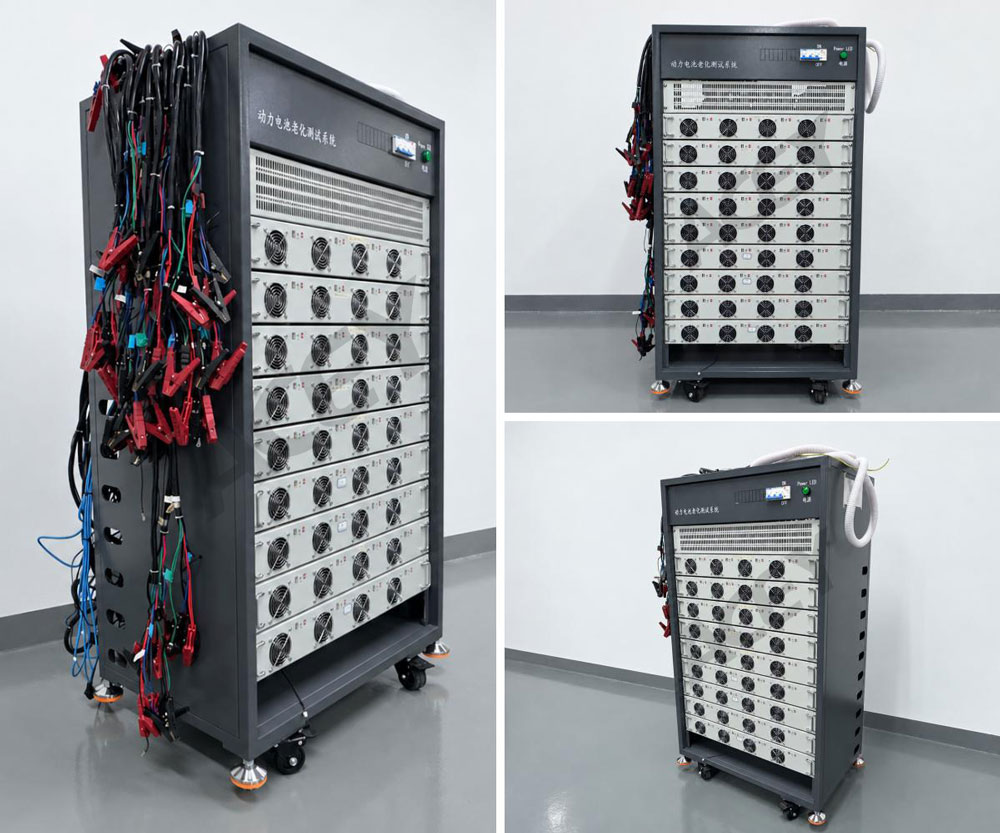

60V 30A 20-Channel Regenerative Battery Pack Aging Tester

60V 30A 20-Channel Regenerative Battery Pack Aging Tester

Product Description

ACEY-BA6030-20 Battery Pack Aging Tester is designed for charge-discharge aging, capacity verification, cycle-life testing, and performance evaluation of rechargeable battery packs.

It supports ternary lithium-ion, LiFePO₄, lead-acid, NiMH, and NiCd battery packs, including battery packs with common or separate charge and discharge ports. The system provides an adjustable 9–60V voltage range and 100mA–30A current range, making it suitable for battery packs used in vacuum cleaners, power tools, electric scooters, and other battery-powered products.

Each cabinet provides 20 fully independent test channels, allowing different charge-discharge conditions and test procedures to be programmed for individual channels.

Product Features

• 20 fully independent test channels for simultaneous battery pack testing.
• Adjustable charge and discharge voltage range from 9V to 60V.
• Charge and discharge current up to 30A per channel.
• Maximum continuous output power of 1800W per channel.
• Supports CC and CCCV charging.
• Supports constant-current and constant-power discharge.
• Programmable charge, discharge, rest, cycle, and stop steps.
• Supports multi-level nested cycle programs with up to 9,999 cycles.
• Soft-start current output helps prevent current surges during test startup.
• Smooth CC-to-CV transition without current spikes.
• Independent channel programming allows different batteries to run different test conditions.
• Supports power-failure data protection and automatic test continuation.
• Provides voltage, current, capacity, energy, power, and efficiency data.
• Test results and curves can be exported to Excel.
• Multiple software and hardware protections improve test safety.
• Four-wire connection separates voltage sensing from current transmission.
• Modular cabinet design simplifies maintenance and system expansion.

The specification also confirms independent programmable channels, abnormal-condition detection, log tracking, curve analysis, soft-start operation, and seamless CCCV charging.

Applications

• Power Tool Battery Packs
• Vacuum Cleaner Battery Packs
• Electric Scooter Battery Packs
• Cylindrical Lithium Battery Modules
• Battery Pack Production Testing

Main Technical Parameters

Test Functions

ACEY-BA6030-20 Battery Pack Aging Tester can be used for:

*Battery Pack Cycle Life Testing
Evaluates battery performance over repeated charge-discharge cycles.

*Battery Pack Capacity Testing
Measures charge and discharge capacity for finished battery pack verification.

*Charge and Discharge Characteristic Testing
Records voltage, current, capacity, energy, and other parameters during charging and discharging.

*Temperature Characteristic Testing
Supports battery temperature monitoring during the test process.

Applications

Suitable applications include:

• Power Tool Battery Packs
• Vacuum Cleaner Battery Packs
• Electric Scooter Battery Packs
• Cylindrical Lithium Battery Packs
• Battery Module Production Testing

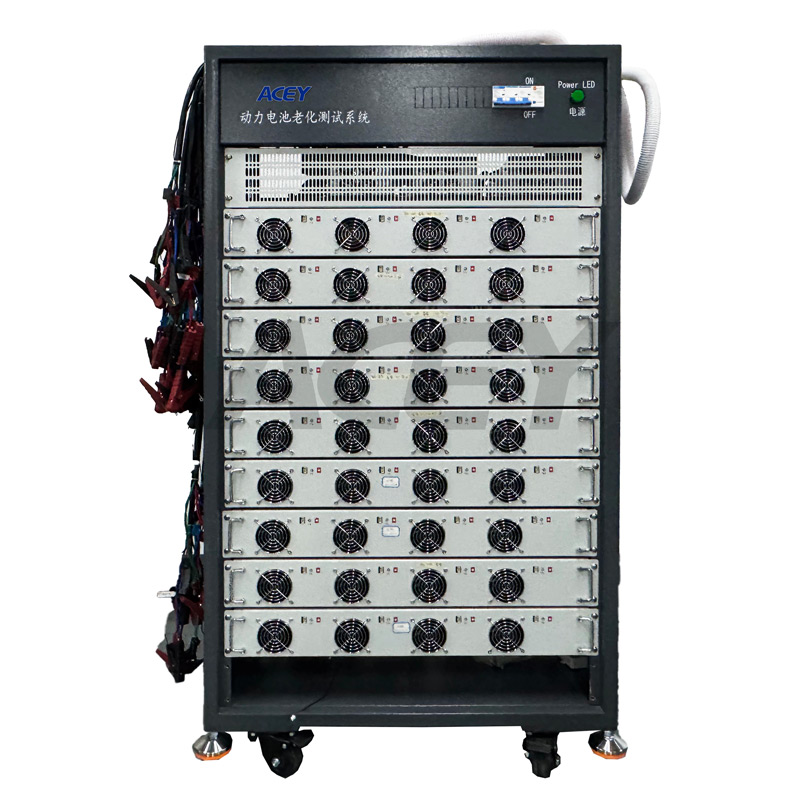

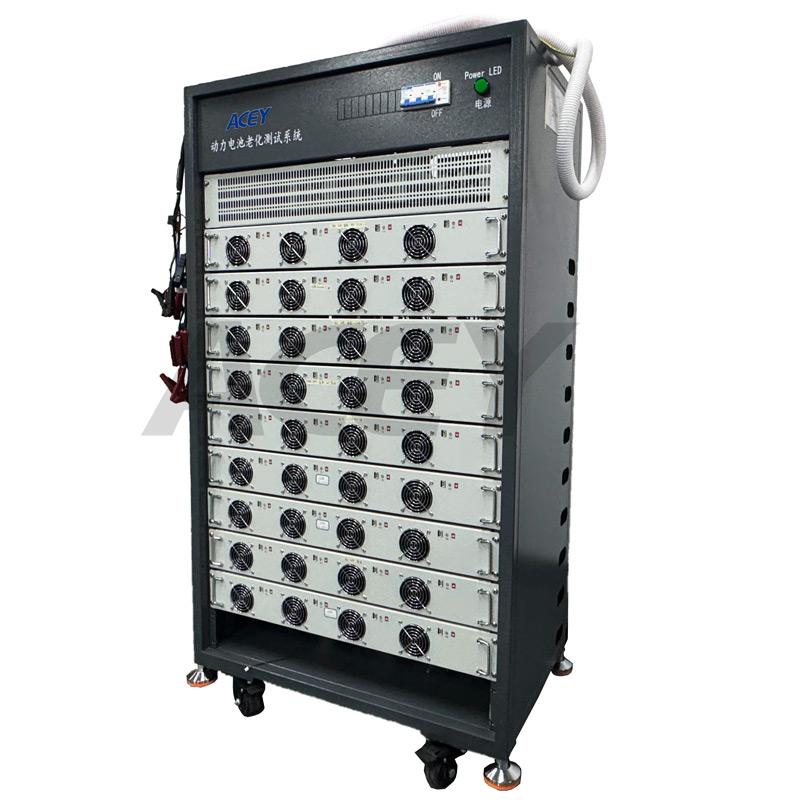

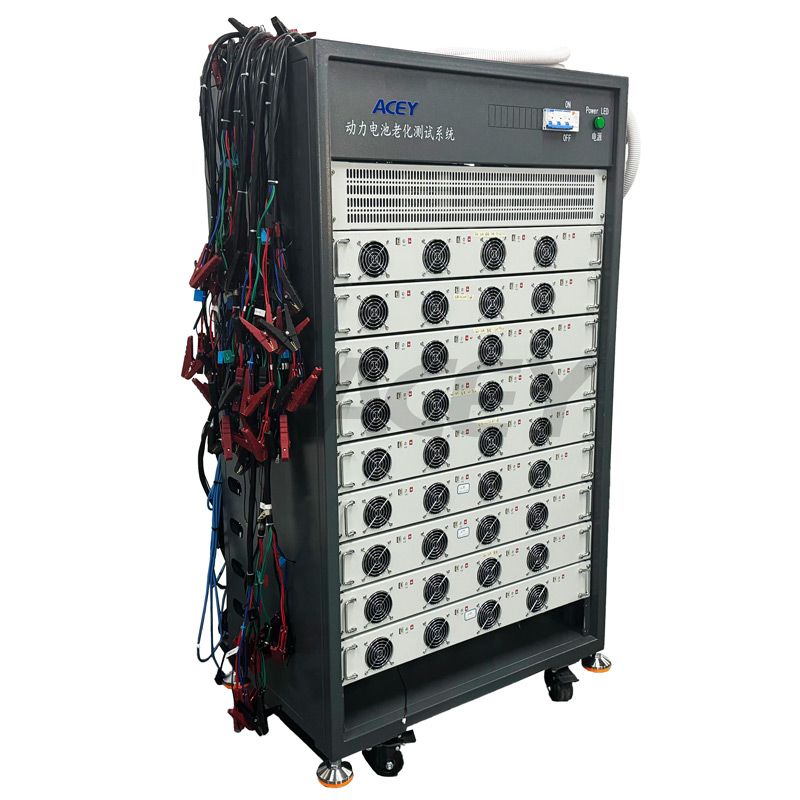

Product Display

FAQ

*What battery packs can the ACEY-BA6030-20 Battery Pack Aging Tester test?
ACEY-BA6030-20 Battery Pack Aging Tester supports ternary lithium-ion, LiFePO₄, lead-acid, NiMH, and NiCd battery packs within its 9–60V and 100mA–30A operating range.

*How many independent channels does the ACEY-BA6030-20 Battery Pack Aging Tester have?
ACEY-BA6030-20 Battery Pack Aging Tester provides 20 fully independent channels, allowing each channel to run separately programmed charge and discharge conditions.

*What charge and discharge modes does the ACEY-BA6030-20 Battery Pack Aging Tester support?
ACEY-BA6030-20 Battery Pack Aging Tester supports CC and CCCV charging, as well as constant-current and constant-power discharging.

*Can the ACEY-BA6030-20 Battery Pack Aging Tester perform cycle-life testing?
Yes. The system supports programmable multi-step and nested cycle testing, with a maximum setting of 9,999 cycles.
