10000A Transistor Automatic Double Sided Spot Welding Machine For Battery Pack

10000A Transistor Automatic Double Sided Spot Welding Machine For Battery Pack

Product Description

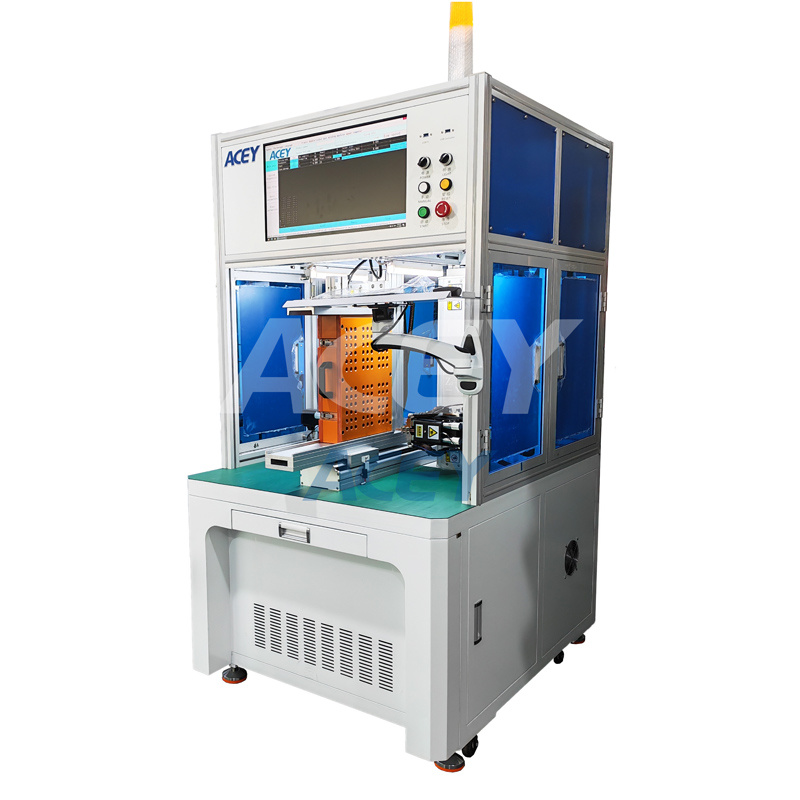

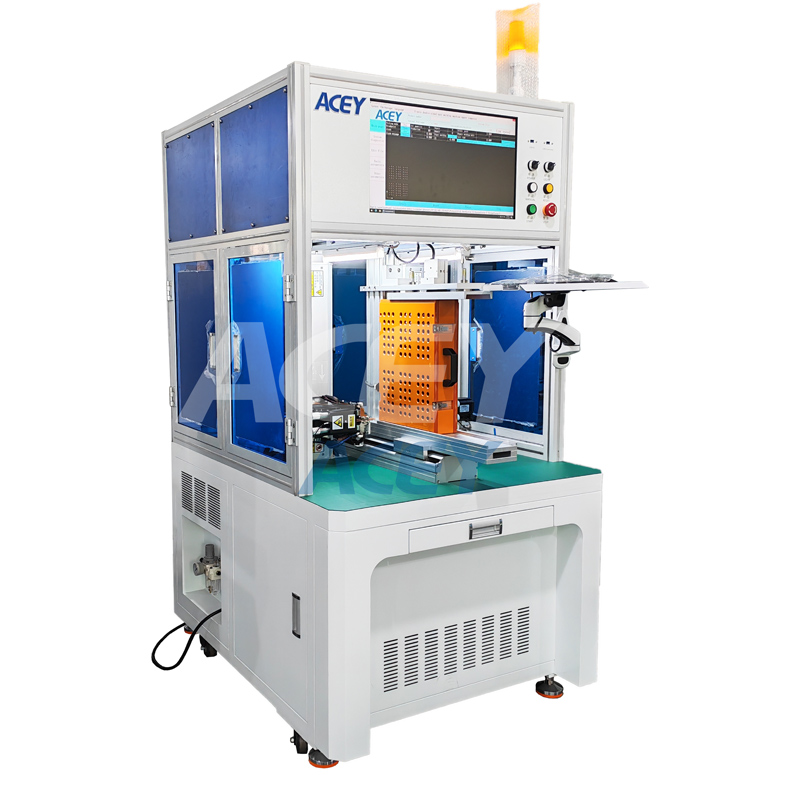

ACEY-D300B automatic battery spot welding machine is suitable for double-sided spot welding and assembly of multiple parallel and series combinations of cylindrical lithium batteries such as 14500/18650/21700/26650/32700/33140. It can be used in power tool batteries, torque-driven automotive batteries, energy storage battery packs, and electric scooter batteries. Compared with manual spot welding, welding efficiency and precision are significantly improved, and operation and debugging are simple and quick.

Features

• 21.5-inch high-definition large screen for easier operation and clearer display.
• Three file programming modes: manual input, array, and CAD drawing import, easily and quickly handling various complex program editing tasks.
• Welding head with air or water cooling function, effectively reducing the impact of welding needle temperature on welding quality.
• Can store up to 999 sets of files; file retrieval is simple, eliminating the need for complex line changeover and machine adjustment processes.
• One-click calibration function for overall weld point offset, capable of calibrating point offsets caused by welding needle changes or other reasons.
• Higher spot welding efficiency, welding speed per point ≤0.35S (speed varies depending on the selected welding machine), servo head can reach... 2500 cells/hour (servo welding head).
• Core components are imported from Japan and Taiwan, resulting in more than double the precision, stability, and lifespan of machines using domestically produced components.
• Automatic welding alarm and stop function; welding can resume after fault clearing.
• Built-in power-off or breakpoint resume function; welding position can be manually adjusted arbitrarily.

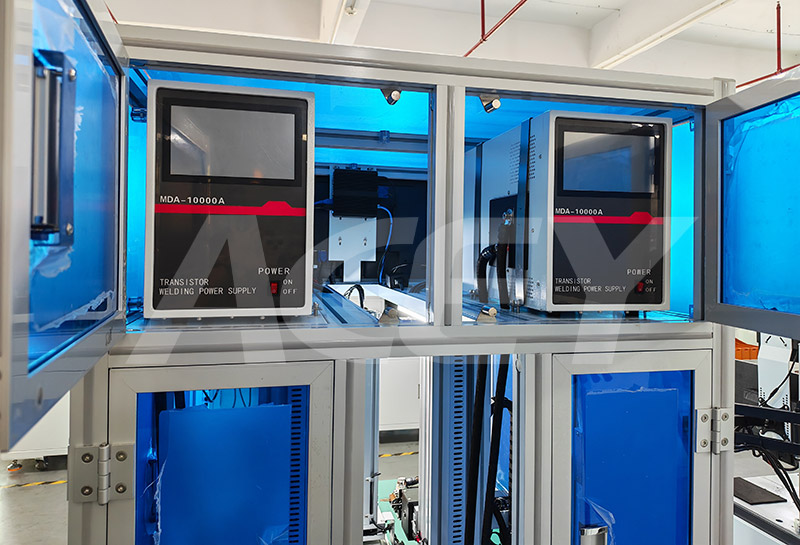

• Optional welding machine; different welding machines can be selected according to different customer requirements to effectively meet customer needs.
• Real-time automatic compensation for welding needle length, reducing welding needle adjustment time (servo welding head).

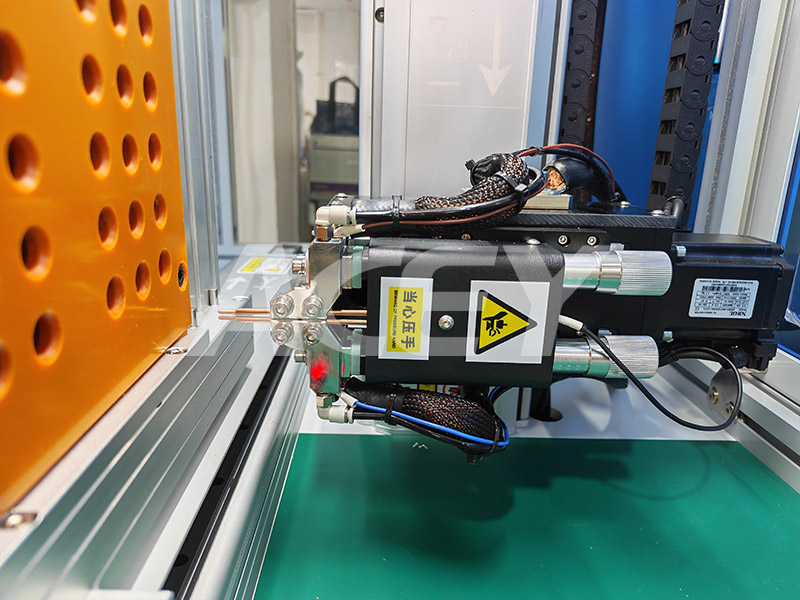

• Servo electric welding head, higher stability, faster speed, flexible pressure to prevent battery damage (servo welding head).

Product Specification

Equipment Parameter

• Power supply: Single phase ~220V±10%/50Hz±10%;
• Air pressure: 0.3～0.4Mpa
• Weight: 200 KG;
• Dimensions: 1150mm (L) * 900mm (W) * 1850mm (H);

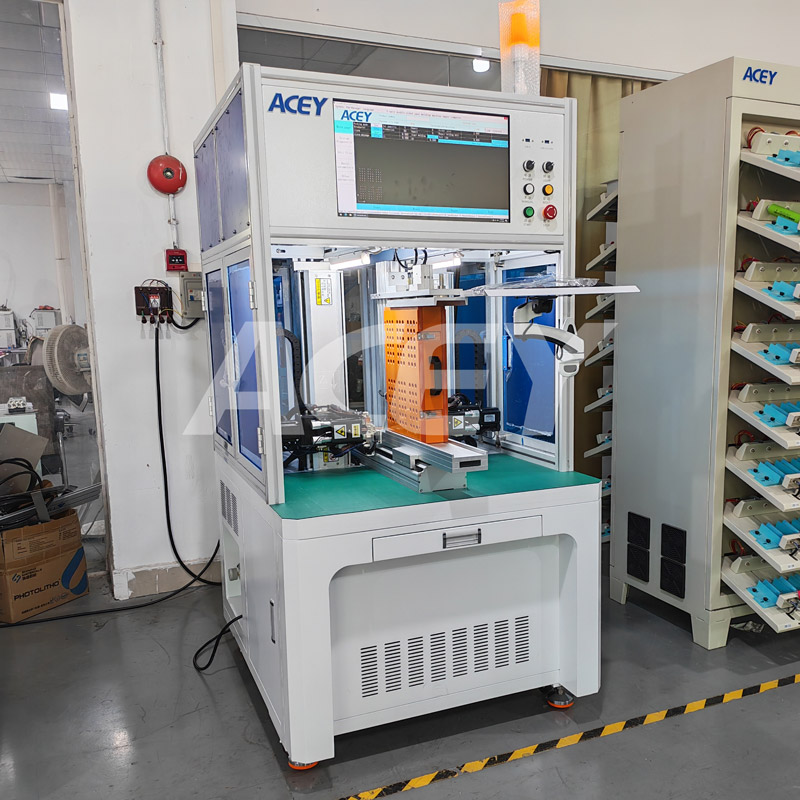

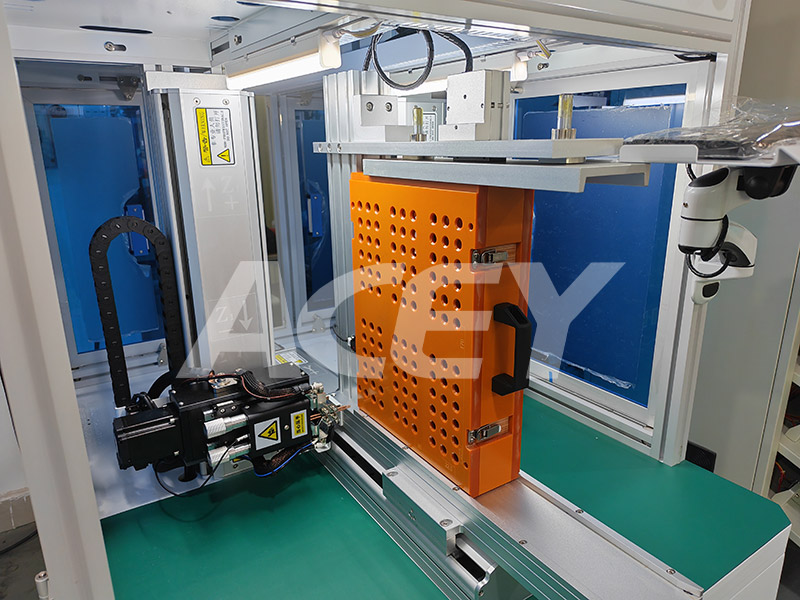

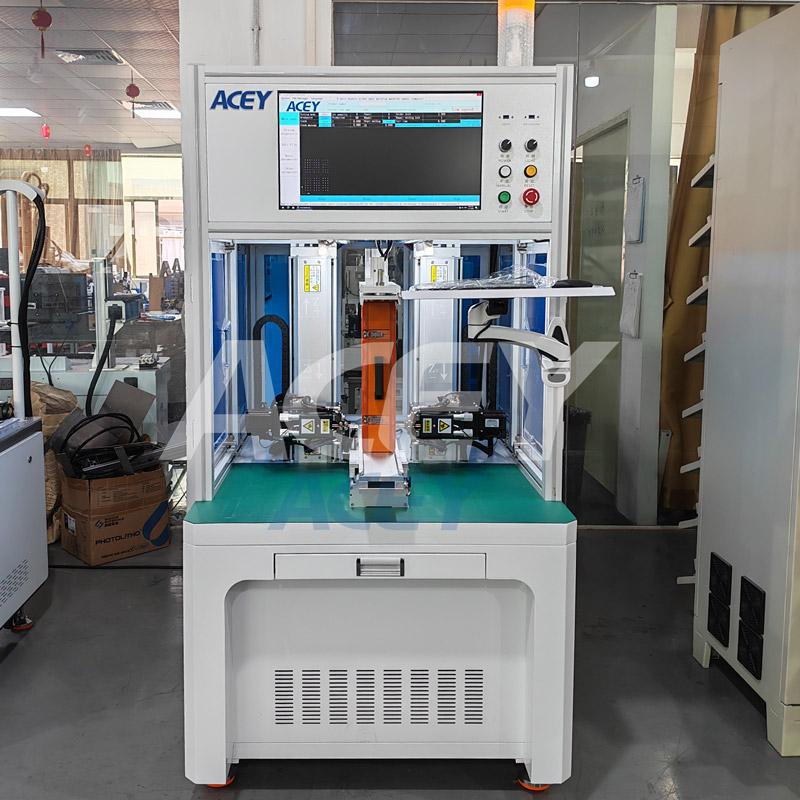

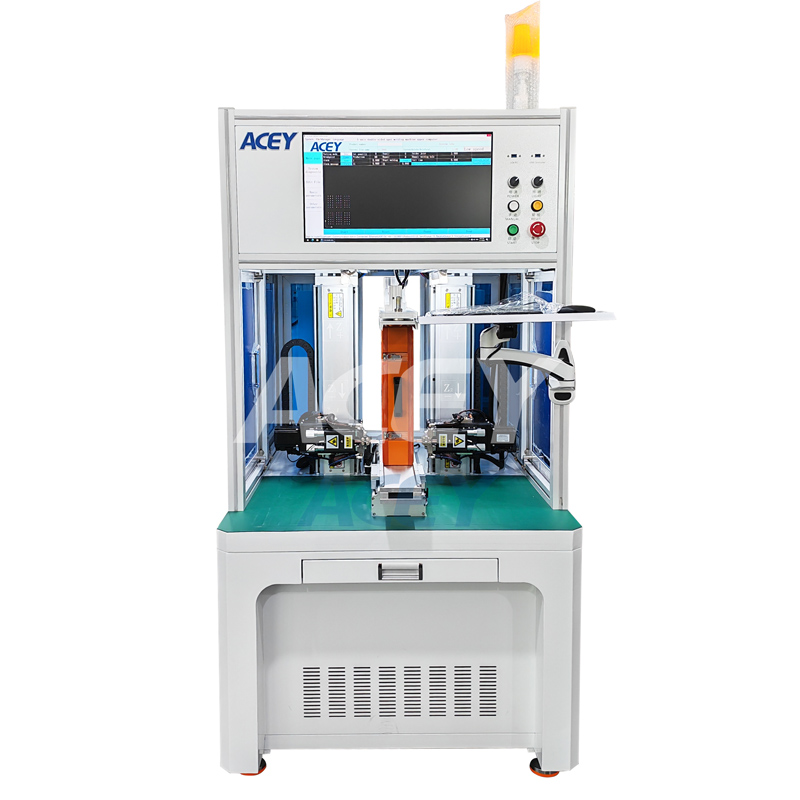

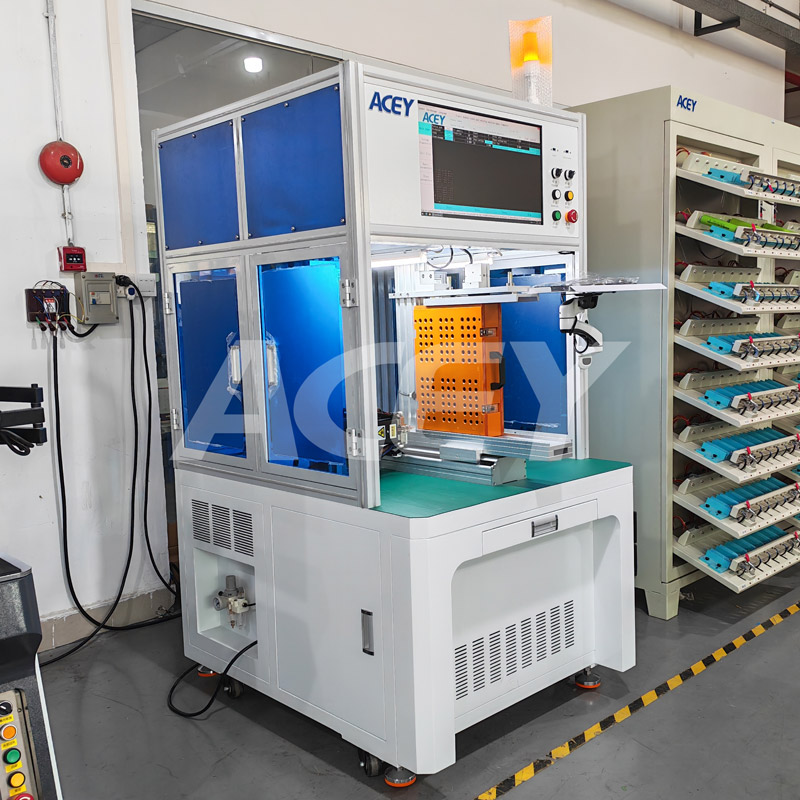

Product Details
