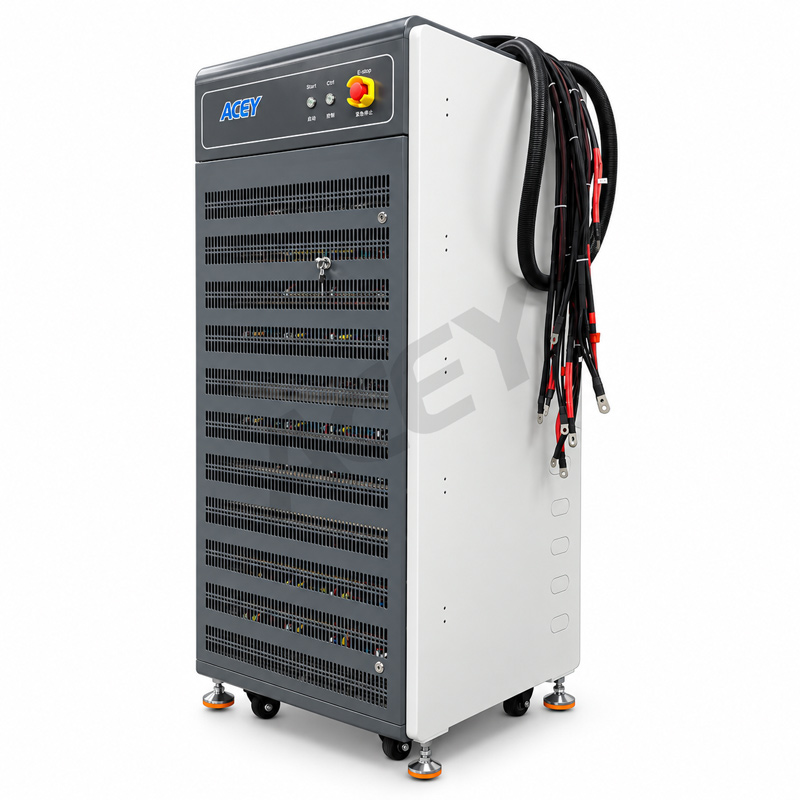

ACEY-BA10050-24 Battery Charge Discharge Aging Machine is a 24-channel battery charge and discharge aging system with a charging voltage range of 0–100V and a maximum charge/discharge current of 50A. It supports battery pack aging, capacity testing, cycle testing and charge/discharge performance evaluation.
Brand:
ACEYItem No.:
ACEY-BA10050-24Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 SetPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days100V 50A 24-Channel Battery Charge Discharge Aging Machine
Product Description
ACEY-BA10050-24 Battery Charge Discharge Aging Machine is designed for programmable battery pack charge/discharge aging, capacity testing and cycle performance evaluation. It provides 24 completely independent test channels, allowing each channel to operate according to separately programmed test conditions.
The system supports a 0–100V charging voltage range, 10–100V discharging voltage range, and adjustable charging and discharging current from 100mA to 50A. It can be used for ternary lithium, lithium iron phosphate, lead-acid, nickel-metal hydride and nickel-cadmium battery packs, and supports both common-port and separate charge/discharge port battery configurations.
ACEY-BA10050-24 Lithium Battery Pack Aging Machine supports constant-current charging, constant-current/constant-voltage charging, constant-current discharging, resting, stopping and programmable cycle testing. Test data can be monitored and recorded for battery capacity, charge/discharge characteristics and other performance parameters.
Product Features
Technical Parameters
| Parameter | Specification |
| Model | ACEY-BA10050-24 Lithium Battery Pack Aging Machine |
| Channels | 24 |
| Channel Operation | Completely independent |
| Charging Mode | Constant Current; Constant Current/Constant Voltage |
| Discharge Mode | Constant Current Discharge |
| Rest / Stop | Supported |
| Charging Voltage Range | 0–100V |
| Discharging Voltage Range | 10–100V |
| Charge Current | 100mA–50A |
| Discharge Current | 100mA–50A |
| Voltage Accuracy | ±(0.05%RD + 0.05%FS) |
| Current Accuracy | ±(0.05%RD + 0.05%FS) |
| Voltage Resolution | 1mV |
| Current Resolution | 1mA |
| Max. Continuous Power | 5000W per channel |
| Maximum Cycle Times | 9999 |
| Work Step Time Unit | h / min / s |
| Minimum Data Logging Interval | 5s |
| Output Connection | Four-wire connection with separate current and voltage lines |
| Battery Connection | Alligator Clamp |
| Power Supply | 380V, three-phase four-wire |
| Working Temperature | -10°C to 40°C |
| Working Humidity | 10%–90% |
Applications
ACEY-BA10050-24 Battery Charge Discharge Aging Machine can be used for:
It is applicable to ternary lithium, LiFePO4, lead-acid, NiMH and NiCd battery packs.

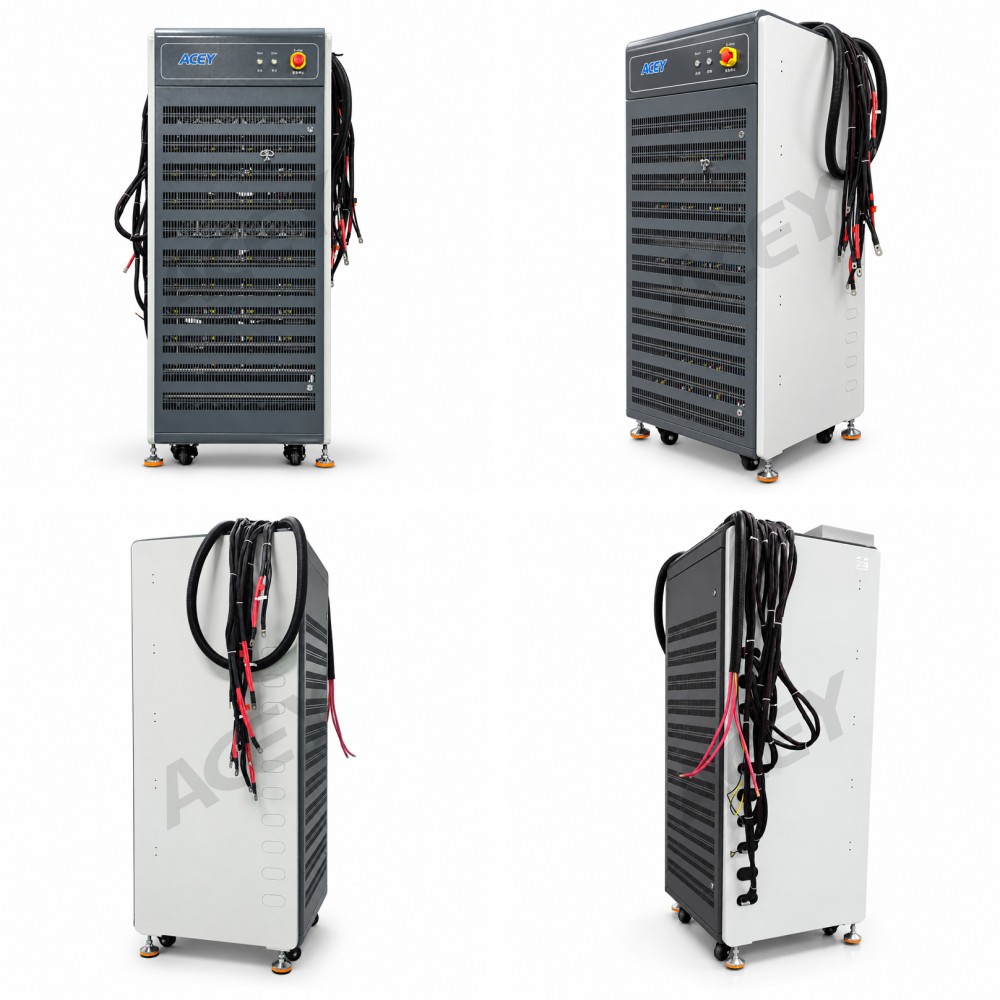

Product Display
FAQ
What batteries can the ACEY-BA10050-24 Battery Charge Discharge Aging Machine test?
ACEY-BA10050-24 Battery Charge Discharge Aging Machine is suitable for ternary lithium, LiFePO4, lead-acid, NiMH and NiCd battery packs. It supports both common-port and separate charge/discharge port battery configurations.
What is the testing range of the ACEY-BA10050-24 Battery Charge Discharge Aging Machine?
ACEY-BA10050-24 Battery Charge Discharge Aging Machine supports 0–100V charging, 10–100V discharging, and adjustable charge/discharge current from 100mA to 50A.
What is the maximum output power of the ACEY-BA10050-24 Battery Charge Discharge Aging Machine?
ACEY-BA10050-24 Battery Charge Discharge Aging Machine supports a maximum continuous operating power of 5000W per channel.
