100V 20A 24-Channel Lithium Battery Pack Aging Machine

100V 20A 24-Channel Lithium Battery Pack Aging Machine

Product Description

ACEY-BA10020-24 Lithium Battery Pack Aging Machine is designed for batch aging, charge/discharge cycling and capacity testing of rechargeable battery packs and modules.

With 24 independently controlled test channels, the system allows multiple battery packs to be tested simultaneously while maintaining separate charge/discharge programs and test records for each channel. The charge and discharge voltage range is 10–100V, with adjustable current from 100mA to 20A and a maximum continuous output power of 2000W per channel.

Users can program constant-current charging, CC-CV charging, constant-current discharging, resting and cycling according to different aging requirements. Multi-layer cycle nesting and up to 9999 cycles are supported for repeated battery aging and cycle testing.

The system also records voltage, current, capacity, energy and other test data throughout the aging process. Test results can be displayed as cycle, process and detailed data, and exported to Excel or chart files for further analysis.

Product Features

• 24 independent test channels support simultaneous batch aging with separate test programs for each battery pack.
• Supports 10–100V charge and discharge voltage with programmable current from 100mA to 20A.
• Maximum continuous output power reaches 2000W per channel.
• Voltage and current accuracy reaches ±(0.05%RD + 0.05%FS) with 1mV voltage resolution and 1mA current resolution.
• Supports CC charging, CC-CV charging, constant-current discharging, resting, stopping and programmable cycle testing.
• Soft-start current control and smooth CC-to-CV transition help reduce current surges during charge and discharge operation.
• Supports customized work-step programming and multi-layer cycle nesting for different aging procedures.
• Power-down data protection and test recovery allow interrupted programs to continue after power or communication recovery.
• Real-time abnormal voltage and current monitoring can trigger alarms and suspend the affected test channel.
• Test logs record normal processes and abnormal events for aging data traceability.
• Centralized PC control supports network management, remote monitoring and MES data upload.
• Modular power-unit design simplifies equipment maintenance and component replacement.

Technical Parameters

Applications

ACEY-BA10020-24 battery pack test equipment can be used for:

• Lithium-ion battery pack batch aging
• LiFePO4 battery pack aging and cycle testing
• Ternary lithium battery pack testing
• Battery pack capacity verification
• Battery module production testing
• Battery charge/discharge characteristic testing
• EV and HEV battery module testing
• Battery factory aging and performance testing

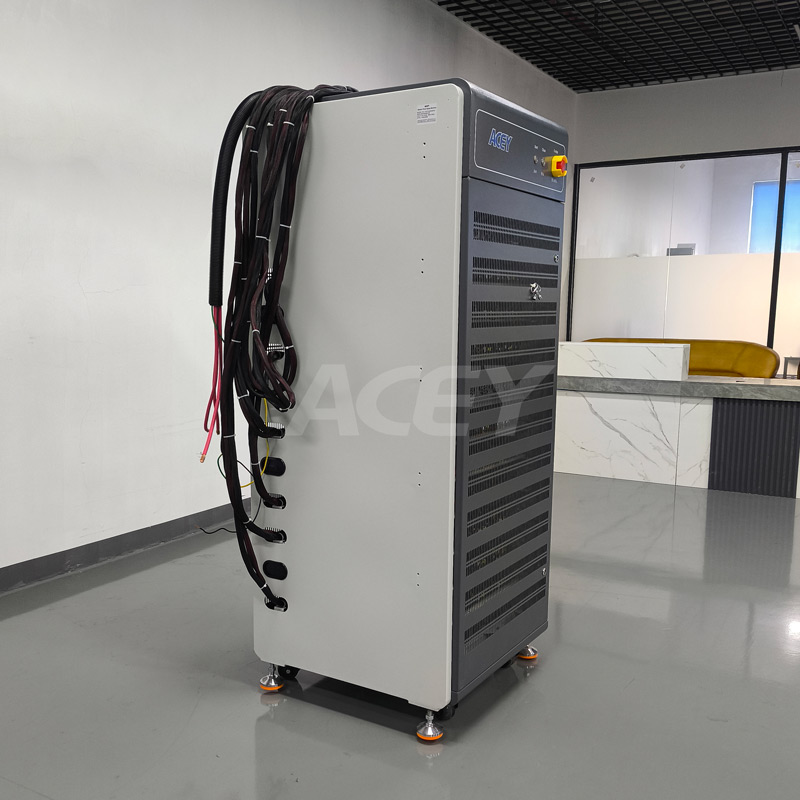

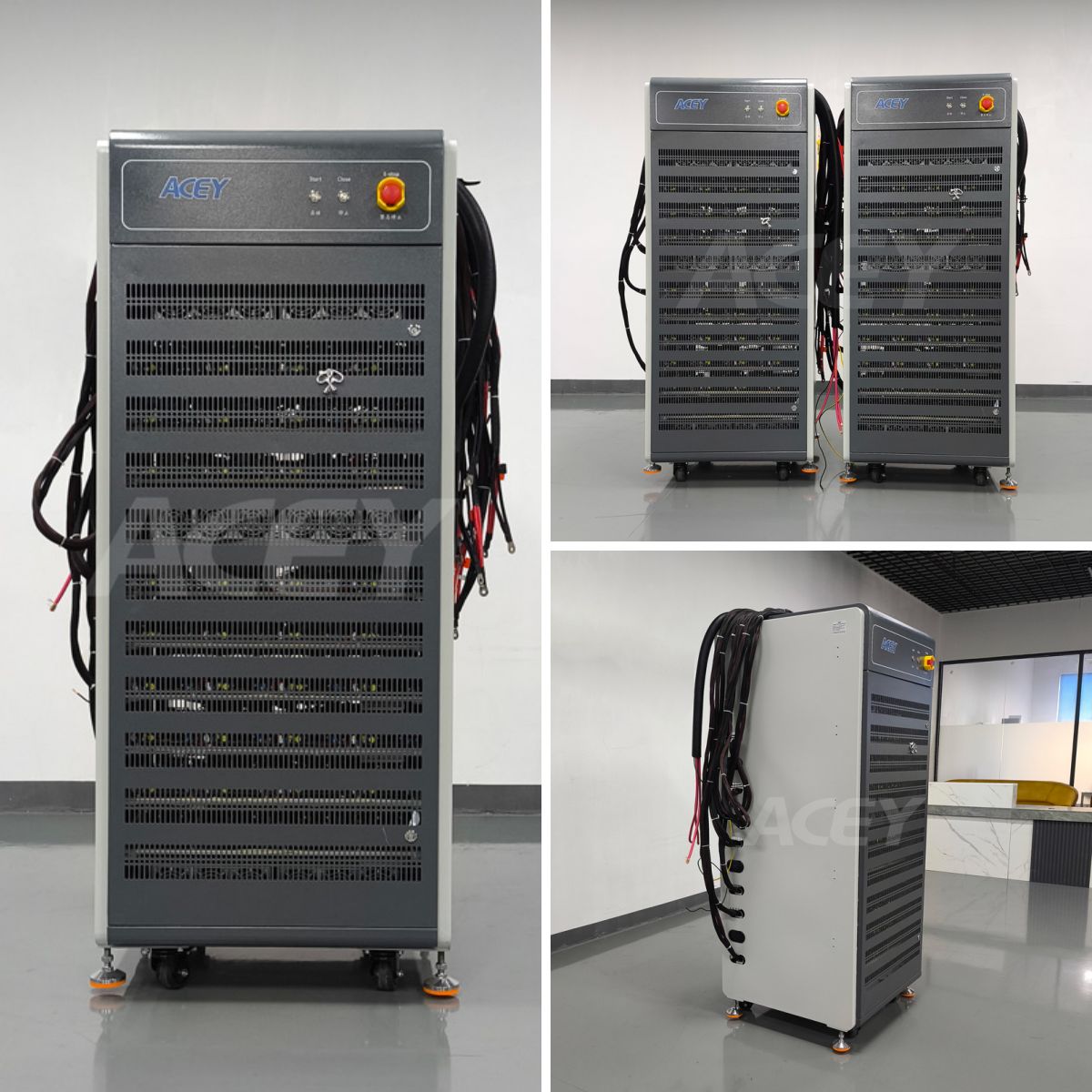

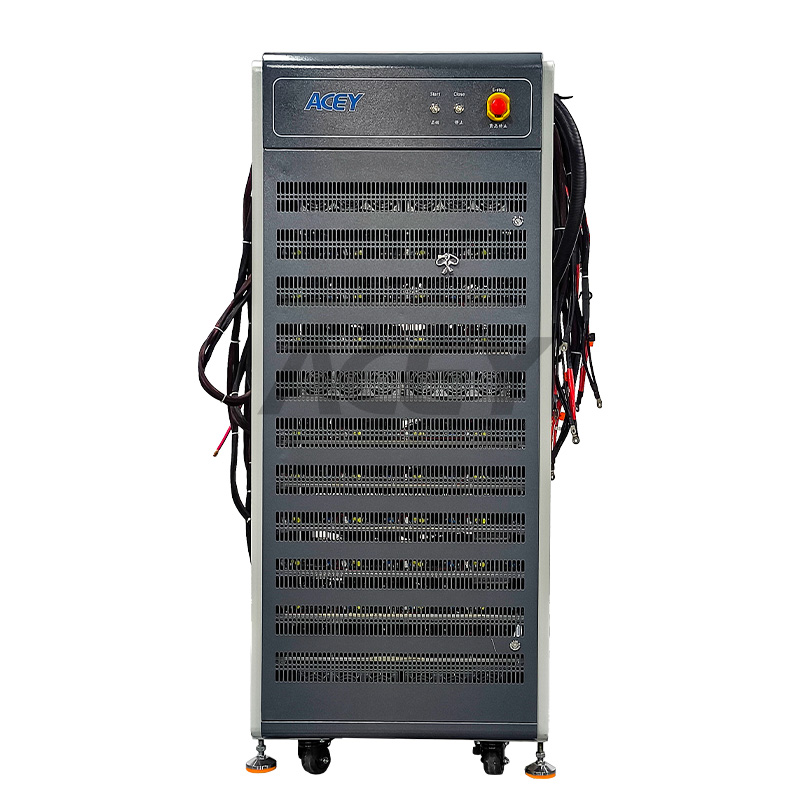

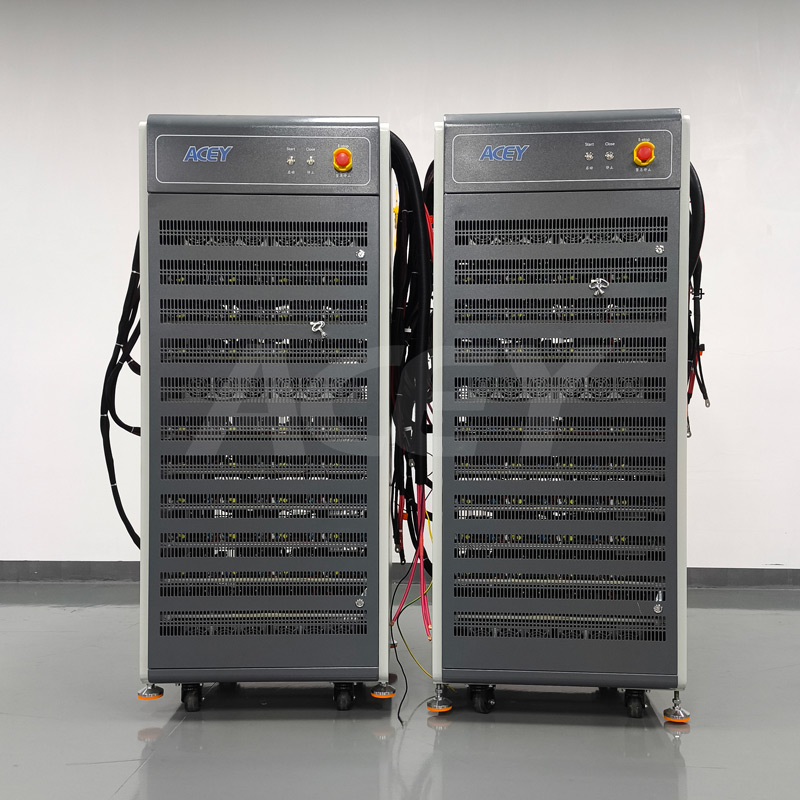

Product Display

FAQ
*What is the ACEY-BA10020-24 lithium battery pack aging machine used for?
ACEY-BA10020-24 Lithium Battery Pack Aging Machine is used for battery pack aging, charge/discharge cycling, capacity testing and performance evaluation in battery production and testing processes.

*Does the ACEY-BA10020-24 lithium battery pack tester support automatic cycle aging?
Yes. Charge, discharge and rest steps can be combined into programmable cycle procedures. The system supports multi-layer cycle nesting and up to 9999 cycles.

*Can aging test data be exported?
Yes. Test data can be exported to Excel and chart files, including charge/discharge capacity, efficiency, energy, voltage, current and other test parameters.
