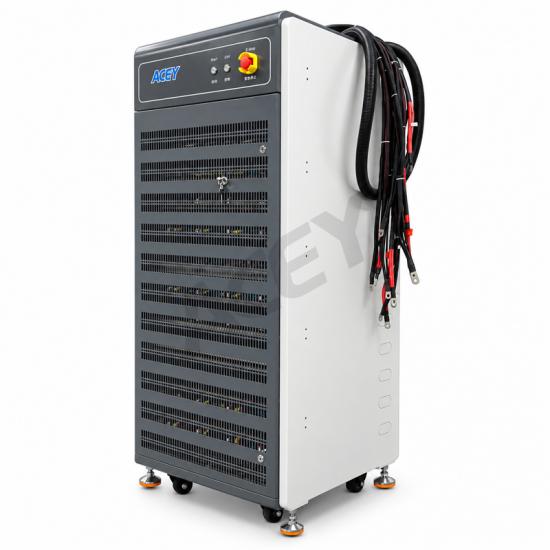

ACEY-BA10060-16 Battery Pack Life Cycle Tester is a 16-channel 100V 60A charge/discharge testing system designed for battery pack cycle life, capacity, aging and performance testing. Each channel operates independently with programmable charge, discharge, rest and cycle test steps.
Brand:
ACEYItem No.:
ACEY-BA10060-16Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 SetPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days100V 60A 16-Channel Battery Pack Life Cycle Tester
Product Description
ACEY-BA10060-16 Battery Pack Life Cycle Tester is designed for long-term charge/discharge cycling and performance evaluation of rechargeable battery packs. It provides 16 completely independent test channels, allowing individual test programs and operating conditions to be configured for each channel.
With a voltage range of 0–100V and adjustable charge/discharge current from 100mA to 60A, the system supports cycle life testing, capacity measurement, charge/discharge characteristic analysis and temperature characteristic testing.
ACEY-BA10060-16 Battery Pack Life Cycle Tester can be used with ternary lithium, LiFePO4, lead-acid, NiMH and NiCd battery packs. The specification identifies it for common-port battery packs, as well as battery testing applications involving power tools, vacuum cleaners, scooters and energy storage systems.
Product Features
*16 Independent Test Channels
Technical Parameters
| Parameter | Specification |
| Model | ACEY-BA10060-16 Battery Pack Life Cycle Tester |
| Number of Channels | 16 |
| Channel Operation | Completely Independent |
| Charging Mode | CC / CCCV |
| Discharging Mode | Constant Current / Constant Power |
| Charging Voltage Range | 0–100V |
| Discharging Voltage Range | 10–100V |
| Charge Current Range | 100mA–60A |
| Discharge Current Range | 100mA–60A |
| Voltage Accuracy | ±(0.1%RD + 0.1%FS) |
| Current Accuracy | ±(0.1%RD + 0.1%FS) |
| Voltage Resolution | 1mV |
| Current Resolution | 1mA |
| Max. Continuous Power | 6000W per channel |
| Maximum Cycle Times | 9999 |
| Work Step Time Unit | h / min / s |
| Minimum Data Upload Interval | 5s |
| Output Connection | Four-wire connection |
| Battery Connection | Alligator Clamp |
| Operating Mode | Continuous |
| Working Temperature | -10°C to 45°C |
| Working Humidity | 10%–90% |
Applications
ACEY-BA10060-16 Battery Pack Life Cycle Tester is suitable for:
Product Display
FAQ
What is the ACEY-BA10060-16 Battery Pack Life Cycle Tester used for?
ACEY-BA10060-16 Battery Pack Life Cycle Tester is used for battery pack cycle life, capacity, aging and charge/discharge performance testing through programmable charging and discharging cycles.
What is the test range of the ACEY-BA10060-16 Battery Pack Life Cycle Tester?
ACEY-BA10060-16 Battery Pack Life Cycle Tester supports a charge/discharge voltage range of 0–100V and an adjustable current range of 100mA–60A.
Can the ACEY-BA10060-16 Battery Pack Life Cycle Tester export test data?
Yes. Test results can be exported to Excel and chart files, including voltage, current, capacity, energy, efficiency and cycle-related data.
