100V 30A Charge 300A Discharge Battery Comprehensive Tester

100V/120V 10A/30A/50A/60A/100A Charge 120A/200A/300A/500A Discharge Lithium Battery Comprehensive Tester

Description

Lithium battery comprehensive tester can be used to test battery open circuit voltage, battery AC internal resistance, continuous charging current, continuous charging voltage, continuous discharging current, continuous discharging voltage, charging overcurrent protection current, discharging overcurrent protection current, short circuit protection time, overcurrent delay time, post-test voltage.

Testing items
*Voltage: No-load voltage and Short circuit protection voltage after the test is completed, Range:0-100V.
*Internal Resistance: ACIR1000hz, Range:0-4000mΩ
*Charging overcurrent protection current , Range:0-30A.
*Continuous charging current, Range:0-30A.
*Continuous charging voltage monitoring, Range:0-100V.
*Discharge overcurrent protection current and delay time, current range:0-300A, overcurrent maximum power 30KW.
*Overcurrent test mode: (1) Step test (2) quick test.
*Continuous discharge current, Range:0-300A
*Continuous discharge voltage judgment, Range: 0-100V
*Short circuit protection time：≤1000μS, Max short circuit current about 5000A
*Single cell voltage monitoring
*Appreciation of charge and discharge voltage: During the working test, if the power supply is cut off and the MOS tube of the protection board is turned off, no inrush current will be generated, and the protection board of the lithium battery pack will not be damaged.
*Support MES system
*Database: The software comes with a database, which can generate excel tables.
*Step-by-step mode: the test sequence can be adjusted automatically.
*Support chassis expansion.

Technical Parameters
*Voltage range: 0-100V  Resolution:1mV  Accuracy: 0.1%RD+0.1FS
*Internal resistance: 0-2000mΩ  Resolution:0.001mΩ  Accuracy: 0.1%RD+0.1FS
*Charge current: 0-30A  Resolution: 0.001A  Accuracy: 0.1%RD+0.1FS
*Discharge current 0-300A at the highest voltage, continued discharge current 300A,
Resolution: 0.001A  Accuracy: 0.1%RD+0.1FS
*Overcurrent delay time: 0-30S  Resolution: 1mS  Accuracy: 0.1%RD+0.1FS
*Short circuit time: 0-2000μS  Resolution: 1μS  Accuracy: 0.1%RD+0.1FS
*NTC range: 0-100K 0.001K
*R1 range: 0-100K 0.001K
*Power supply: AC 200V-240V
*Maximum working power for charging:5000W (When charging with maximum current)
*Maximum working power for discharging:30KW (When discharging with maximum current)
*Surge voltage:＜15V
Equipment requirements:
*Equipment operating environment: ventilated and dry plant.
*Working environment: temperature -10℃～40℃/humidity: 10%～90%
*Equipment operation mode: upper computer control, manual test.
*The equipment comes with NG alarm device (buzzer)

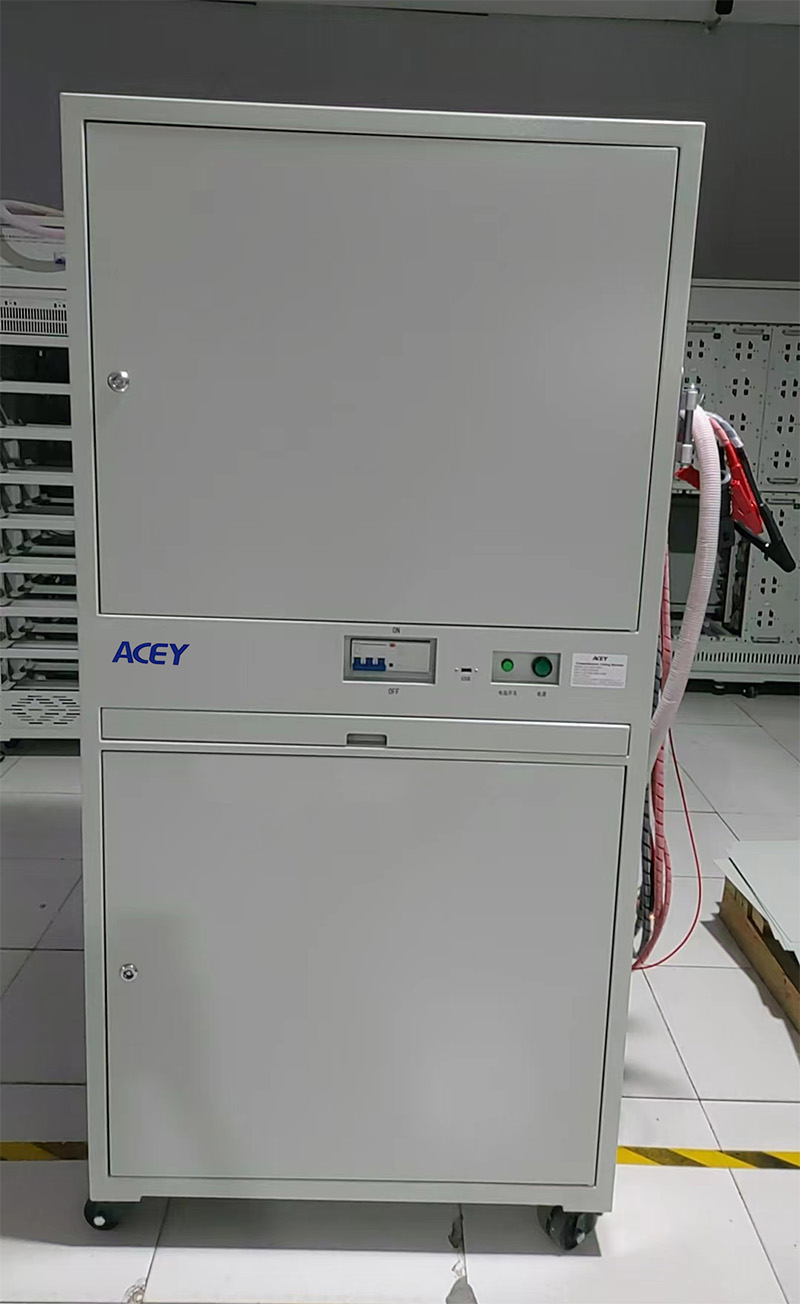

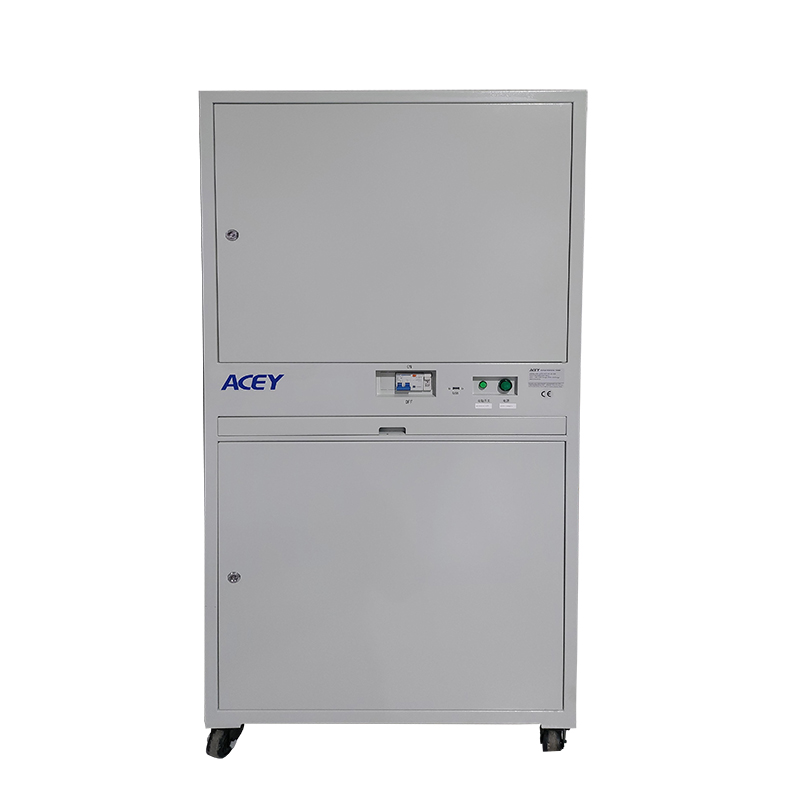

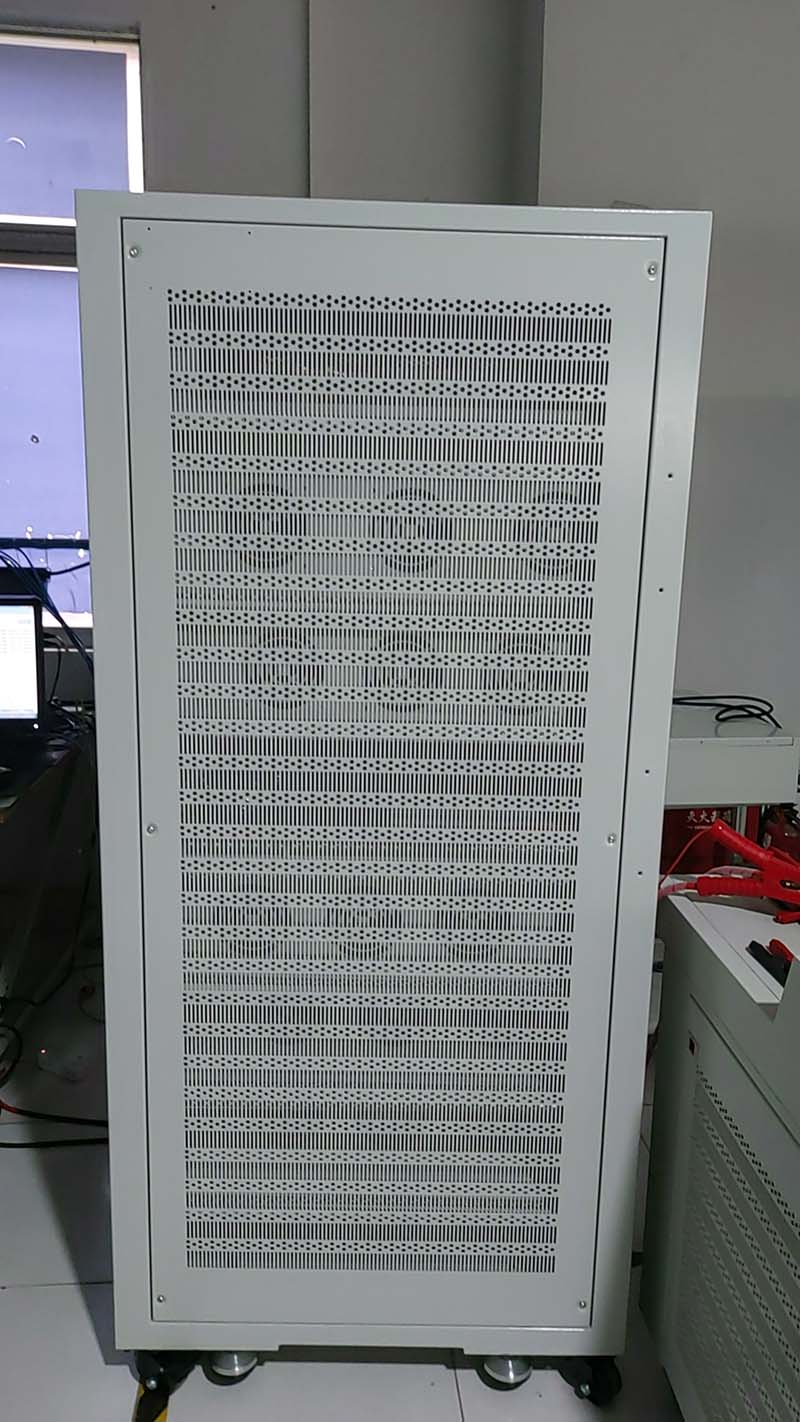

Product Details
