ACEY-BIT120-50A200A lithium battery pack multifunction comprehensive tester is used to measure the open circuit voltage, internal resistance, charge, discharge, overcurrent protection, short circuit protection and other functions of the battery. It can easily detect bad batteries and increased production efficiency.
Brand:
ACEYItem No.:
ACEY-BIT120-50A200ACompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7days

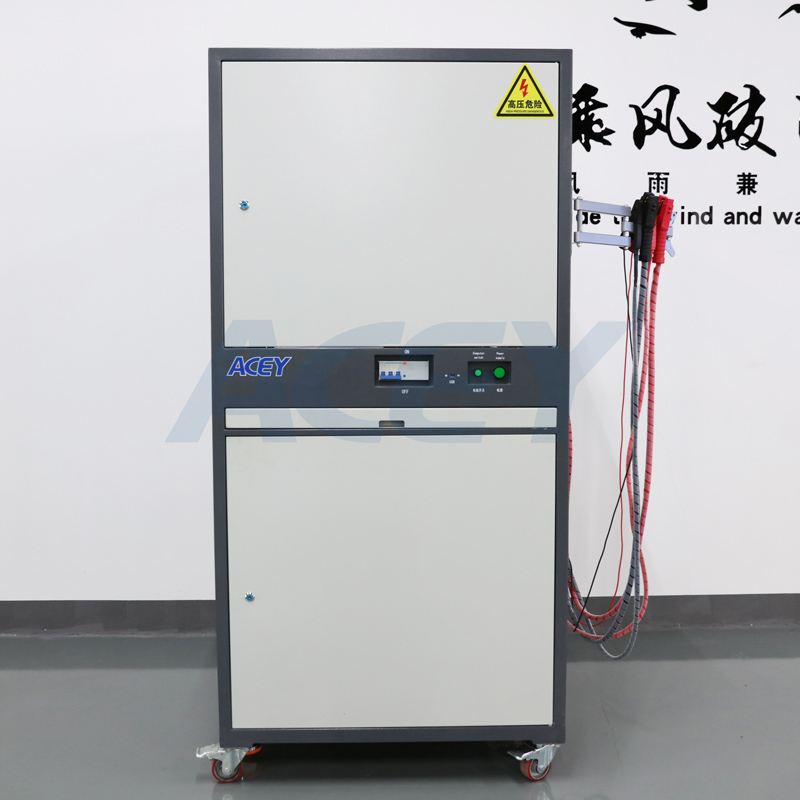

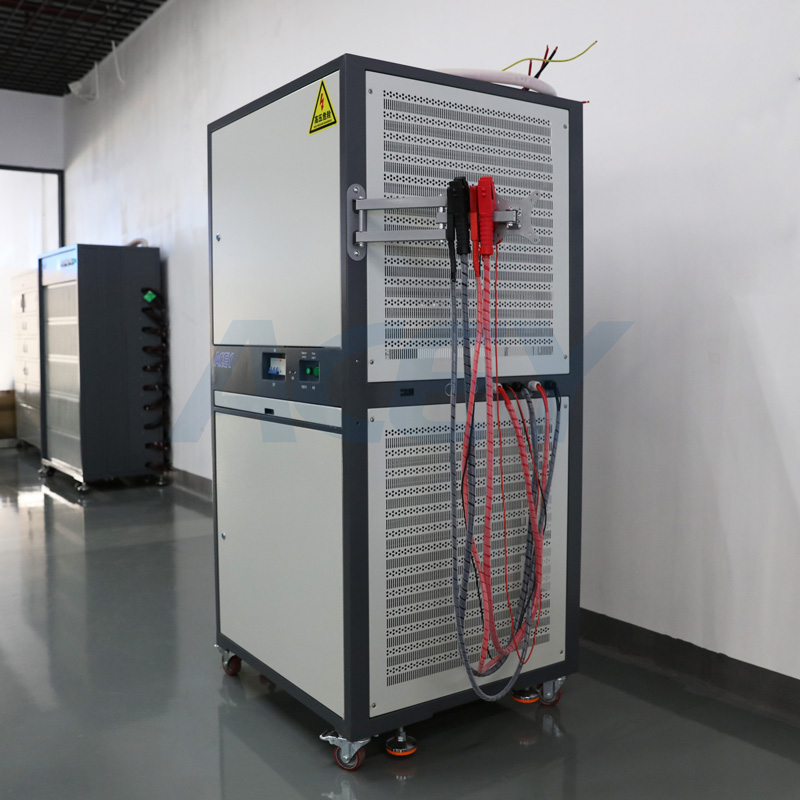

120V 50A Charge 200A Discharge Lithium Battery Pack Multifunction Comprehensive Tester
Description
Lithium battery pack multifunction comprehensive tester is a fast and accurate device to test the performance of finished battery. It can measure the open circuit voltage, internal resistance, charge, discharge, overcurrent protection, short circuit protection and other functions of the battery. It can easily detect bad batteries and increased production efficiency.
Function
Testing items :
*Voltage: No-load voltage and Short circuit protection voltage after the test is completed, Range:0-120V.
*Internal Resistance: ACIR1000hz, Range:0-4000mΩ
*Charging overcurrent protection current , Range:0-50A.
*Continuous charging current, Range:0-50A.
*Continuous charging voltage monitoring, Range:0-120V.
*Discharge overcurrent protection current and delay time, current range:0-200A, overcurrent maximum power 30KW.
*Overcurrent test mode: (1) Step test (2) quick test.
*Continuous discharge current, Range:0-200A
*Continuous discharge voltage judgment, Range: 0-120V
*Short circuit protection time:≤1000μS, Max short circuit current about 5000A
*Single cell voltage monitoring
*Appreciation of charge and discharge voltage: During the working test, if the power supply is cut off and the MOS tube of the protection board is turned off, no inrush current will be generated, and the protection board of the lithium battery pack will not be damaged.
*Support MES system
*Database: The software comes with a database, which can generate excel tables.
*Step-by-step mode: the test sequence can be adjusted automatically.
*Support chassis expansion.
Technical Parameters:
Voltage range: 0-120V
Resolution:1mV
Accuracy: 0.1%RD+0.1FS
Internal resistance: 0-2000mΩ
Resolution:0.001mΩ
Accuracy: 0.1%RD+0.1FS
Charge current: 0-50A
Resolution: 0.001A
Accuracy: 0.1%RD+0.1FS
Discharge current 0-200A at the highest voltage, continued discharge current 200A
Accuracy: 0.1%RD+0.1FS
Resolution: 0.001A
Overcurrent delay time: 0-30S
Resolution: 1mS
Accuracy: 0.1%RD+0.1FS
Short circuit time: 0-2000μS
Resolution: 1μS
Accuracy: 0.1%RD+0.1FS
NTC range: 0-100K 0.001K
R1 range: 0-100K 0.001K
Power supply: AC 200V-240V
Maximum working power for charging:5000W (When charging with maximum current)
Maximum working power for discharging:30KW (When discharging with maximum current)
Surge voltage:<15V

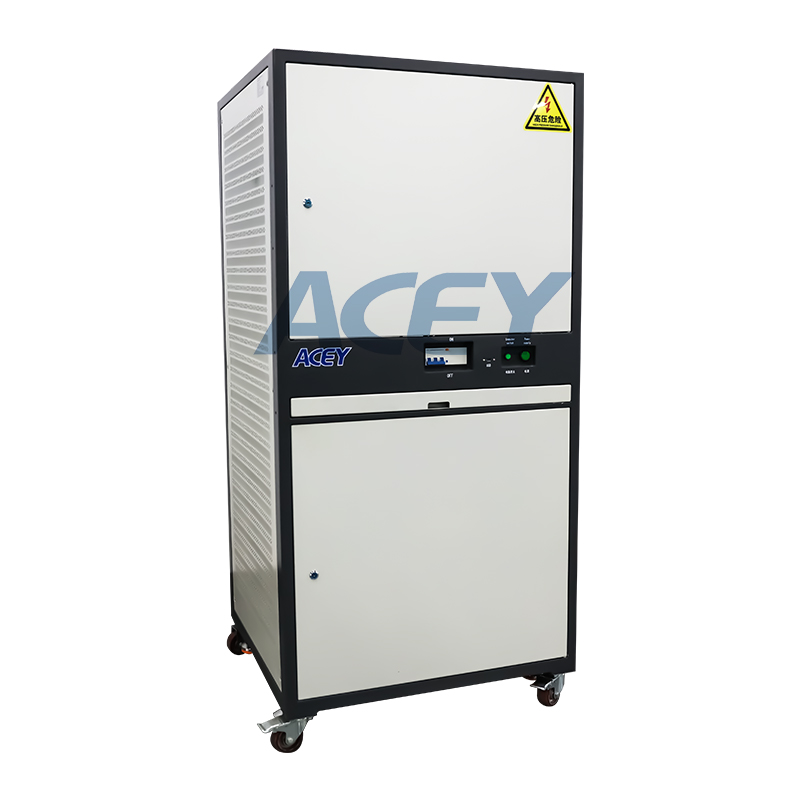

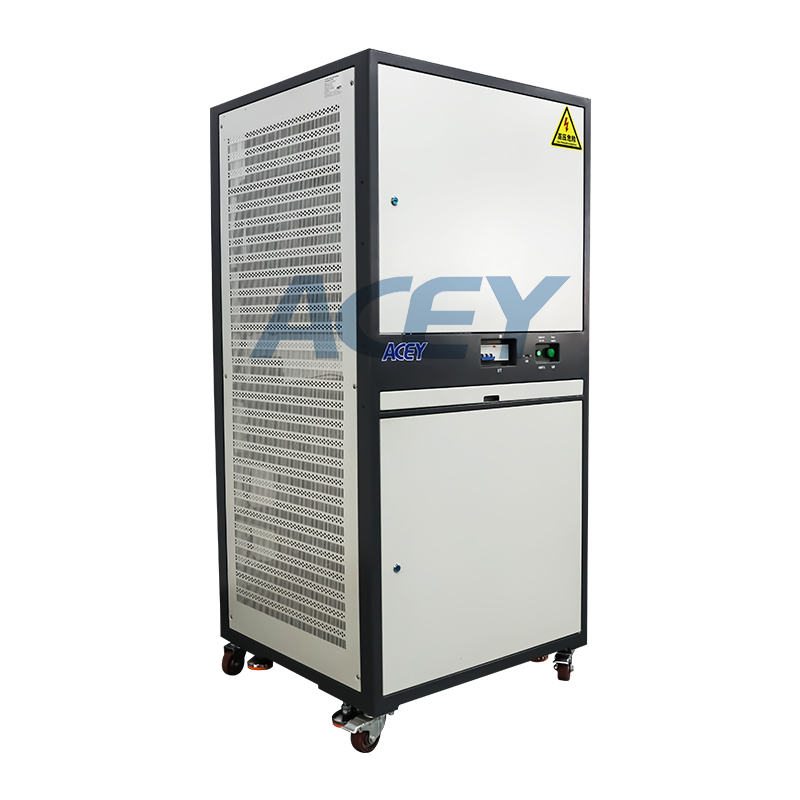

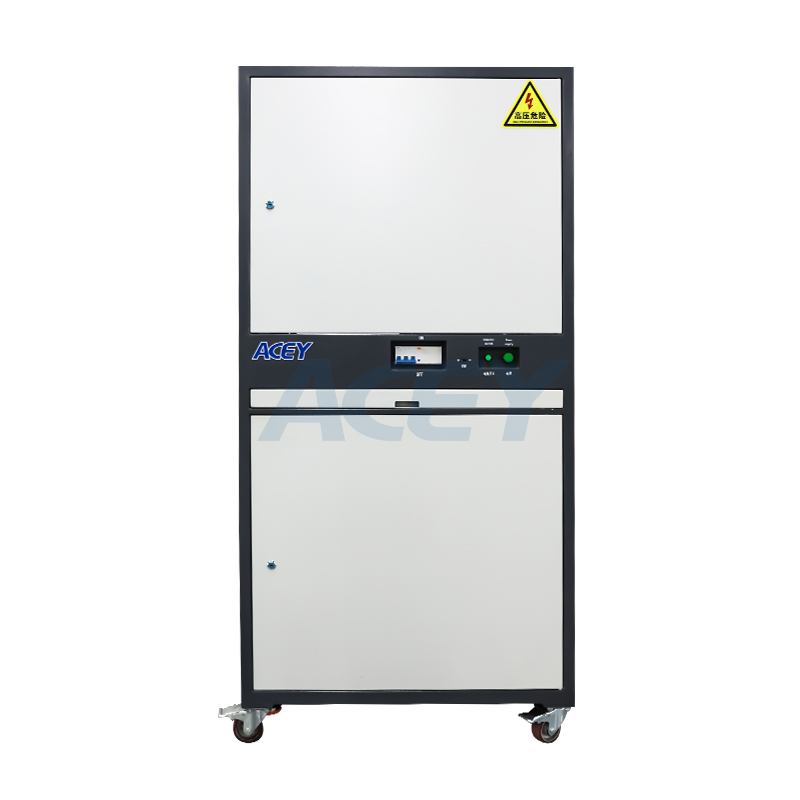

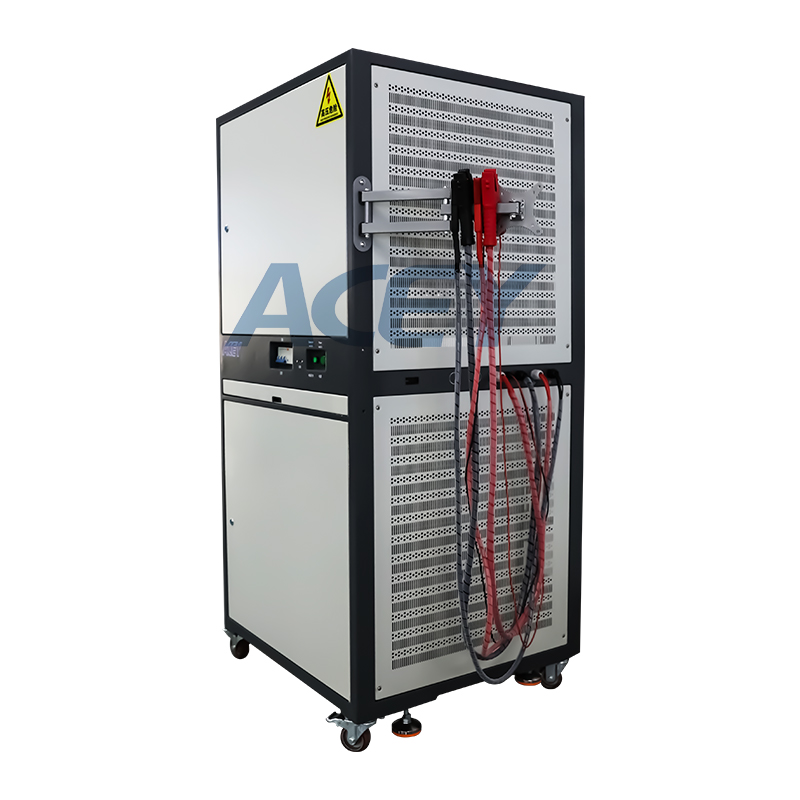

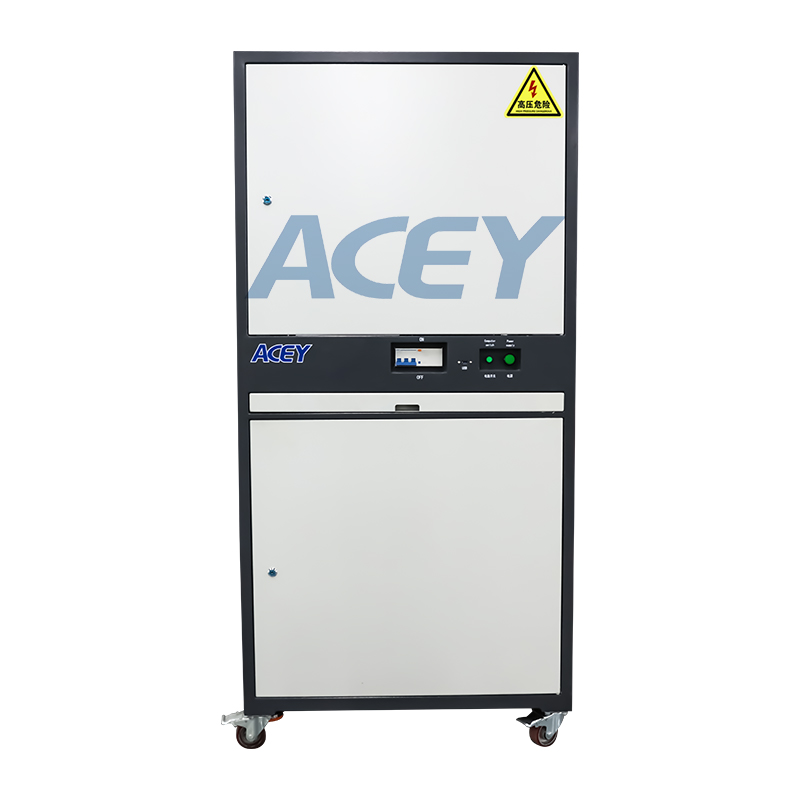

Product Details
