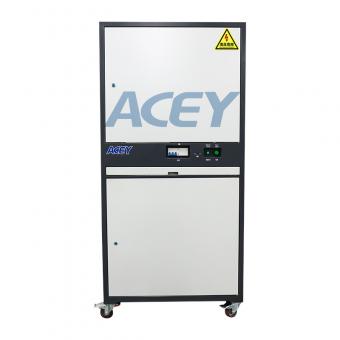

ACEY-BCT100-120 Lithium battery comprehensive tester is a fast and accurate device to test the performance of finished battery. It can make a quantitative and accurate measurement of some basic parameters of the battery.
Brand:
ACEYItem No.:
ACEY-BCT100-120Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days100V 120A Battery Pack Multi-Functional Tester Integrated Comprehensive Tester
Product Description
This lithium battery comprehensive testing machine is mainly used in automotive electronics, aerospace, marine, solar energy storage, electric bicycles, electric motorcycles, backup power batteries, communication power supply, energy storage and other power battery packs in the production process of semi-finished products and finished products functional verification testing and scientific research laboratory testing.
Equipment Test Items
|
Product Model |
ACEY-BCT100-120 Battery Integrated Tester |
|
Purpose |
For testing semi-finished and finished battery packs below 100V |
|
Basic Test Items |
Standby |
|
Battery activation (charging, discharging, disconnecting load, etc.) |
|
|
Open-circuit voltage 1, Open-circuit voltage 2 (can detect charging port voltage) |
|
|
AC internal resistance |
|
|
DC internal resistance |
|
|
Discharge test (battery PACK continuous load capacity, continuous discharge to check voltage drop ΔV) |
|
|
Discharge overcurrent test (battery PACK discharge overcurrent protection function test, supports secondary protection test) |
|
|
Charge test (battery PACK continuous charging function, verify if charging is normal) |
|
|
Charge overcurrent test (battery PACK charge overcurrent protection function test, supports secondary protection test) |
|
|
Resistance R1, R2 test (ID, NTC, and other resistance tests) |
|
|
Short-circuit test (test the battery's positive and negative short-circuit protection cutoff time (μS level), supports disabling voltage detection and recovery voltage detection) |
|
|
Device Protection Features |
Software protection: Power-off data protection |
|
Hardware protection: Power-off protection, short-circuit protection, reverse polarity protection, incorrect connection protection |
Specification
Parameter
Testing item
Range
Resolution
Open circuit voltage
OCV 1
0-100V
2mV
OCV 2
0-100V
2mV
AC/DC IR
IR test
0-1000mΩ
1mΩ
Discharge test
Start Voltage
0-100V
2mV
Cutoff Voltage
0-100V
2mV
Discharge current
0.1-60A
1mA
Discharge time
0-60S
1mS
Discharge over current test
Overcurrent
4-120A
1mA
Overcurrent delay
0-30S
1mS
Short circuit protection
Short Circuit Protection Delay
0-9999uS
1uS
Charge test
Start Voltage
10-100V
2mV
Cutoff Voltage
10-100V
2mV
Charge current
0.1-20A
1mA
Charge time
0-60S
1mS
Charge protection test
Overcurrent of charge
4-20A
1mA
Charging delay
0-30S
0.1mS
Resistance R1/R2
NTC、ID
0-1000KΩ
0.1KΩ
continuous output
2KW
Continuous load power
6KW
Size/Weight
1090*710*920mm（W*D*H ）
