XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/a4bf3192ea9596101d296d7077b29c55.jpg)

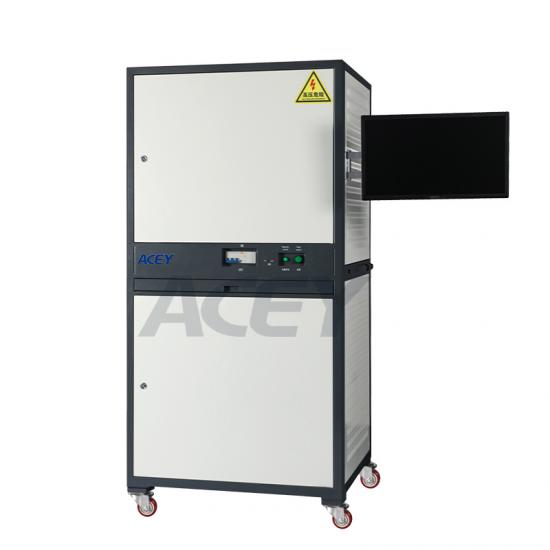

ACEY-BIT200-150A400A battery comprehensive tester integrates multiple functions such as charging, discharging, capacity testing, internal resistance testing, and cycle life testing, which can accurately evaluate the key performance indicators of the battery.
Brand:
ACEYItem No.:
ACEY-BIT200-150A400ACompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days200V 150A 400A Lithium Battery Pack Charge Discharge Comprehensive Tester
Description
ACEY-BIT200-150A400A battery comprehensive tester integrates two major functions: battery production testing and instrument calibration. It can be used as a high-precision electronic load and is also a comprehensive battery analyzer. It is suitable for all power battery series equipped with CH+, P+, CH -, and P-terminals, and can automatically test more than ten key parameters such as open circuit voltage, AC internal resistance, various charging and discharging protection points, and delay time of the battery.
Testing items
1. Voltage: No-load voltage and Short circuit protection voltage after the test is completed，Range:0-200V6.1 Discharge overcurrent protection current and delay time, Rang of current:0-400A
6.2 Overcurrent test mode: (1) Step test (2) quick test.
Technical Parameters
Voltage range
0-200V
resolution
1mV
Accuracy
0.1%RD+0.1FS
Internal resistance
0-2000mΩ resolution
resolution
0.001mΩ
Accuracy
0.1%RD+0.1FS
Charge current
0-150A resolution
resolution
0.001A
Accuracy
0.1%RD+0.1FS
Discharge current
0-400A at the highest voltage, continued discharge current 400A
resolution
0.001A
Accuracy
1%RD+0.1FS
Overcurrent delay time
0-30S resolution
resolution
１mS
Accuracy
0.1%RD+0.1FS
short circuit time
0-2000μS resolution
resolution
1μS
Accuracy
0.1%RD+0.1FS
NTC range
0-100K 0.001K
R1 range
0-100K 0.001K
Power supply
AC 200V-240V
Maximum working power for charging
30KW（When charging with maximum current)
Maximum working power for discharging
60KW（When discharging with maximum current)
Equipment requirements
