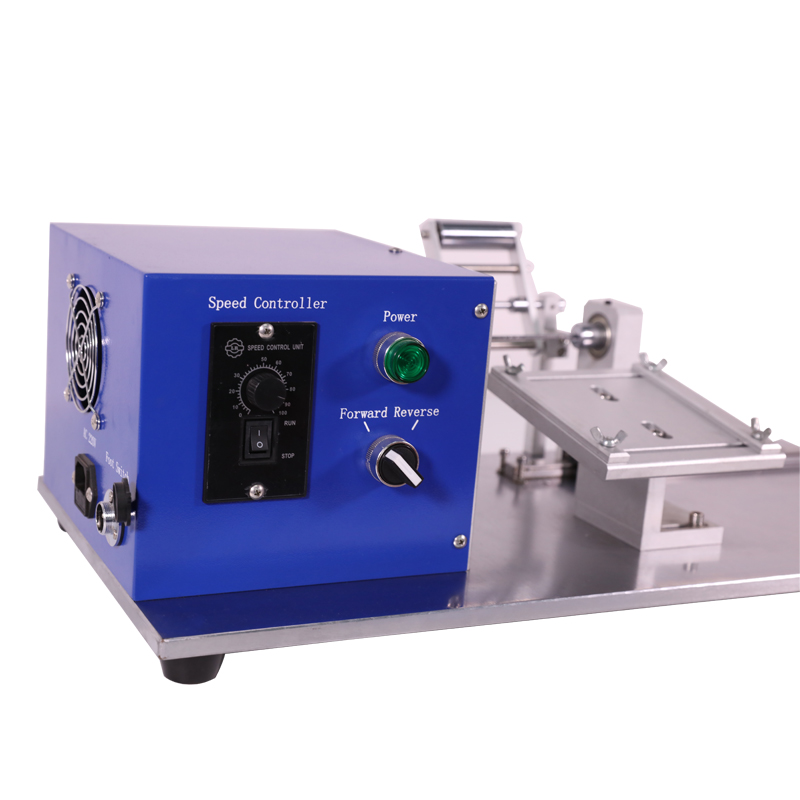

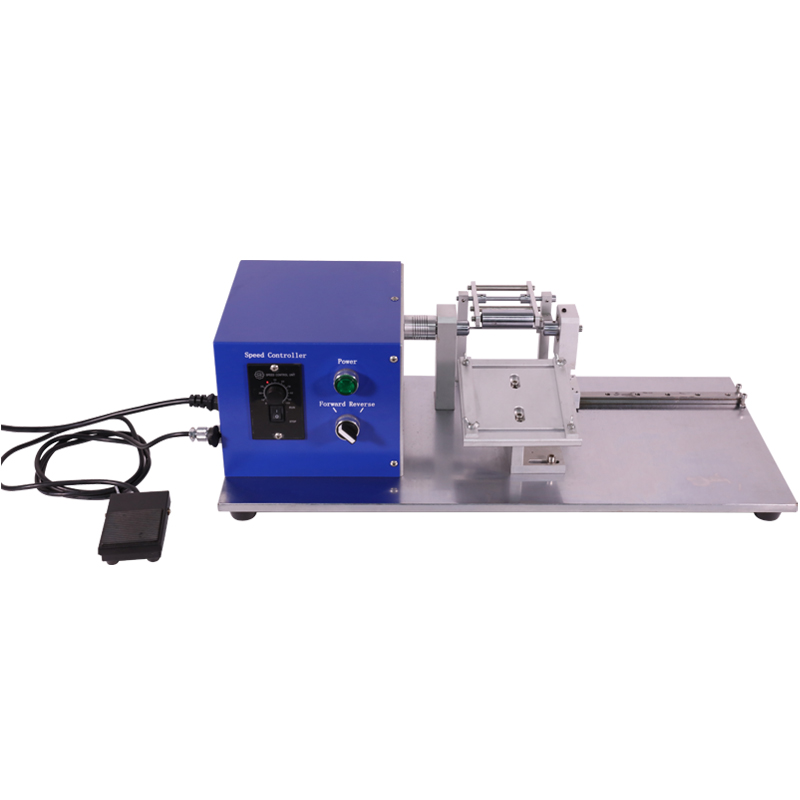

Semi-automatic Cylindrical Battery Electrode Winding Machine

t is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors.

  • Brand:

    ACEY
  • Item No.:

    ACEY-WM-C
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Semi-automatic Cylindrical Battery Electrode Winding Machine

Description

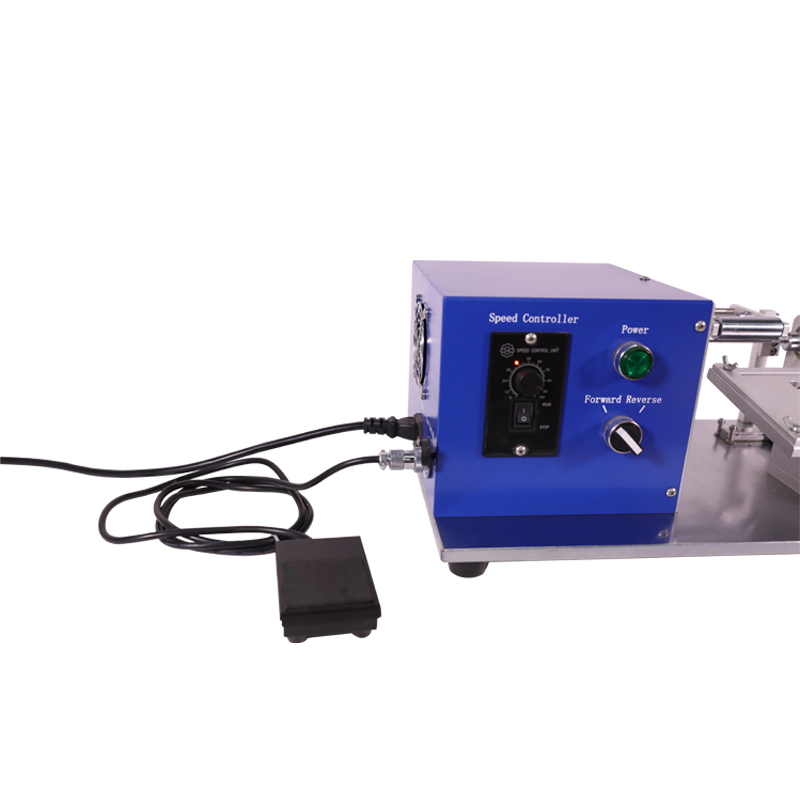

It is specially used for the winding of aluminum foil packaging batteries/cylindrical batteries and supercapacitors. The positive and negative sheets and the separator are wound into batteries. The machine is small in size, easy to adjust, operate and maintain; the winding needle yaw degree is small; the up and down, left and right, and front and rear positions of the guide plate are adjustable; the foot switch controls the forward and reverse rotation. It has the characteristics of easy operation, safe and reliable, beautiful appearance, etc.

Features

1. The up and down, left and right, front and rear positions of the guide pole piece groove and ruler can be adjusted.

2. Winding idler to ensure the winding tightness when the battery is wound.

3. Increase the winding tail bracket to improve the winding accuracy of the battery.

4. Winding can be forward and reverse, winding stepless speed regulation.

5. The machine is small in size, exquisite and beautiful in appearance, and easy to operate.

Specification

Model No.


ACEY-WM-C


Power supply
 220V/50Hz
Power

25W~40W

Speed
 0~170 rpm adjustable
Applicable flat battery cell size mm: length (20~100) X width (20~80) X thickness (0.5~10) according to customer's choice.
Applicable cylindrical batteries

Φ35*L90mm or less (replacement of winding flat batteries and cylindrical batteries requires replacement of winding needles)

Equipment size
L600mm*310mm*290mm
Equipment weight

25Kg

Product Details

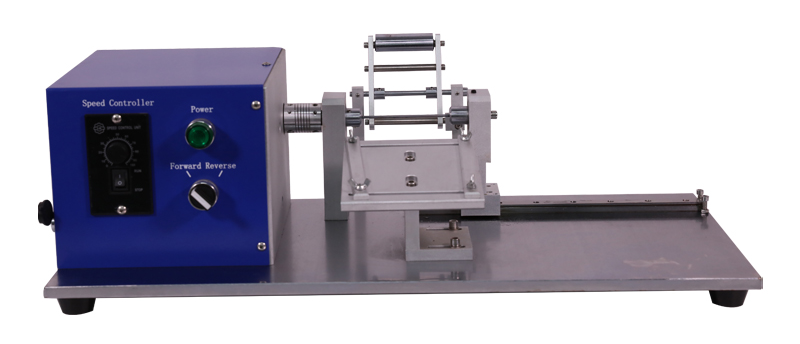

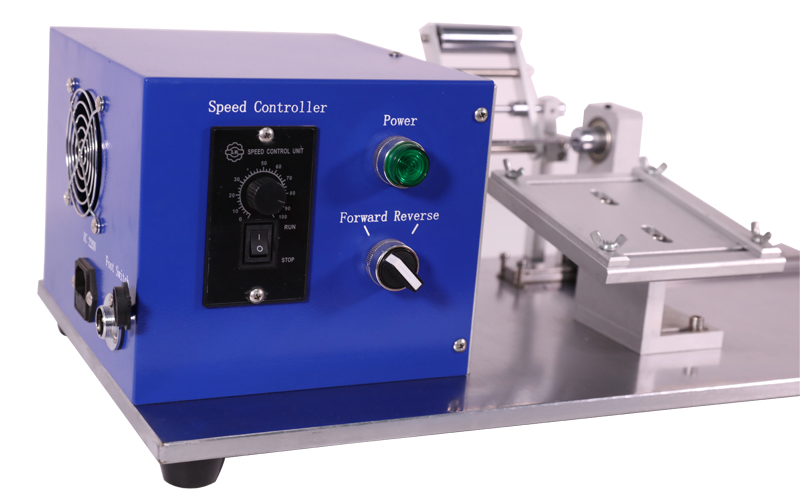

Semi-automatic Cylindrical Battery Electrode Winding Machine

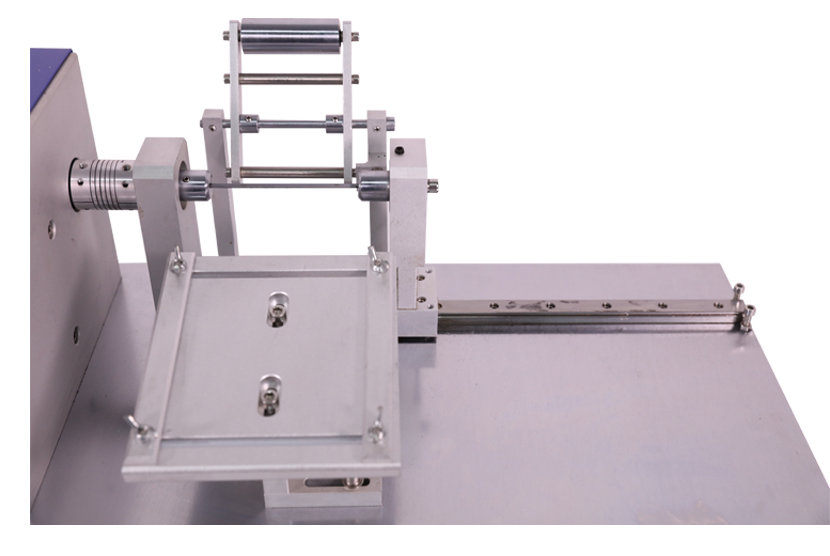

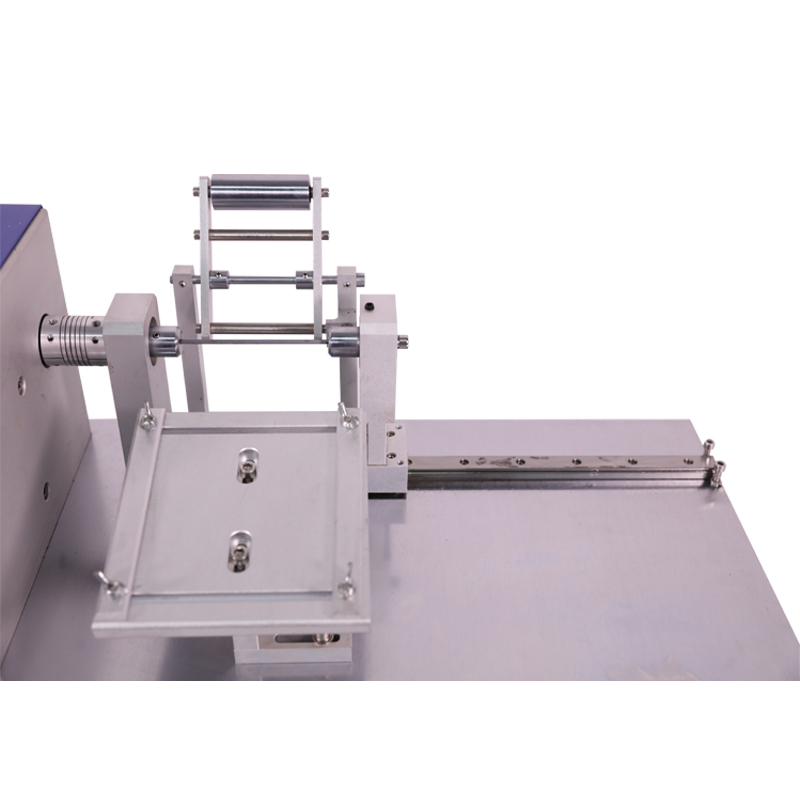

Cylindrical Winding Device

Manual Winding Machine For Battery
