China Automatic Stacking Machine For Battery Cathode and Anode Stacking

The automatic stacking machine is a device that can be applied to the stacking process of lithium-ion battery pole pieces.
  • Brand:

    ACEY
  • Item No.:

    ACEY-SSM-C
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

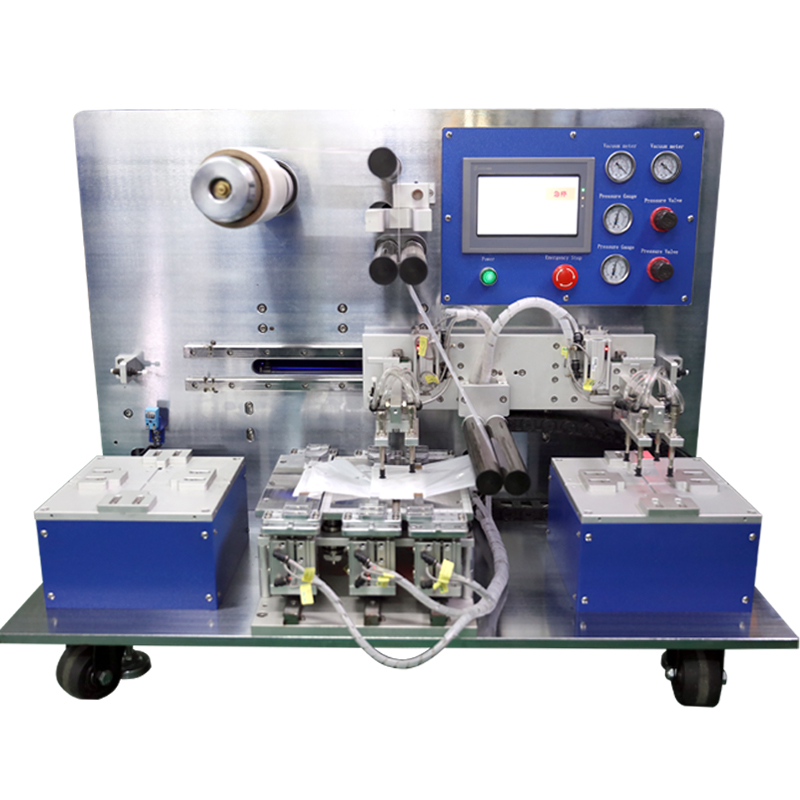

China Automatic Stacking Machine For Battery Cathode and Anode Stacking

Description

ACEY-SSM-C is a high-accuracy automatic stacking machine with many advanced features to ensure a stable, repeatable and precise electrode stacking. In its "Z" fashion stacking method, Anode and Cathode electrodes are alternatively stacked with the seperator film in between.

Features

*The number of laminations can be automatically controlled according to the preset;

*Adopting compatibility design, battery size change can be realized by adjusting the positioning fixture, and the adjustment range is large;

*PLC control, HMI operation, easy to use and maintain;

*Pole pieces are manually loaded, automatically positioned, the robot automatically sucks the pieces, and automatically stacks;

*Automatic servo constant tension control of coiled material diaphragm.

*Diaphragm automatic photoelectric correction control.

*Diaphragm winding core 3 inch winding core, pneumatic shaft clamping

*Automatic servo constant tension control of coiled material diaphragm.

*Diaphragm automatic photoelectric correction control.

Specification

Lamination method

Z-shaped lamination

Operation method

manual feeding, manipulator fetches the stacks, and automatically pulls the diaphragm.

Lamination accuracy

neatness ≤±0.3mm

Lamination range

Battery Min. L62mm *W46mm, Max. L200mm*W200mm, without tabs

Lamination thickness

Max.30mm

The number of laminated layers

Max. 500 can be set

Diaphragm roll diameter

Max. 250mm

Power supply

voltage single-phase AC220V±10% (110VAC can be customized), frequency 50Hz/60Hz, power 0.6KW

Air source

0.5~0.8MPa compressed air

Using environment

Environment temperature is 25±3℃, humidity is 30~90RH, no vibration and electromagnetic interference

Dimensions:

L1100mm*W790mm*H755mm

Weight:

300kg.

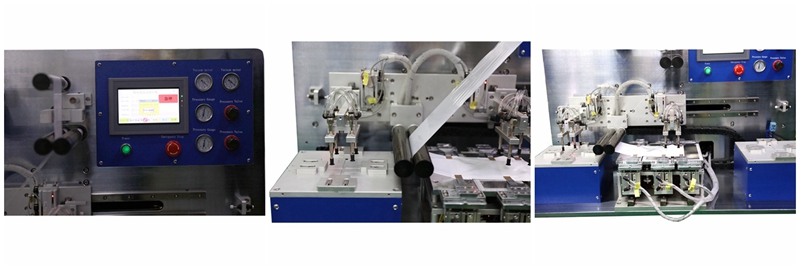

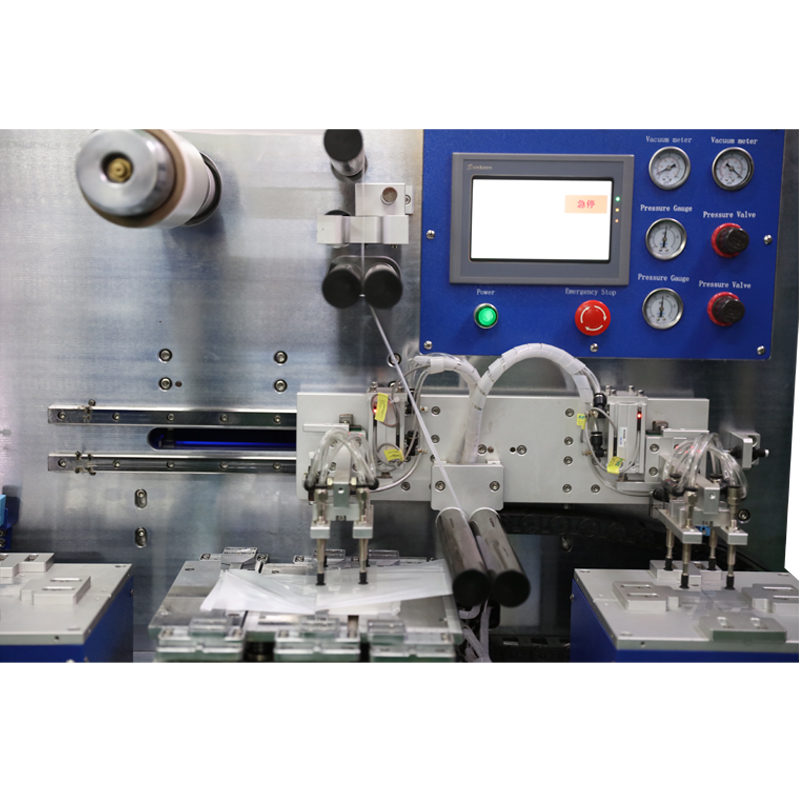

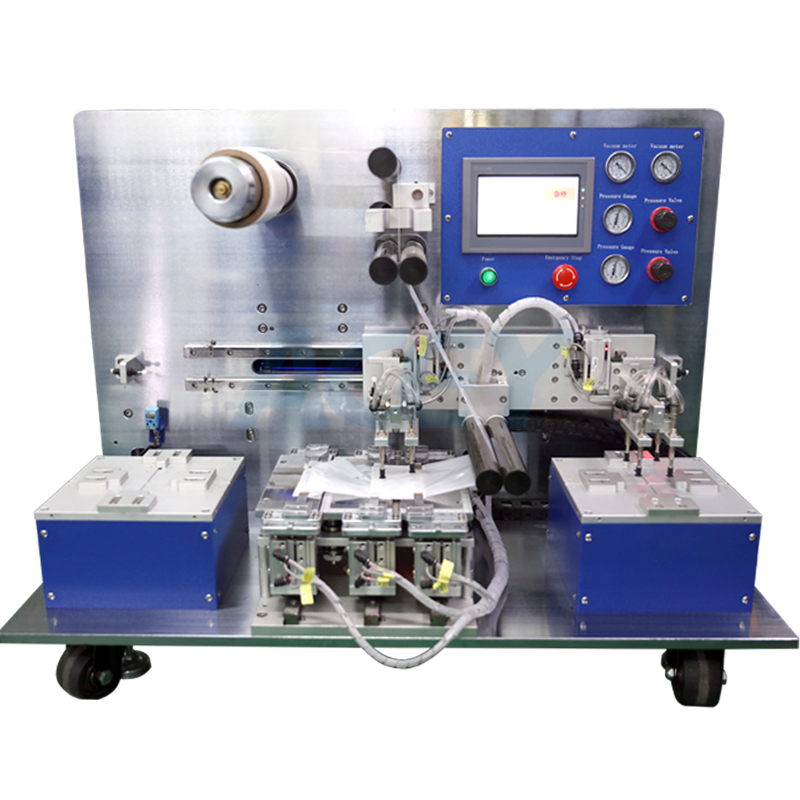

Product Display


Details


One-stop Solution

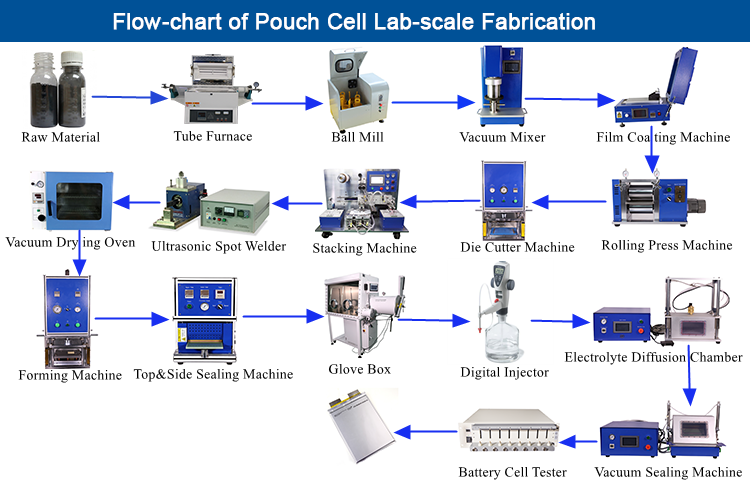

Flow-chart of Pouch Cell Lab-scale Fabrication
