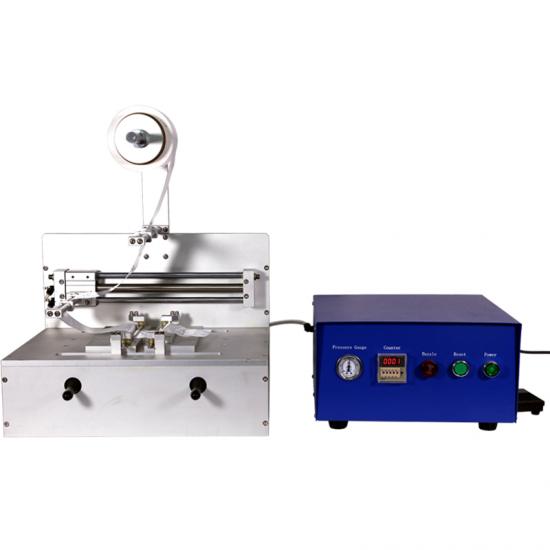

Manual Lithium Battery Stacking Machine For Pouch Cell Cathode And Anode Stacking

This battery lamination machine is used for stacking of battery cores that stacks the anode/cathode and separator in Z shape.

  • Brand:

    ACEY
  • Item No.:

    ACEY-SSM-A
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Manual Lithium Battery Stacking Machine For Pouch Cell Cathode And Anode Stacking

Description

It is suitable for the lamination process of battery cells, zigzag the positive and negative electrodes and the diaphragm.

Features

1. The adjustment, operation and maintenance of the machine are simple and easy.

2. Applicable to a wide range of cell stack sizes.

3. High working efficiency, with digital display counter.

4. Adopt foot switch to control cylinder movement.

5. The machine is small in size, exquisite and beautiful in appearance.

Specification

Model No.

ACEY-SSM-A

Lamination method

Z-shaped lamination

 Diaphragm material roll
roll material diaphragm, 3 inch core, diameter φ200mm
Applicable pole piece specifications

length (20~200) mm, width (20~200) mm, thickness within 16mm

Swing roller travel stroke
300mm
Power supply
AC220V/50Hz
Power
200W
Air pressure source
0.4MPa~0.7MPa
Equipment size
L650mmW400mmH700mm
Control box size
 L200mmW300mmH380mm
Weight
30Kg
Product Details

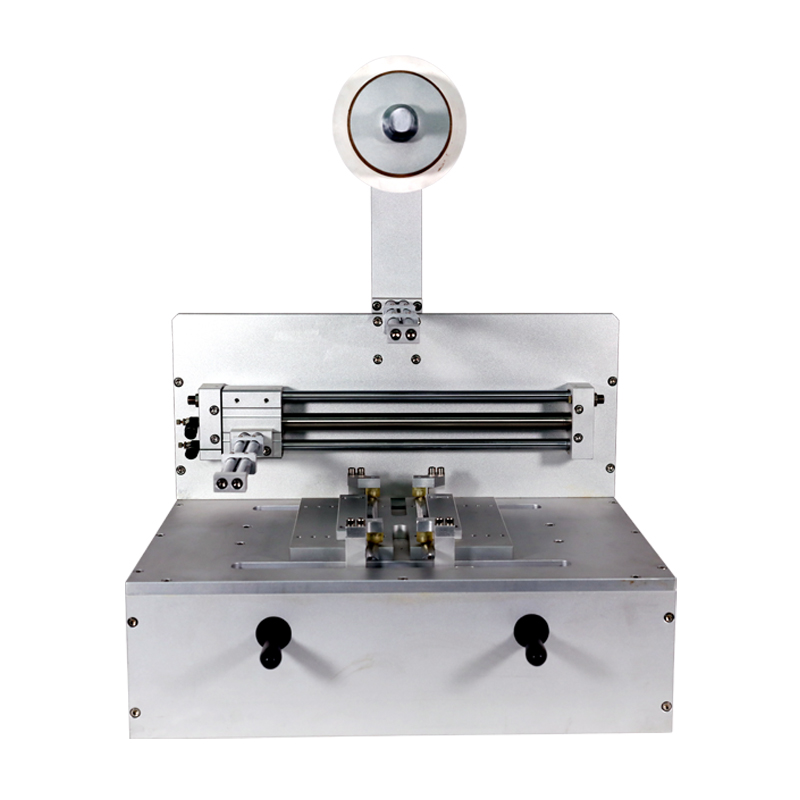

Front view of Battery Winding Machine

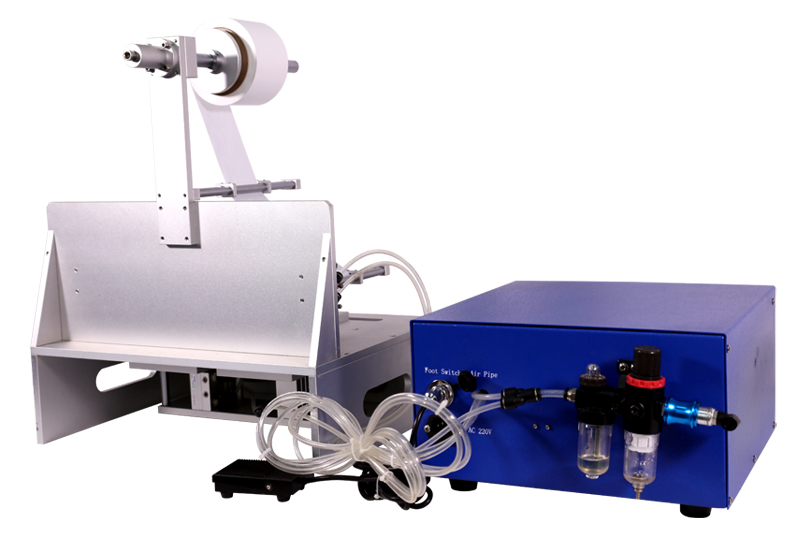

Back view of Battery Winding Machine

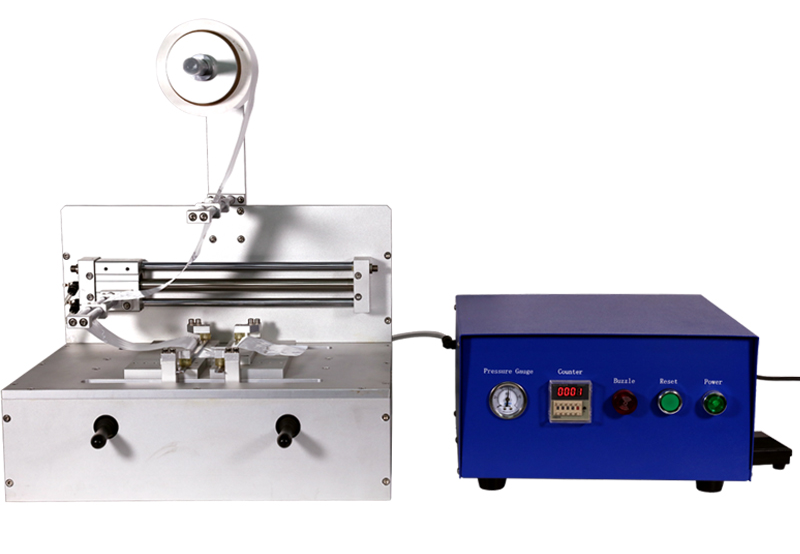

Pouch Cell Stacking Machine
