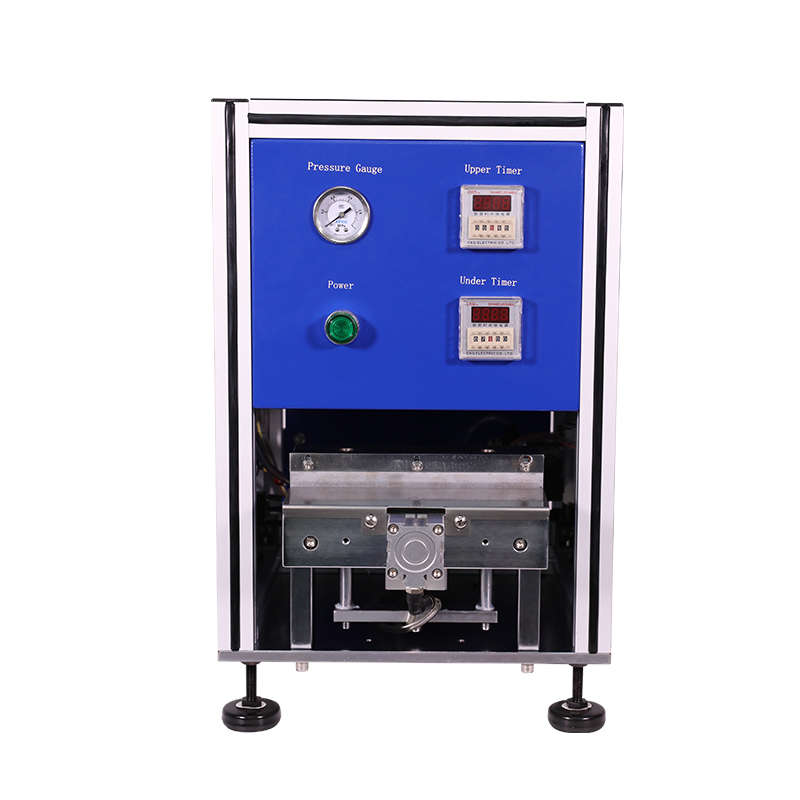

Mini Pouch Cell Battery Aluminum-Plastic Film Folding and Forming Machine

It is mainly suitable for the folding and forming of the aluminum-plastic film of the soft-package lithium battery after trimming.

  • Brand:

    ACEY
  • Item No.:

    ACEY-PFM200
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Mini Pouch Cell Battery Aluminum-Plastic Film Folding and Forming Machine

Description

It is mainly suitable for the folding and forming of the aluminum-plastic film of the soft-package lithium battery after trimming.

Features

1. The folding width can be adjusted according to the needs of the battery.

2. Air pressure and speed can be adjusted according to process requirements.

3. Adopt foot pedal operation switch, which is reliable, convenient and fast.

4. The frame is assembled with profiles and baking varnish sealing plates, the equipment is exquisite, compact and beautiful in appearance.

Specification

Model No.

ACEY-PFM200

Adjustable folding width.
Working speed is about 300 times/h.
The length of the folding knife is 200mm.
The effective width of the hemming needs to be greater than 1 mm.
Power supply
AC220V/50Hz
Air source
0.5MPa~0.8MPa
Body size

L320*W300*H420mm

Product details

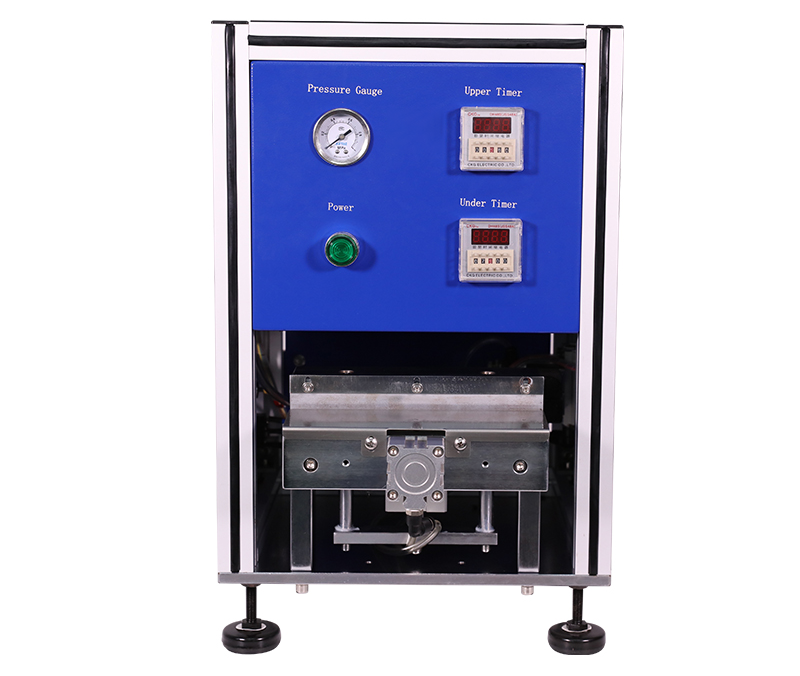

Mini Pouch Cell Battery Aluminum-Plastic Film Folding and Forming Machine

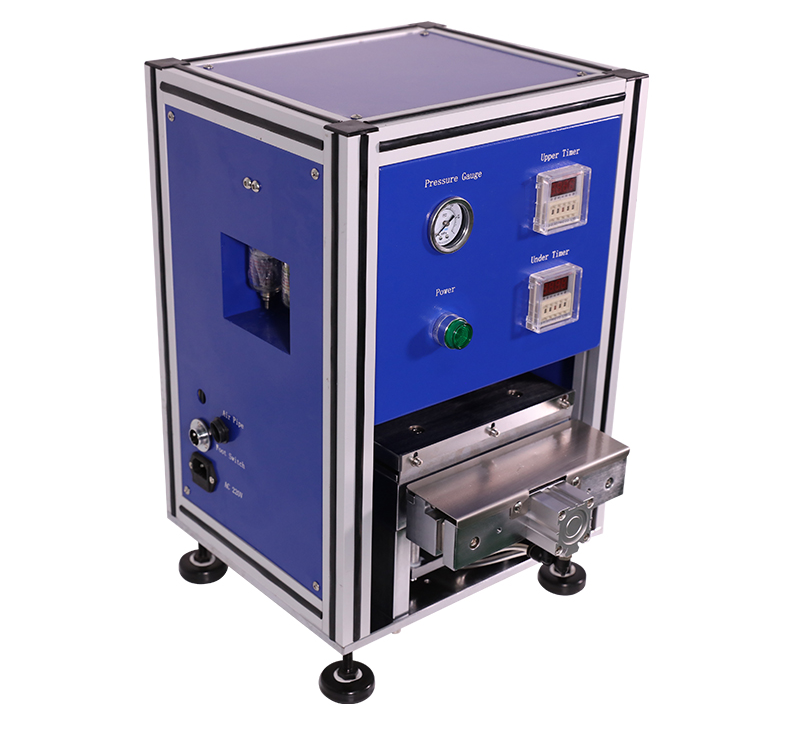

Battery Aluminum-Plastic Film Folding

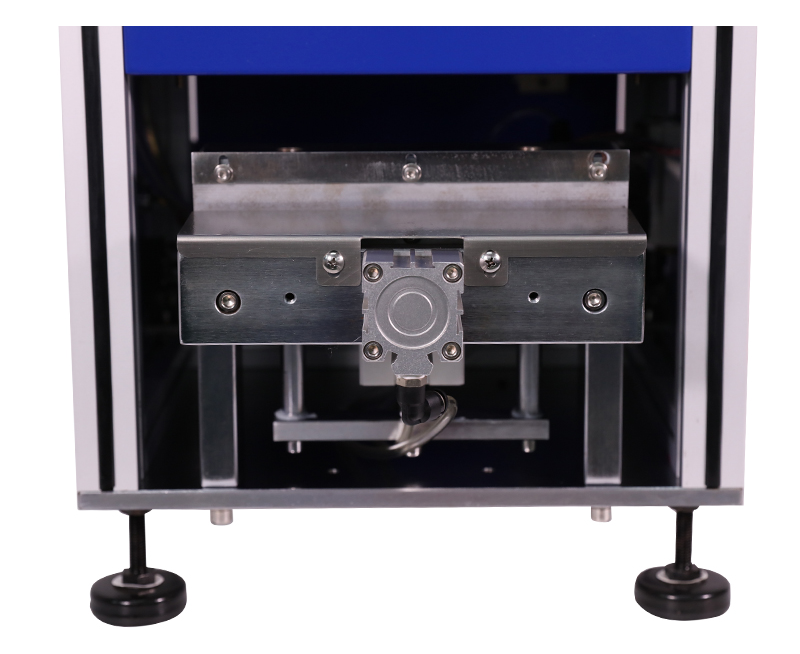

Lithium Battery Forming Machine
