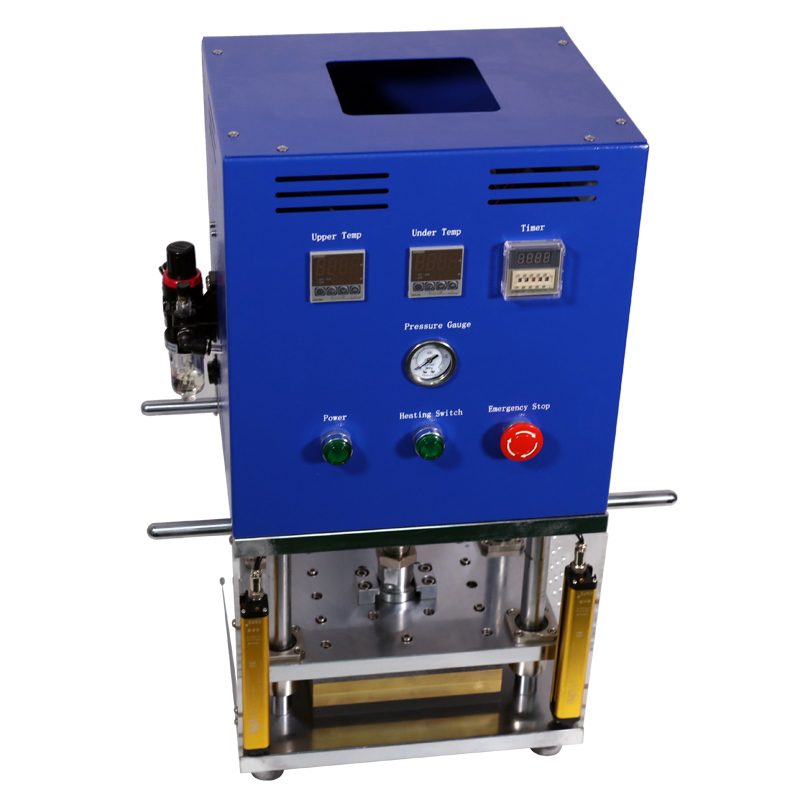

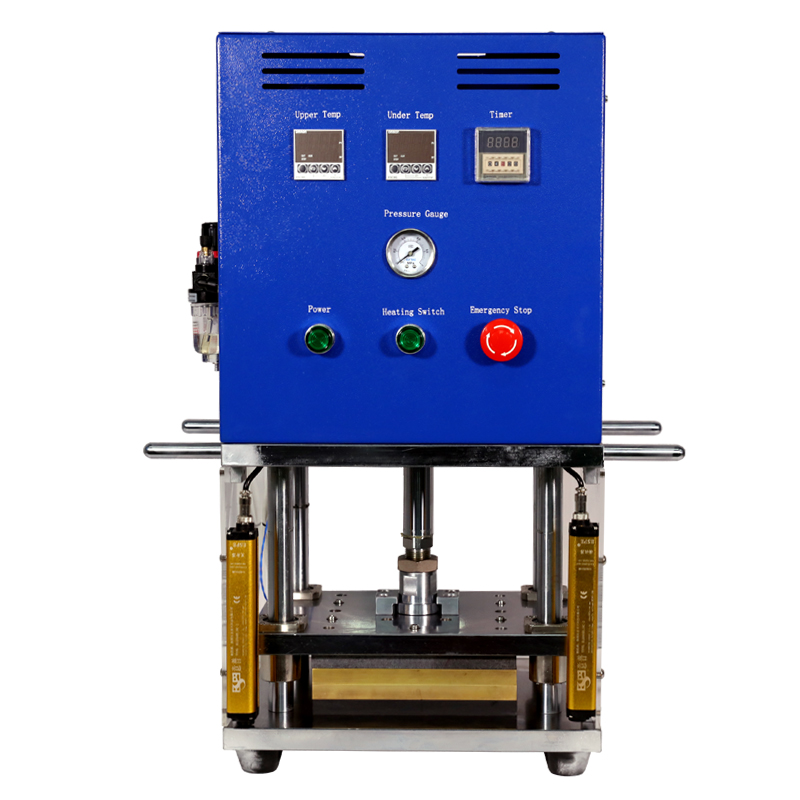

Hot/Cold Pouch Cell Press Machine For Li Ion Battery Core Formation

Hot/Cold Pouch Cell Press Machine For Li Ion Battery Core Formation

Description

This equipment is mainly suitable for hot flat pressing and shaping after winding the electric core, which is convenient to enter the shell. The wound cell is placed on the template to shape the cell through pressure and heating to achieve the same thickness of the cell, reduce the elasticity of the cell, reduce the short-circuit rate of the core and ensure the consistency of the thickness of the finished cell.

Features

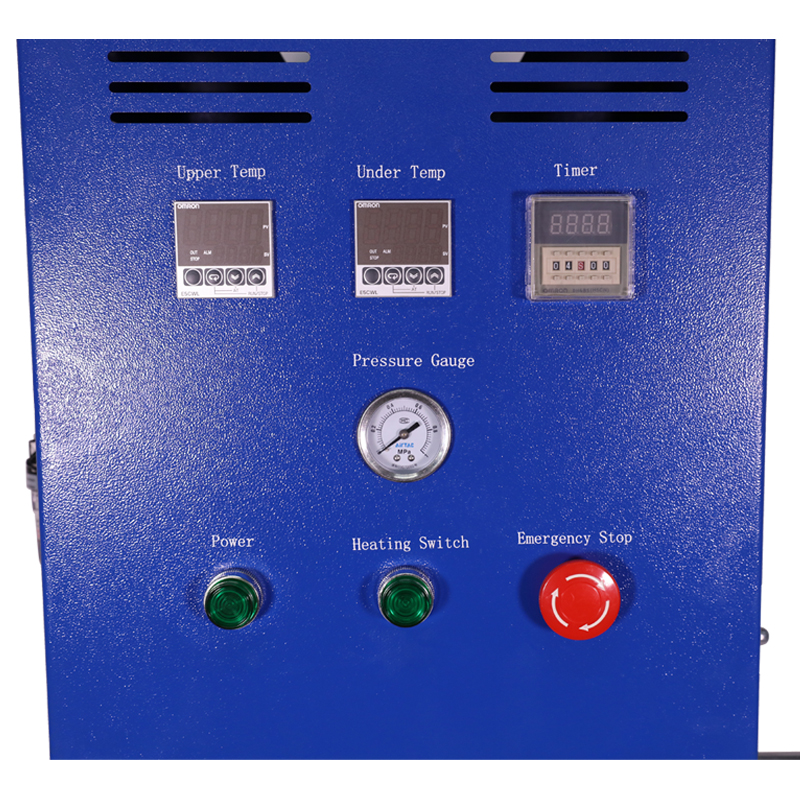

1. The temperature of the work surface can be adjusted by the temperature controller panel button. The current value and the set value of the set temperature can be displayed on the LCD display, which is intuitive and clear, high temperature control accuracy, and easy to operate.

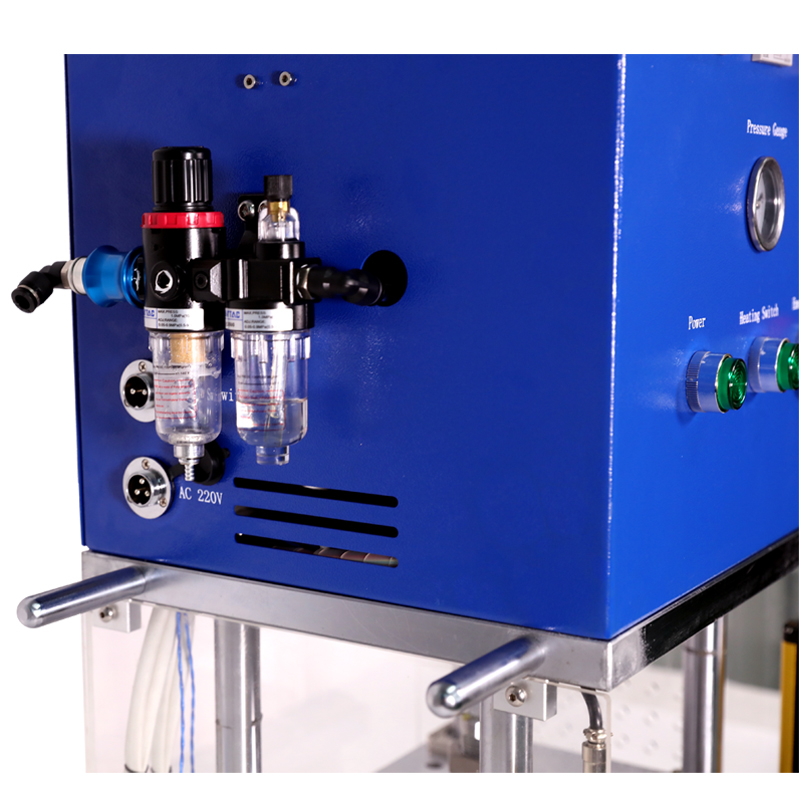

2. The pressure of the upper and lower working table can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.

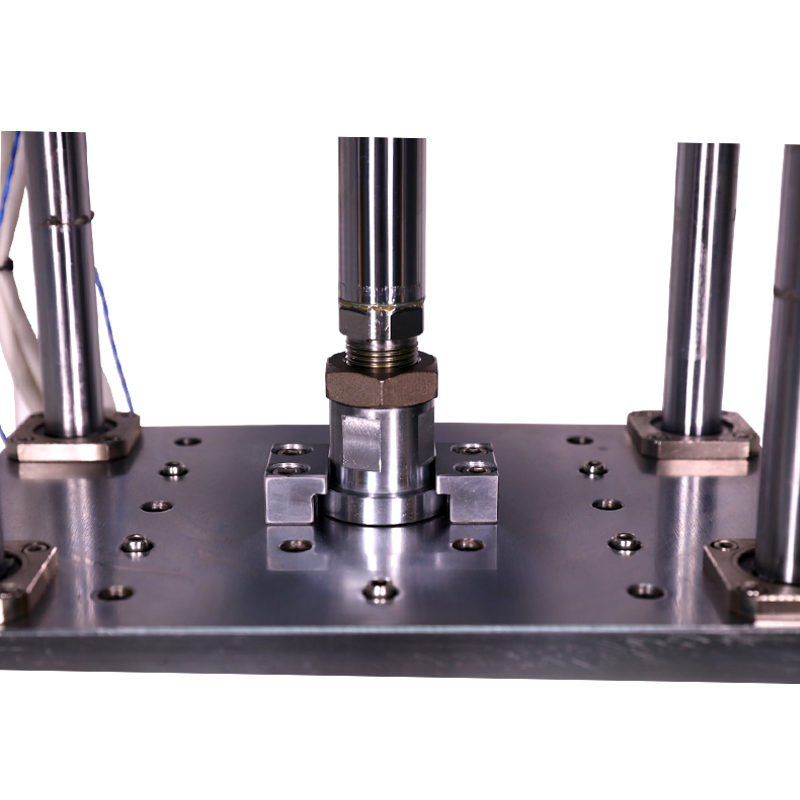

3. This machine adopts a single station structure, the upper and lower worktable panels are highly parallel, and the structure is stable and reliable.

4. The work surface is made of high-quality materials, with good heat transfer effect, saving power consumption and improving work efficiency.

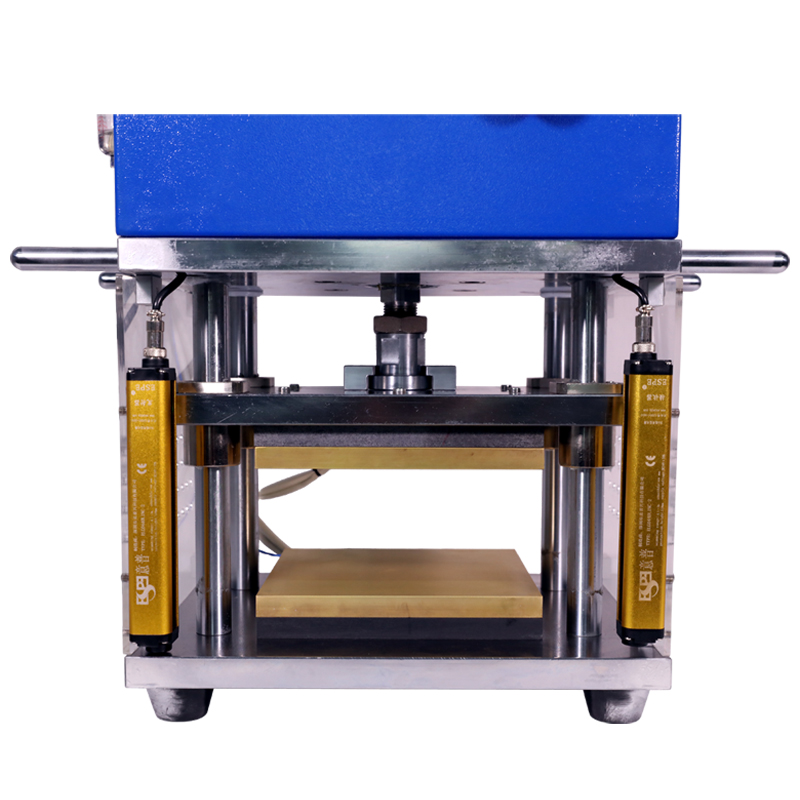

5. Use light curtain protection device, safe to use.

6. This machine has a temperature abnormal alarm function.

7. Heat pressing time, temperature and pressure can be adjusted.

8. This machine adopts automatic and semi-automatic control, easy to operate.

10. Small size, can save space.

11. Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.

12. Electric control can be used for automatic operation during operation, and manual function can be used during debugging.

Specification
