It is mainly suitable for trimming and forming of aluminum-plastic film of pouch cell lithium batteries
Brand:
ACEYItem No.:
ACEY-PCM200Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:
7daysPneumatic Battery Case Cutting Machine For Pouch Cell
Description
ACEY-PCM200 is widely used in the final steps of pouch cell battery pilot-scale production line to ensure a smooth, neat and tidy casing edge.
Features
*Shangyin linear slide rail group is used for guiding, with high guiding precision to ensure zero clearance between upper and lower cutters and long service life;
*The upper and lower cutters are made of high-speed steel, with sharp blades;
*Built-in pressure gauge, can observe and accurately control the size of trimming pressure;
*The cylinder controls the cutter to trim the battery edge, which is easy to be automated, and the trimming width can be adjusted;
*The trimming air pressure and speed can be set and adjusted;
*Set the product positioning tray to facilitate the positioning and placement of the battery;
*Adopt foot pedal operation switch, which is reliable, convenient and fast;
*The frame is assembled with profiles and baking varnish sealing plates, the equipment structure is simple, compact, and the appearance is exquisite and beautiful;
Specification
Cutter length
300mm
Cutting width
2~10mm margin can be adjusted
Cutter life
10 million times/grinding
Speed
Air pressure 600 times/hour
Power
AC220V/50Hz
Power
100W
Air compressed air source
0.5Mpa~0.7Mpa
Dimensions
L325x W200x H350mm
Equipment weight
45Kg

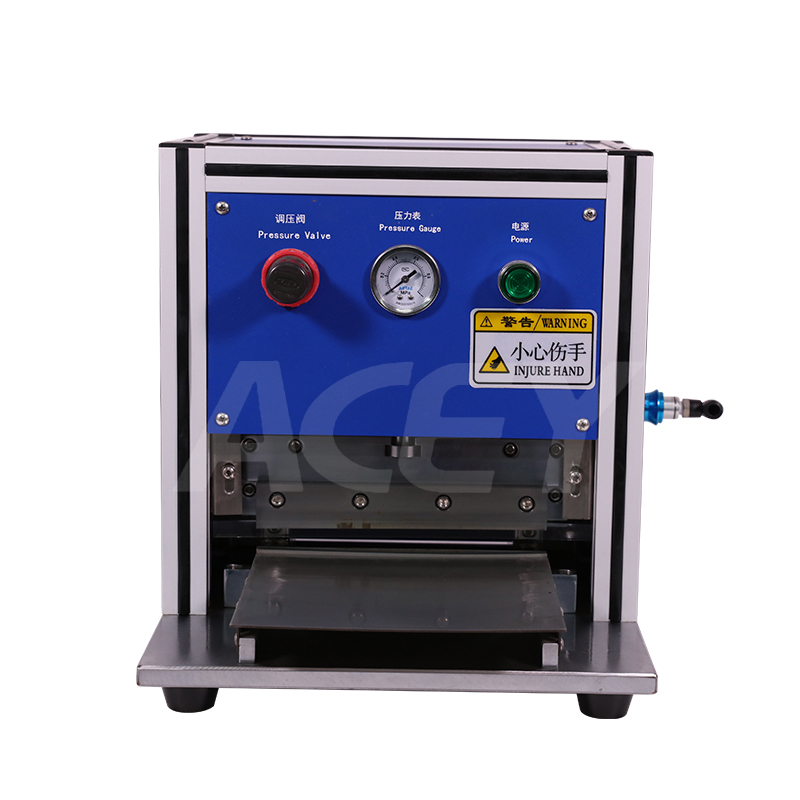

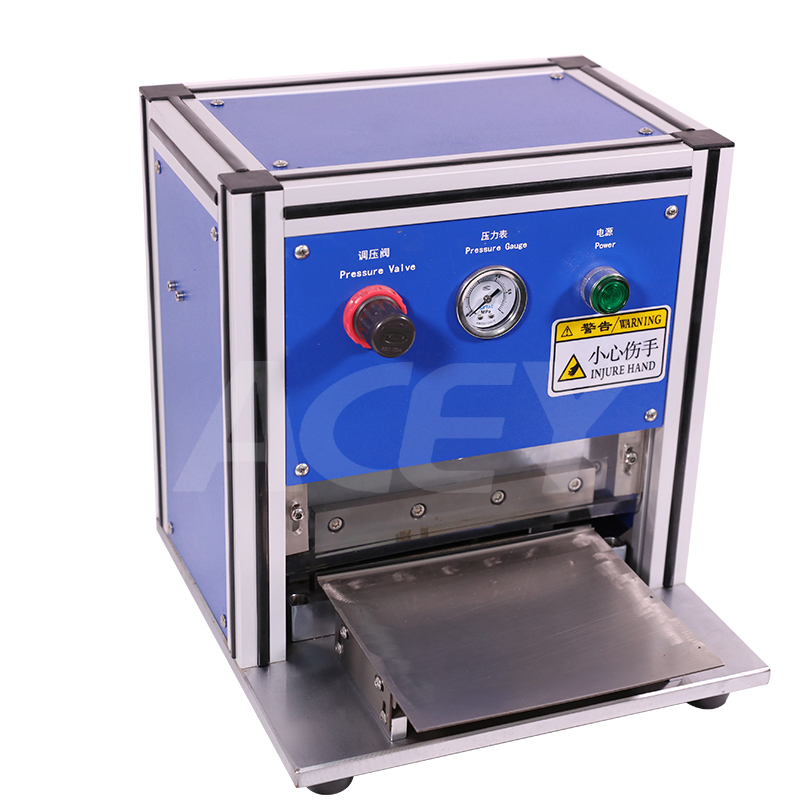

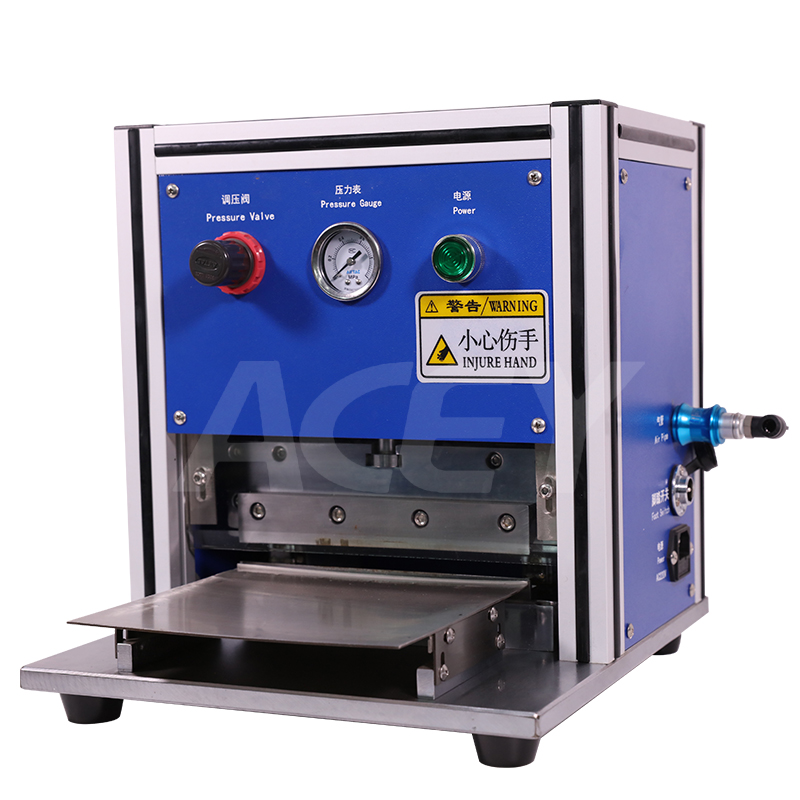

Product Display

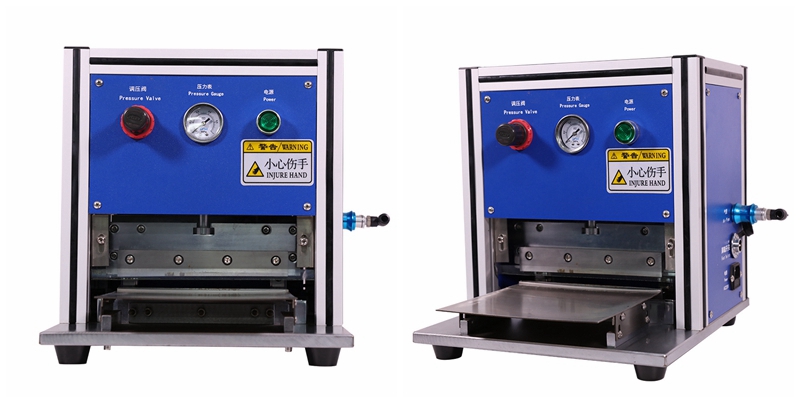

Details
Packing

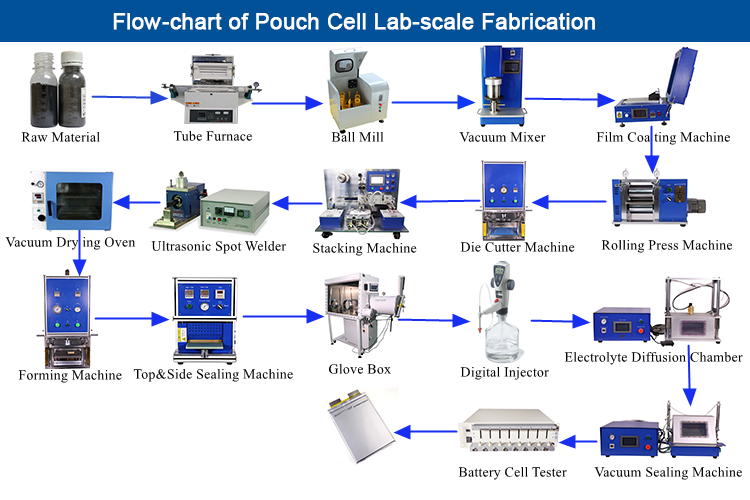

One-stop Solution
