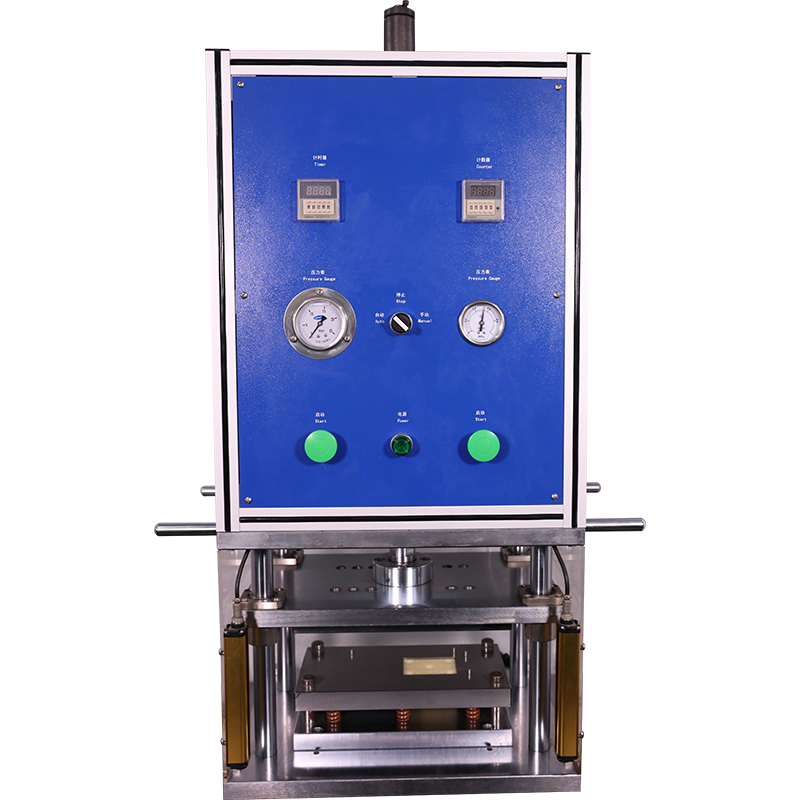

Battery Automatic Thermoforming Machine For Pouch Cell Case Forming

Battery Automatic Thermoforming Machine For Pouch Cell Case Forming

Description

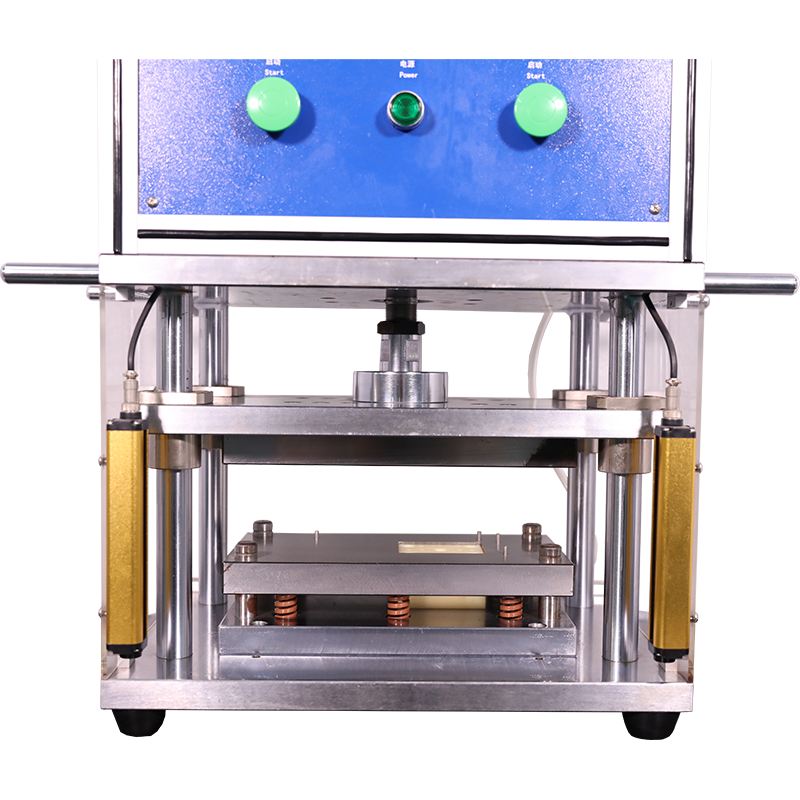

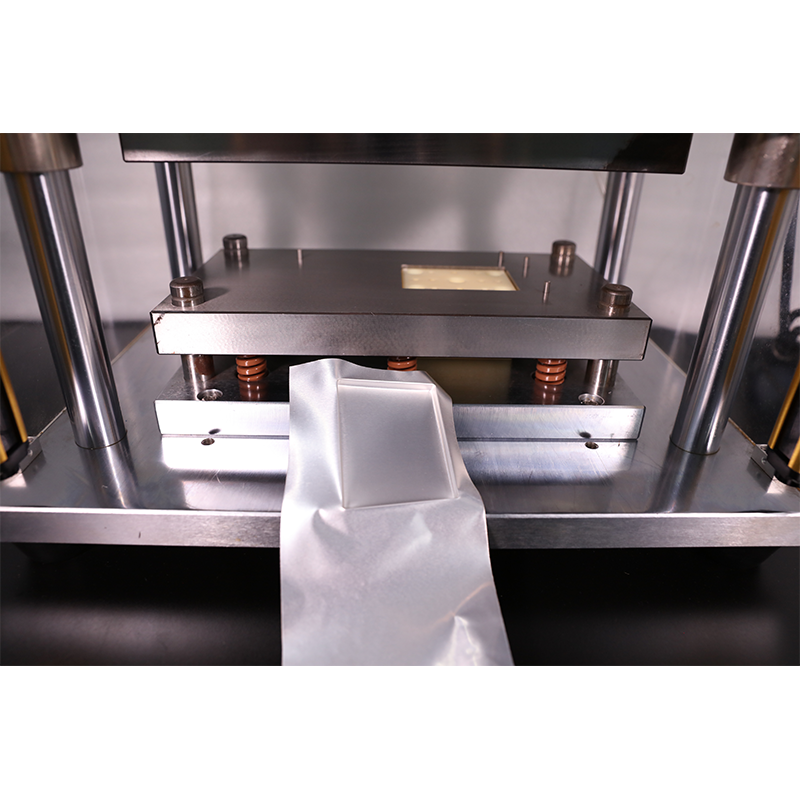

The equipment is driven by an air cylinder, and the upper and lower molding dies can be made according to customer requirements to realize different sizes of lithium-ion battery aluminum-plastic film shell molding.

Features

1. The temperature of the work surface can be adjusted through the button on the thermostat panel. The current value and the set value of the set temperature can be displayed on the LCD display, which is intuitive and clear, with high temperature control accuracy and easy operation.

2. The pressure of the upper and lower working table can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.

3. The machine adopts a single station structure, the upper and lower worktable panels are highly parallel, and the structure is stable and reliable.

4. The work surface is made of high-quality materials, with good heat transfer effect, saving power consumption and improving work efficiency.

5. Use light curtain protection device, safe to use.

6. This machine has a temperature abnormal alarm function.

7. Heat pressing time, temperature and pressure can be adjusted.

8. This machine adopts automatic and semi-automatic control, easy to operate.

9. Small size, can save space.

10. Exquisite appearance, the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.

11. Electric control can be used for automatic operation during operation, and manual function can be used during debugging.

Specification
