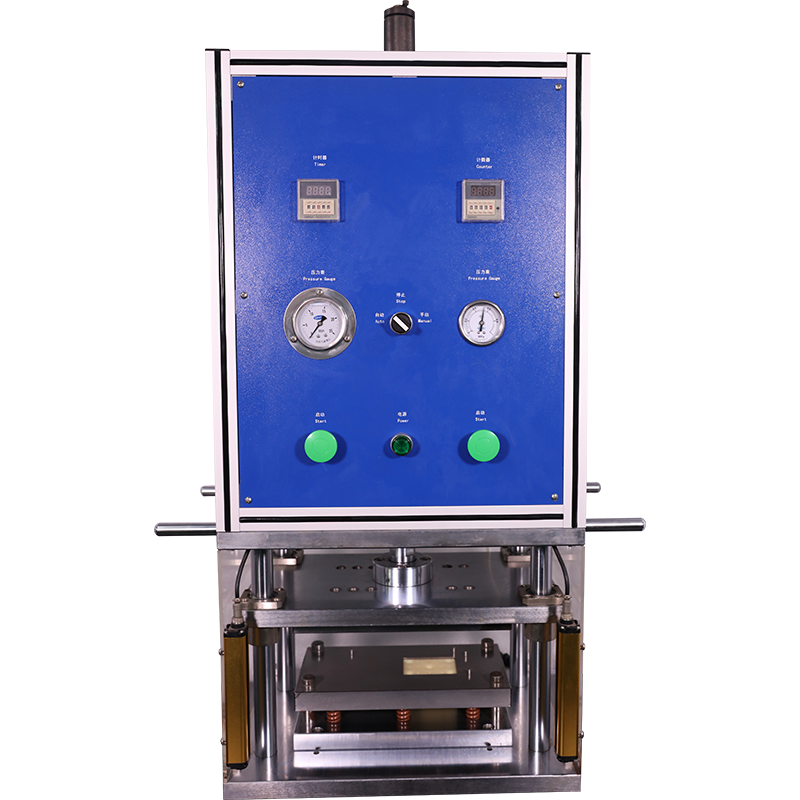

Automatic Battery Aluminum Plastic Film Pouch Cell Forming Machine

The equipment is mainly suitable for the hot flattening and shaping of the electric core after winding

  • Brand:

    ACEY
  • Item No.:

    ACEY-FM200
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Automatic Battery Aluminum Plastic Film Pouch Cell Forming Machine

Description

Battery Pouch Forming Machine is used for lithium polymer battery/ pouch cell cup forming in the production line of making pouch cell batteries. Different size can be made easily by replacing the die


Features

*The temperature of the work surface can be adjusted through the button on the thermostat panel. The current value and the set value of the set temperature can be displayed on the LCD display

*The pressure of the upper and lower working table can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;

*The machine adopts a single station structure, the upper and lower worktable panels are highly parallel, and the structure is stable and reliable;

*The work surface is made of high-quality materials, with good heat transfer effect;

*Use light curtain protection device, safe to use;

*This machine has a temperature abnormal alarm function;

*Heat pressing time, temperature and pressure can be adjusted;

*This machine adopts automatic and semi-automatic control, easy to operate;

*Electric control can be used for automatic operation during operation, and manual function can be used during debugging;


Specification

Power supply

AC220V/50Hz; power: 1.5 KW;

Air source

0.5Mpa0.8Mpa

Heat pressing area

200x200mm;

Pressure

1T pressure adjustable;

Temperature control accuracy

±2℃;

Heating temperature

normal temperature ~ 200℃ adjustable;

The plane parallelism of two pressure plates

within 0.05

Equipment size

320mm X 325mm X560mm

Weight

90kg.

Product Display

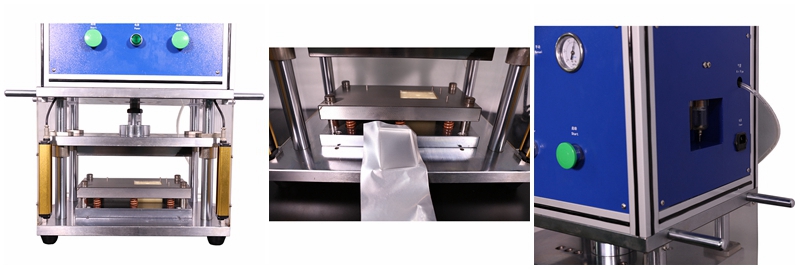

Details


Packing


One-stop Solution

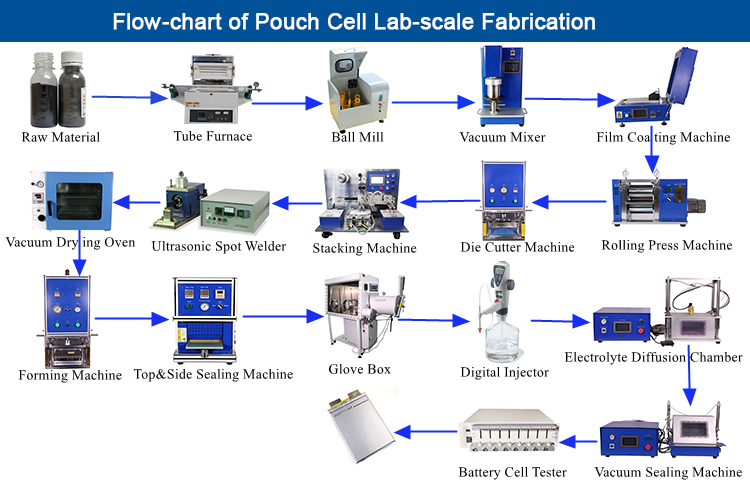

Flow-chart of Pouch Cell Lab-scale Fabrication
