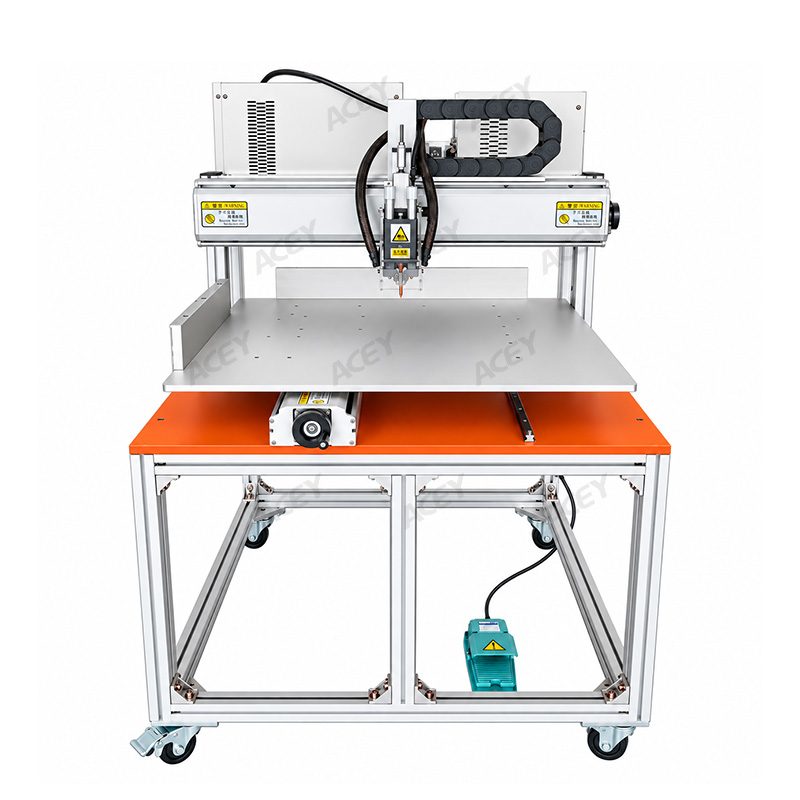

ACEY-D10000D 10000A Transistor Manual Gantry Battery Spot Welder is designed for spot welding cylindrical lithium battery packs. It combines manual battery pack positioning, foot-pedal welding control and a 10000A transistor welding power supply, providing flexible positioning for different battery pack sizes and welding locations.
Brand:
ACEYItem No.:
ACEY-D1000DCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 daysCustomized 10000A Transistor Hand-Cranked Lithium Battery Spot Welder Machine
Product Description

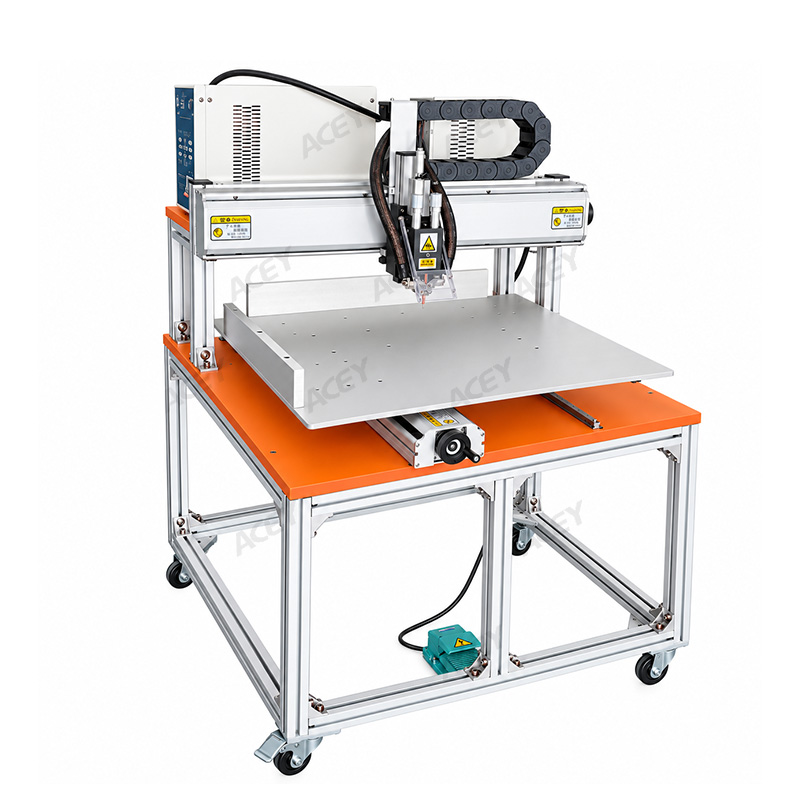

ACEY-D10000D 10000A Customized Battery Spot Welding Machine is designed for cylindrical lithium battery pack welding. It features manual positioning, foot-pedal welding control and a 10000A transistor welding power supply. The adjustable gantry structure supports flexible welding positions and different battery pack sizes, making it suitable for sample production, small-batch assembly and battery pack rework.
It is suitable for cylindrical battery pack applications such as e-bike batteries, electric scooter batteries, automotive battery modules, power tool battery packs, portable power packs and other lithium battery assemblies.
Product Features
Technical Parameters
| Parameter | Specification |
| Model | ACEY-D10000D Hand-Cranked Battery Spot Welding Machine |
| Operation Type | Manual positioning + foot pedal welding |
| X-axis Travel | 0–700 mm max., customizable |
| Y-axis Travel | 0–580 mm max., customizable |
| Z-axis Travel | 0–150 mm |
| W-axis Rotation | 0° |
| Worktable Load | Up to 60 kg |
| Input Power | AC 200–240V, 50/60Hz |
| Rated Power | 600W max. |
| Machine Dimensions | 1020 × 1020 × 1310 mm |
| Machine Weight | Approx. 120 kg |
10000A Transistor Welding Power Supply
| Parameter | Specification |
| Maximum Welding Current | 10000A |
| Maximum Power Consumption | 600W |
| Maximum Voltage | 30V |
| Current Setting Range | 0.00–10.00 kA |
| Voltage Setting Range | 0.00–9.99 V |
| Current Limit Setting | 0.00–9.99 kA |
| Voltage Limit Setting | 0.00–9.99 V |
| Pre-pressure Time | 0000–2999 ms |
| Rise Time | 0.00–9.99 ms |
| Weld 1 / Weld 2 Time | 0.00–9.99 ms |
| Cooling Time | 0.00–9.99 ms |
| Down-slope Time | 0.00–9.99 ms |
| Hold Time | 0000–999 ms |
| Input Power | Single-phase AC 200–240V, 50/60Hz |
| Control Modes | Constant Current / Constant Voltage / Constant Power / Combined Control |
| Monitoring | Current / Voltage / Power RMS and Peak Values |
Applications
ACEY-D10000D manual li ion spot welder can be used for cylindrical lithium battery pack welding in:

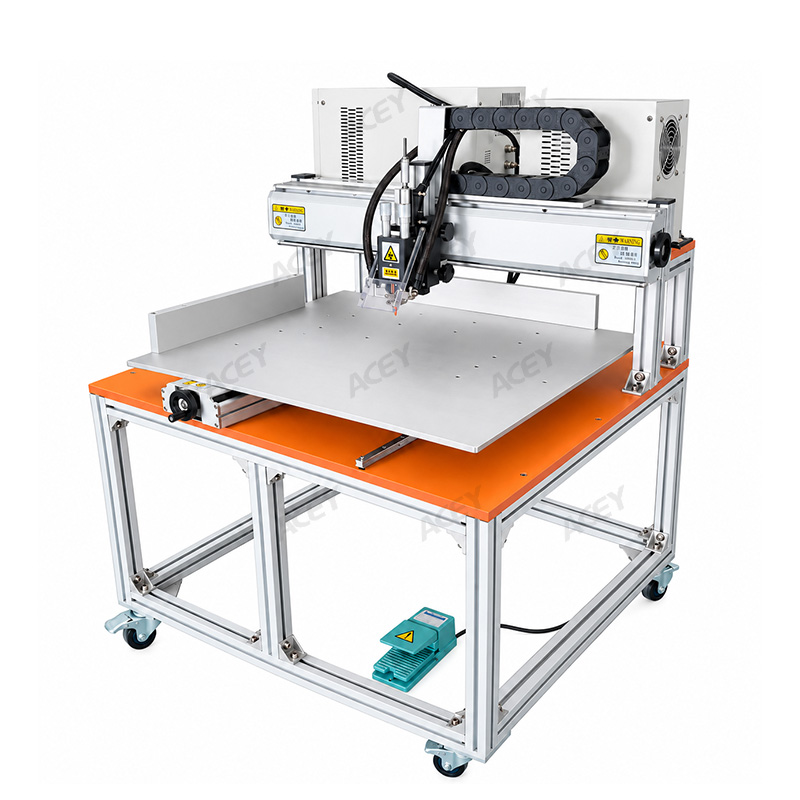

Product Display
FAQ
*What type of welding machine is the ACEY-D10000D Battery Pack Spot Welding Machine?
It is a manual-positioning gantry battery spot welder. The operator positions the battery pack and welding location manually, while the welding cycle is activated through a foot pedal.
*Is the ACEY-D10000D 10000A Transistor Manual Gantry Battery Pack Spot Welding Machine fully automatic?
No. It is designed for manual positioning and foot-pedal-controlled welding, rather than automatic programmed movement and continuous automatic welding.
*Can the working range be customized?
Yes. The standard maximum X-axis travel is 700 mm and Y-axis travel is 580 mm, and the specification states that both can be customized.
