Automatic Single-sided Nickel Strip Spot Welding Machine For Lithium Battery Pack

Automatic Single-sided Nickel Strip Spot Welding Machine For Lithium Battery Pack

Product Description

ACEY-S200B is an industrial-grade automatic single-sided spot welder designed for battery pack assembly, featuring a modular intelligent control platform that integrates PC-based processing, advanced motion controllers, and high-precision servo systems. Superior to traditional PLC systems, it offers exceptional flexibility, faster speeds, and streamlined data management for production reporting and model switching. The system supports seamless AutoCAD data imports for rapid programming and includes intelligent features such as automatic electrode offset compensation and real-time defect detection—automatically pausing operations if sparks, weak welds, or missed spots are identified to ensure 100% quality assurance.

Key Features: ACEY-S200B Battery Pack Spot Welder

• 21.5-inch HD Display: Large high-definition touchscreen for intuitive operation and crystal-clear data visualization.
• Triple Programming Modes: Supports Manual Input, Array Generation, and AutoCAD Import for rapid, complex task editing.
• Advanced Cooling System: Integrated air or water cooling in the welding head to maintain temperature and ensure weld quality.
• Massive Program Storage: Stores up to 999 sets of parameters, enabling instant model switching without tedious re-adjustment.
• One-Click Offset Calibration: Quickly recalibrates the entire welding path after electrode replacement or minor mechanical shifts.
• Ultra-High Efficiency: Rapid welding speed of ≤0.35s per point, reaching a throughput of 2,500 cells per hour with the servo head.
• Premium Core Components: Utilizes imported parts from Japan and Taiwan, doubling the precision and lifespan compared to standard models.
• Smart Diagnostics: Automated alarms and shutdown for welding defects; production can resume immediately after clearing faults.
• Breakpoint Resume Function: Built-in memory allows the machine to resume welding from any position after a power outage or interruption.
• Customizable Power Sources: Compatible with various welding power supplies to meet specific client technical requirements.
• Real-time Electrode Compensation: Automatically adjusts for electrode wear in real-time to minimize manual maintenance (Servo Head).
• Precision Servo Welding Head: Delivers higher stability, faster response, and flexible pressure control to prevent battery damage.

Technical Specification

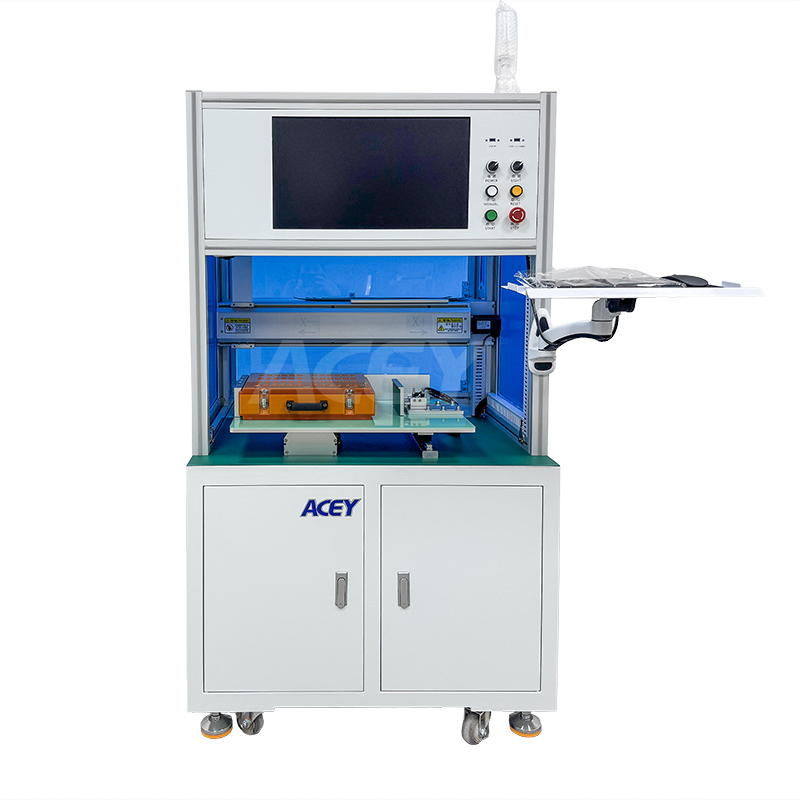

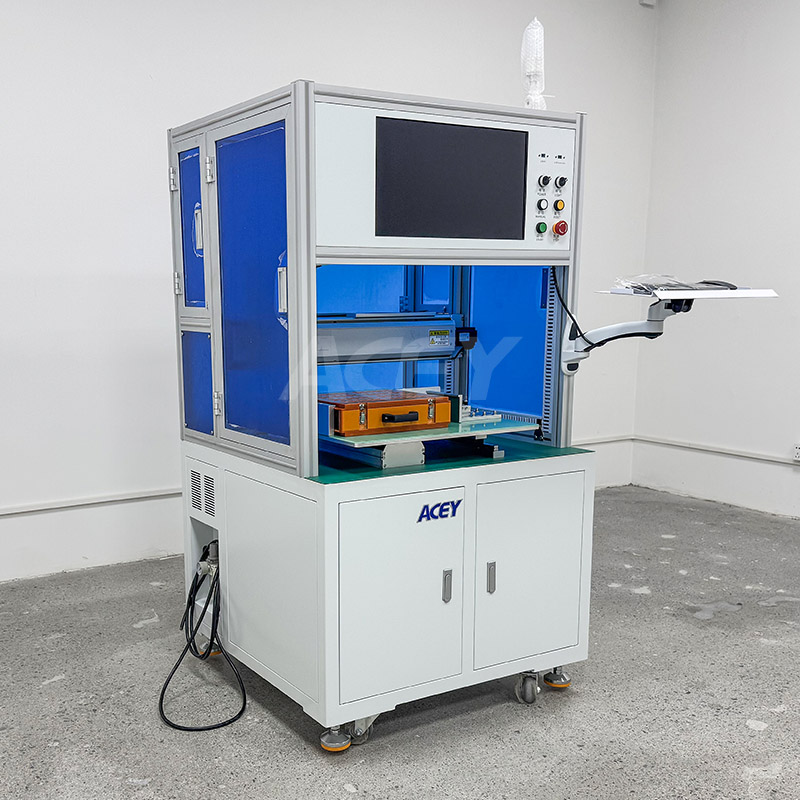

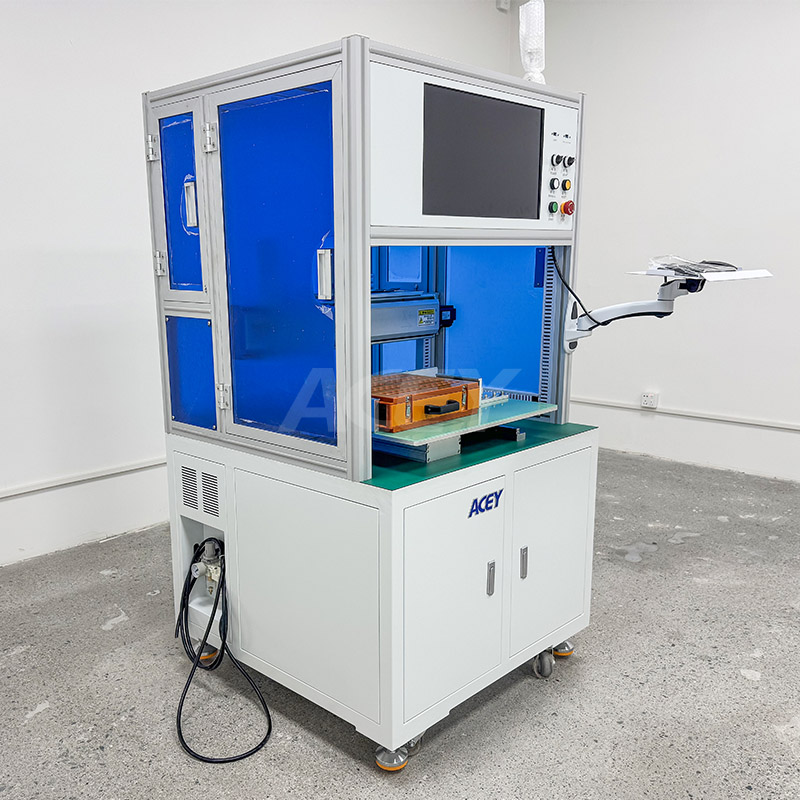

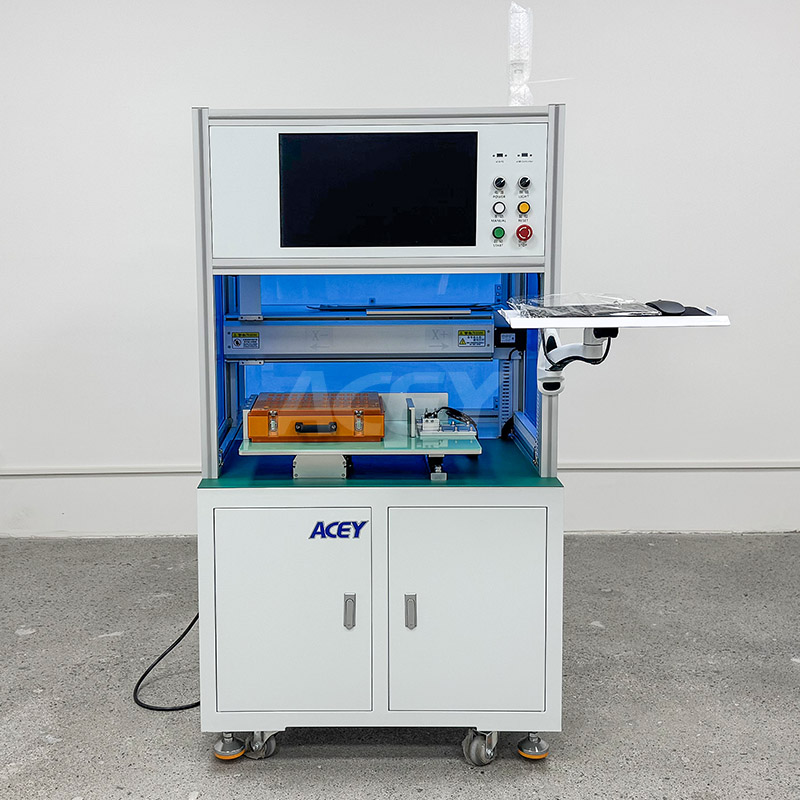

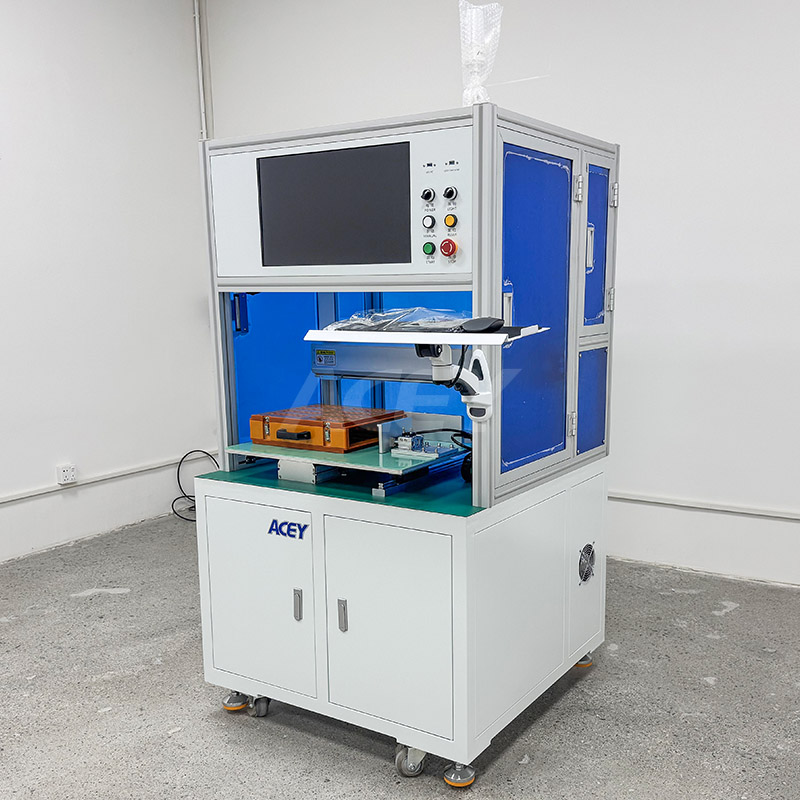

Product Display
