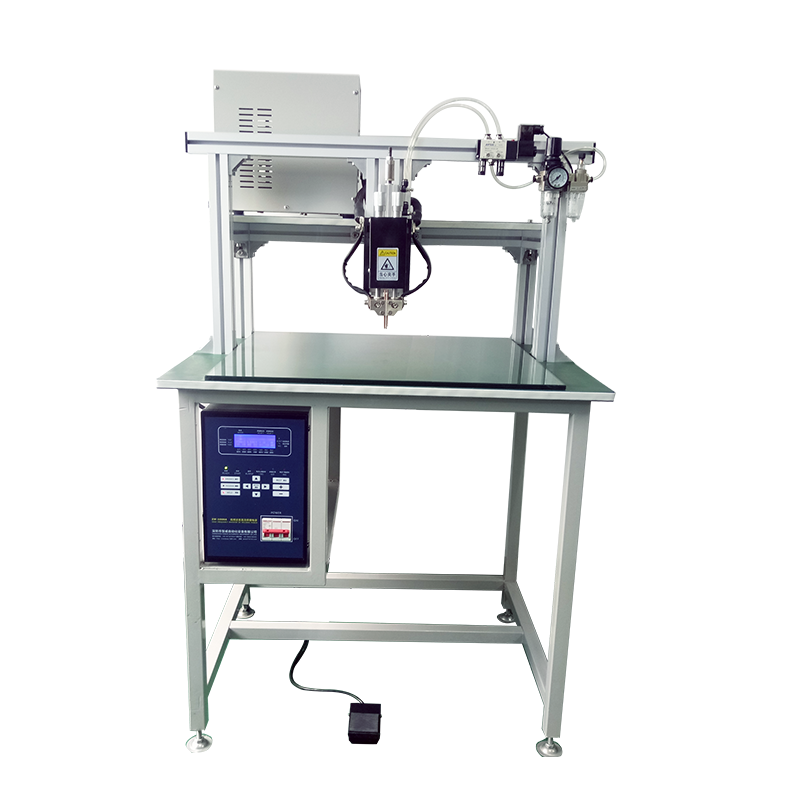

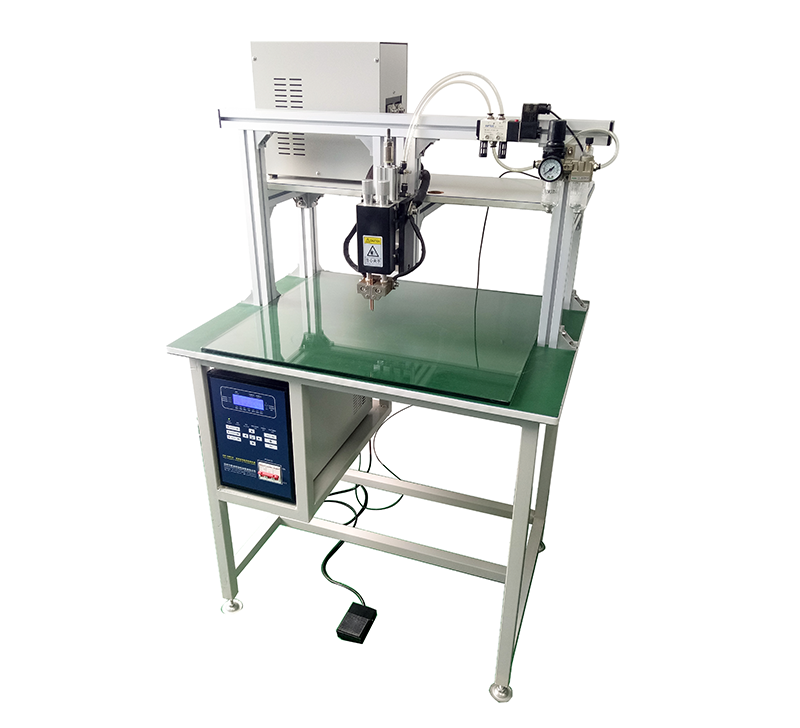

ACEY-5000D (DC machine) Battery Pack Spot Welding Machine is a general platform for cylinder battery pack assembling.
Brand:
ACEYItem No.:
ACEY-5000DCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:
7days5000A Battery Pack Welding Machine Inverter Gantry Spot Welder With DC Power
Description
The equipment includes inverter, welding controller and intermediate frequency transformer. It adopts modular design, selects imported components and is equipped with the company's advanced microcomputer controller, and cooperates with 2 sets of analog/digital conversion circuits to change the power supply voltage. Temperature changes are automatically controlled to maintain a stable output.
Features
1. panel Microcomputer control, high precision welding machine with plc display panel.
2. Optimized structure design, beautiful appearance, compact and reasonable structure, small size and large power.
3. Industrial circuit design, safe and reliable.
Specification
Model No.
ACEY-5000D
Max output power of transformer
35 KVA
Output max short circuit current
5000A
Floating voltage
10V
Control mode
constant current control
Cooling mode
forced air cooling
Condition
8
Use
electronic parts, battery nickel plate, enameled wire, sensor wire, halogen lamp, etc
Max thickness of parallel welding
0.03mm~0.5mm
Max thickness of upper and lower butt welding
0.3mm + 1mm
Machine weight
23.5kg
External dimension
L810mm*W610mm*H1220mm
Input power
3Phase AC380V±10% 50/60Hz
