Automatic Film Drying Coating Machine With Built-in Vacuum Pump

Automatic Film Drying Coating Machine With Built-in Vacuum Pump

Battery electrode coating machine is a touch-screen film coater which widely used in all kinds of high- temperature film coating research.

Payment:
L/C,T/T,Western Union, Paypal
Brand:
ACEY
Item No.:
ACEY-HFC250
Compliance:
CE Certified
Warranty:
One Year warranty with lifetime support
Order(Moq):
1 set
Product Origin:
China
Lead Time:
7days

INQUIRE now

Product Catalog

New Products

Product Detail

Automatic Film Drying Coating Machine With Built-in Vacuum Pump

Description

ACEY-HFC250 is a film coating machine with dryer and used for varies kinds of materials coating. It is supplied with vacuum pump and heating system, having an precision heating temperature up to 150°C.

Features

*Pushing speeds can be varied between 0 and 120 mm/sec to establish the most suitable application conditions for all coating material;

*Aluminum alloy flat vacuum plate with built in vacuum pump and allow you put on or release substrate quickly;

*Built-in pushing bar for using micrometer adjustable applicator or frame film applicator;

*One 150 mm width micrometer adjustable film applicator is included, accuracy 0.01mm.The coating film speed is adjustable;

*Using large area uniform heating to ensure high precision and uniform temperature in the cavity;

*Standard film dispenser, high coating precision, coating Adjustable cloth thickness;

*PLC. Touch screen control for easy parameter setting.

Specification

Heating drying system	room temperature～150℃, digital display temperature controller, accuracy ± 1℃
Coating method	flat coating, standard film maker (can be enlarged), optional scraper, wire rod and other gauges
The coating width	adjustable from 6.4-100mm, the coating stroke is about 250mm, and the stroke is steplessly set and adjusted in the touch screen
Coating drive	motor drive, the coating speed is steplessly set and adjusted in the touch screen;
Coating speed:	0～120mm/sec (such as lithium iron phosphate slurry);
Scraper adjustable range	0～6mm adjustable
Vacuum plate size	L365mm×W200mm×H32mm
Vacuum plate	aluminum plate with vacuum
Accuracy:	±3μm, optional display 1μm dial indicator
Power supply	220V/50Hz
Weight	50KG
Dimensions	L505mm×W355mm×H325mm
Packing details	Include 1 built-in oil-free vacuum pump

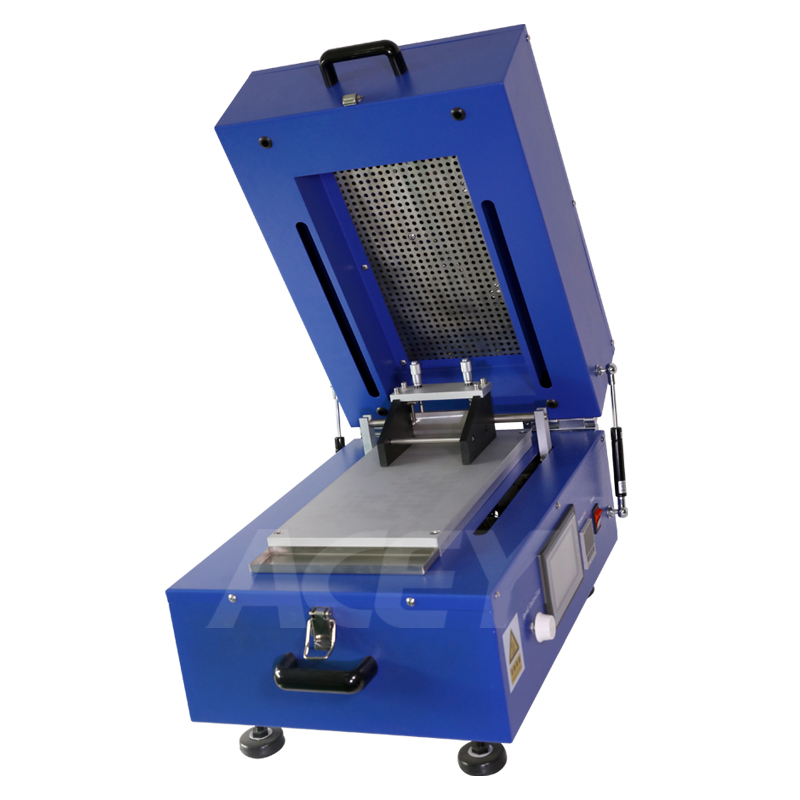

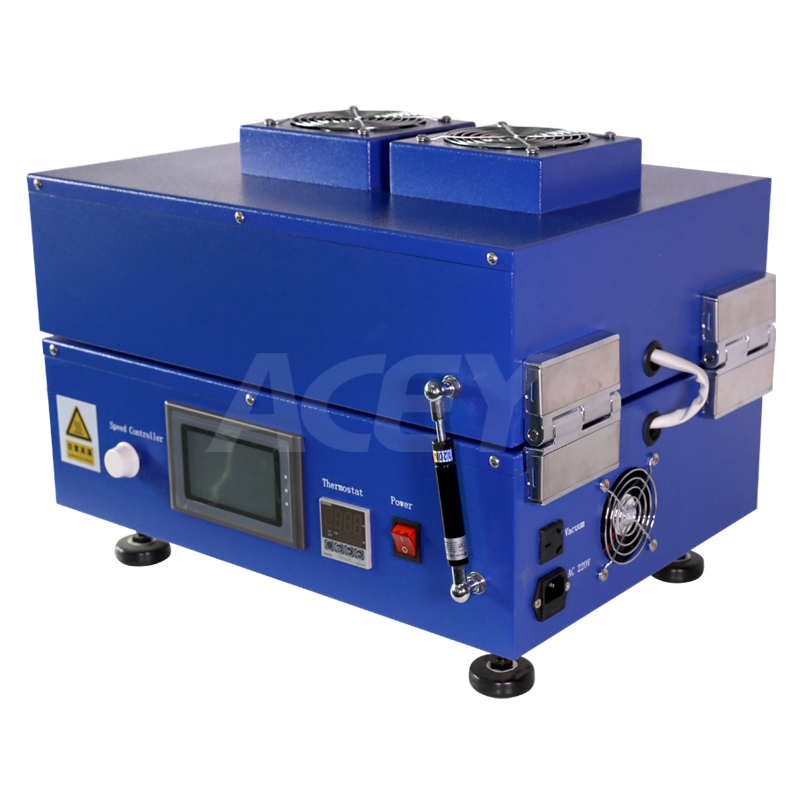

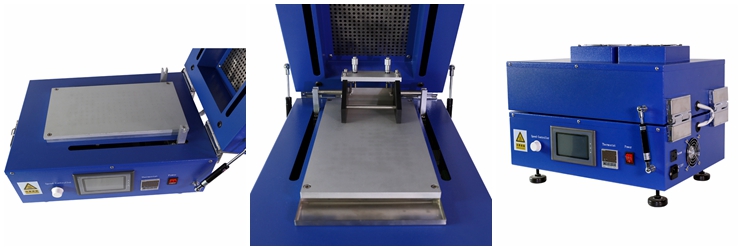

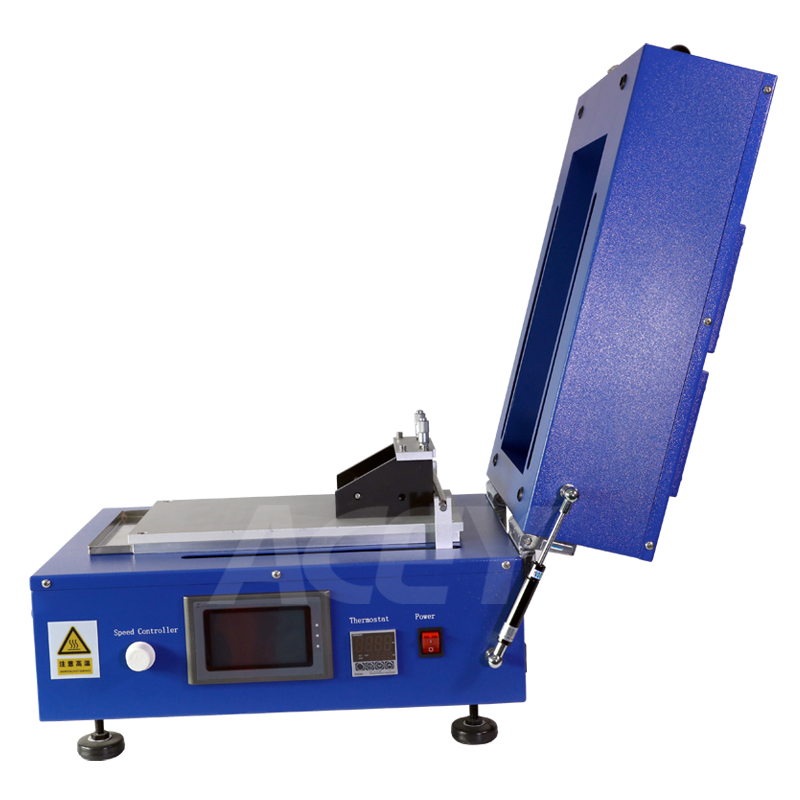

Product Display

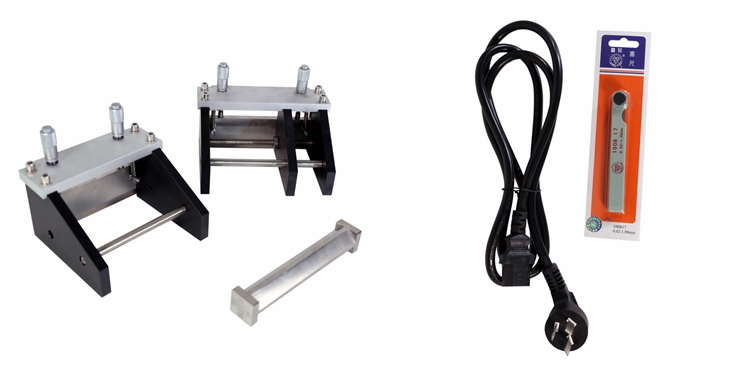

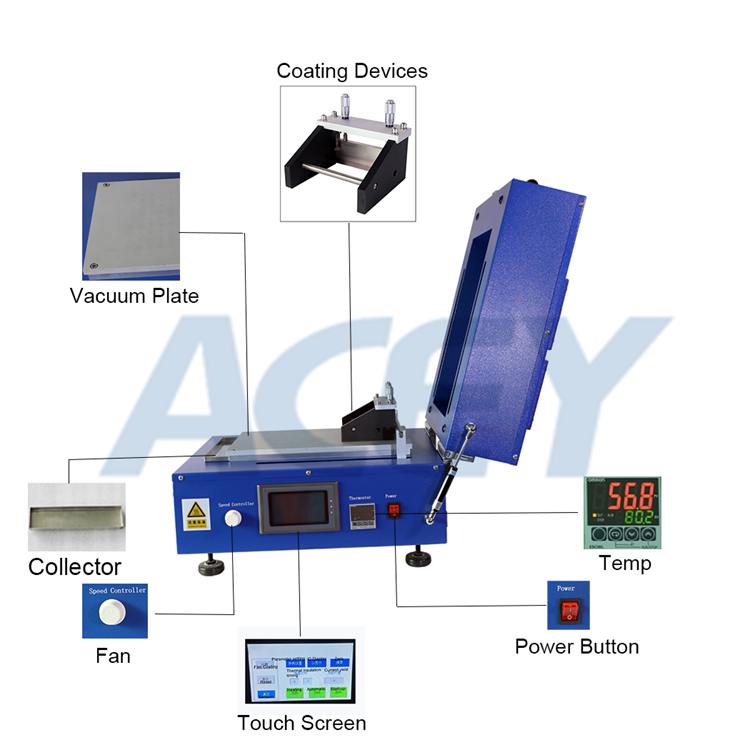

Details & Accessories

Packing

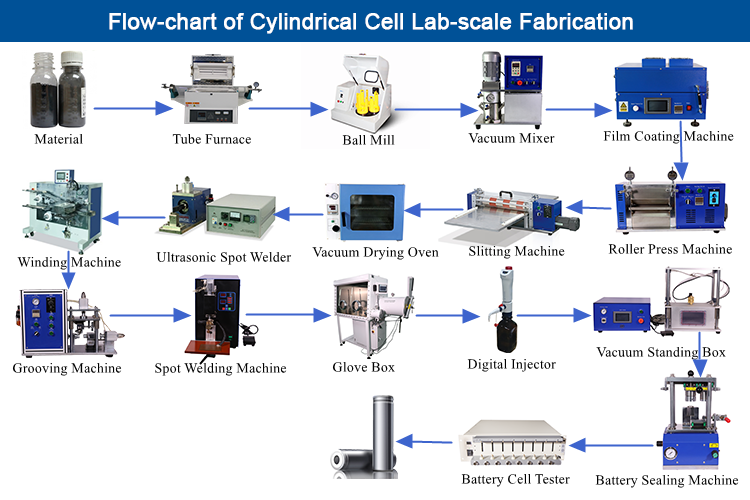

One-stop Solution
