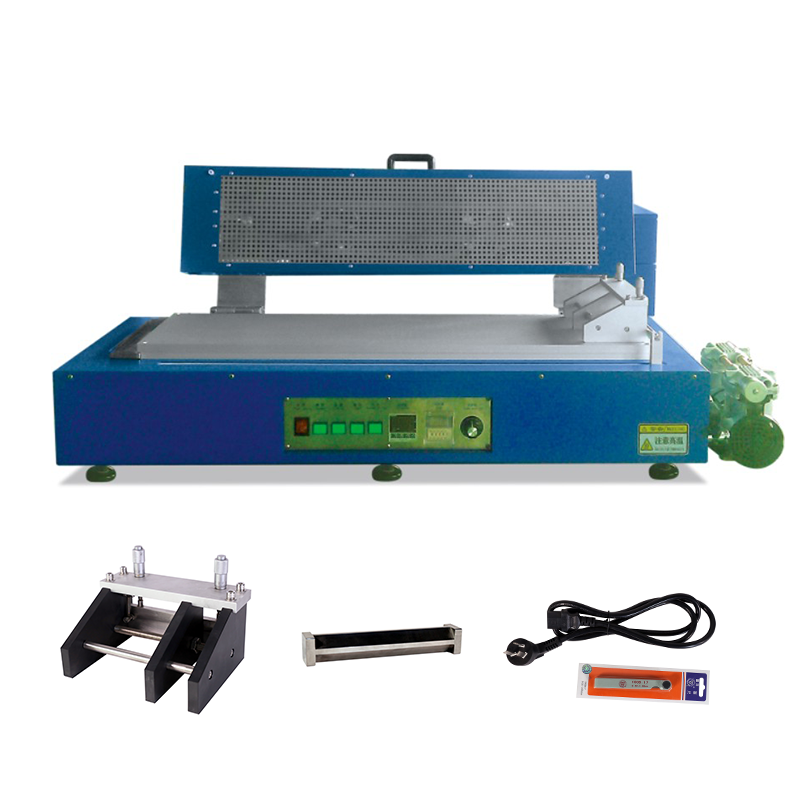

Customizable Film Dryer Battery Electrode Vacuum Coating Machine

This Vacuum Coating Machine With External Vacuum Pump.



  • Brand:

    ACEY
  • Item No.:

    ACEY-HFC800
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

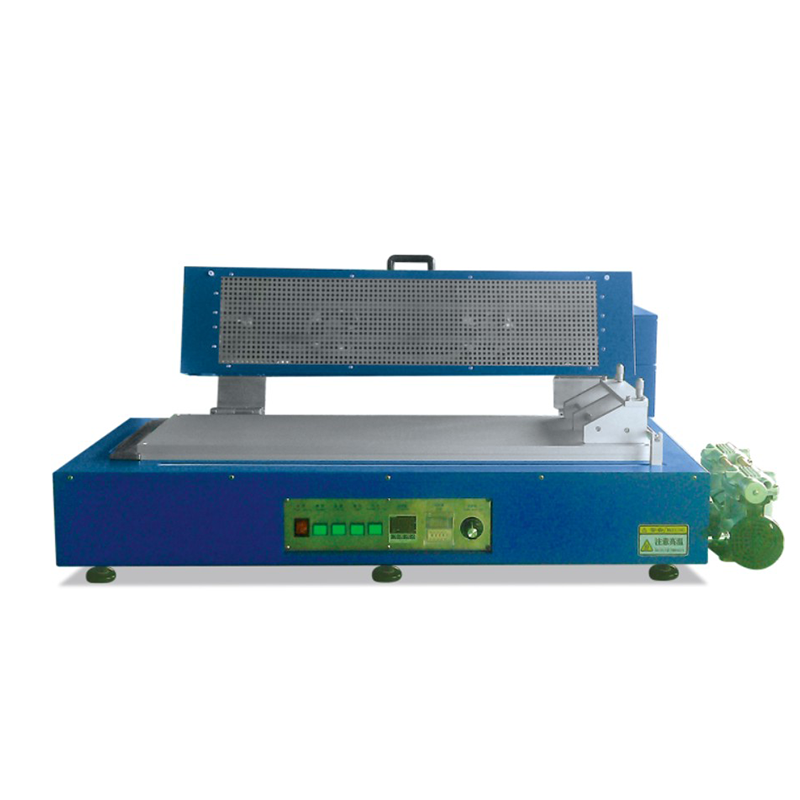

Customizable Film Dryer Battery Electrode Vacuum Coating Machine

Description

This product is a 800mm long cast coating machine, including a vacuum suction cup and an oil-free vacuum pump, and a scraper can produce long thick films. With a unique automatic propulsion device, it can produce smooth coatings on any material within a width of 150mm and a length of 800. It is an ideal tool for low-cost research and development of 18650 battery electrode materials.

Features

1. Strong wind circulation drying heating, digital display temperature control, working temperature 130℃.

2. Digital display timer, drying time can be set as you need.

3. The coating speed is adjustable within the range of 0~120mm/sec.

4. Vacuum aluminum plate can quickly place or remove the substrate.

5. The stroke can be adjusted by the stroke switch between 0~800mm.

6. Coating thickness adjustable.

Specification

Item No. ACEY-HFC800
Film coating speed

 0~120mm/sec

The stroke can be adjusted by the stroke switch between 0~800mm
Vacuum plate
aluminum plate with vacuum
Vacuum plate size
L900mm×W200mm×H32mm
Scraper adjustable range: 0~3.5mm
Heating drying system

room temperature~130℃, digital display temperature controller, accuracy ± 1℃

Includes 1 oil-free vacuum pump
Power supply
 220V/50Hz
Power

1.8KW

Weight
70KG
Dimensions
L1000mm×W355mm×H325mm


Product Details

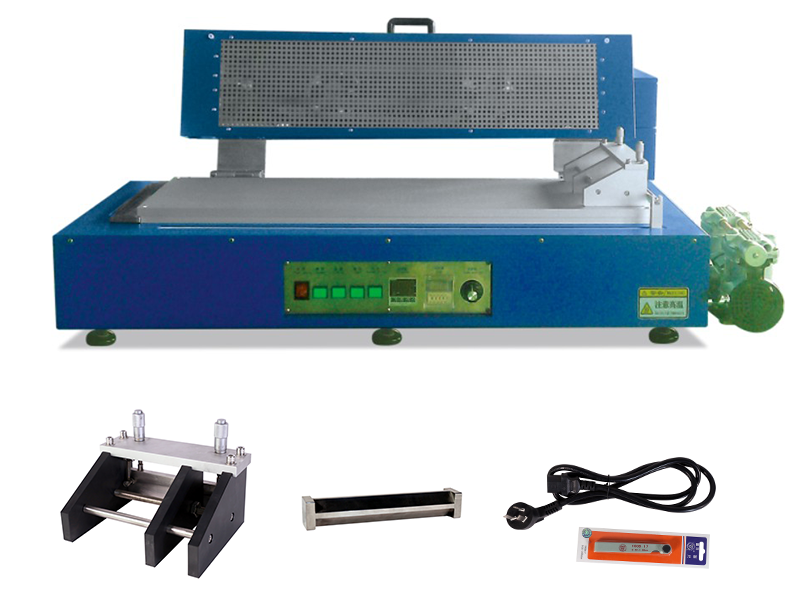

Details of HFC800 Automatic Battery Slurry Coating Machine

Accessories

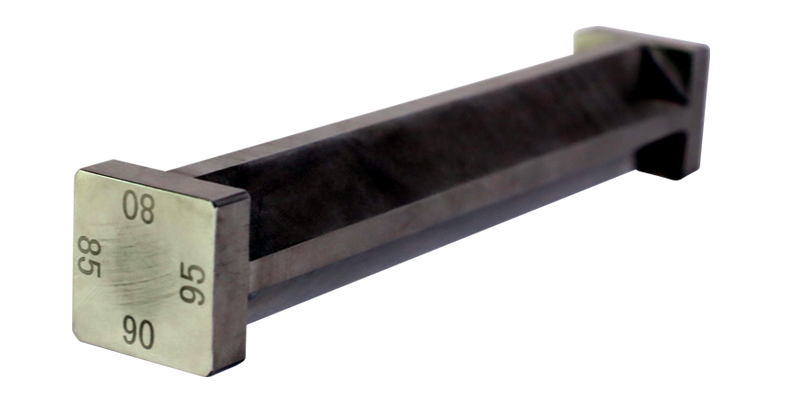

Four Side Wet Film Applicator For Coating Machine


Packing

Use wood plywood packaging to ensure product safety


Other types of coating machines for choose

1. ACEY-HFC250

Automatic Cylindrical Battery Film Coating Machine With Heat Drying Function

2. ACEY-AC300J

Automatic Intermittent Coating Machine For Li Ion Battery Slurry


3. ACEY-TRC400

Three-Roll Transfer Coating Equipment For Battery Anode And Cathode
