Automatic Cylindrical Battery Film Coating Machine With Heat Drying Function

HFC250 automatic coating machine coater with a heating cover designed to produce films with consistent thickness.


  • Brand:

    ACEY
  • Item No.:

    ACEY-HFC250
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Automatic Cylindrical Battery Film Coating Machine With Heat Drying Function

Description

This vacuum coating machine with heating cover, it can dry films with digital temperature controller.It has a unique driving system to produce a smooth coating on all types of materials.

Features

1. Using large area uniform heating to ensure high precision and uniform temperature in the cavity.

2. Flat coating, motor-driven scraper coating, stable and adjustable coating speed.

3. The coating film speed is adjustable. The vacuum aluminum pan can quickly place or remove copper foil.aluminum foil, etc., built-in vacuum pump or connected to an external vacuum source, and the substrate is adsorbed without deformation.

4. Standard film dispenser, high coating precision, coating Adjustable cloth thickness.

5. Can be used in the glove box, easy to operate and small in size, which can save space.

6. PLC. Touch screen control for easy parameter setting.

Specification

Item No. ACEY-HFC250
Coating method

flat coating, standard MRX-TM100 film maker (can be enlarged), optional scraper, wire rod and other gauges(Manual scraping)

The coating width is adjustable from 6.4-100mm, the coating stroke is about 250mm, and the stroke is steplessly set and adjusted in the touch screen
Coating drive
motor drive, the coating speed is steplessly set and adjusted in the touch screen
Coating speed
0~120mm/sec (such as lithium iron phosphate slurry)
Vacuum plate

aluminum plate with vacuum

Vacuum plate size
 L365mm×W200mm×H32mm
Scraper adjustable range
0~6mm adjustable
Accuracy
 ±3μm, optional display 1μm dial indicator
Heating drying system

room temperature ~ 150℃, digital display temperature controller, accuracy ±1℃

Include 1 built-in oil-free vacuum pump
Power supply
 220V/50Hz
Weight
50KG
Dimensions
 L505mm×W355mm×H325mm

Product Details

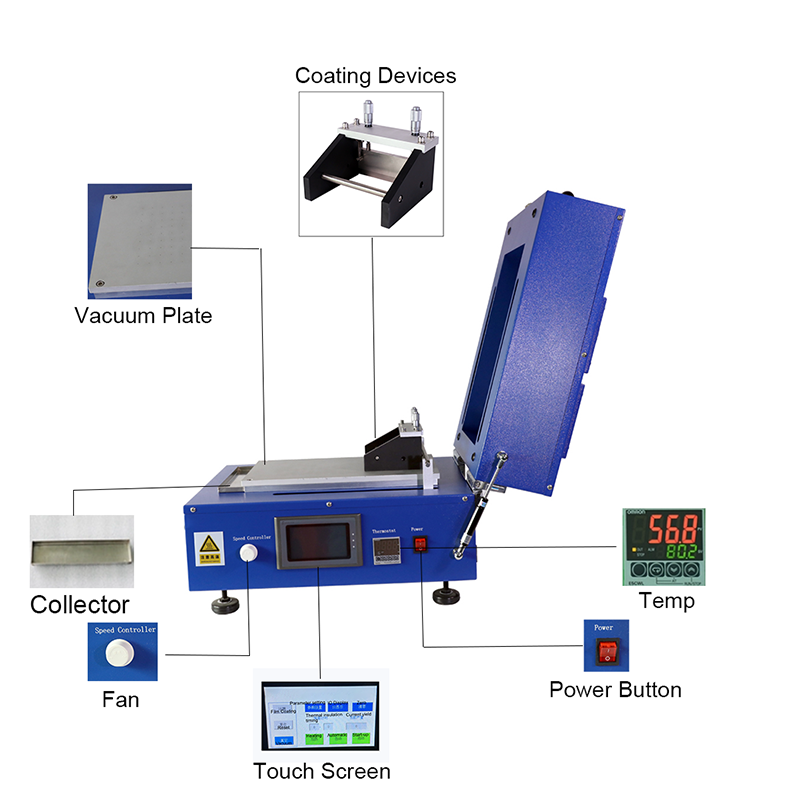

Details of HFC250 Automatic Battery Film Coating Machine

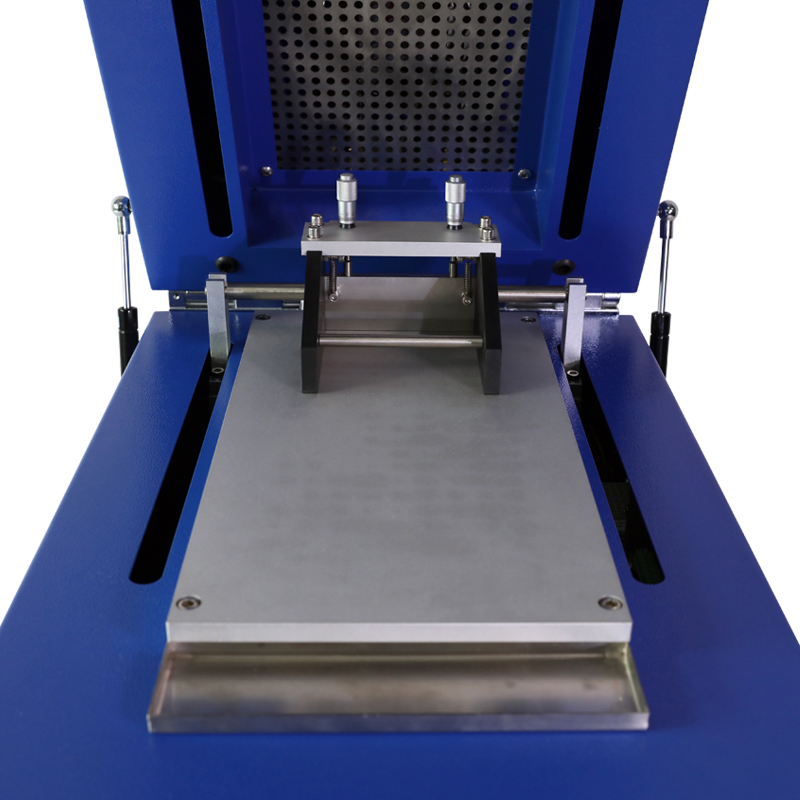

Detail Image of heat drying film coating machine

Accessories

Coating Devices of HFC250 Battery coating Machine

Power cable of film coating machine


Packing

The package of HFC250 battery electrode coater


Other types of coating machines for choose

1. ACEY-FC250


2. ACEY-AC300J

Automatic Intermittent Coating Machine For Li Ion Battery Slurry


3. ACEY-TRC400

Three-Roll Transfer Coating Equipment For Battery Anode And Cathode
