Xiamen Acey New Energy Technology Co.,Ltd
It is applied to the production of samples for the research and development of battery materials in the laboratory for button batteries
Brand:
ACEYItem No.:
ACEY-BMS-1Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1 setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:

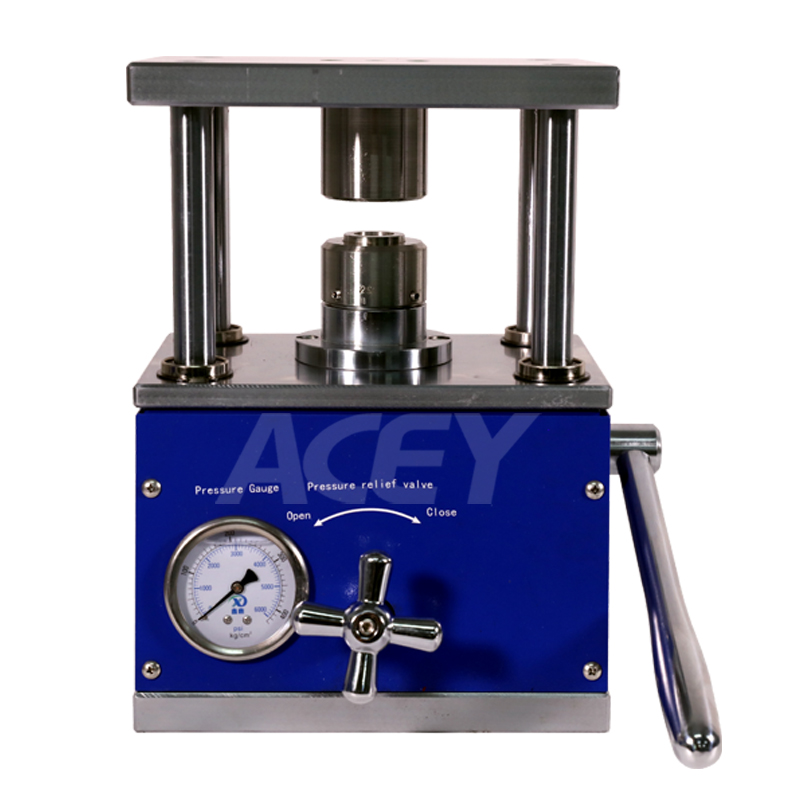

7daysProfessional Coin Cell Crimper Button Battery Manual Sealing Machine
Description
ACEY-BMS-1 is a newly designed coin-cell crimper with lighter weight. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets. In addition, customers can easily replace the original die for disassembling purpose. it is an ideal tool for operations in a glove box.
Features
*The lower mold is limited by a high-precision positioning ring to control the height of the battery packaging, so as to avoid excessive and unstable packaging pressure.
*The inner ring of the upper mold sealing cup is equipped with a screw spring centering mechanism to ensure that in case the battery is stuck and cannot be removed during sealing, the button battery can be forced out by twisting the top screw.
*Built-in safety overflow oil valve, the pressure can be adjusted according to needs, and the upper pressure limit can be set to prevent damage caused by excessive pressure caused by misoperation, ensuring the safety of the machine.
*Built-in pressure gauge can observe and accurately control the size of the sealing pressure.
*Using hydraulic drive, the pressure can reach 8T, the battery seal has no vibration and no leakage.
*Specially designed hydraulic structure, labor-saving operation.
*It has the function of preventing short circuit of battery sealing.
Specification
Operating force of the hand rocker
less than 5kg;
The pressure gauge
The machine has been set at about 80～100kg/cm2 before leaving the factory.
Structural material
high-strength chromium steel, the surface will never rust after environmental protection plating and spraying.
Dimensions
225mm X 180mm X 335mm
Weight
30kg.

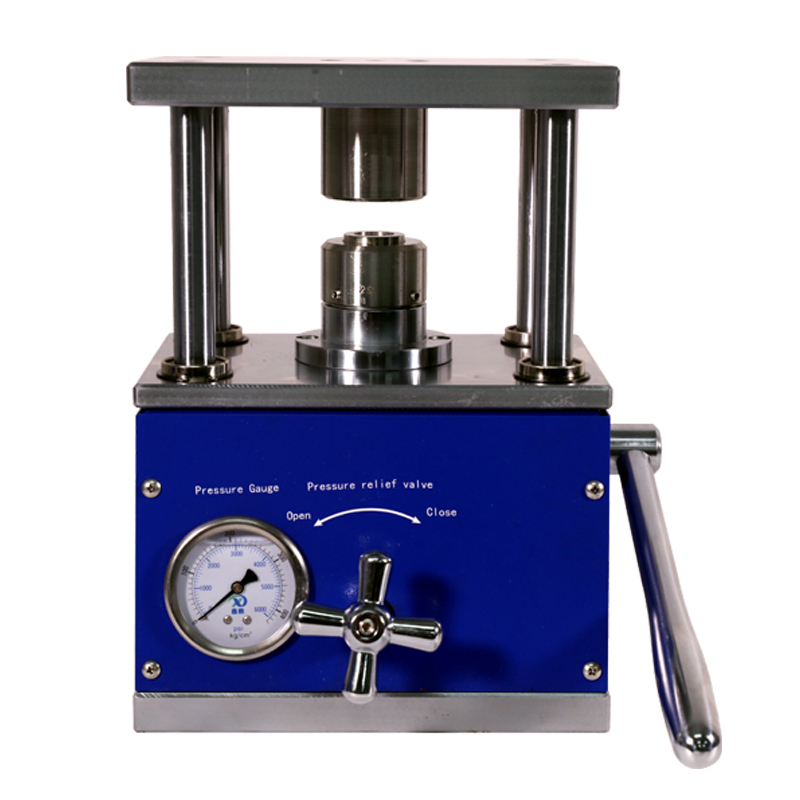

Product Display

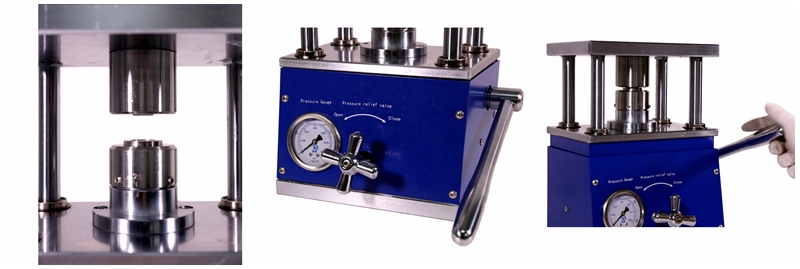

Details
Packing

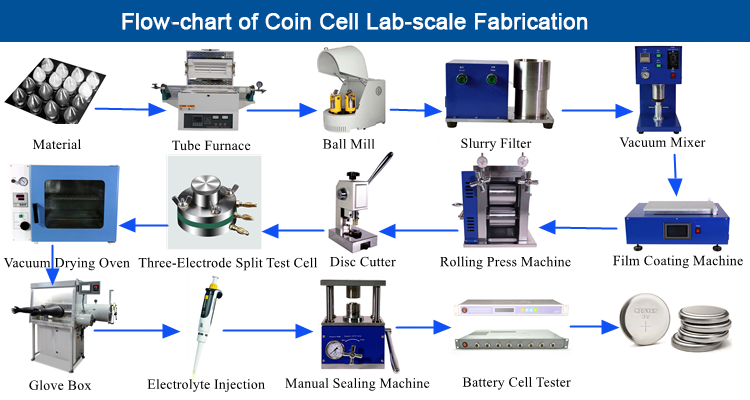

One-stop Solution
