XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/0f16efa12291b19fbc5b9915c12334e0.jpg)
This instrument is suitable for preparing LiCoO3, LiFePO4, Phosphor and various ceramic slurries where gas bubbles must be kept at minimum.
Payment:
L/C,T/T,Western Union, PaypalBrand:
ACEYItem No.:
ACEY-EVM-1LCompliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1Product Origin:
ChinaLead Time:

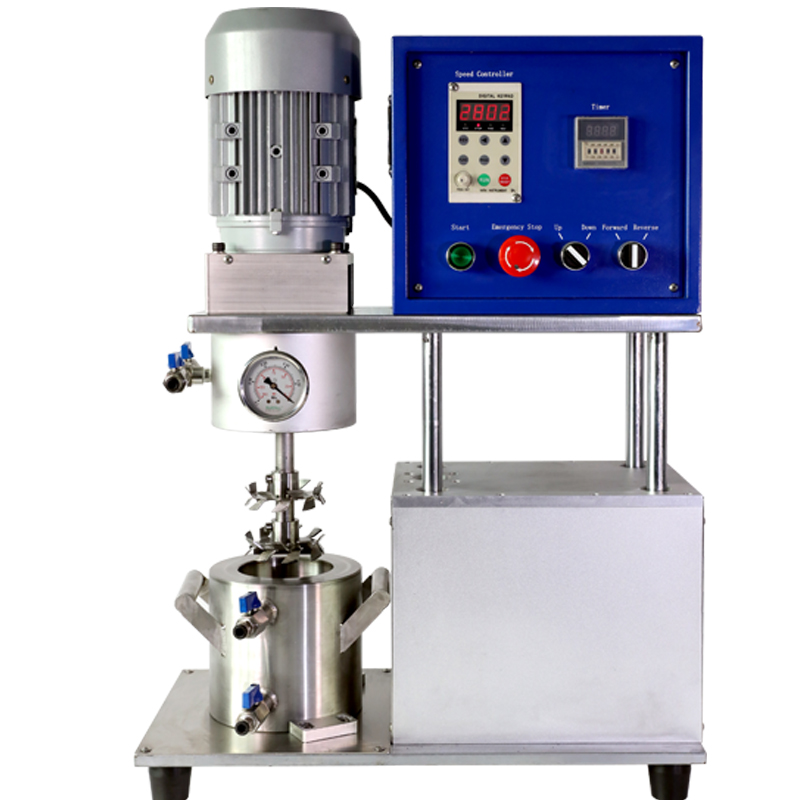

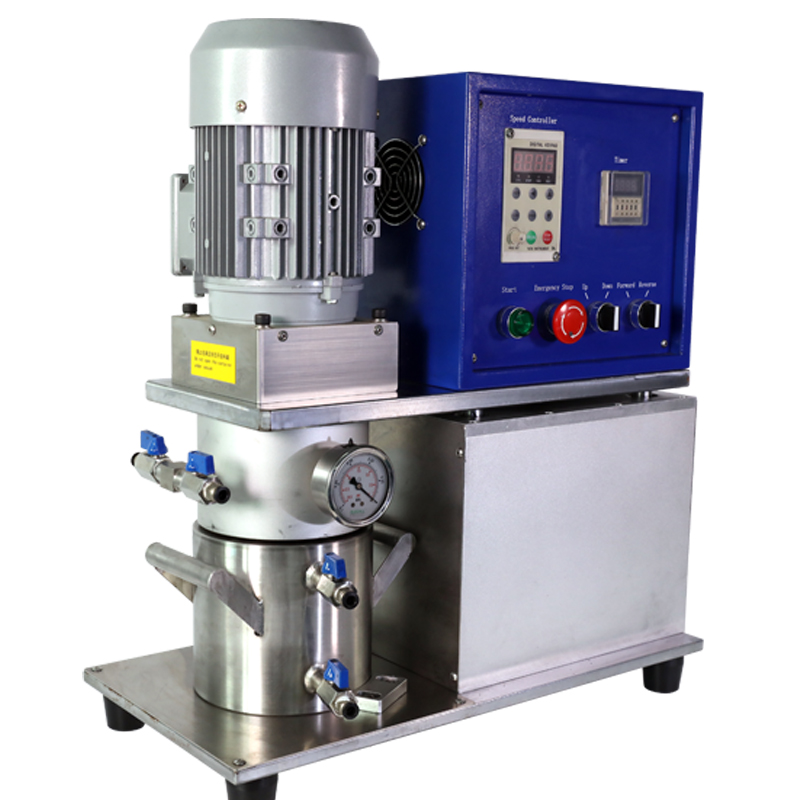

7days1L Battery Slurry Mixing Machine Electric Vacuum Mixer With Tank
Description
ACEY-EVM-1L system vacuum mixer is laboratory small vacuum mixing equipment; it is efficient equipment with vacuum mixing and dispersion.It is programmable in speed, time, and rotational direction, and has a stainless steel mixing tank implemented with water cooling to maintain an efficient mixing process.
Features

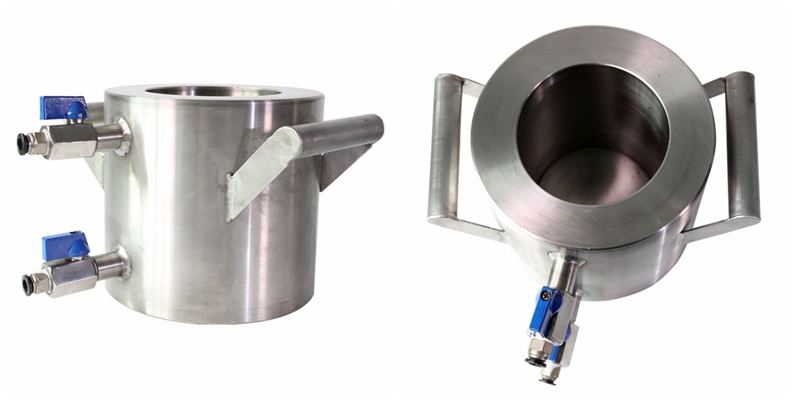

* 1L double-layer stainless steel container, the barrel body is made of high-quality 304 stainless steel, after finishing lathe, it is polished by a precision automatic polishing machine to ensure high precision;
* The stirring motor adopts gearbox frequency conversion adjustment, and different speed and torque can be selected according to different processes and different viscosities;
* The double-dispersion blade design makes the material toss up and down and around, so that the slurry can be mixed quickly and evenly;
* To automatically stop running and keep the vacuum state；
* Adopting industry-leading soft sealing technology, can maintain -0.098Mpa state for more than 24 hours;
* Adopting precision guide post support, the cylinder automatically pushes the barrel to open and close.
Specification
Rated power
0.75KW, 220V;
Stirring speed
0-1400 rpm ，speed regulation by frequency converter
Vacuum
-98KPa (without vacuum pump)
Effective volume
equipped with a 1L tank
Opening and closing method of the barrel
the cylinder drives the upper cover to rise
Overall size
705mm×605mm×305mm (height×length×width)
Timing function
the time can be set arbitrarily 0-99 (H) set time

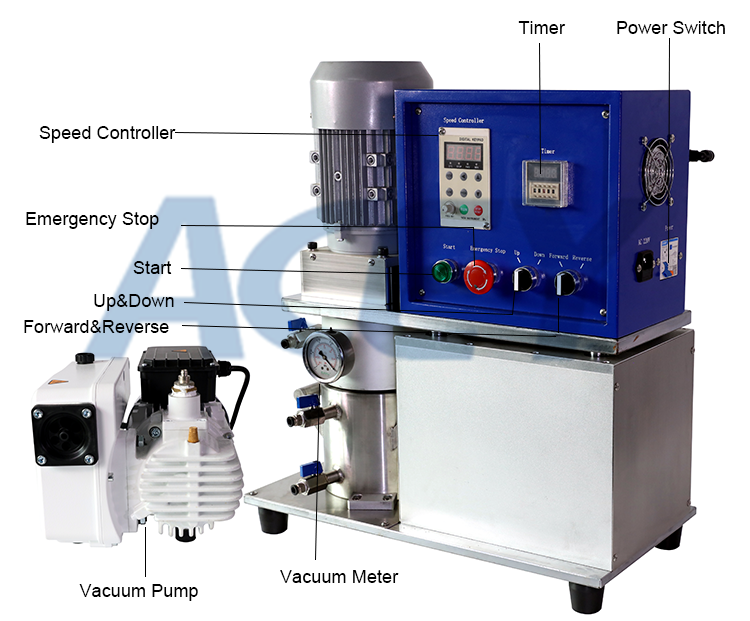

The lid is equipped with
vacuum gauge, vacuum port, etc
Overall weight
about 90kg

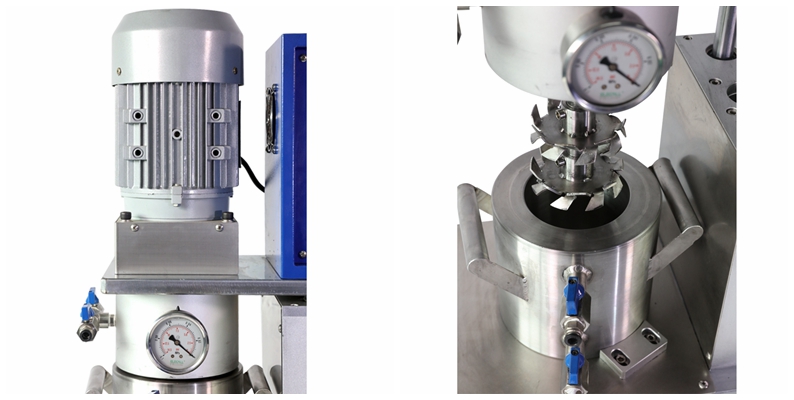

Details
Packing
