Small 0.5L Magnetic De-ironing Filtration System for Battery Electrode Slurry

This filter device is mainly applied to a special filter designed for laboratory samples to filter out various hard particles with a particle size of not less than 124 microns in the slurry. The whole machine has beautiful design and is flexible and convenient to use.

  • Brand:

    ACEY
  • Item No.:

    ACEY-SF-1-500ML
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

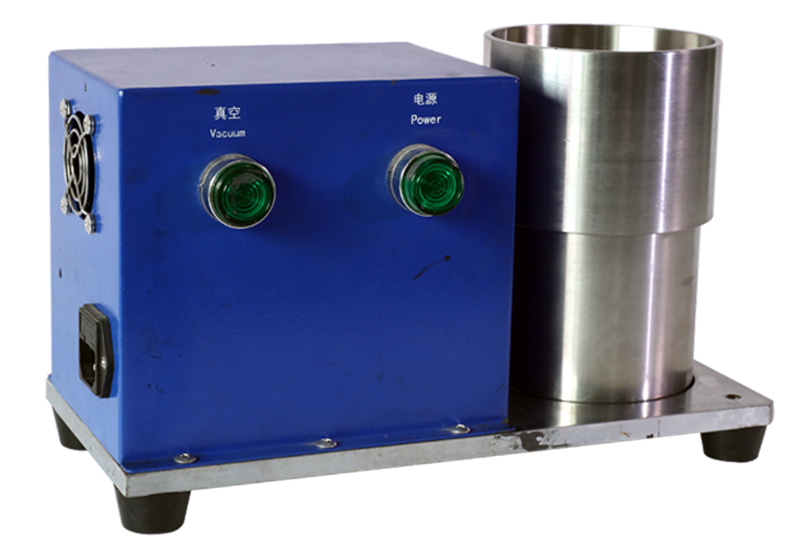

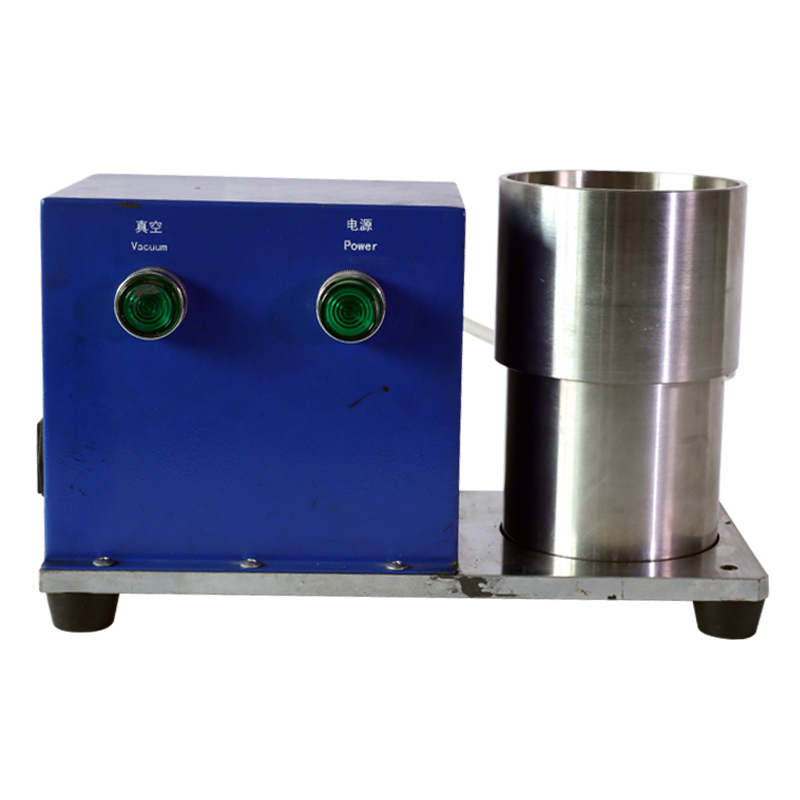

Small 0.5L Magnetic De-ironing Filtration System for Battery Electrode Slurry


Features

1. High filtration accuracy, up to 124 microns, equipped with two types of particle filters to filter positive and negative.

2. All SUS304 stainless steel design, good corrosion resistance, easy to clean

3. The filter screen with larger filter area makes the pressure loss very low and the equipment is durable.

4. Small size and convenient operation.

5. Beautiful appearance, easy maintenance, molding and other advantages.

Specification

Filter dimensions

145mm×150mm×200mm

Overall dimensions of air generator
140mm×70mm×150mm
Weight
4Kg
Power adapter

AC 220V±10% 50HZ

Absolute vacuum
 65KPa
Air pump flow
3L/Min
With filter
80, 100, 150 mesh filter
Optional filter
below 1000 mesh
Capacity
500ml
Product Details

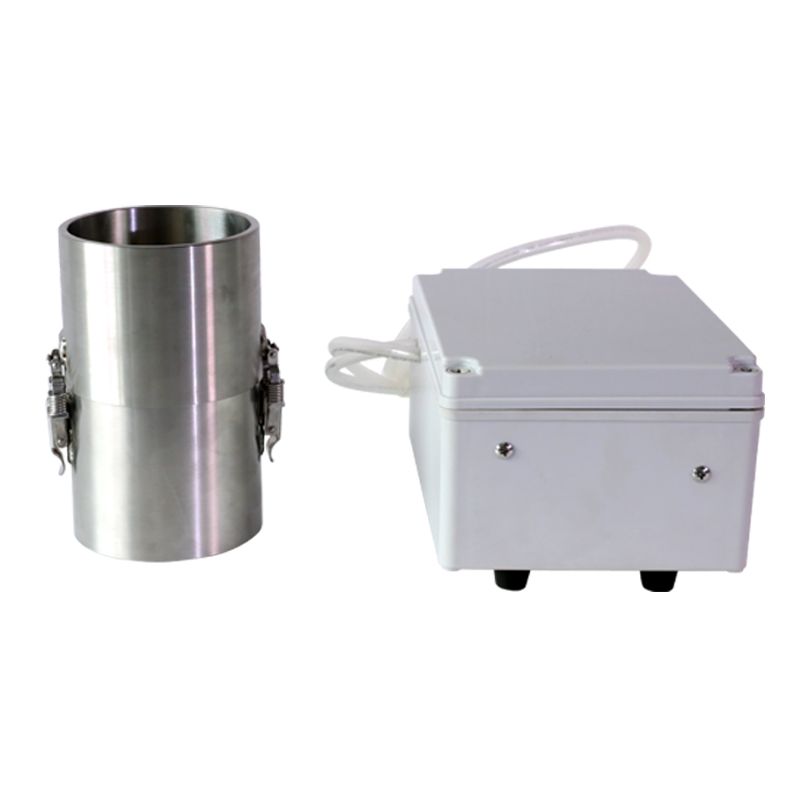

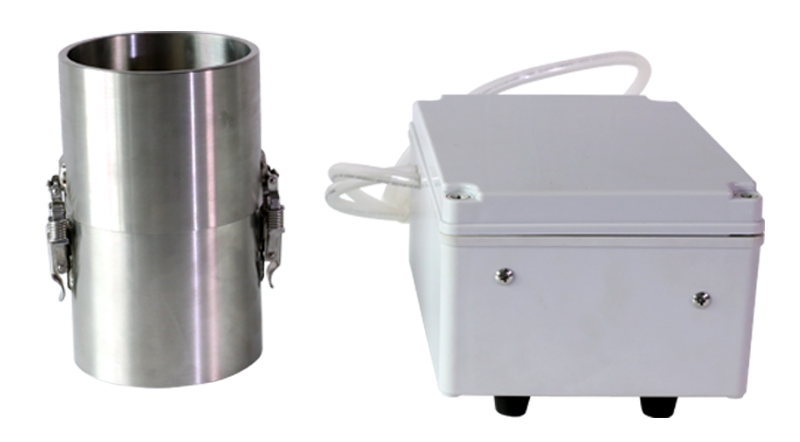

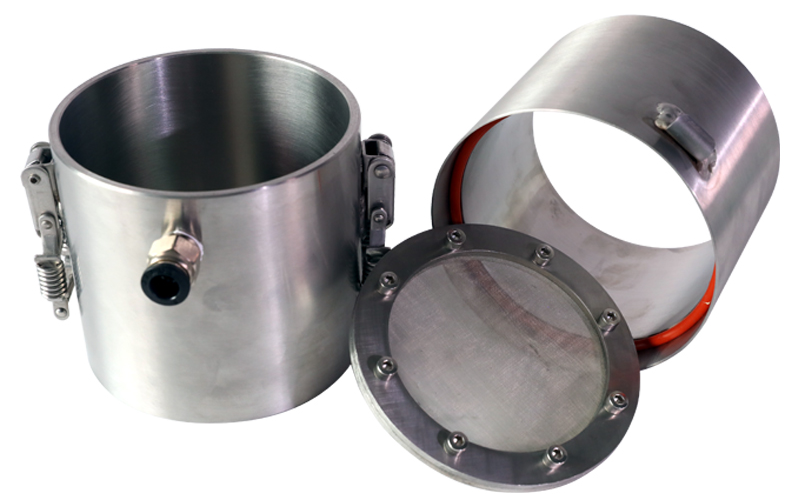

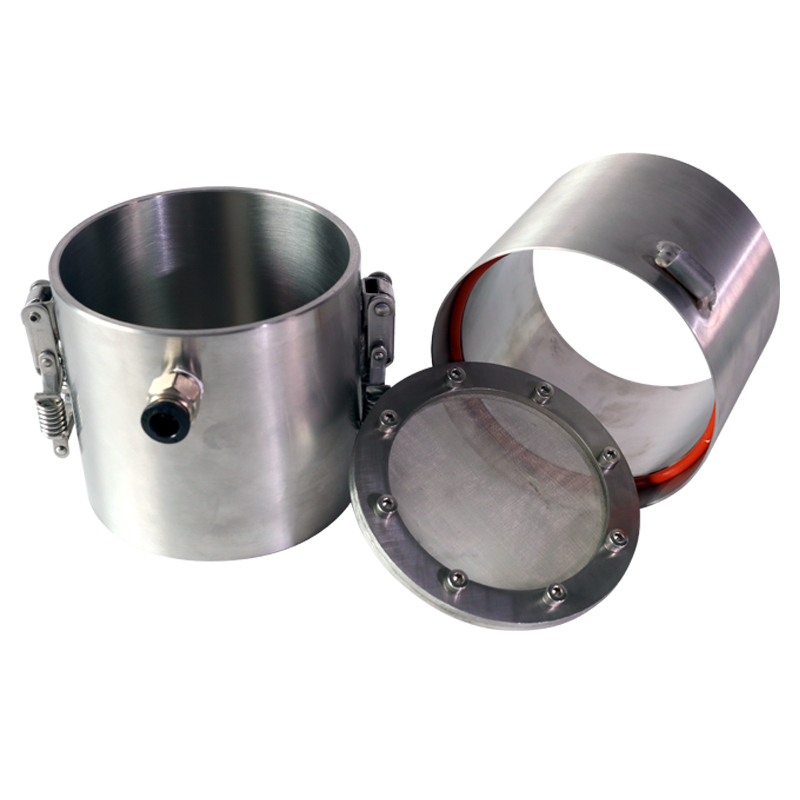

Magnetic Deironing Filtration System

Battery Slurry Filtering Machine
