NDJ 1S/5S/8S Lab Digital Display Rotary Viscosity Meter Viscometer

This viscometer has high measurement sensitivity, good anti-interference performance, reliable test results, and convenient operation. It is an instrument used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids.


  • Brand:

    ACEY
  • Item No.:

    NDJ-D-1S/5S/8S
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

NDJ 1S/5S/8S Lab Digital Display Rotary Viscosity Meter Viscometer

Description

NDJ-1S/5S/8S digital display viscometer, this instrument uses a new generation of mechanical design, beautiful production process. It adopts microcomputer control technology and RS-232C printer interface, which can collect data correctly. The display screen adopts high-brightness LED display with blue backlight, and the data is displayed clearly.

Features

1. NDJ series digital viscometer, the motor drives the rotor to rotate at a constant speed through a variable speed. When the rotor rotates in the liquid, the liquid will generate a viscosity torque acting on the rotor. The greater the viscosity of the liquid, the greater the viscous moment; conversely, the smaller the viscosity of the liquid, the smaller the viscous moment. The viscous torque acting on the rotor is detected and picked up by the sensor, and the viscosity of the measured liquid is obtained after computer processing.

2. This instrument has the characteristics of high measurement sensitivity, good anti-interference performance, wide working voltage (110V-240V, 50HZ-60HZ-12V), reliable test results, convenient use and operation, and beautiful appearance. It is used to measure Newtonian liquids. The instrument of absolute viscosity and apparent viscosity of non-Newtonian liquids can be widely used in the measurement of the viscosity of various objects such as grease, paint, plastics, drugs, accessories, coatings and detergents.

3. The display clearly shows the rotor number, speed, viscosity value of the measured liquid and its full percentage value during measurement.

4. This instrument is equipped with 4 types of rotors (No. 1, 2, 3, 4)

5. NDJ-5S has 4 speeds (6, 12, 30, 60 rpm) and 16 combinations, which can measure the viscosity of various liquids within the measurement range.

6. NDJ-8S has 8 speeds (0.3, 0.6, 1.5, 3, 6, 12, 30, 60 rpm), 32 combinations of which can measure the viscosity of various liquids within the measurement range value.

Specification

Model No. NDJ-1S
NDJ-5S
NDJ-8S
Measuring range
1-1x105mpa.s
1-1x105mpa.s
1-2x106mpa.s
Rotor specifications
1, 2, 3, 4 rotor (optional 0 rotor can measure the viscosity to 0.1~10mpa.s)
Rotor speed
6, 12, 30, 60 rpm/min
6, 12, 30, 60 rpm/min
0.3, 0.6, 1.5, 3, 6, 12, 30, 60rpm/min
Single measurement automation
After the measurement result is stable, the rotor automatically stops
measurement accuracy
±2% (Newtonian liquid)
Temperature sensor interface



PC interface



Printer interface



Power supply
AC110-240V  50/60HZ  DC12V
Working environment
Temperature 5℃-35℃, relative temperature not more than 80%
Dimensions
380*320*390mm
Net weight
4.6kg

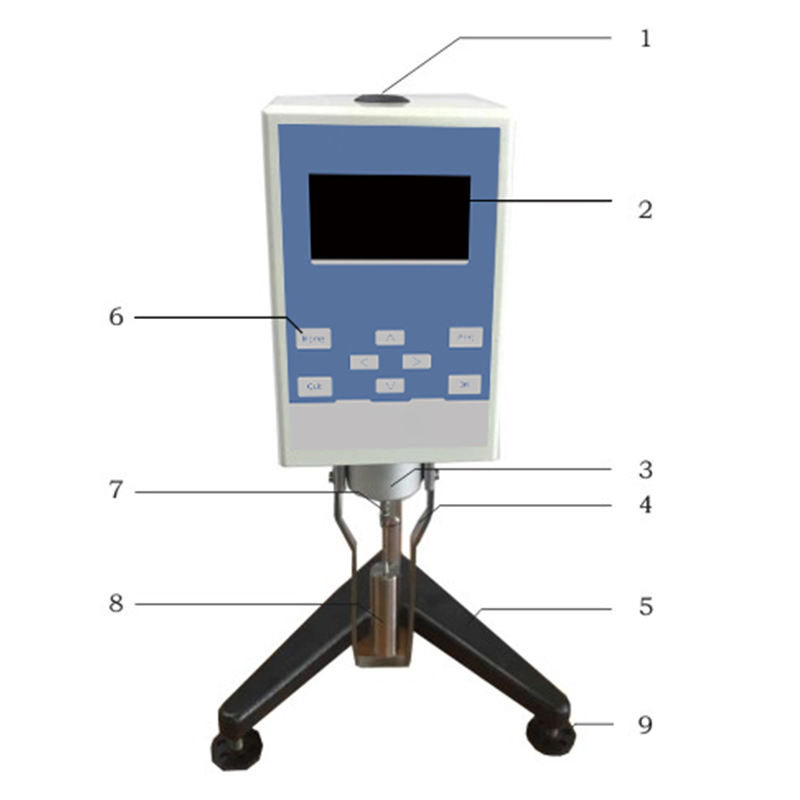

Structure of the viscometer

The structure of the viscometer is shown in the figure:

The structure of NDJ 1S/5S/8S Lab Digital Display Rotary Viscosity Meter

1.Level   2.LCD  3.Cover  4.Rotor protection frame   5.Host base   6.Control button   7.Rotor connector   8.Rotor    9.Base feet
