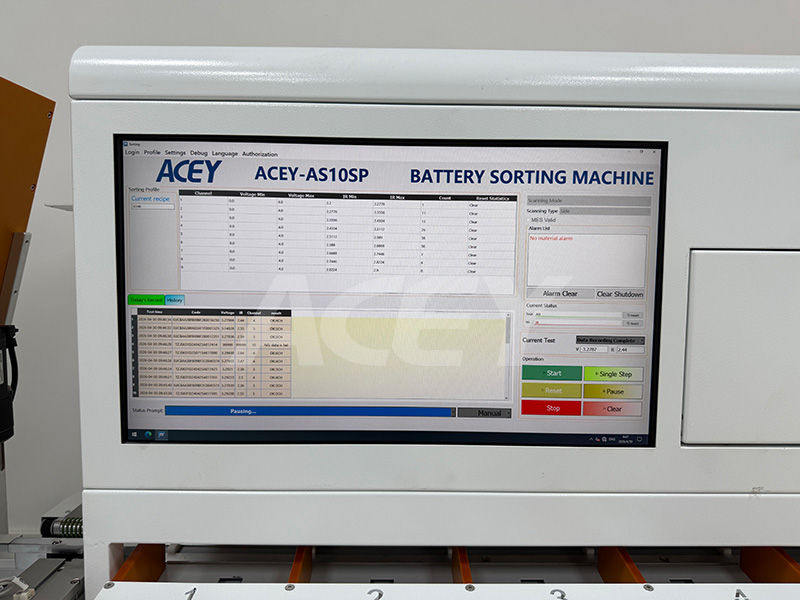

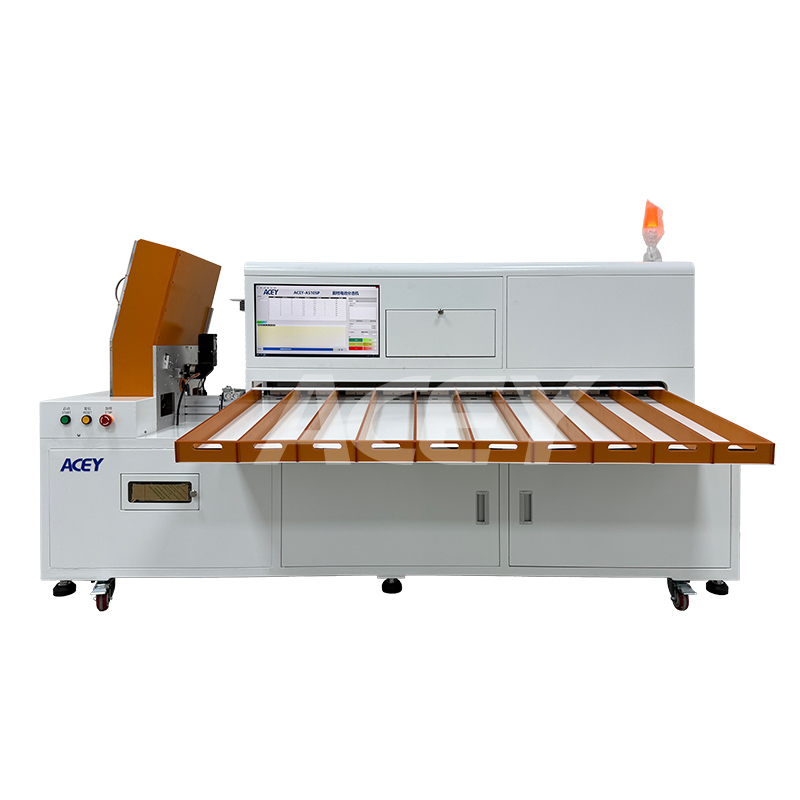

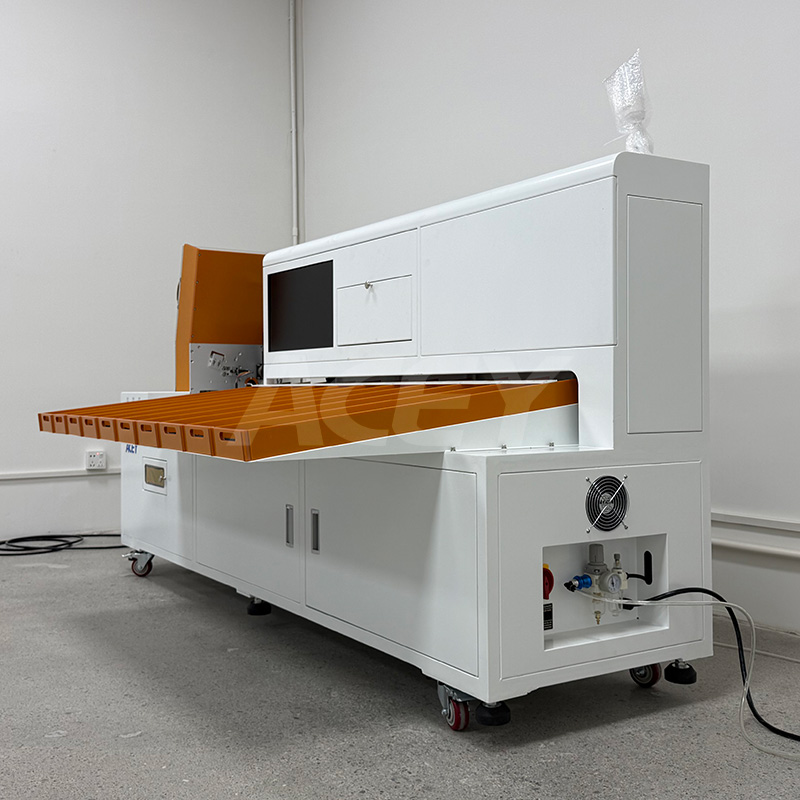

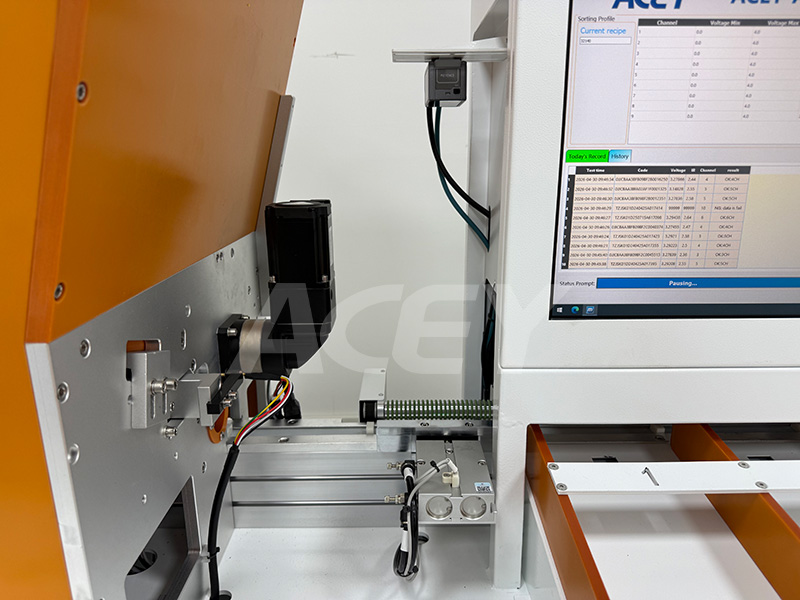

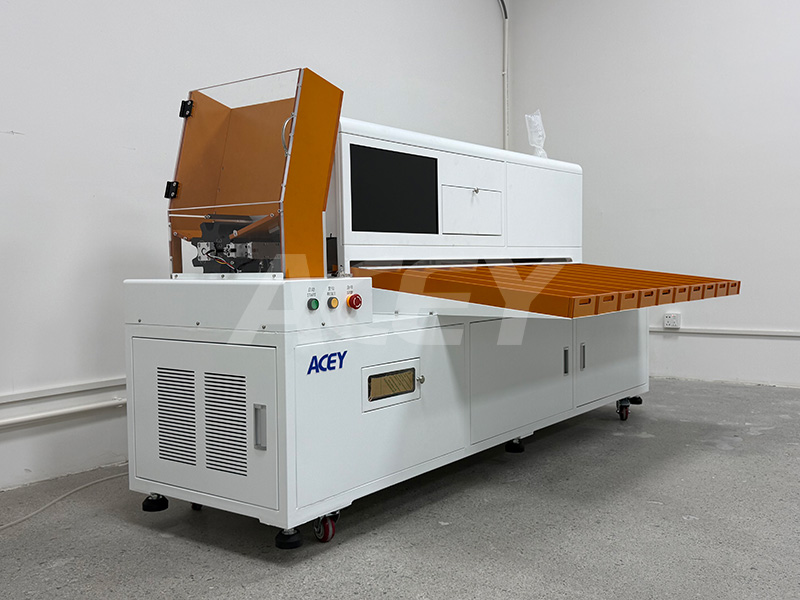

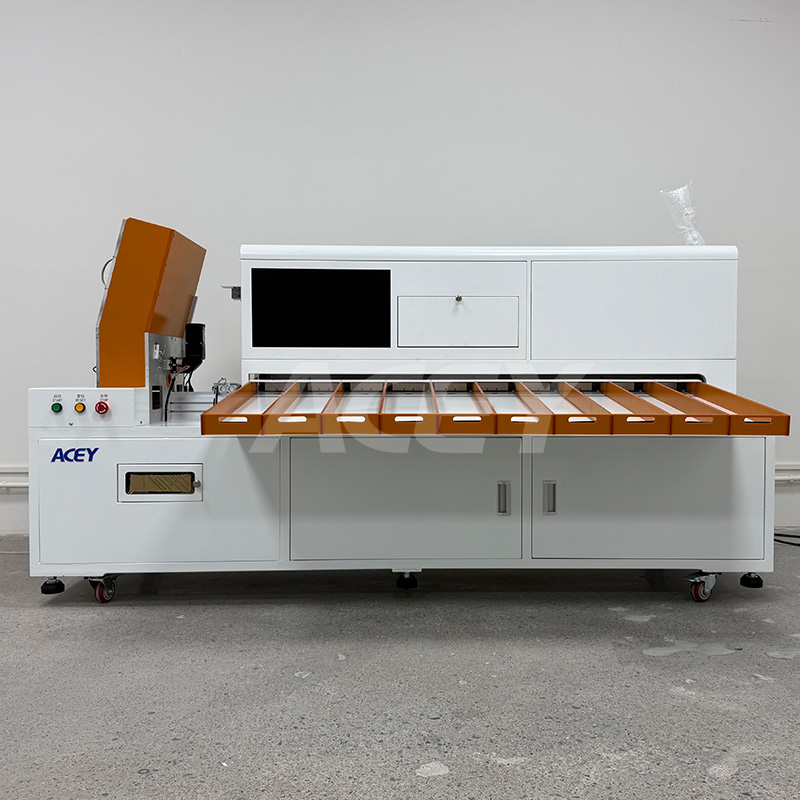

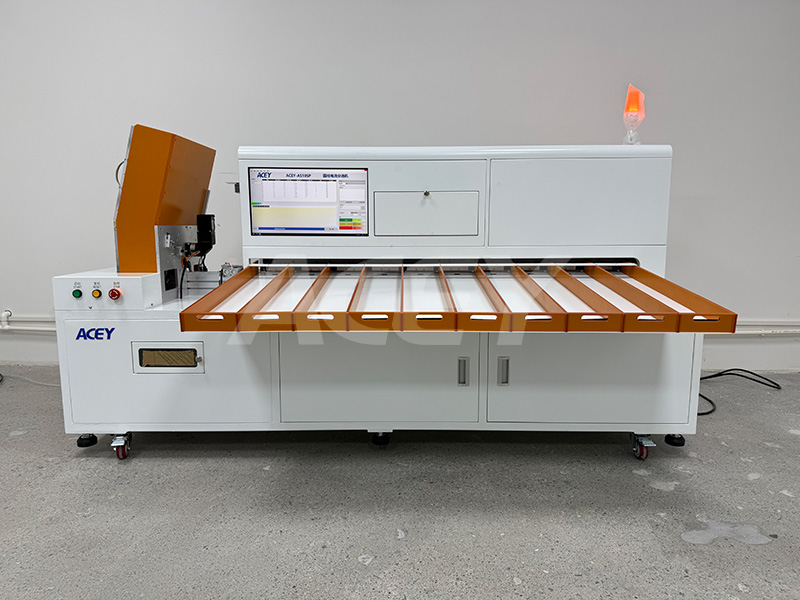

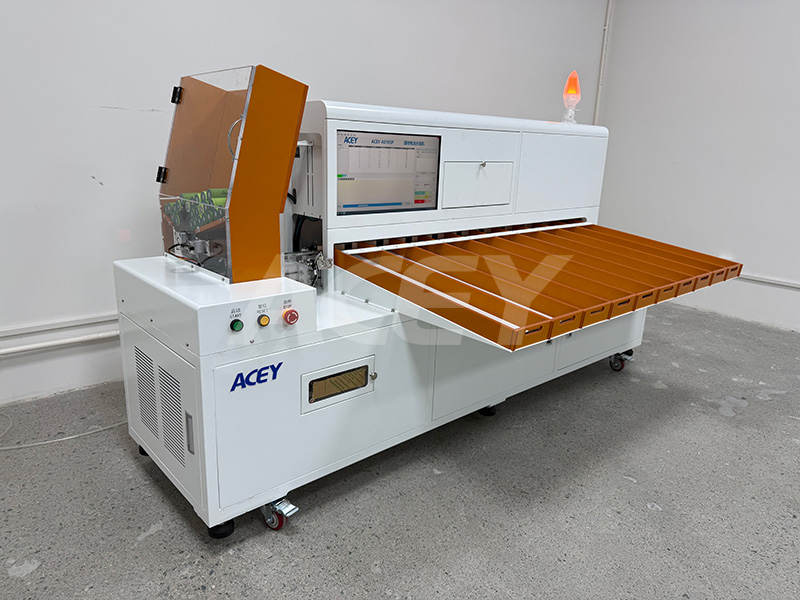

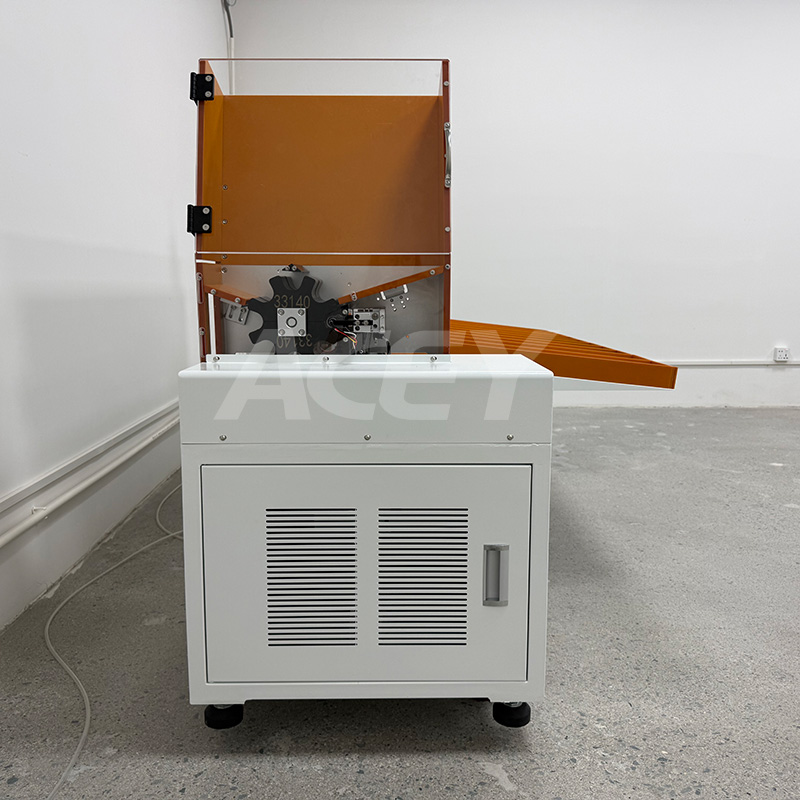

ACEY-AS10SP-33140 is an intelligent 10-channel cylindrical battery sorting machine designed for high-speed, high-precision cell testing, grading, and matching in EV, ESS, and lithium battery pack production lines.
Brand:
ACEYItem No.:
ACEY-AS10SP-33140Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1Payment:
T/TProduct Origin:
China| Item | Specification |

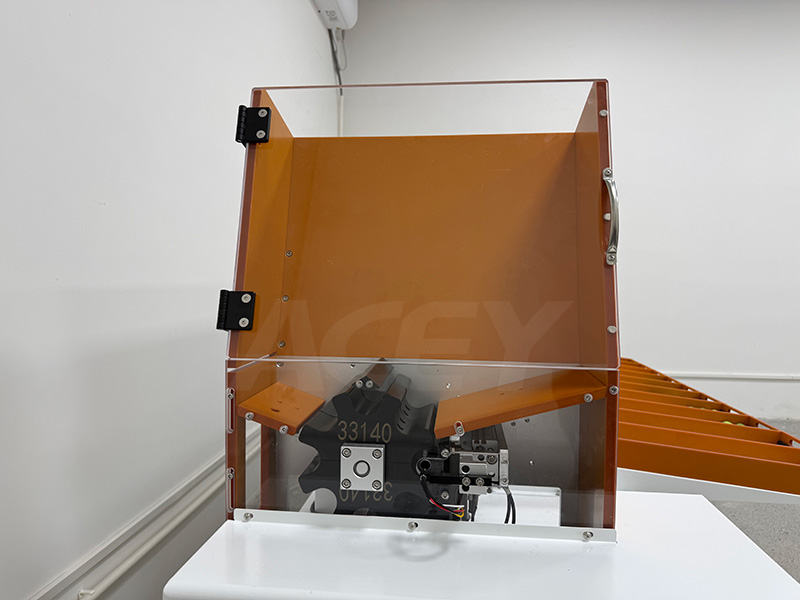

| Applicable Cell Types | Cylindrical cells: 32135, 33140, 38121, 40135, 46140, etc. |
| Sorting Channels | 10 Channels |
| Production Capacity | Approx. 3200 cells/hour |
| Changeover Time | About 15 minutes |
| Internal Resistance Tester | Optional different brands/models |
| Barcode/QR Scanning | Optional |
| MES Communication | Supported |
| Power Supply | 220V, 50Hz/60Hz |
| Total Power | ≤1.5KW |

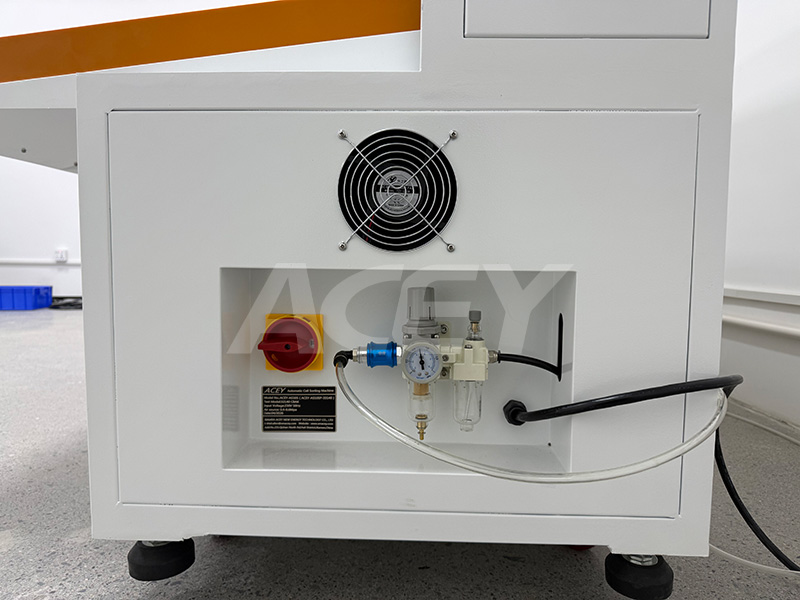

| Air Pressure | 0.5～0.6 MPa |
| Ambient Temperature | -30°C ~ 50°C |
| Humidity | ≤90% |
| Noise Level | ≤80dB |
| Grounding Type | Direct grounding |
| Installation Environment | Flat, vibration-free, no strong electromagnetic interference |
| Machine Dimensions | L2331 × W1055 × H1300 mm |
| Machine Weight | 246KG |
| Machine Color | Computer white (customizable) |
