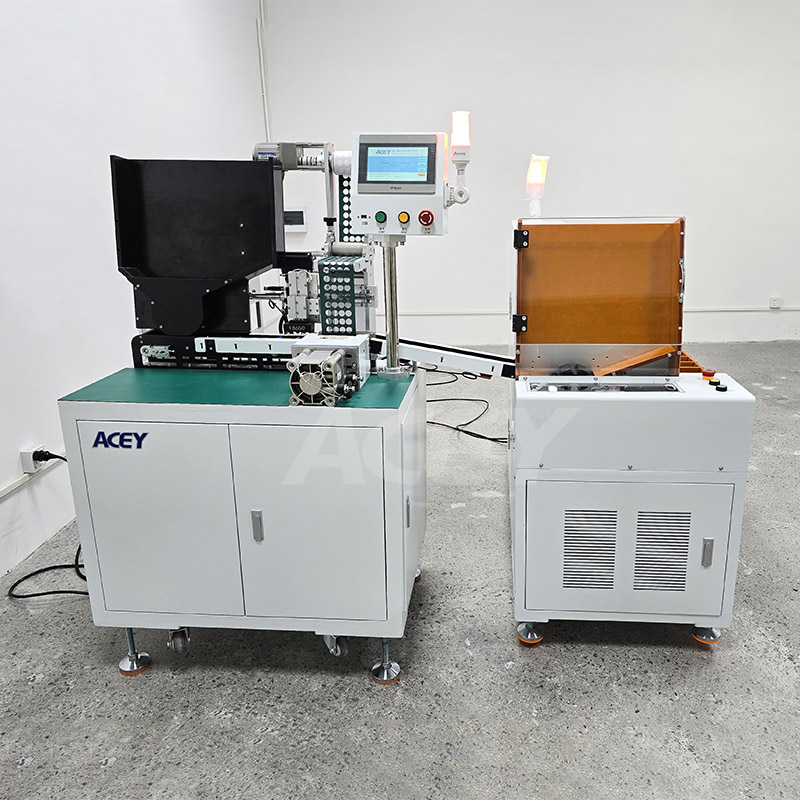

Automatic 2-in-1 Battery Insulation Paper Pasting and Sorting Machine

Automatic 2-in-1 Battery Insulation Paper Pasting and Sorting Machine

Product Overview

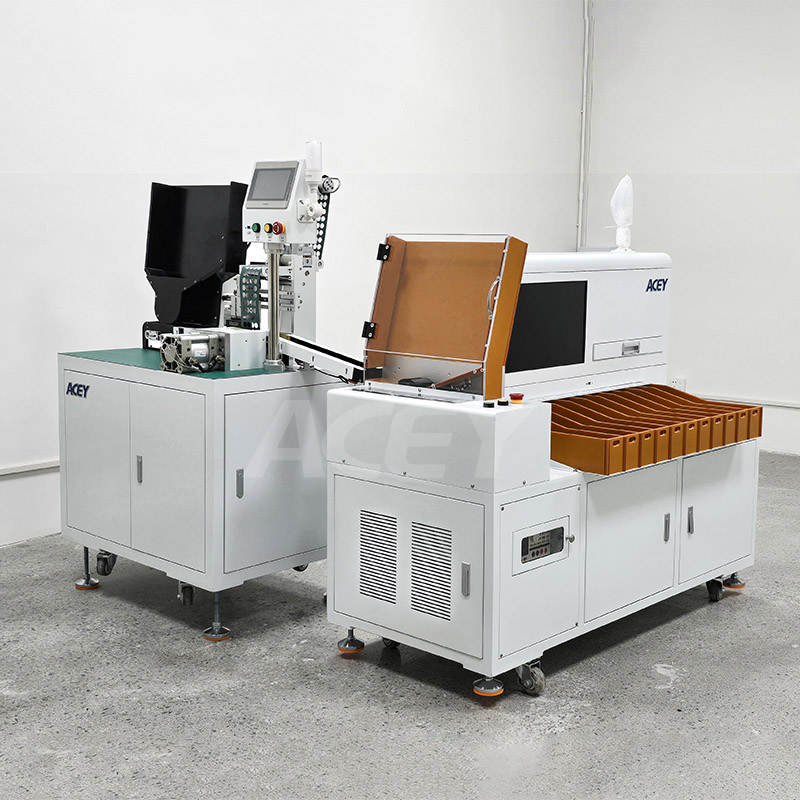

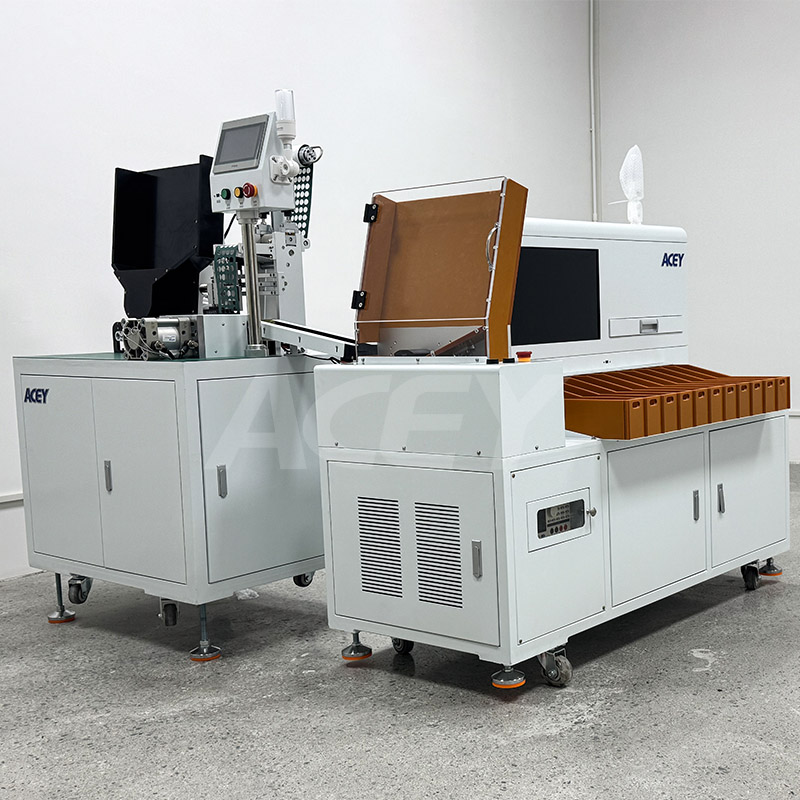

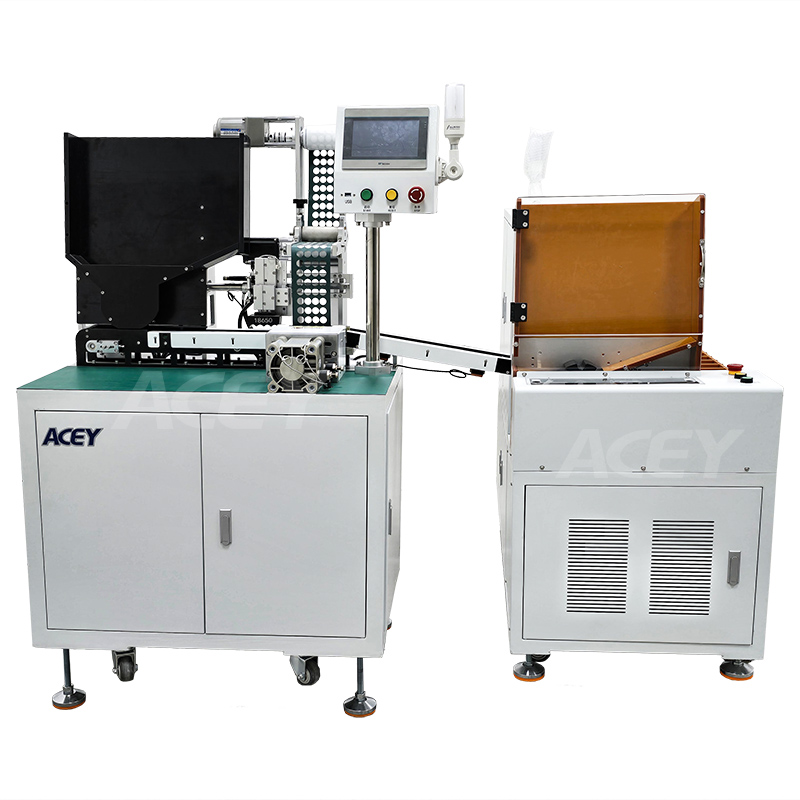

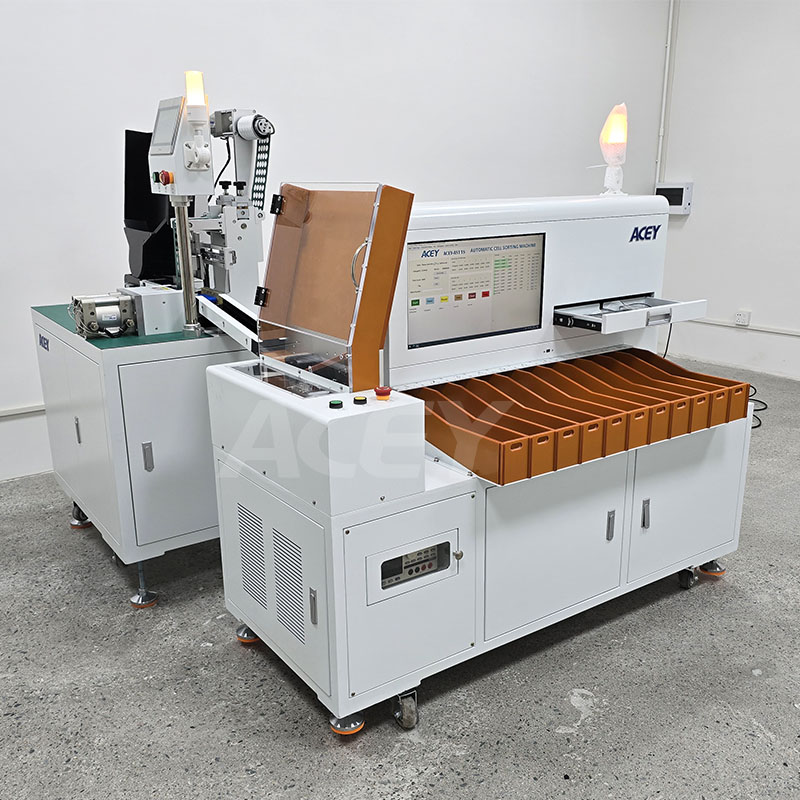

ACEY-SS11 is an automatic cylindrical cell processing system that combines insulation paper sticking, battery testing and 11-channel sorting in one production line. It is designed for cylindrical cells such as 14650, 18650, 21700, 26650 and 32700.

The equipment automatically feeds the cells from a hopper, applies an insulating paper ring, performs the configured electrical tests and sorts the cells into corresponding collection channel according to the test results. Defective cells are automatically identified and sorted into the designated NG channel.

Battery test data can be analyzed, recorded and uploaded to an MES system for production traceability. The insulation paper sticking machine and sorting machine can operate independently or be connected as an integrated production line.

With a processing capacity of up to 4800 cells per hour, ACEY-SS11 is suitable for cylindrical battery pack manufacturers requiring efficient insulation, testing, grading and cell matching.

Product Features

• Integrates automatic insulation paper sticking, cell testing and 11-channel sorting.
• Supports 14650, 18650, 21700, 26650, 32650 and 32700 cells.
• Sorting efficiency reaches up to 4800 cells per hour.
• Qualified cells are sorted by preset grades, while defective cells enter the designated NG channel.
• Supports test data storage, MES connection and optional QR code or barcode scanning.
• The paper sticking and sorting units can operate independently or as an integrated line.

Main Applications
The machine is suitable for 14650, 18650, 21700, 26650, 32650, 32700 cylindrical lithium-ion cells used in:

• E-bike battery packs
• E-scooter battery packs
• Power tool batteries
• Portable energy storage systems
• Electric motorcycle batteries
• Cleaning equipment batteries
• Medical equipment batteries
• Industrial battery packs
• Other cylindrical lithium battery applications

Working Process

• Cylindrical cells are loaded into the feeding hopper.
• The cells are automatically arranged and transferred to the insulation paper sticking station.

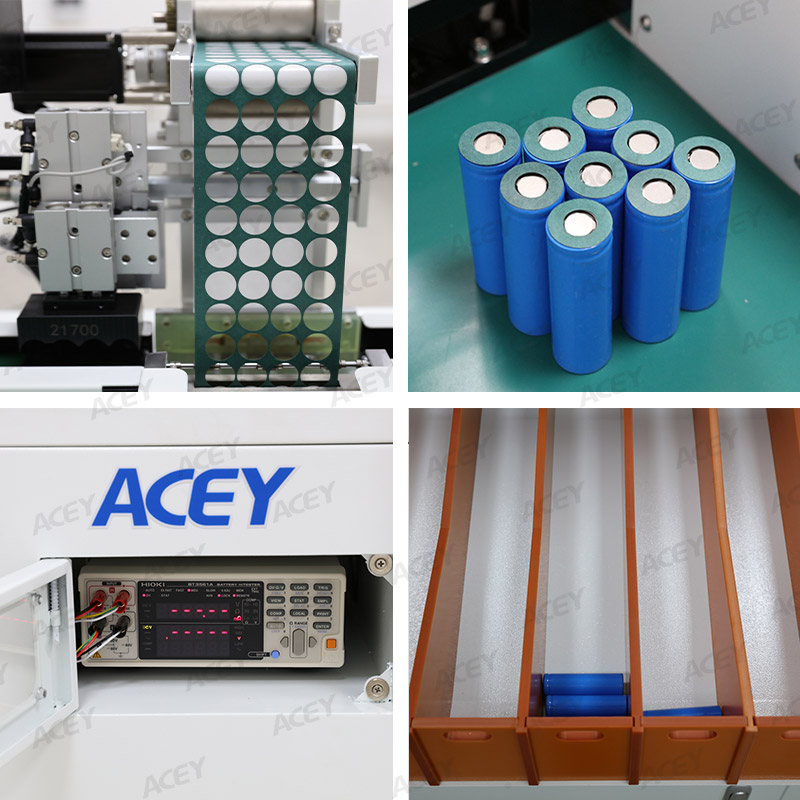

• An insulating paper ring, also known as barley paper, is applied to the cell terminal area.
• The cells are transferred to the testing and sorting machine.
• The configured battery parameters are measured.
• Test data is analyzed and recorded by the industrial computer.
• Qualified cells are sorted into the OK channels.
• Defective cells are automatically sorted into the NG Channel.
• Production and test data can be uploaded to the MES system.

Technical Specifications

Machine Dimensions

Operating Environment Requirements

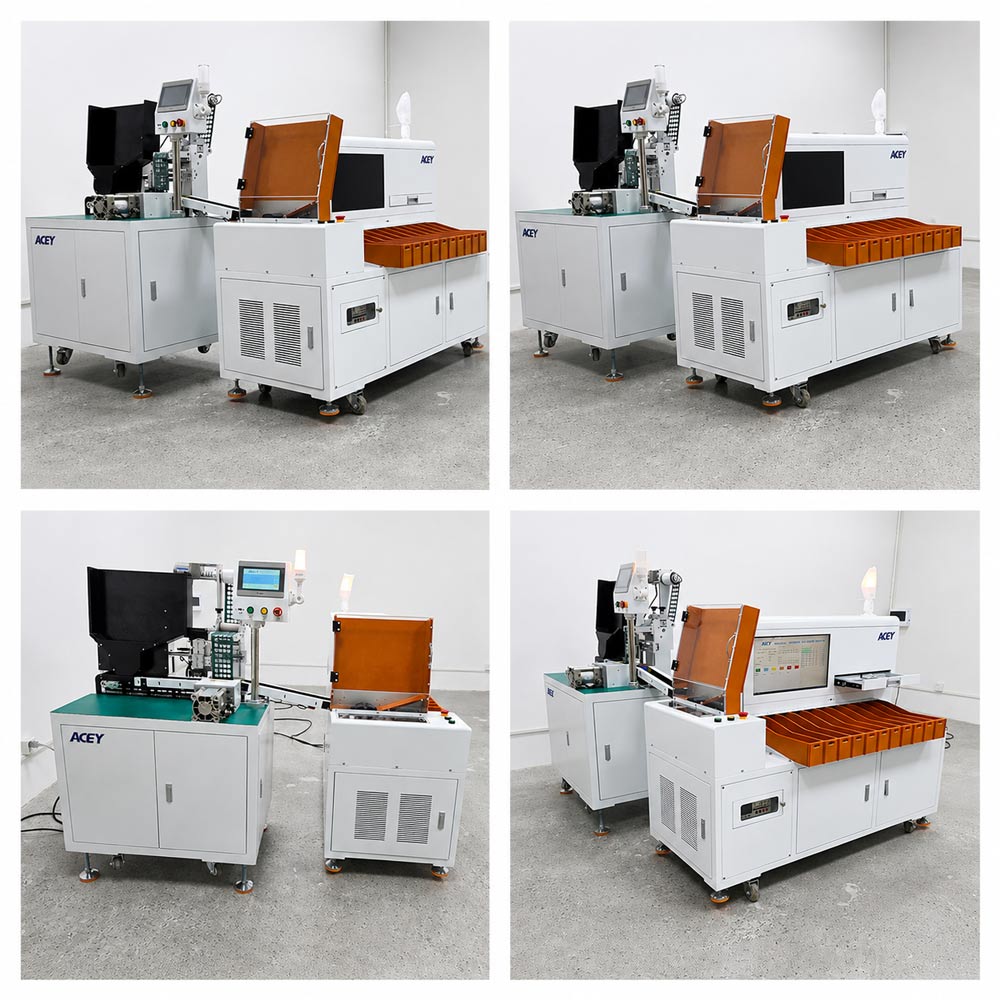

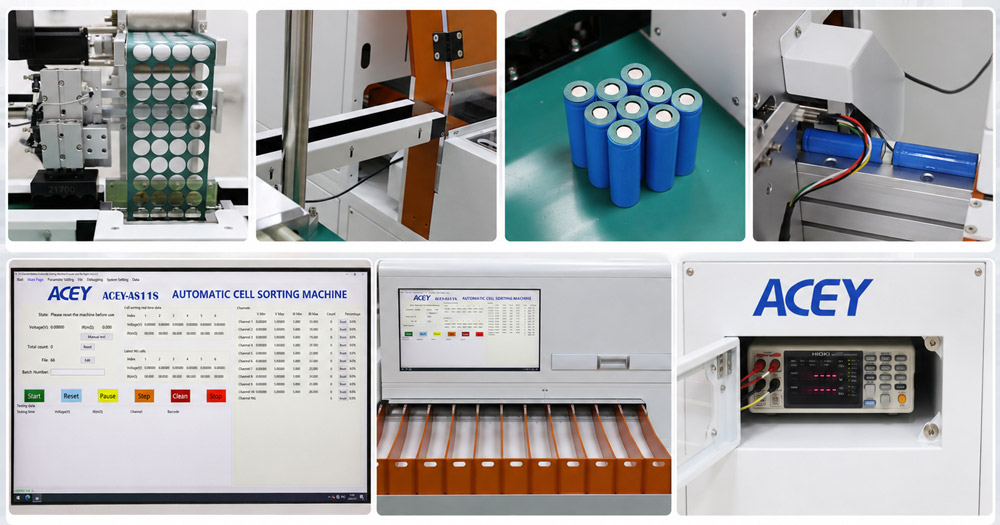

Product Display

FAQ

*What cylindrical cell sizes can ACEY-SS11 process?
The standard machine is suitable for 14650, 18650, 21700， 26650and,32700 cylindrical cells

*What is the production capacity?
The insulation paper sticking and sorting line can process up to 4800 cells per hour. Actual output may vary according to the cell model, test time and sorting settings.

*Can the two machines operate separately?
Yes. The insulation paper sticking machine and the 11-channel sorting machine can operate independently or be connected for continuous production.

*What parameters can the machine test?
Testing functions depend on the selected measuring instrument and project configuration. Battery voltage and internal resistance testing can be configured using different tester brands and models.

*Can the machine store battery test data?
Yes. The industrial computer can collect, analyze and store cell test results for production management and quality control.

*Does the machine support MES integration?
Yes. MES communication can be configured for data collection, uploading and battery production traceability. The required communication protocol should be confirmed before manufacturing.

*Can QR codes and barcodes be scanned?
Yes. QR code and barcode scanning functions are available as optional configurations.

*How long does it take to change cell models?
A typical model changeover takes approximately 30 minutes. The actual time depends on the differences between the cell sizes and the required mechanical adjustments.

*Can the equipment be connected to other production machines?
Yes. ACEY-SS11 can be integrated with upstream and downstream equipment according to the battery pack production process and workshop layout.
