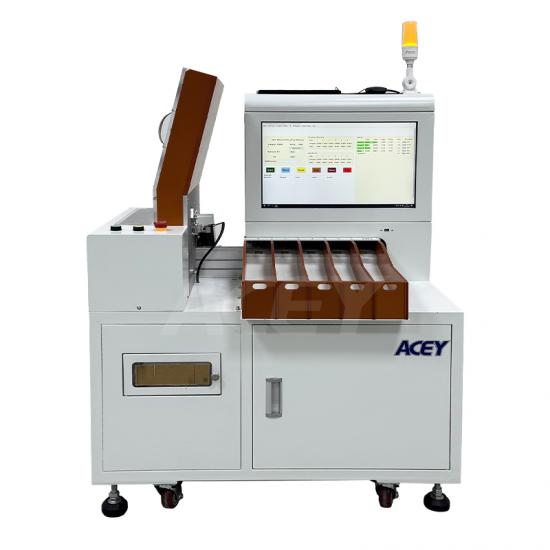

18650 Battery Sorting Machine
Automatic Lithium Battery Sorting Machine For 18650 21700 26650 32700 Automatic Lithium Battery Sorting Machine For 18650 21700 26650 32700 Automatic Lithium Battery Sorting Machine For 18650 21700 26650 32700 Automatic Lithium Battery Sorting Machine For 18650 21700 26650 32700 Automatic Lithium Battery Sorting Machine For 18650 21700 26650 32700

Automatic Lithium Battery Sorting Machine For 18650 21700 26650 32700

ACEY-AS5SP battery sorting machine is a high-speed, PC-controlled automatic sorter designed for precise sorting and data traceability of OCV and ACIR of cylindrical cells like 18650, 21700, 26650, 32650, 32700. Delivering 3,200 pcs/h with seamless MES integration, it offers a flexible, Industry 4.0-ready solution for professional battery pack assembly.


  • Brand:

    ACEY

  • Item No.:

    ACEY-AS5SP

  • Compliance:

    CE Certified

  • Warranty:

    One-year warranty with lifetime support

  • Order(Moq):

    1set

  • Payment:

    T/T

  • Product Origin:

    China

  • Lead Time:

    7-35 days
INQUIRE now
  • Product Detail

Automatic Lithium Battery Sorting Machine For 18650 21700 26650 32700


Description

ACEY-AS5SP lithium cell sorting machine is a specialized automatic sorter designed for testing and matching cylindrical batteries such as 14650, 18650, 21700, 26650, and 32700. Utilizing a sophisticated control architecture of PC + Motion Controller + High-Precision Servo Motors, this equipment offers superior accuracy and speed compared to traditional PLC systems.


Core Advantages

1. Advanced PC-Based Control System
Unlike standard PLC setups, the ACEY-AS5SP uses a computer-integrated system. This allows for:

  • Superior Data Management: Easy generation of production reports and data analysis.
  • System Integration: Seamless communication with other machines and MES systems.
  • Flexible Programming: Faster parameter changes and model switching.
2. High Efficiency & Precision
  • Throughput: Processes approximately 3,200 pcs/hour.
  • Accuracy: Integrated with high-precision internal resistance testers for milliohm-level consistency.
  • Smart Rejection: Features a unique mechanism to isolate defective cells, ensuring only matched pairs proceed to the collection bin.
3. User-Centric Design
  • Quick Changeover: Switch between battery models (e.g., from 18650 to 21700) in just 15 minutes.
  • Ergonomic Loading: Hopper-style loading and organized collection bins simplify operator management.
  • Durable Build: Constructed with high-quality cold-rolled sheet metal and aluminum alloys for a sleek, industrial aesthetic.


Specification

Model ACEY-AS5SP
Compatible Cells 14650, 18650, 21700, 26650, 32700 (Optional)
Sorting Channels 4 OK Grades + 1 NG (No-Go) Grade
Sorting Speed About 3,200 pcs/hour
Changeover Time About 15 Minutes
Total Power ≤ 1.5KW
MES Connectivity Supported (Data collection & upload)
Scanning (Optional) QR Code, Barcode, Side-scanning


Product Details

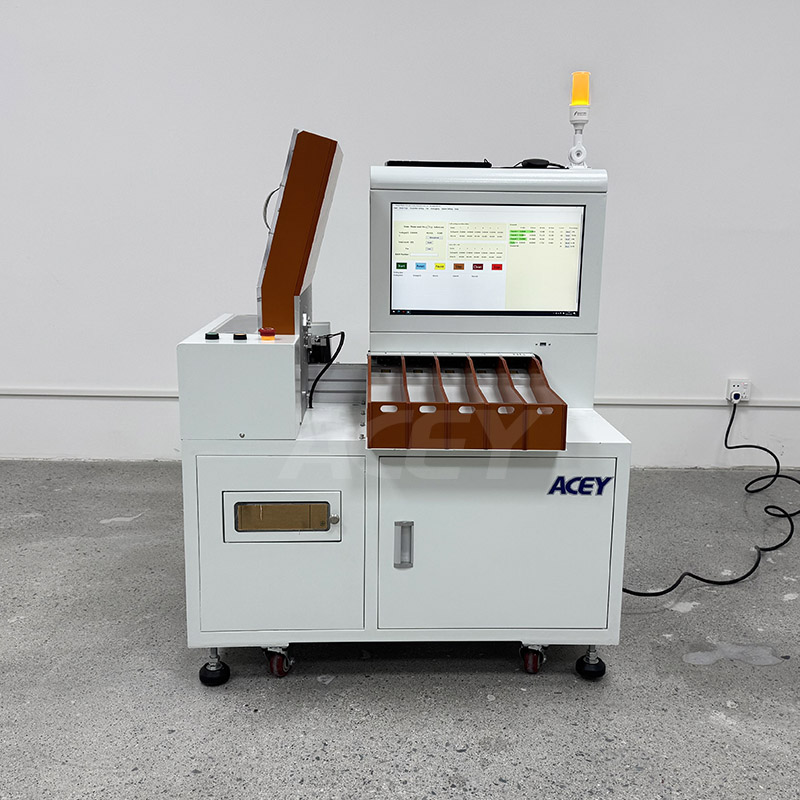

Battery Sorting Machine

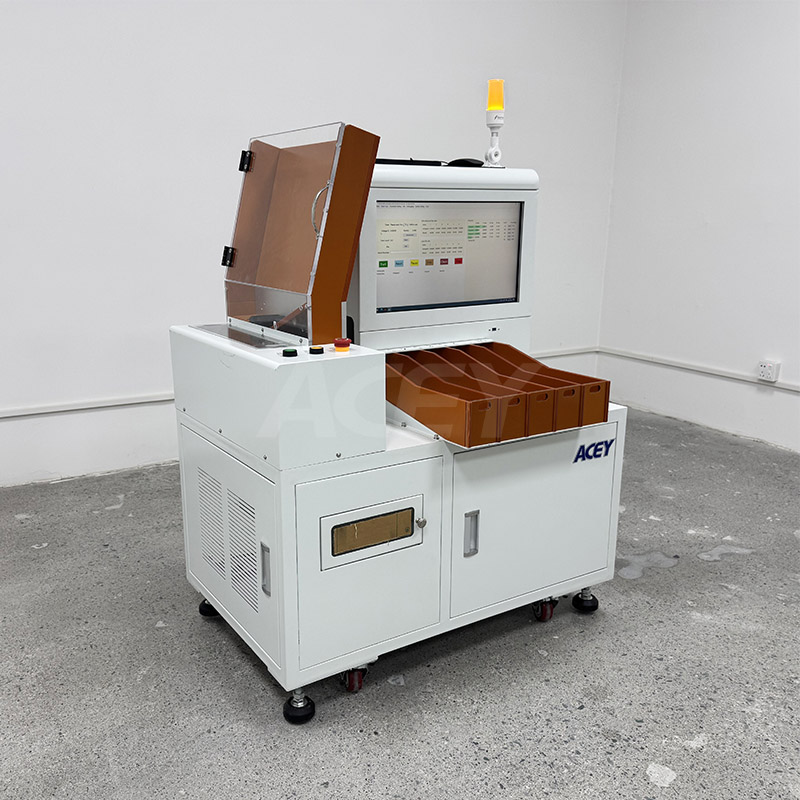

Lithium cell sorting machine

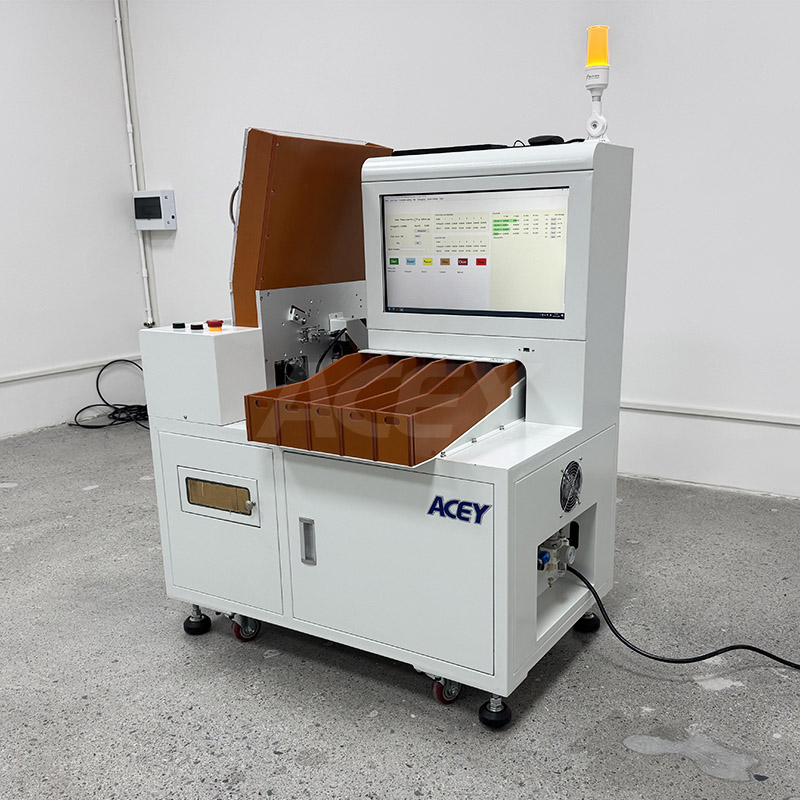

18650 battery sorting machine

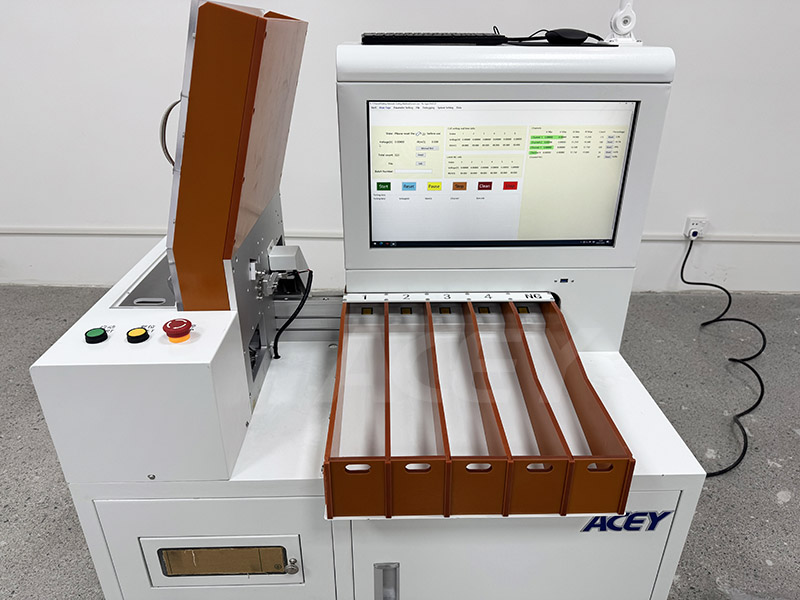

Automatic battery sorting machine

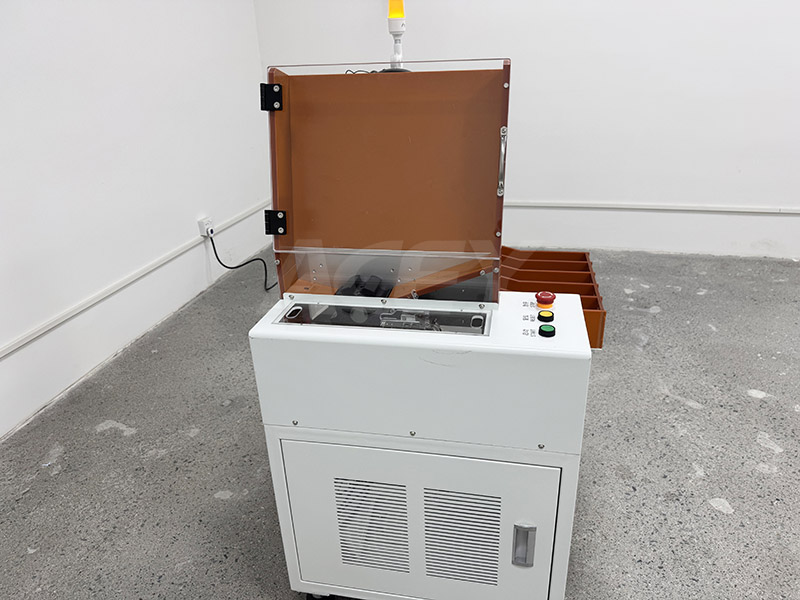

Automatic battery IR sorting machine
