XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/a4bf3192ea9596101d296d7077b29c55.jpg)
This battery sorting machine is specially designed for manual and flexible testing of IR and OCV parameters of prismatic and cylindrical lithium batteries, used for cell consistency screening and quality control.
Brand:
ACEYItem No.:
ACEY-MS01Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 days

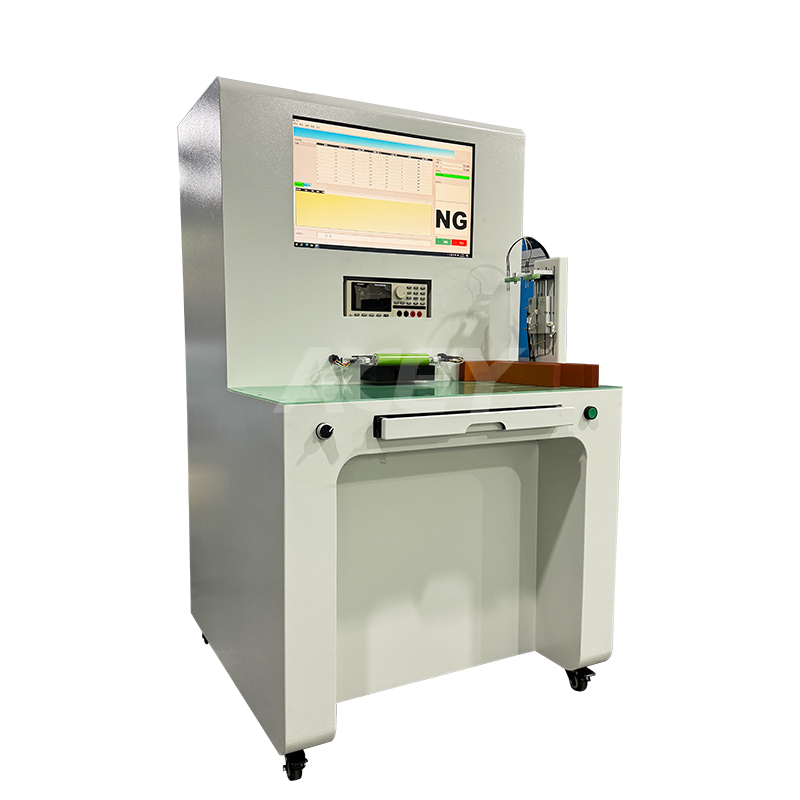

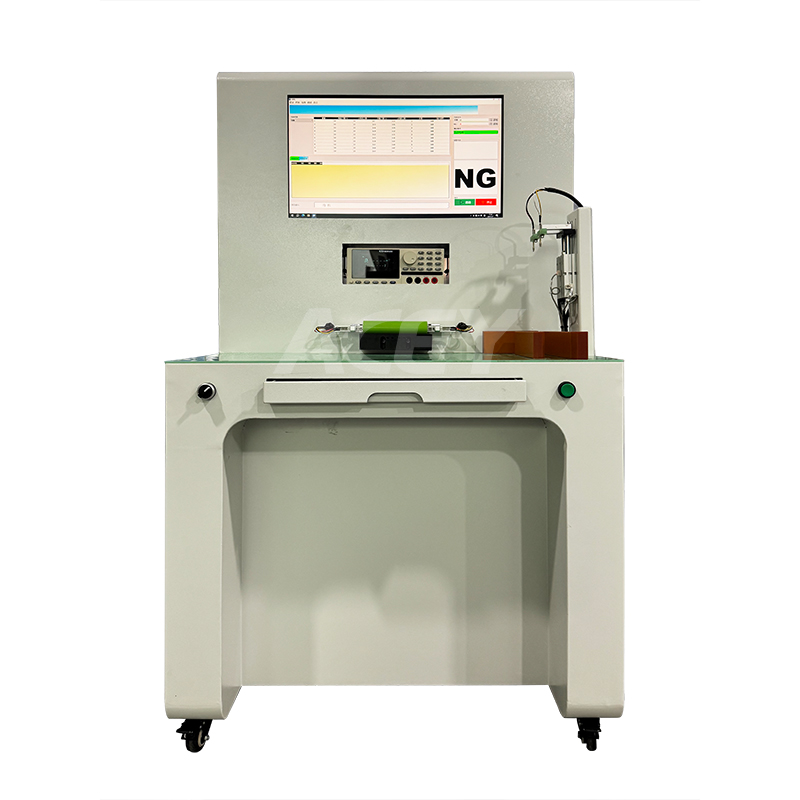

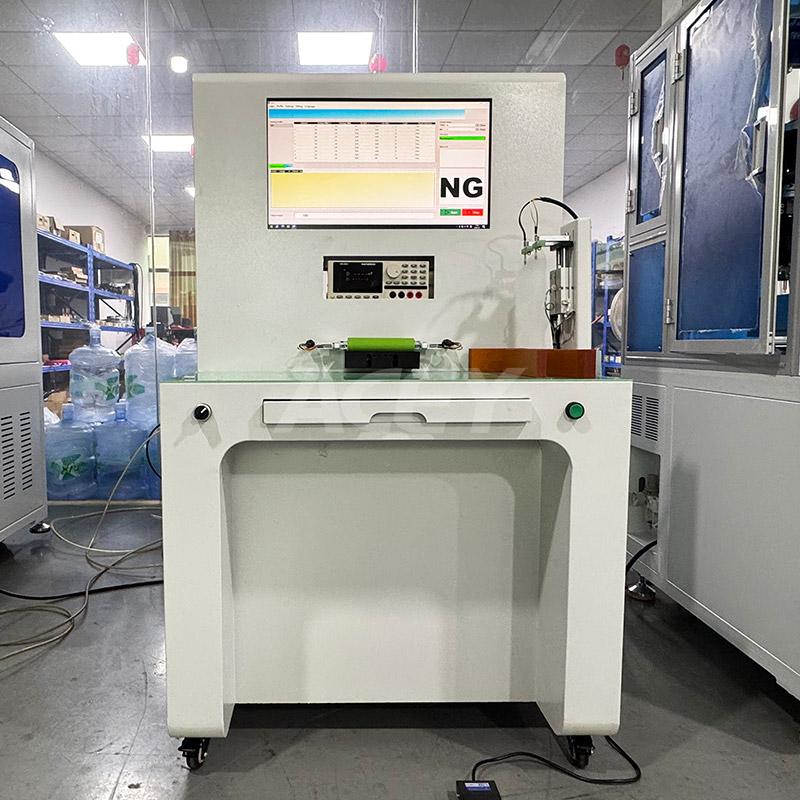

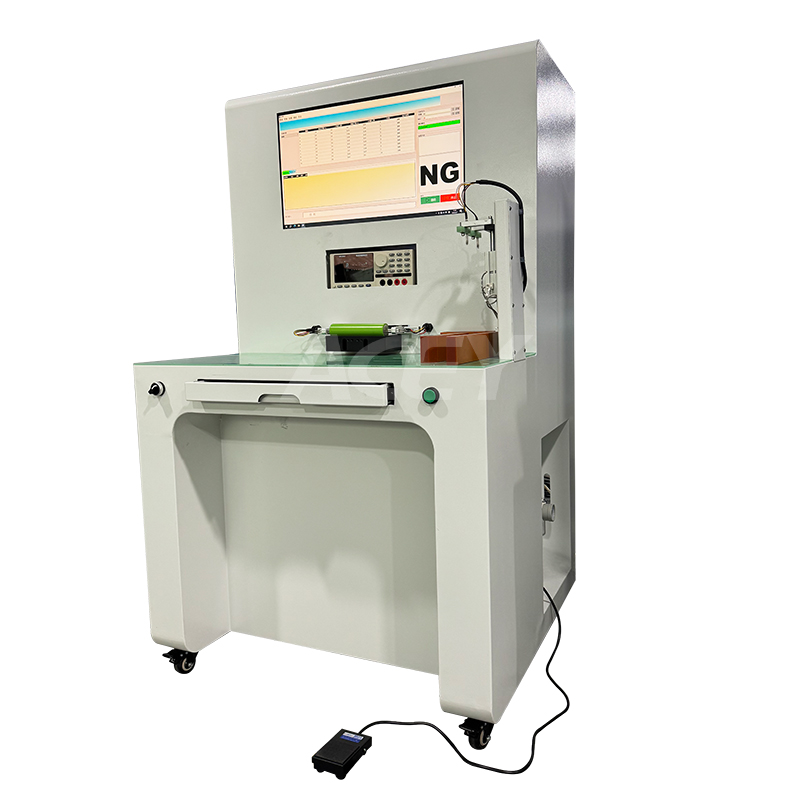

Manual Lithium Battery Cell OCV IR Sorting Machine for Prismatic and Cylindrical Cell
Description

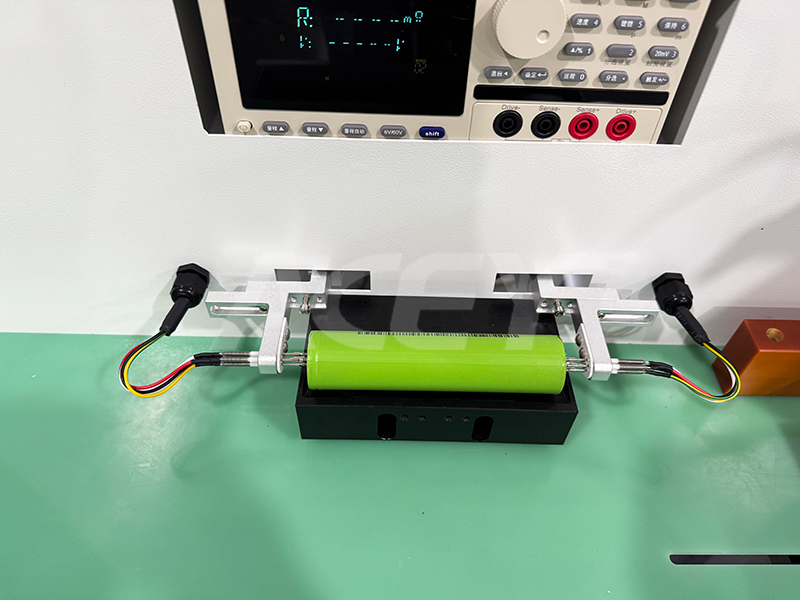

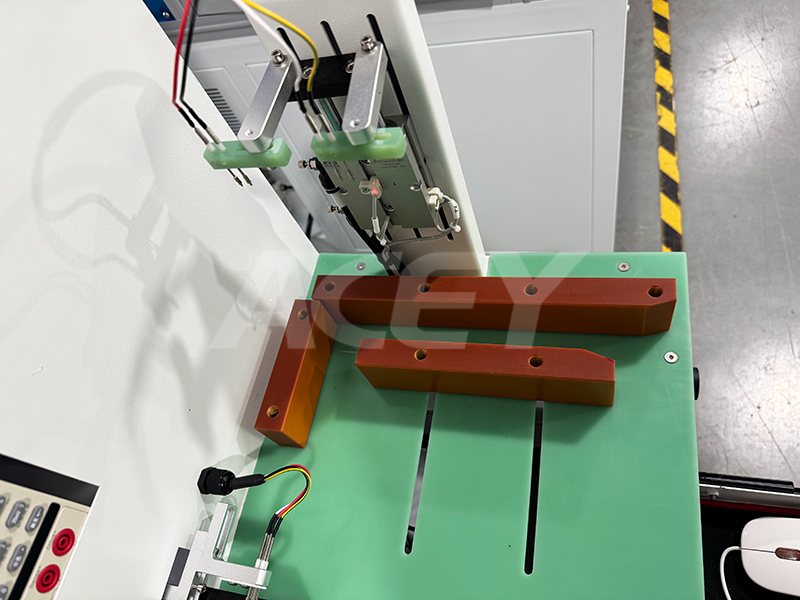

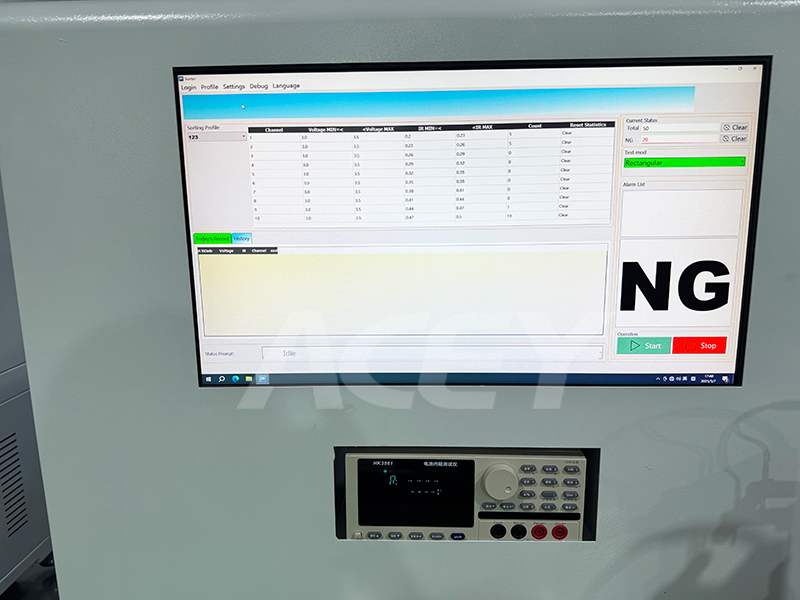

ACEY-MS01 battery sorting machine is used for manual loading of prismatic lithium batteries or cylindrical lithium batteries into the test position. After the operator presses the compression start button, the prismatic or cylindrical test cylinder presses down and clamps the battery. An internal resistance tester measures and records the IR and OCV, and the grading result is displayed on the screen. After the test is completed, the test cylinder rises and releases the battery, and the operator removes the prismatic or cylindrical lithium battery.
Features
| Equipment dimensions | L 800mm * W 750mm * H 1423mm |
| Equipment weight | Approx. 100Kg |
| Equipment color | Computer white (can be adjusted upon request) |
| Total power | ≤1.5KW |
Equipment Environmental Requirements
Ambient temperature
5ºC-35ºC
Humidity
20%-90%
Air pressure
0.5～0.6 MPa
Power supply voltage
220V-50Hz/60Hz
Weight-bearing capacity
≤200kg/m²
Grounding type
Direct grounding
Site
Free from pollution and strong electromagnetic interference
Installation environment
Flat, vibration-free, and shock-free
Equipment noise
≤80db
