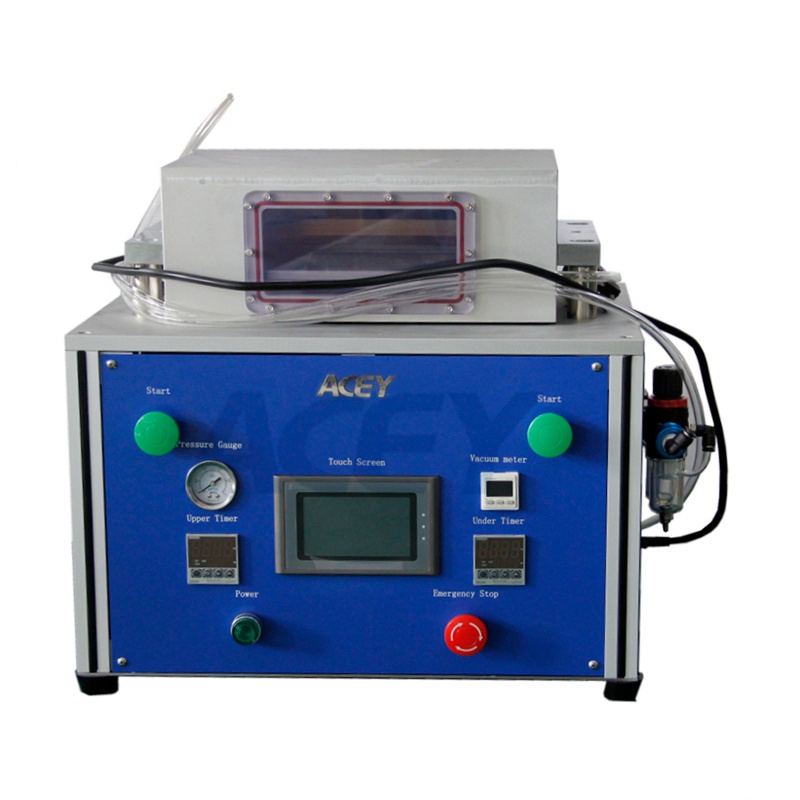

Pouch Battery Final Sealer Secondary Vacuum Sealing Machine

Pouch Battery Final Sealer Secondary Vacuum Sealing Machine

Product Description

Lithium Batteries Equipment Secondary Vacuum Sealing Machine for Polymer Cell after Electrolyte Filling, This equipment is used for lithium pouch cell vacuumizing and final heat sealing after filling & electrolyte diffusion process.

Product Features

• The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products;
• The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters;
• The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately, ensure the parallelism requirements of the product after edge sealing;
• With automatic puncture function;
• The cover cavity is driven by an air cylinder and guided by a linear guide sleeve, which can move up and down flexibly, and the guidance is accurate to ensure the product tightness requirements;
• It can be applied to batteries of different specifications, and the adjustment is simple and convenient.

Technical Parameter

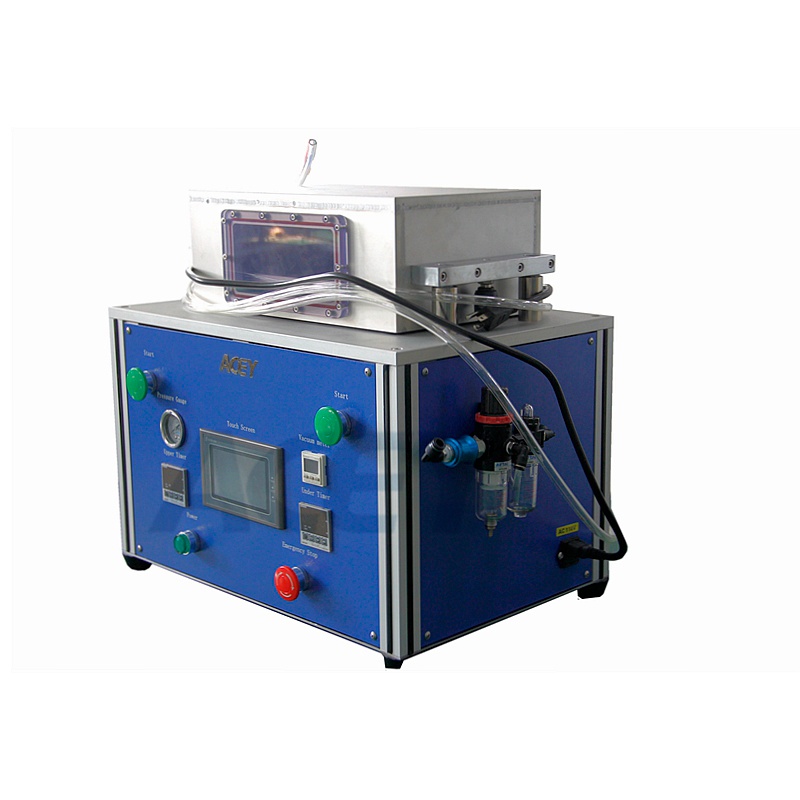

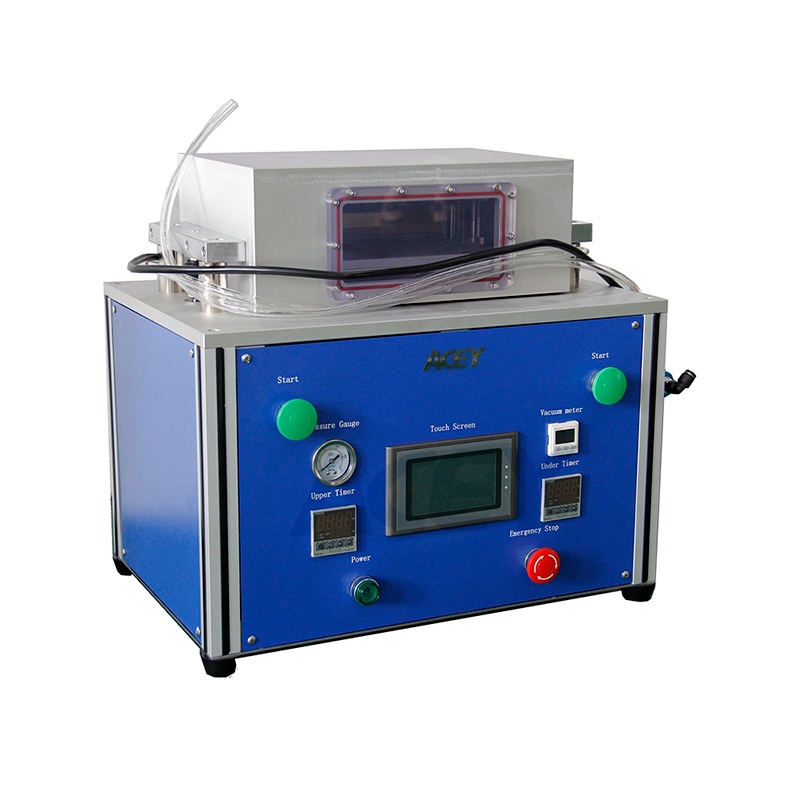

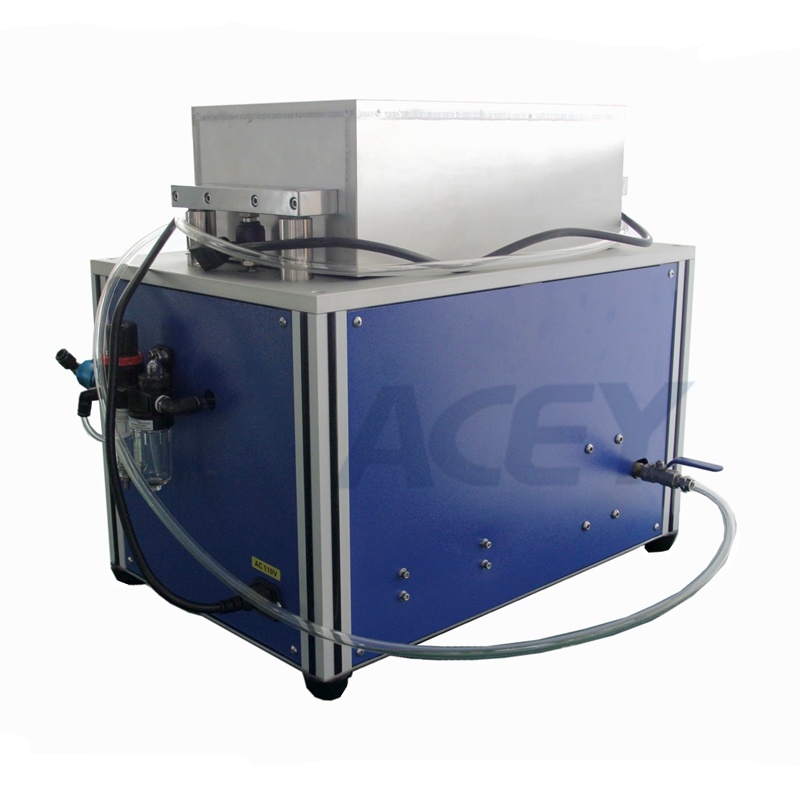

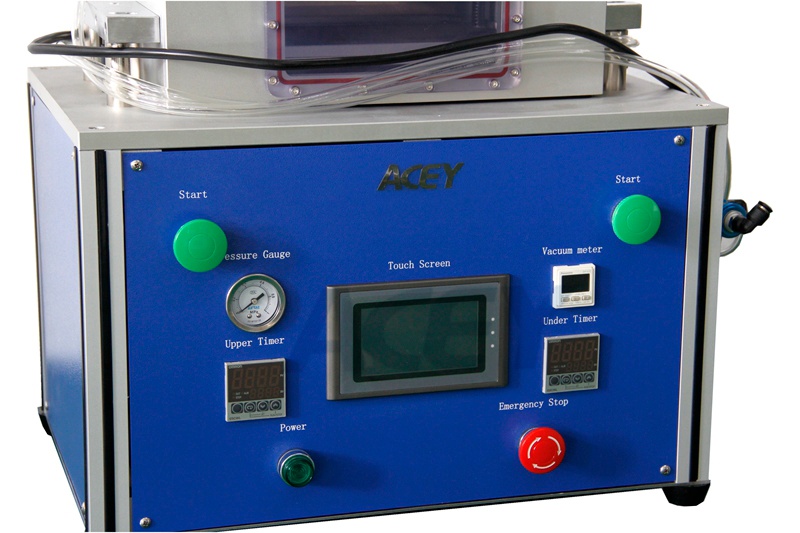

Product Display

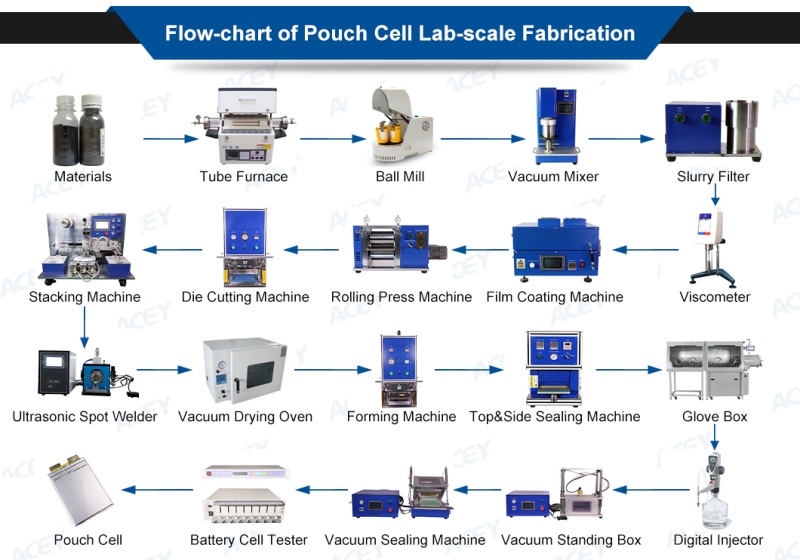

One-Stop Solution

FAQ

1. What is the ACEY-SVS200 Secondary Vacuum Final Sealing Machine used for?
ACEY-SVS200 is designed for secondary vacuum final sealing of pouch lithium batteries. It integrates vacuuming, pouch piercing, gas removal, and heat sealing in one machine, helping improve sealing consistency and obtain a flatter finished battery after formation.

2. What pouch battery sizes can the ACEY-SVS200 vacuum sealing machine handle?
The standard machine is suitable for pouch batteries up to approximately 200 mm in length and 120 mm in width, with a sealing thickness range of 60–300 μm. The sealing width can also be customized according to specific battery and process requirements.

3. Can the sealing temperature, pressure, and vacuum level be adjusted?
Yes. The sealing temperature can be adjusted from room temperature to 250°C, the heat sealing pressure from 0–7 kg/cm², and the sealing time from 0–99 seconds. The working chamber can reach a vacuum degree of ≤ -96 kPa when connected to a suitable external vacuum pump.
