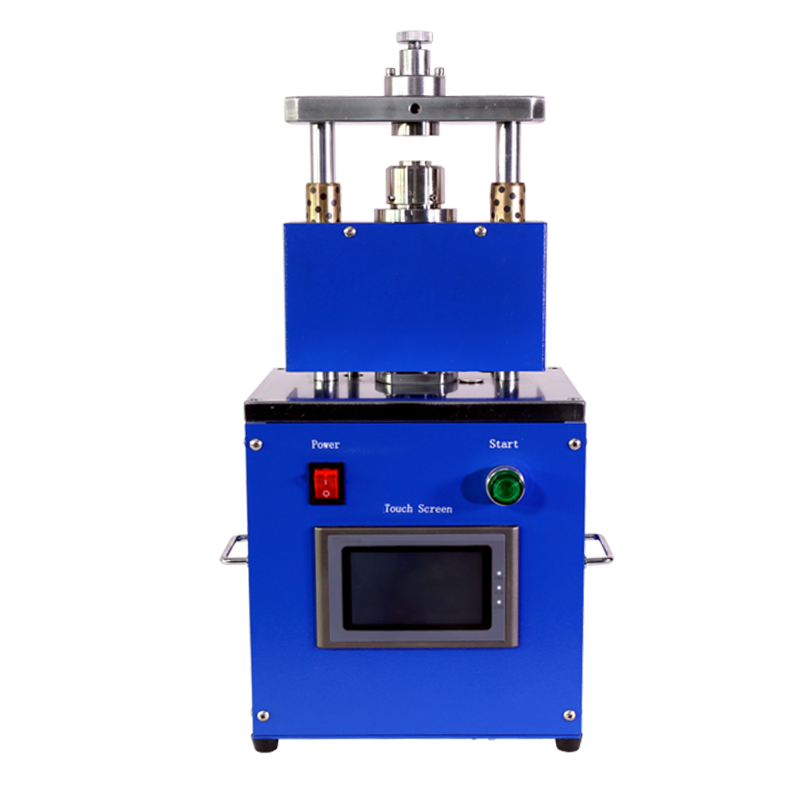

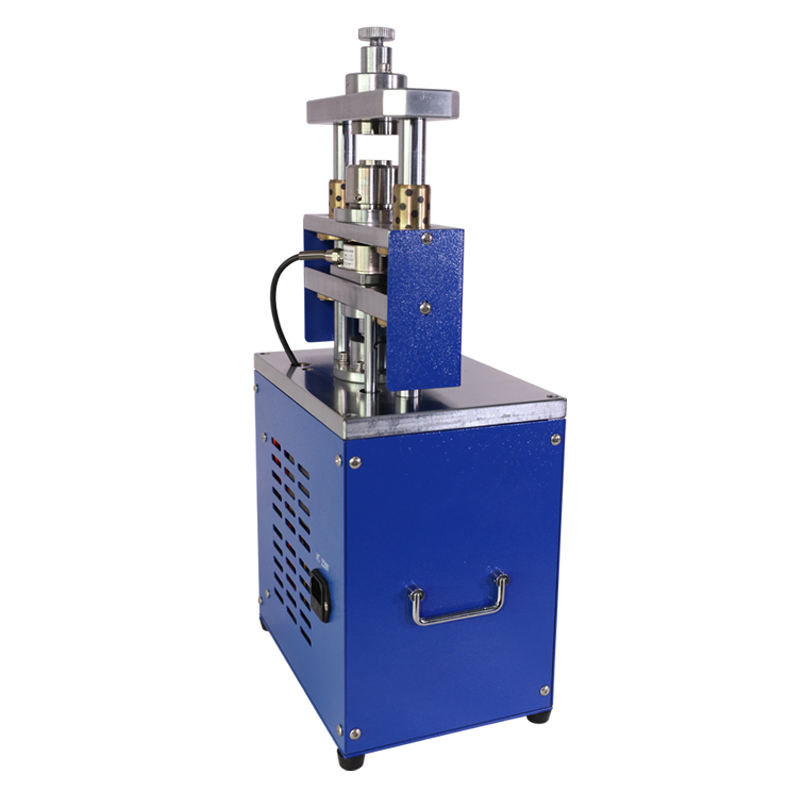

This electric coin cell crimper can be used for CR2016,CR2025,CR2032 etc button battery automatic crimping in laboratory.
Brand:
ACEYItem No.:
ACEY-BES-1Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setProduct Origin:
ChinaLead Time:
7daysBattery Electric Sealing Machine For Coin Cell Crimping
Description
This crimper can be used for most kinds of button battery automatic crimping. Standard configuration is used for assembling and disassembling CR20XX series coin cell cases. The equipment has the advantages like small size, easy operation, stable crimping etc. Equipped with different mould can also be used for other lab use like pressed powder tablet making, pressing and thinning the metal sheet etc.
Features

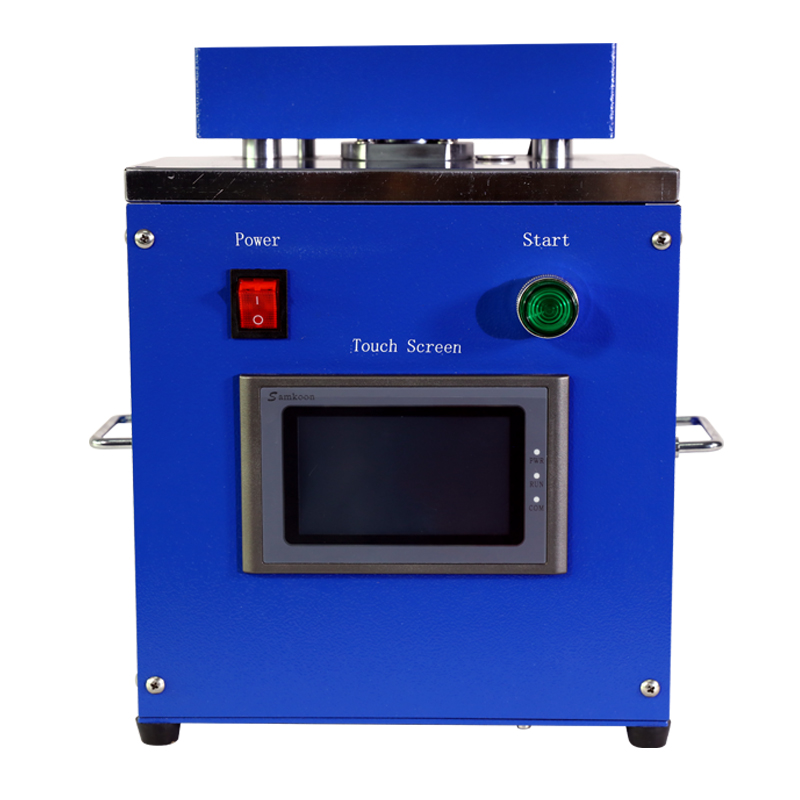

1. Touch screen operation, easy to set parameters, high degree of automation.
2. Can set and display the sealing pressure value.
3. The glove box Φ360 transition warehouse can pass directly through the transition warehouse if there is no obstacle (skateboard), which is small in size and easy to operate.
4. Using electric drive, the battery seal has no vibration and no leakage.

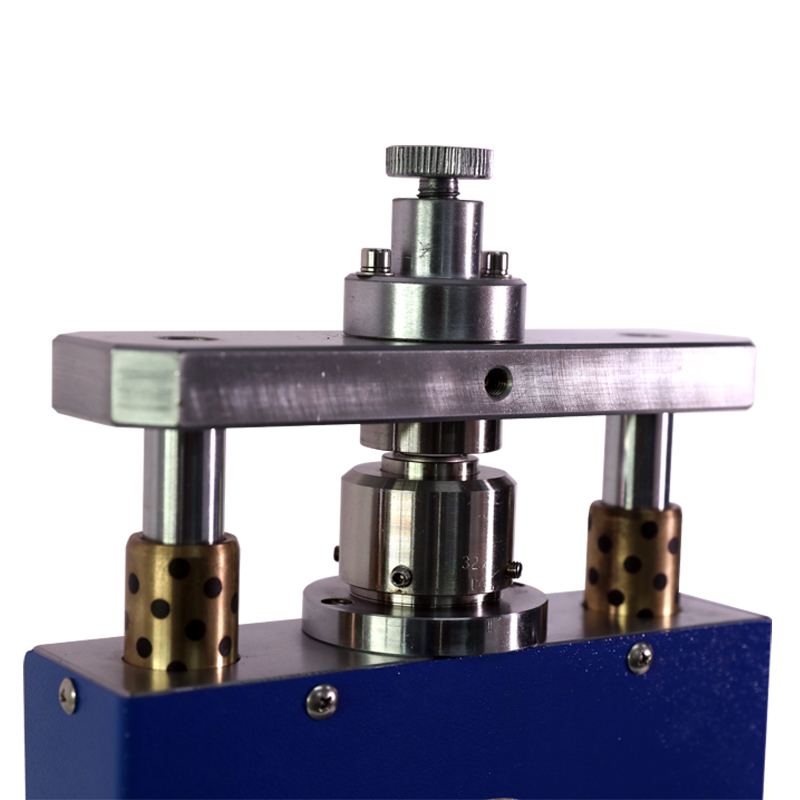

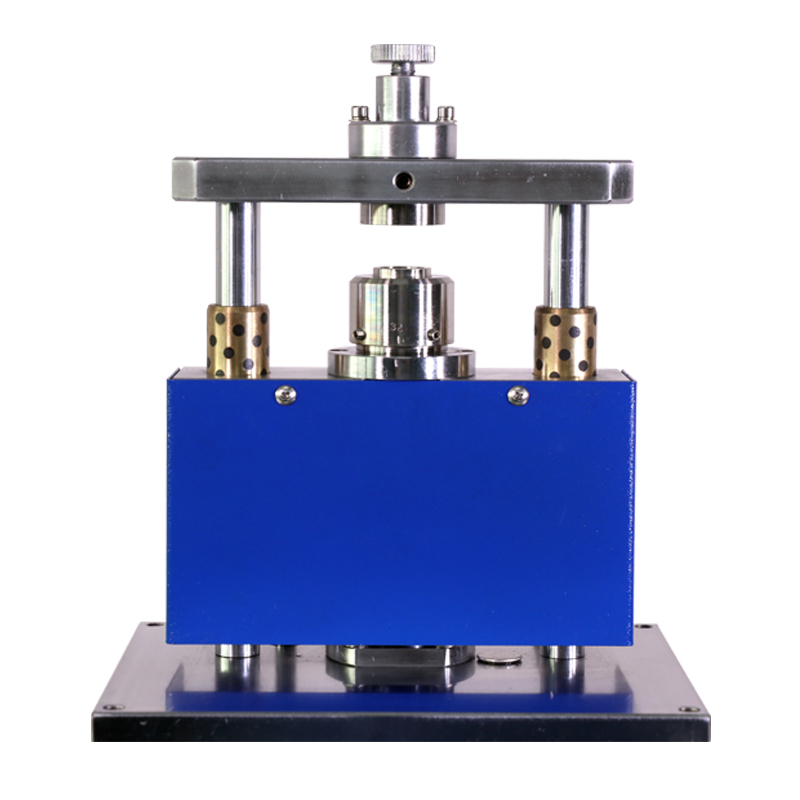

5. Precision mold design ensures accurate and reliable sealing forming, solid steel structure design, stable and safe use.
6. Small size, easy to operate, can be placed in a glove box for operation.
7. Beautiful appearance, easy maintenance, small size, convenient operation, accurate molding, etc..
Specification
|
Model No. |
ACEY-BES-1 |
| Precise control of sealing pressure, free setting of digital input. | |
|
Power supply |
voltage single-phase 110V~220V AC±10%; frequency
50Hz/60Hz; power 100W |
|
Sealing pressure |
Max. 1200Kg, digital display can be set |
|
Sealing stroke 20mm |
|
|
Dimensions |
255mm X 180mm X 455mm |
|
Weight |
30kg |
Product details
Laboratory Coin Cell Assembly Equipment Battery Pilot Line
Coin cell lab equipment mainly include the vacuum mixer, manual film coating machine, electrode roller press machine,electrode cutter and crimping machine for coin cell sealing. All the equipment suitable for all kinds of coin cells, such as CR2016, CR2025, CR2032, CR2430 and so on. Coin cell research is the most convenient way for powder materials analysis.
Small 0.5L Magnetic De-ironing Filtration System for Battery Electrode Slurry
This filter device is mainly applied to a special filter designed for laboratory samples to filter out various hard particles with a particle size of not less than 124 microns in the slurry. The whole machine has beautiful design and is flexible and convenient to use.
Low Noise 150ML 250ML Vacuum Mixer For Lab Research
This battery slurry vacuum filter is mainly used for Nano grade slurry for laboratory, with portable design, flexible and convenience use.
Adjustable Lab Vacuum Coating Machine For 18650 Battery Electrode Coating
ACEY-FC250 with vacuum chuck designed to produce films with consistent thickness by using micrometer adjustable applicators or fixed thickness applicators
100mm Width Adjustable Laboratory Battery Coating Device Film Applicator
Adjustable Film Applicator - This unique wet film applicator features micrometer heads for knife blade adjustment.
80mm Width Lab Four Side Wet Film Applicator(80µm,85µm,90µm,95µm)
Widely used in various coating researches, such as battery material film, ceramic film, crystal film, special nano film
Manual Rolling Press Machine For Lithium Battery Electrode Sheet Calendering
It is mainly suitable for manual rolling of battery materials in the laboratory.
Lab Vertical Electric Roll Press Machine For 18650 Battery Electrode Calendering
This lab roll press machine can adjusting thickness of the Li-Ion batteries electrode after coating and drying.
