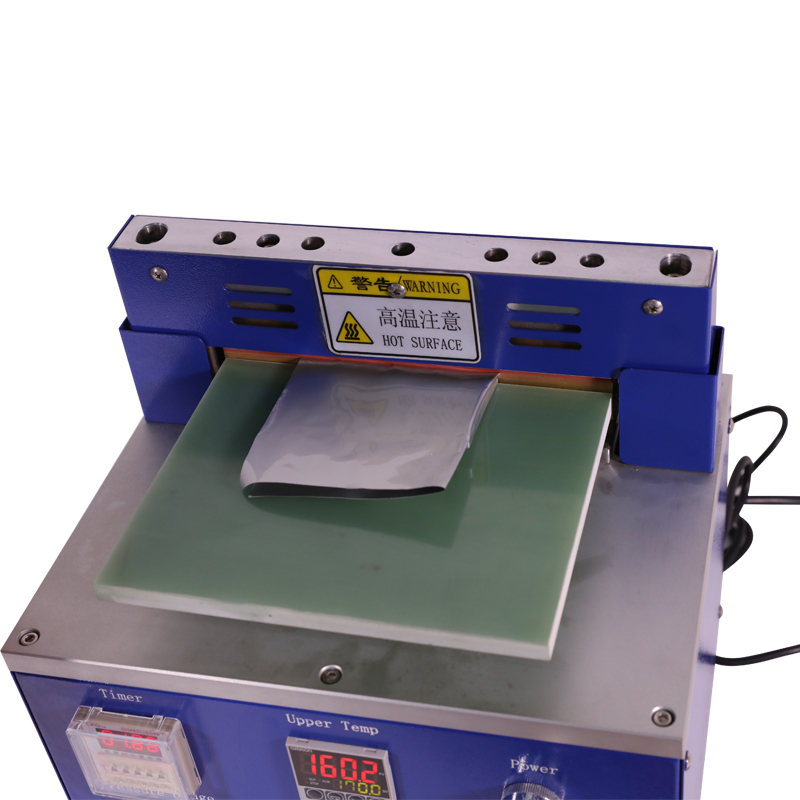

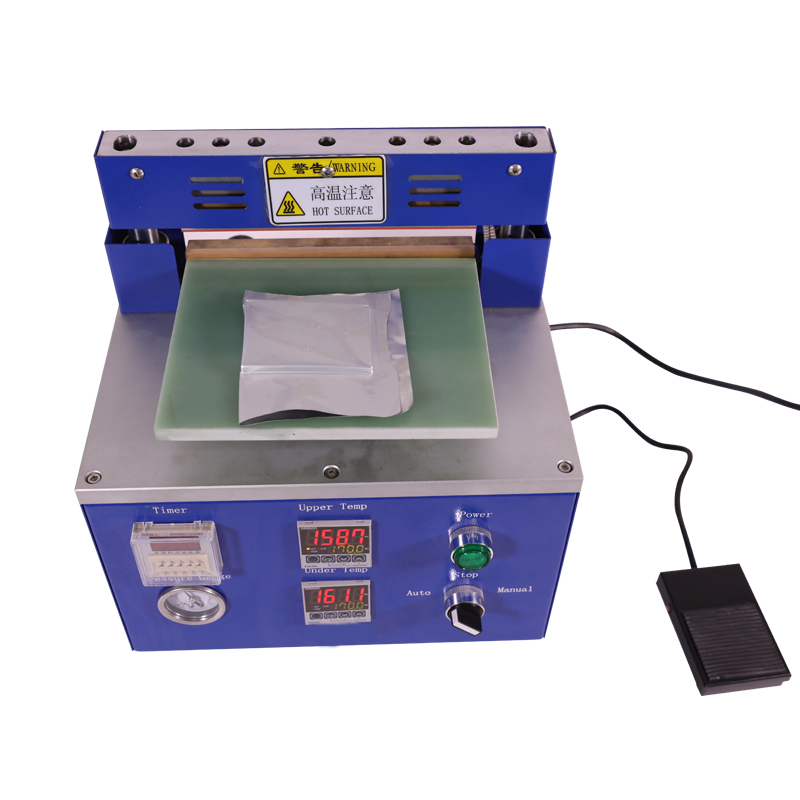

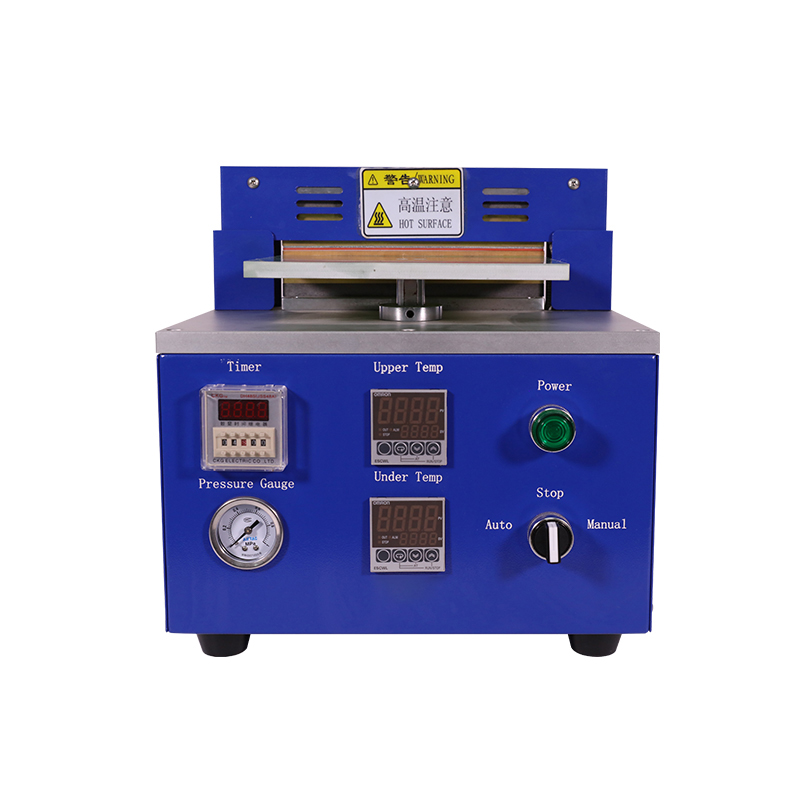

Pouch Cell Top and Side Battery Heat Sealing Machine

This Battery heat sealing machine is a compact heating sealer for aluminum-laminated films during pouch cell case preparation.

  • Brand:

    ACEY
  • Item No.:

    ACEY-HS200-2
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

Pouch Cell Top and Side Battery Heat Sealing Machine

Description

The battery heat sealing machine adopts soft sealing bar, The sealing is copper in bottom and aluminum and Silicone rubber piece on top. So it can be used for both top and side sealing for pouch cell.

Features

1. Unique safety protection and anti-scalding design, the temperature of the upper and lower irons can be adjusted through the button on the thermostat panel.

2. The head is made of copper material, which has good heat transfer effect, saves electricity consumption, improves work efficiency, and saves energy compared with similar products.

3. The pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.

4. The upper and lower heads are driven by cylinders and guided by two linear guide sleeves, which can move up and down flexibly and accurately to ensure the parallelism requirements of the product after edge sealing.

5. It can be applied to the product batteries of different specifications, and the adjustment is simple and convenient, without adjustment and replacement of the seal head.

6. The frame is made of aluminum profile, which has a beautiful appearance; the sheet metal adopts three-dimensional geometric design, which is simple and beautiful.

7. Small size, smooth and even seal marks, beautiful appearance of the edge seal;  soft package heat sealing machine equipment.

Specification

Model No.

ACEY-HS200-2


The longest seal length
200mm
Air bag side width
15~90mm
Seal width

standard 5mm±0.4 (3~10mm optional), the sealing knife can be replaced to seal other widths.

Side sealing thickness

60~300um (depending on the thickness of aluminum plastic film).

The sealing thickness of the top pole ear

200~700um (depending on the thickness of the aluminum plastic film).

Heat sealing temperature
room temperature ~ 250℃ (temperature can be set freely).
Temperature control accuracy
± 2℃
Main body to heat sealing edge

1~5±0.4mm adjustable

Packing time
standard 2S-3S (0-99s adjustable)
Seal thickness accuracy (mm)

package thickness difference between any two points <15um

The equipment has automatic and manual operation functions
Compressed air
5~8kg/cm2
Pneumatic working speed
≥400 times/hour
Power
AC220V/50Hz Power: 0.5KW
Product Details

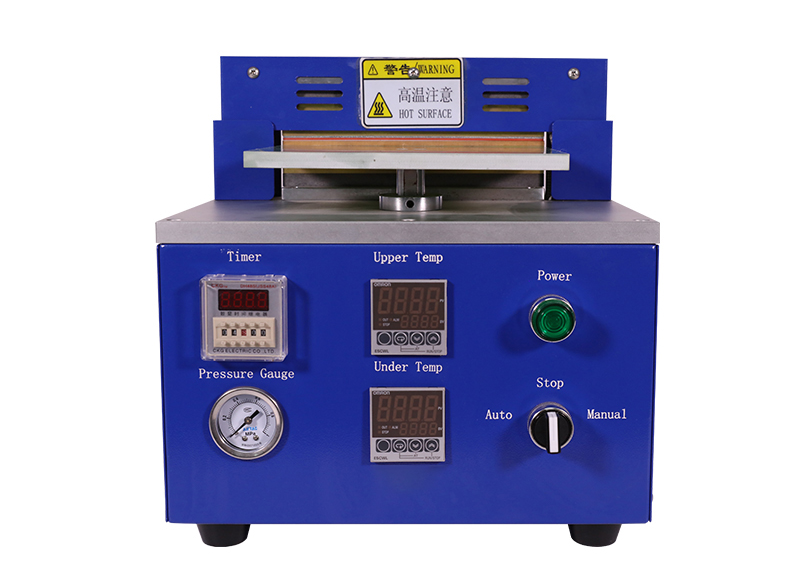

Battery Heat Sealing Machine

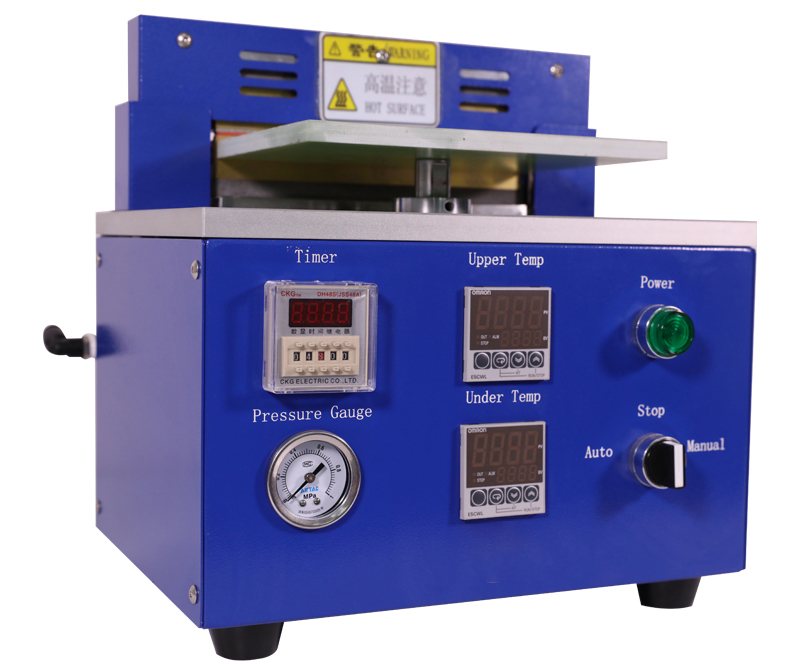

Heat Sealing Machine For Battery

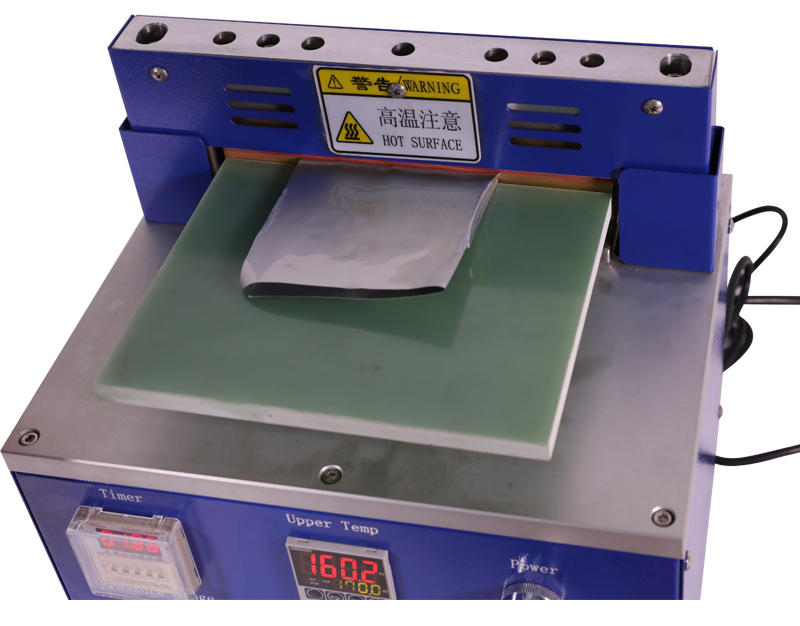

Li-ion Battery Sealing Machine
