Xiamen Acey New Energy Technology Co.,Ltd
![$this->product_detail['product_name']](/uploadfile/category/74bf9a88787562fffe07221918c9bf86.jpg)

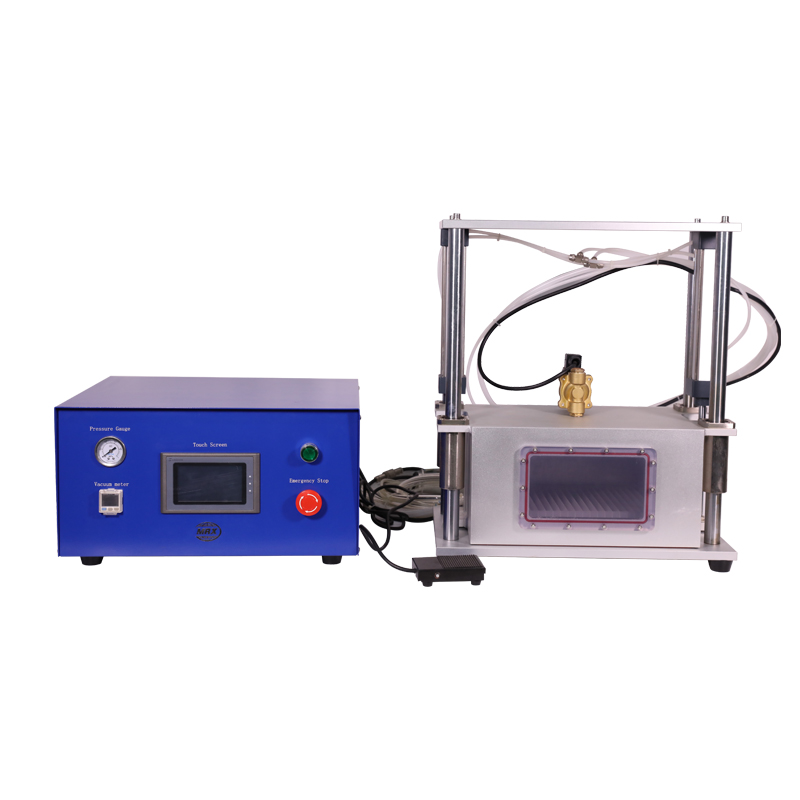

It is mainly suitable for the equipment that absorbs the electrolyte when filling the soft pack battery and the cylindrical battery to make it more completely integrated with the electrode sheet in a vacuum environment.
Brand:
ACEYItem No.:
ACEY-VS100Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:
7daysPouch Cell Battery Electrolyte Diffusion & Degassing Chamber
DescriptionIt is mainly suitable for the equipment that absorbs the electrolyte when filling the soft pack battery and the cylindrical battery to make it more completely integrated with the electrode sheet in a vacuum environment. The whole machine is made of high-quality electrical components and materials, suitable for batteries of various sizes, simple operation, and efficient production. It is also an ideal multifunctional experimental equipment for the laboratory .
Features
1. The vacuum remains stable. When holding, the vacuum is not much lower.
2. The product has a multi-stage cycle operation function. Helps the electrolyte to fuse more fully.

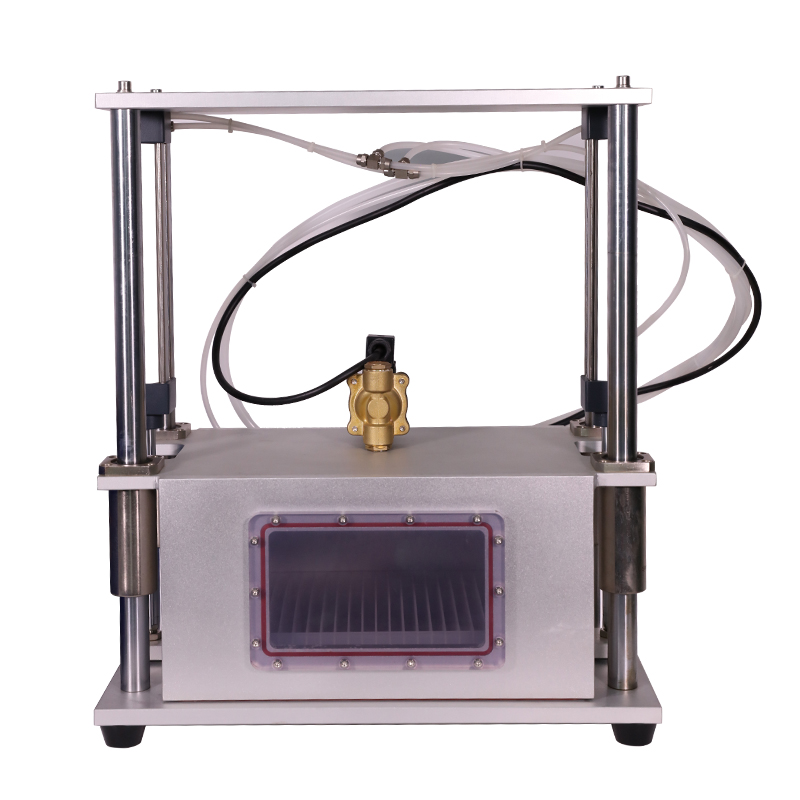

3. Through the perspective window, you can observe the changes in the cavity while working.

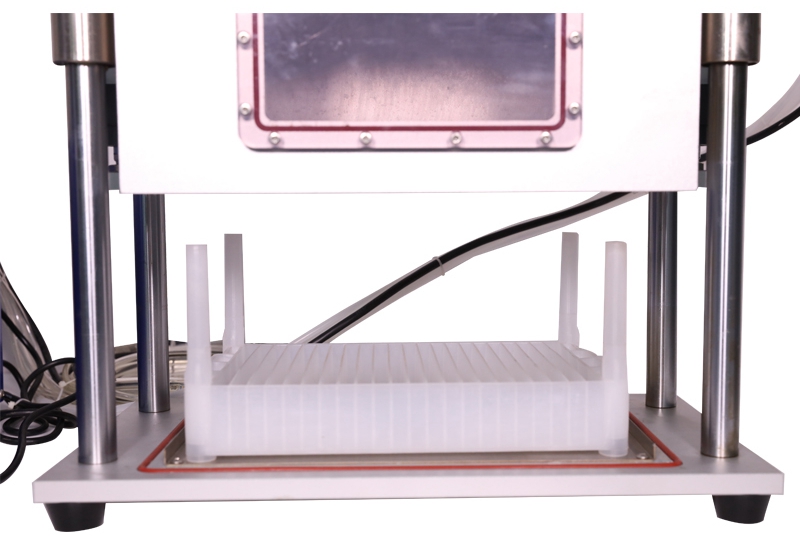

4. The upper cavity is driven by an air cylinder and guided by two linear guide sleeves, which can move up and down flexibly, and the guidance is accurate to ensure the product tightness requirements.
5. It can be applied to batteries of different specifications, and the adjustment is simple and convenient.
6. The main machine and the control box are separated design, so that the machine can work in the glove box or on the assembly line.
7. Easy operation, beautiful appearance, small size and light weight.
Specification
Model No.
ACEY-VS100
The cavity is made of aluminum alloy, which is corrosion resistant and has a firm structure
0.5～0.8Mpa; when used in the glove box, the cylinder
power source must use the working gas 0.5～0.8Mpa used in the glove box
Standing time can be
set to 0-9999S, adjustable, and pressure adjustable
Vacuum degree can
reach above -95KPa (the buyer prepares the vacuum pump)
Good sealing
performance, which can ensure that the air leakage in 1 minute does not exceed
-1KPa
Power supply
220V/50Hz; power:
100W
Compressed air source
Volume in the cavity
L320mm*W320mm*H175mm
Part of performing
cavity action
about
L510mm*W355mm*H635mm

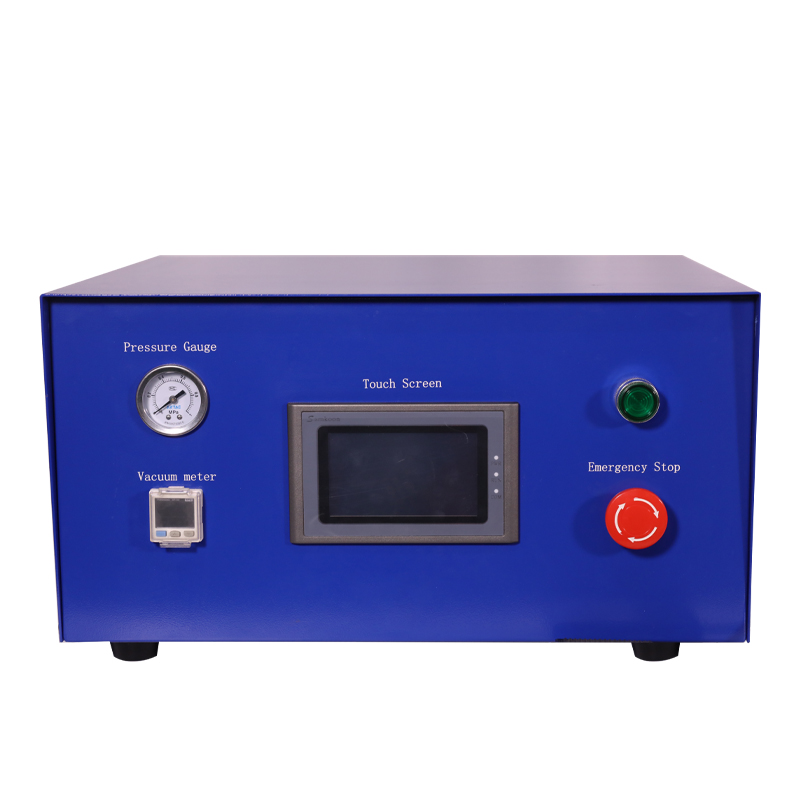

Control part
about
L465mm*W355mm*H345mm
Weight
about 60K
Product Details
Lab Pouch Cell Making Machine Lithium Ion Battery Manufacturing Equipment
Acey offers the full set of pouch cell battery producing equipment from mixing to last testing equipment, Including the ball mill,planetary mixer,electrode coating machine,electrode rolling press machine,electrode die cutter,battery stacking machine,ultrasonic spot welder,pouch forming machine,top&side heat sealer,electrolyte diffusion chamber and filler,secondary vacuum heat sealer,edge cutting machine,edge folding machine,edge hotting machine,last battery tester.
