This Vacuum Drying Oven for lithium battery field mainly used for lithium battery materials, electrode and battery core vacuum drying.
Brand:
ACEYItem No.:
ACEY-VDO-2Compliance:
CE CertifiedWarranty:
One Year warranty with lifetime supportOrder(Moq):
1setPayment:
L/C,T/T,Western Union, PaypalProduct Origin:
ChinaLead Time:
7days50L Lab Vacuum Drying Ovens For Battery Raw Material Drying
Description
It is suitable for the drying, sterilization and heat treatment of articles in the laboratories of industrial and mining enterprises, universities, research institutes and other units under vacuum conditions.
Features

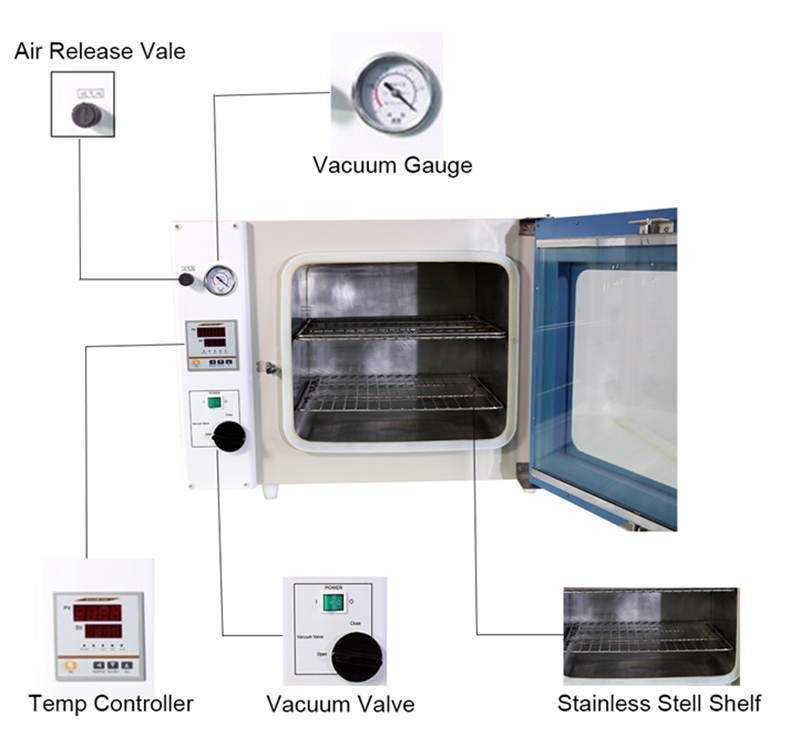

1. Observe the items in the working room at a glance.
2. Using integrally formed high temperature resistant silicone rubber sealing ring to ensure high vacuum in the box.
3. The inner tank is made of stainless steel, and the surface of the box body is sprayed with high temperature electrostatic to ensure the product is durable.
Specification
Model No.
ACEY-VDO-2
5℃ (the temperature
difference is between the center and the edge of the cavity)
710mm X 565mm X 555mm
Support precise PID control with automatic adjustment
Passed radiation protection and anti-theft
system
Temperature
measurement accuracy
0.1℃
Uniformity
Temperature
multi-level control, temperature gradient control
Tilt heating,
pressure keeping, air cooling, all can be set
There are two movable
stacking racks
Voltage
ingle-phase standard
AC 220V 50/60HZ
power
<1500W max 10A
Inner cavity size
415 mm x 345 mm x 375
mm
Vacuum
<133Pa
Dimensions
Weight
30kg
Product Details
Package
