Battery Electrolyte Diffusion Chamber Vacuum Standing Box For Lab

It is mainly suitable for the equipment that absorbs the electrolyte when filling the battery to make it more completely integrated with the electrode sheet in a vacuum environment.

  • Brand:

    ACEY
  • Item No.:

    ACEY-VS100
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1 set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

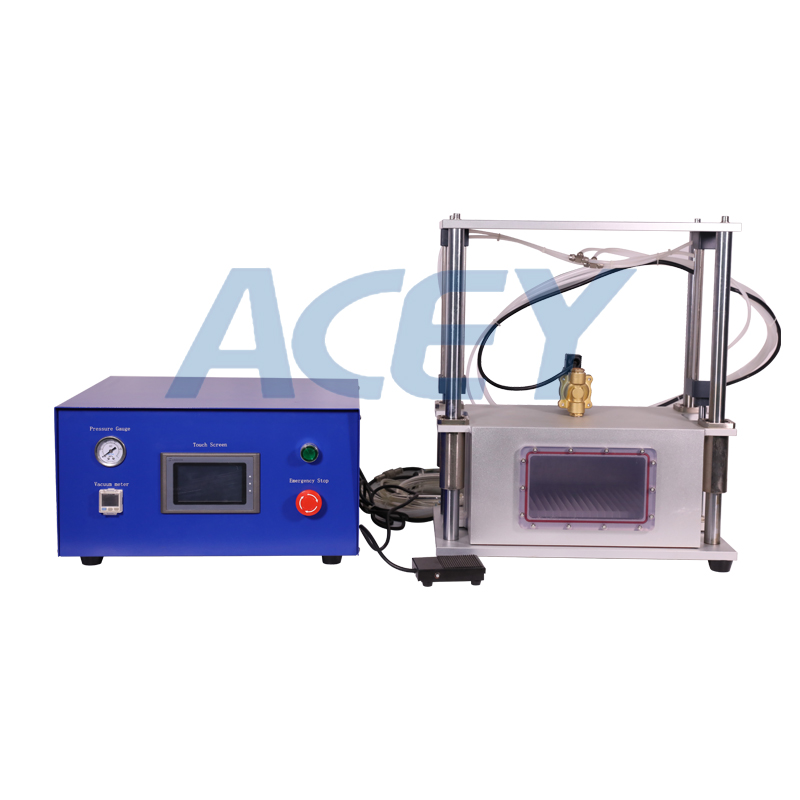

Battery Electrolyte Diffusion Chamber Vacuum Standing Box For Lab

Description

ACEY-VS100 is specifically designed for professional Li-ion Battery Research. It is mainly used for removing air from the electrolyte after it's been injected into the polymer Li-ion cell or after the formation for final sealing under a vacuumed condition. It is easy to operate and suitable for all types of batteries (especially pouch cell and cylinder battery). Unique periods of vacuum control system allows electrolyte to thoroughly saturate the electrodes to ensure the best battery charging-discharging performance.

Features

*The vacuum remains stable. When holding, the vacuum is not much lower.

*The product has a multi-stage cycle operation function. Helps the electrolyte to fuse more fully.

* Through the perspective window, you can observe the changes in the cavity while working.

*The upper cavity is driven by an air cylinder and guided by two linear guide sleeves, which can move up and down flexibly, and the guidance is accurate to ensure the product tightness requirements.

*It can be applied to batteries of different specifications, and the adjustment is simple and convenient.

*The main machine and the control box are separated design, so that the machine can work in the glove box or on the assembly line.

*Easy operation, beautiful appearance, small size and light weight.

*The cavity is made of aluminum alloy, which is corrosion resistant and has a firm structure;

*Standing time can be set to 0-9999S, adjustable, and pressure adjustable;

*Vacuum degree can reach above -95KPa (the buyer prepares the vacuum pump);

*Good sealing performance, which can ensure that the air leakage in 1 minute does not exceed -1KPa

Specification

Power supply

220V/50Hz;

power

100W;

Compressed air source

0.50.8Mpa;

Volume in the cavity

L320mm*W320mm*H175mm;

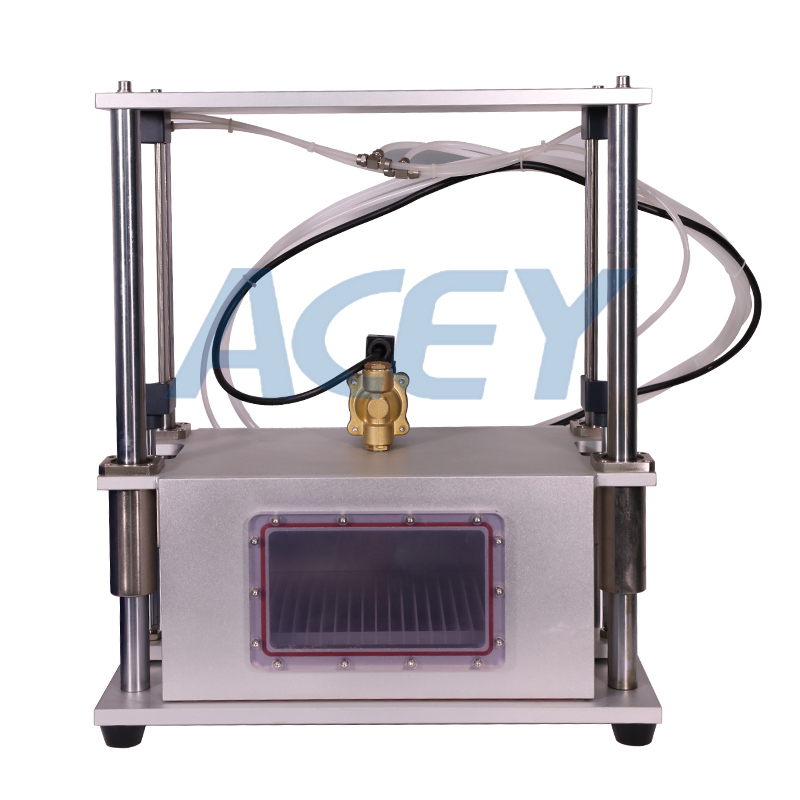

Part of performing cavity action

about L510mm*W355mm*H635mm

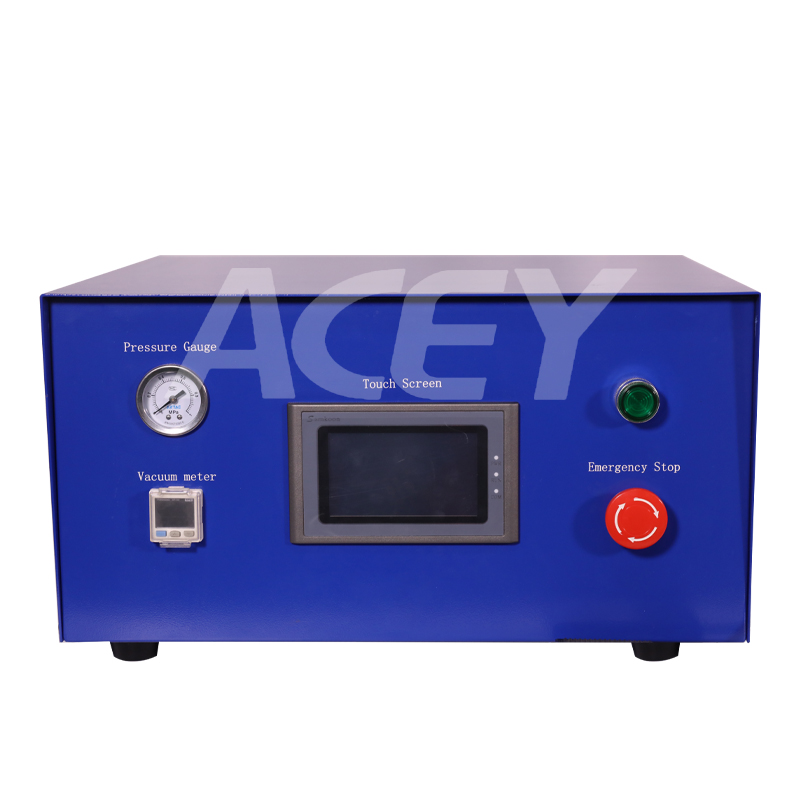

Control part

about L465mm*W355mm*H345mm

Weight

about 60KG

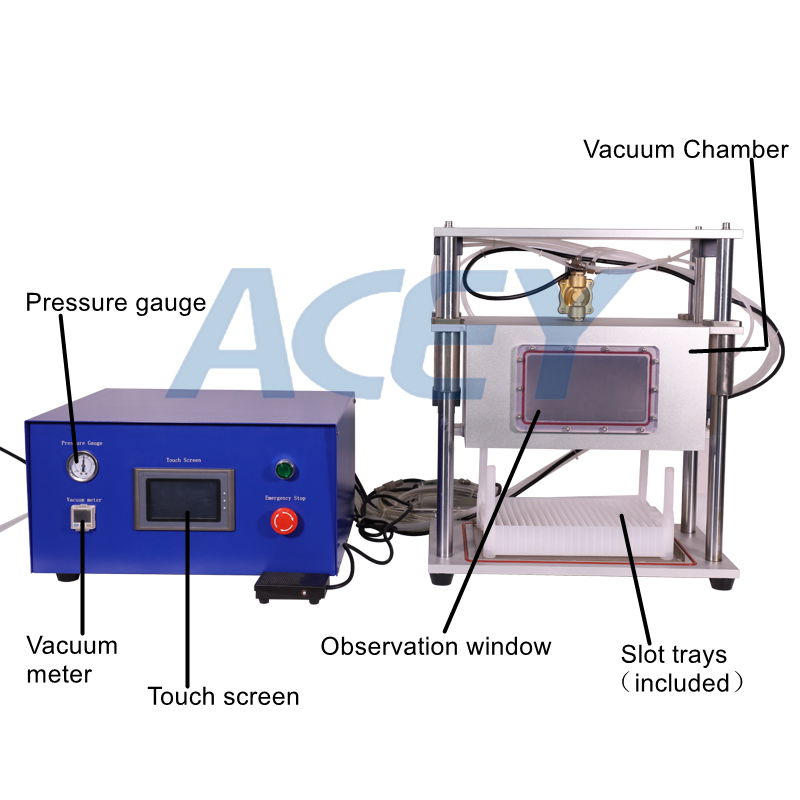

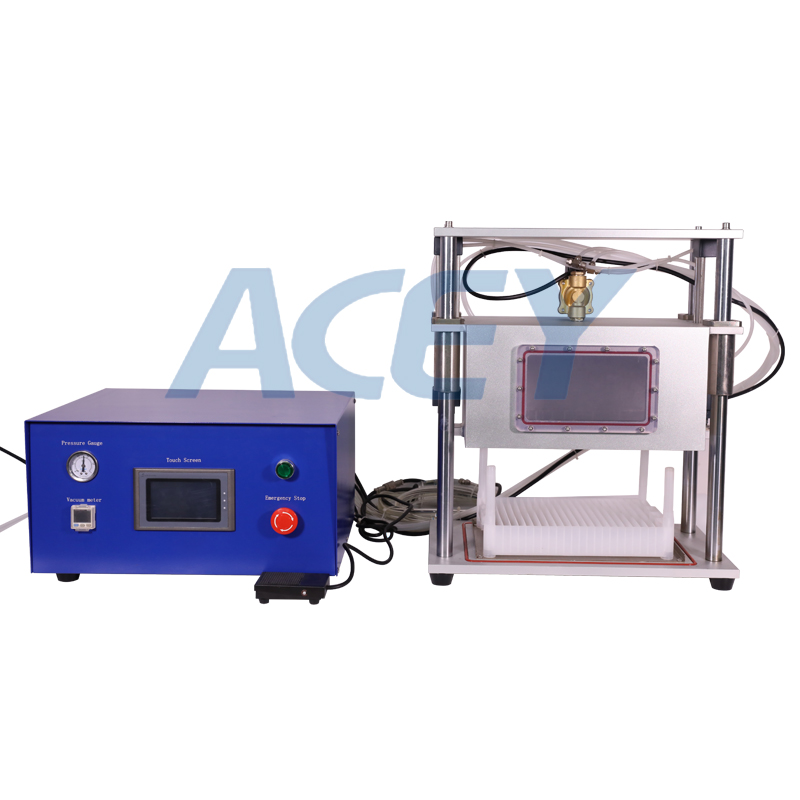

Product Display

Packing


One-stop Solution

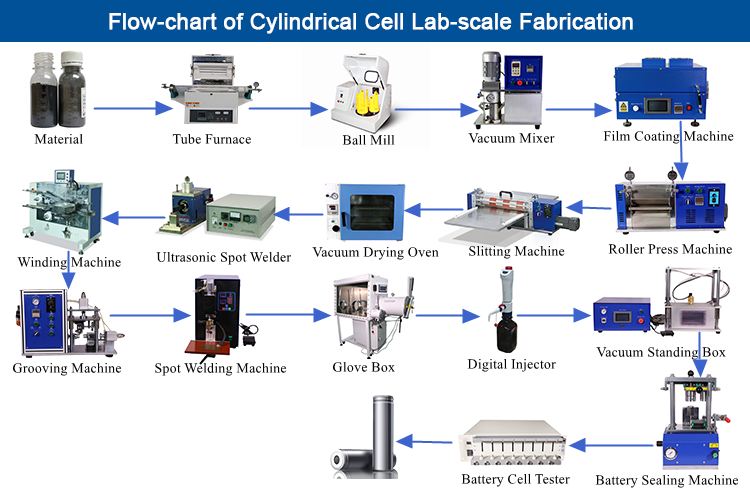

Flow-chart of Cylindrical Cell Lab-scale Fabrication

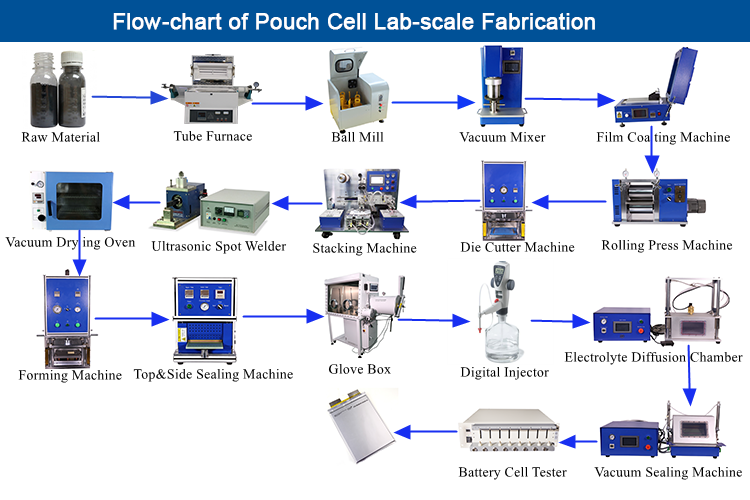

Flow-chart of Pouch Cell Lab-scale Fabrication
