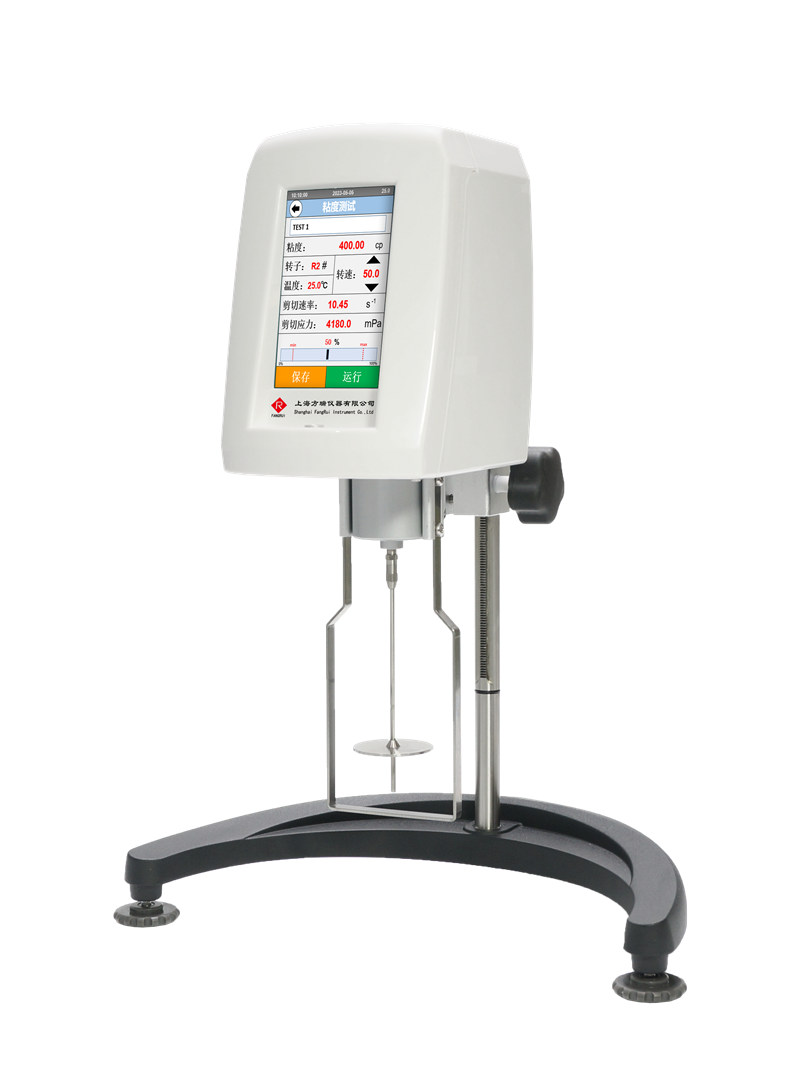

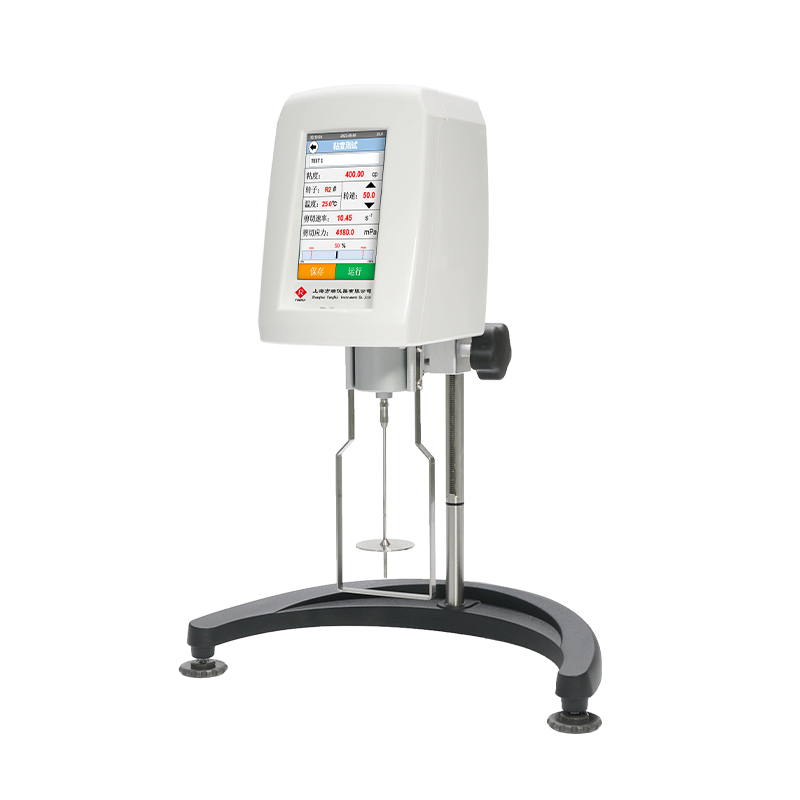

7-35 daysLaboratory Rotational Digital Viscometer Viscosity Meter With Touch Screen
Description：
Lab viscometer features 30 user-defined test programs and can save 30 sets of test data. The large 5-inch full-color touch screen vividly displays various parameters and working conditions. The device offers numerous advantages, including multiple measurement parameters, rich display content, easy operation, intuitive readings, high measurement accuracy, stable rotation speed, strong anti-interference capabilities, as well as displaying shear rate and viscosity curves. It also operates on a wide voltage range, making it a strong alternative to similar imported instruments.
Features：
1. Adopts ARM Technology with Built-in Linux System: The interface is simple and intuitive, allowing for quick and convenient viscosity testing through the creation of test programs and
data analysis.
2. Accurate Viscosity Measurements: Each range is automatically calibrated by a computer, ensuring high precision and minimal error.
3. Rich Display Information: In addition to viscosity (dynamic and kinematic viscosity), it also
displays temperature, shear rate, shear stress, the percentage of the measured value relative to
the full-scale value (with graphical display), range overflow alarms, automatic scanning, the
maximum measurement range under the current rotor-speed combination, date, time, and more. It can also display kinematic viscosity when the density is known, catering to different user
measurement needs.
4. Comprehensive Functions: Capable of timed measurements, user-defined 30 test programs, storage of 30 measurement data sets, real-time display of viscosity curves, and printing of data
and curves.
5. Front-Leveling Instrument: Allows for intuitive and easy leveling adjustments.
6. Stepless Speed Regulation:(1) RV1T Series: 0.3-100 RPM, with 998 speed settings. (2) RV2T Series: 0.1-200 RPM, with 2000 speed settings.
7. Displays Shear Rate vs. Viscosity Curves: Users can set the shear rate range, and real-time data is displayed on the computer. It can also display viscosity curves against time.
8. Standard USB Interface: Plug in a USB flash drive to directly copy data.
9. Optional Pt100 Temperature Probe: Offers a wide temperature range from -20°C to 300°C, with a temperature accuracy of 0.1°C.
10. Rich Optional Accessories: Includes dedicated viscosity meter thermostatic bath, thermostatic
cup, printer, standard viscosity samples (standard silicone oil), and more.
11. Bilingual Operating System (Chinese and English): Pre-configured before delivery.
Specification：
Model
ACEY-VDT-2T
Control/Display:
5-inch color touch screen
Speed (r/min):
0.1 – 200 stepless speed regulation, 2000 selectable speeds
Measurement Range (mPa.s):
R2-R7: 800 - 320M
URL: 25.6 - 2K
No. 21: 200 - 4M
No. 27: 1K - 20M
No. 28: 2K - 40M
No. 29: 4K - 80M
(K = 1000; M = 1000000)
Rotors:
2 – R7 (6 rotors, standard)
R1 (optional)
Enhanced ultra-low viscosity adapter ULR (optional)
Small sample adapter (No. 21, 27, 28, 29 rotors) (optional
Sample Volume:
Rotors R1-R7: 500ml
ULR: Range 25.6 - 2000, 21ml
No. 21 rotor: 7.8ml
No. 27 rotor: 11.3ml
No. 28 rotor: 12.6ml
No. 29 rotor: 11.5m
Measurement Range (mPa.s):
±1% (Newtonian liquid)
Repeatability Error:
±0.2% (Newtonian liquid)
Shear Stress/Shear Rate Display:
Standard
Timing Function
Standard Real-time
Viscosity Curve Display
Shear rate vs viscosity curve
Temperature vs viscosity curve
Time vs viscosity curve
Kinematic Viscosity
Requires input of sample density
Temperature Measurement Function
Standard with temperature probe interface (requires optional temperature probe)
Auto Scanning Function
Scans and recommends the optimal rotor and speed combination
Maximum Measurement Range
Automatically displays the measurable viscosity range for the selected rotor and speed combination
Custom Measurement Programs
Can save up to 30 sets (including rotor, speed, temperature, time, etc.)
Data Storage
Can save up to 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, shear stress, time, density, kinematic viscosity, etc.)
Printing
Data and curves can be printed (comes with a printing interface, printer optional)
Data Output Interface
USB: Can insert a USB drive to directly copy data
Thermostatic Components
Optional (includes various viscosity meter-specific thermostatic baths and cups)
Power Supply
Wide voltage range (110V / 60Hz or 220V / 50Hz)
Dimensions
300*300 * 450 (mm)
