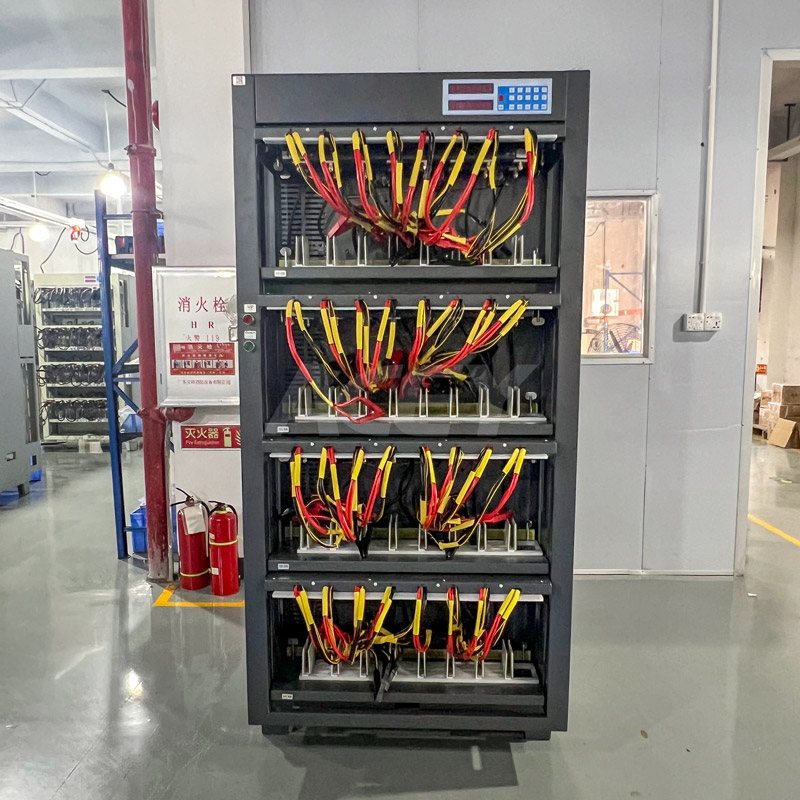

Customizable 5V 60A 64 Channel Multi-Type Battery Charge Discharge Machine

Product Description

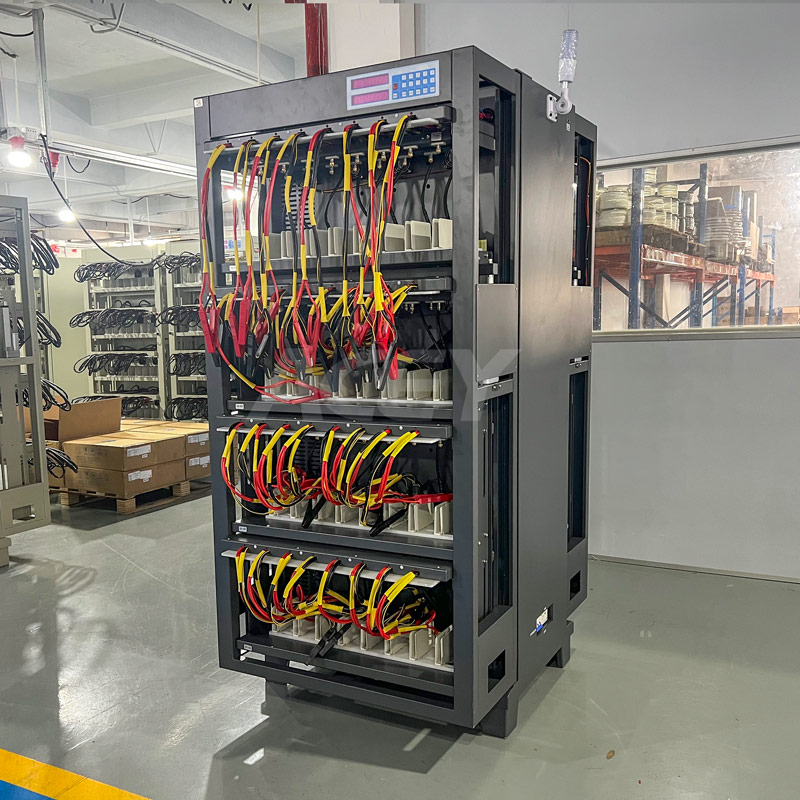

ACEY-BCT560-64P Lithium Battery Charge Discharge Machine is equipped with 64 channels and customized flat-head clamps, with optional alligator clips available. It is suitable for testing the voltage, capacity, and other performance parameters of cylindrical cells, prismatic cells, and pouch cells. The system provides stable and accurate testing performance for battery capacity grading and quality evaluation.

Product Features

64 independent testing channels for stable and accurate battery testing.
Each battery has an independent constant-current and constant-voltage source, ensuring stable operation without current impact.
Controlled by STM32 microcontroller and connected to a computer for data collection, curve recording, and process setting.
Supports manual operation through the equipment keyboard panel for test process setup, parameter display, and sorting operation.
Real-time monitoring and display of each battery status.
Abnormal channels will stop automatically, and the indicator light will turn on for quick identification.
Power-off protection function allows the equipment to continue the previous testing process after power recovery.
MOSFET power devices are used, suitable for low-voltage discharge batteries such as LiFePO4 cells.
Graphical operation interface clearly displays battery voltage, current, time, capacity, working status, and abnormal conditions.
Powerful software with a user-friendly interface for convenient operation and data management.
Four-wire testing interface ensures high measurement accuracy.
Modular design makes maintenance easier and more efficient.

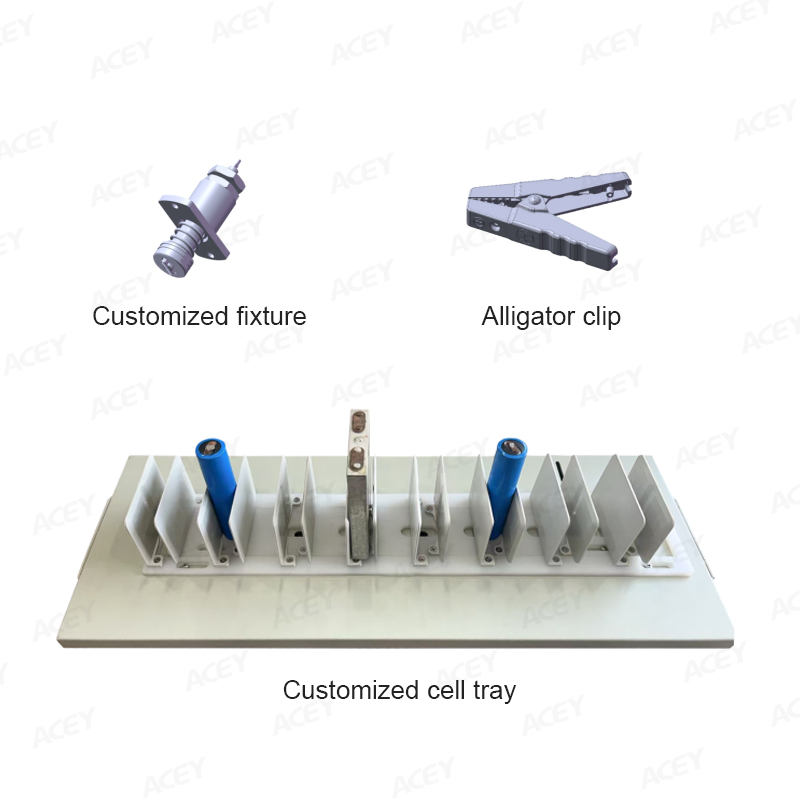

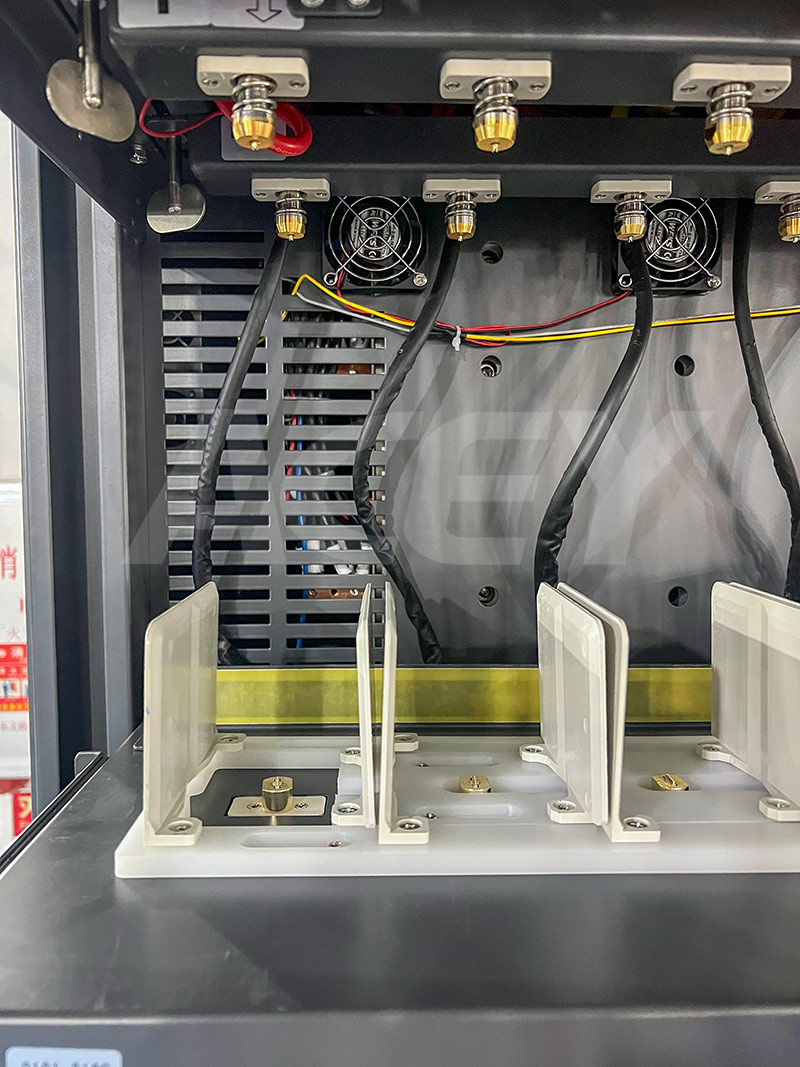

Equipped with customized flat-head clamps, with optional alligator clips available for pouch cell testing.

Compatible Battery Types

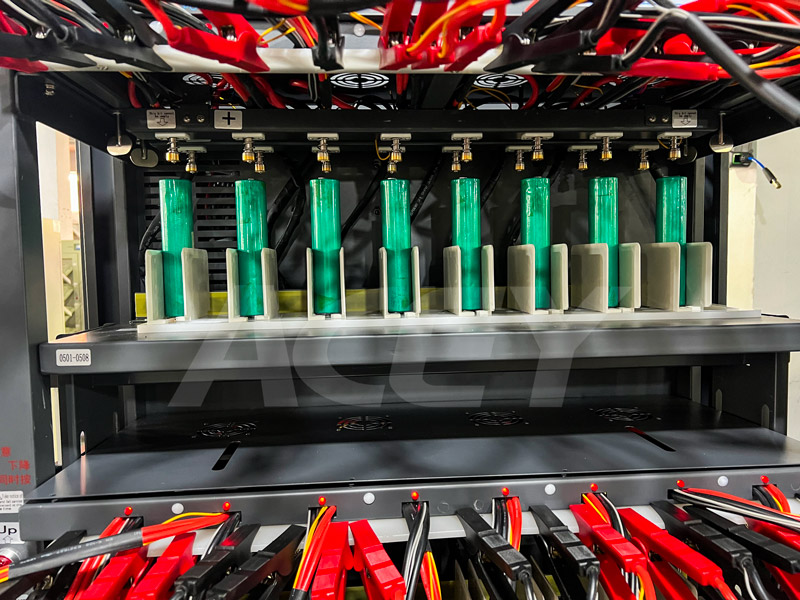

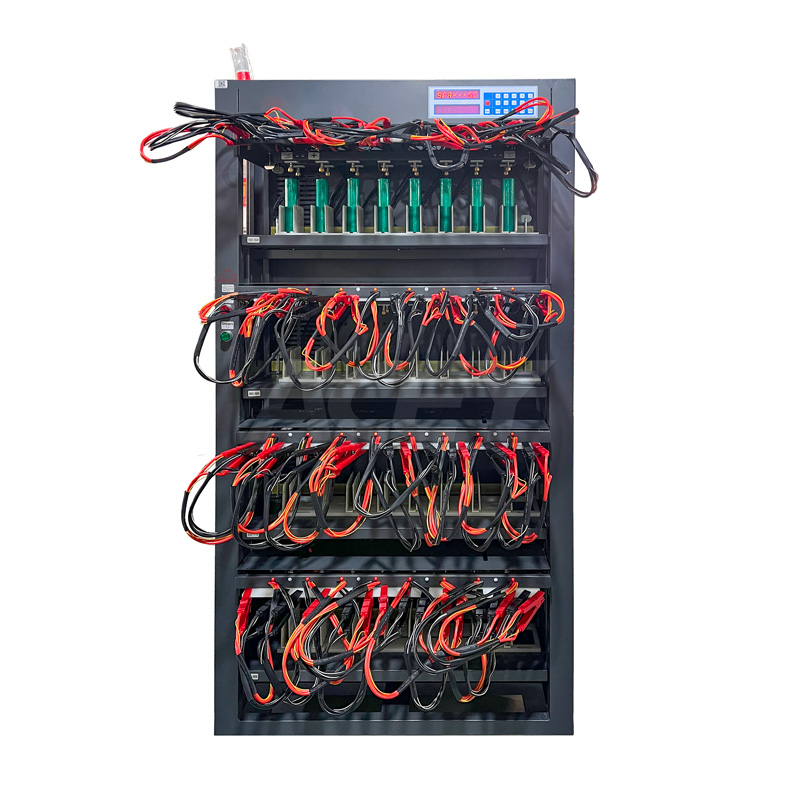

Cylindrical cells

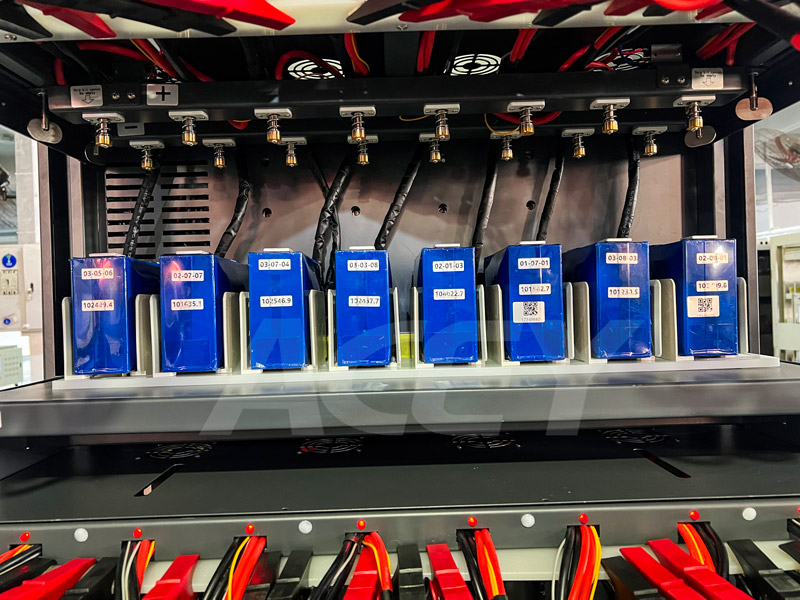

Prismatic cells
Polymer pouch cells(Optional fixture is required.)

Compatible Cell Size Range

Cell Type	Item	Range
Prismatic Cells	Length	80–300 mm
	Thickness	15–75 mm
	Width	80–230 mm
	Tab Center Distance	50–250 mm
Cylindrical Cells	Length	80–230 mm
Cylindrical Cells	Diameter	26–72 mm

Technical Specifications

Equipment Structure
Item	Specification
Number of Channels	64 channels in total
Cabinet Color	Standard gray-white / gray-black, customizable
Fixture Type	Flat-head clamps, optional alligator clips
Fixture Spacing	81 mm
Loading Method	Motorized upward pushing
Channel Control Mode	Each battery has an independent constant-current and constant-voltage source, ensuring stable operation without impact
	Supports start, stop, pause, resume, and protection functions
	Each channel is equipped with independent constant-voltage and constant-current hardware control circuits
	Charging and discharging current accuracy of each channel can be automatically calibrated by software
Working Power Supply	Three-phase five-wire AC380V±10%, 50Hz
Power Factor	0.99 @220VAC, full load, grid THDu ≤2%
Current Harmonics	<5% @220VAC, full load, grid THDu ≤2%
Power Module Efficiency	Charging ≥80%, discharging ≥70%
Working Power Consumption	≤22.6 kW
Equipment Failure Rate	<1%
Status Indicator	Three-color status indicator light
Cooling Method	Natural air intake, upward air exhaust
Power Component Protection	Grid voltage over-limit protection; grid frequency over-limit protection
Channel Parameters
Item	Specification
Voltage Measurement Range	DC 0–5V
Battery Voltage Range	Charging: DC 0–4.5V; Discharging: DC 4.5–2V
Constant Voltage Range	DC 2–4.5V
Voltage Accuracy	±(0.5‰ of reading + 0.5‰ of full scale)
Voltage Control Resolution	1 mV
Voltage Sampling Resolution	1 mV
Current Range	Charging: DC 120mA–60A; Discharging: DC 120mA–60A
Current Accuracy	±(0.5‰ of reading + 0.5‰ of full scale)
Current Control Resolution	1 mA
Current Sampling Resolution	1 mA
Current Rise Time	≤50 ms, 90% load
Channel Start Time	≤50 ms, 90% load
Software Functions
Item	Specification
Control Method	Computer-controlled operation, whole-cabinet control, with scanning system
Communication Method	RS485 serial communication, baud rate 57600 / TCP communication
Process Setting	Up to 64 working steps and 256 cycles can be set
Charging Modes	Constant current, constant voltage, constant current & constant voltage
Charging Cut-off Conditions	Voltage, current, time, capacity, -ΔV
Discharging Modes	Constant current, constant power, constant resistance
Discharging Cut-off Conditions	Voltage, time, capacity
Time Range	0–3000 minutes per step
Time Accuracy	≤±1‰
Sampling Inspection Cycle	1–60 seconds, selectable
Battery Sorting	Sorting by capacity, time, open-circuit voltage, discharge platform, etc.
Data Processing	Records voltage, current, time, capacity, and other data; automatically calculates constant-current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, etc.; provides data curves and cycle graphs; supports export in TXT, Excel, Word, or MDB database format
Software Protection Functions
No.	Protection Function
1	Charging over-voltage protection and charging under-voltage protection
2	Discharging over-voltage protection and discharging under-voltage protection
3	Charge/discharge voltage trend protection
4	Voltage fluctuation protection
5	Current fluctuation protection
6	Battery reverse connection protection by hardware
7	Power transistor short-circuit protection
8	Channel capacity alarm protection / timeout protection
9	Voltage sampling disconnection protection
10	Voltage outlier protection
11	Capacity outlier protection
12	Open-circuit voltage detection before process start; channels with OCV out of limit will be stopped
13	Power-off protection and data breakpoint recovery
