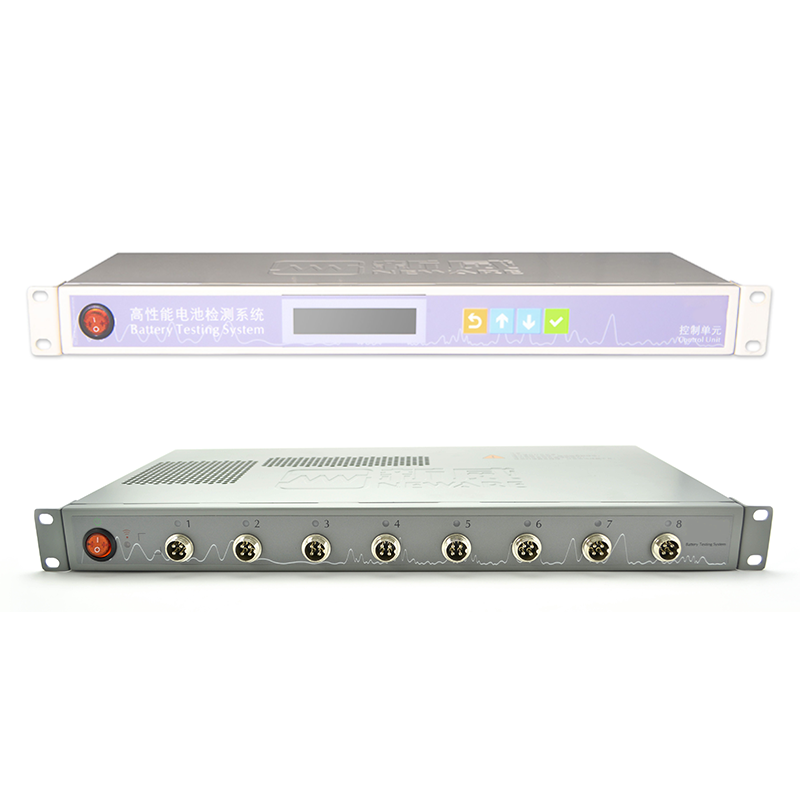

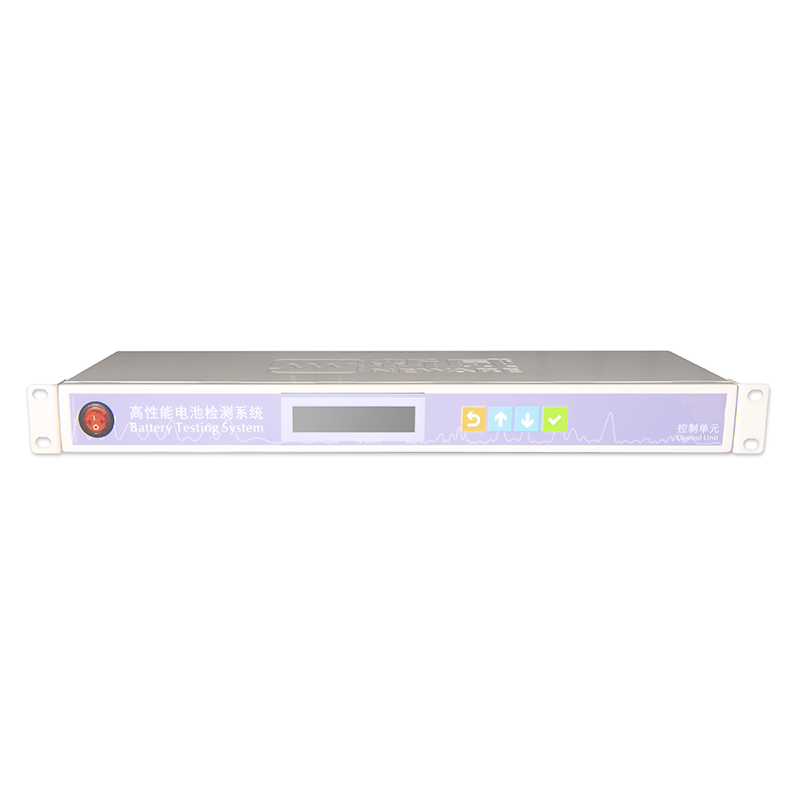

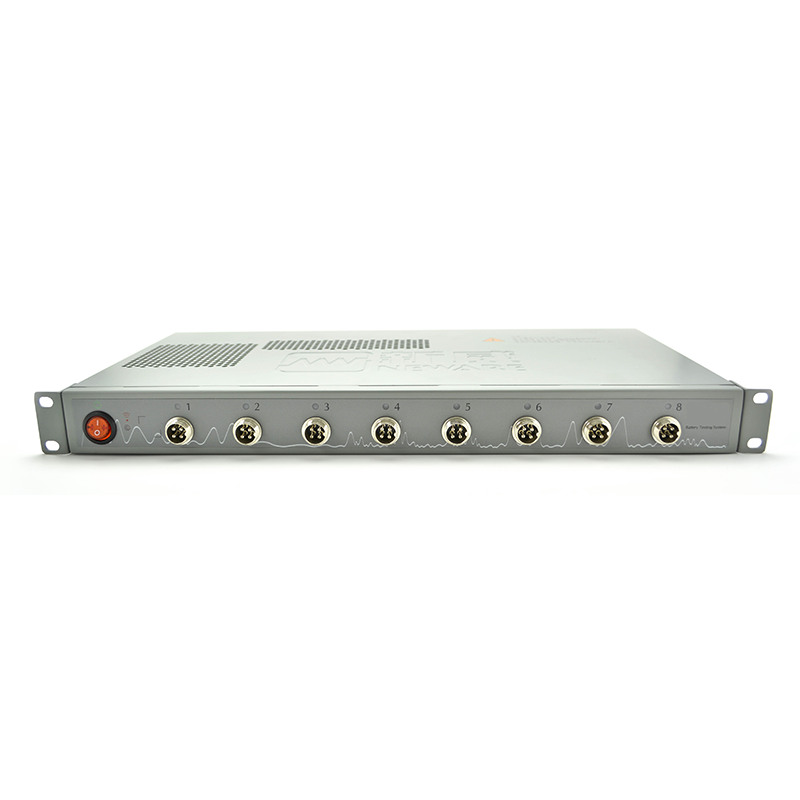

5V50mA Lab Coin Cell Battery Tester For Lithium Battery Capacity Testing

This coin cell batteryanalyzer is for battery charging, battery discharging, checkingbattery performance, small scale battery formation, capability grading, battery pack testing, etc.

  • Brand:

    ACEY
  • Item No.:

    ACEY-BT-5V50MA
  • Compliance:

    CE Certified
  • Warranty:

    One Year warranty with lifetime support
  • Order(Moq):

    1set
  • Payment:

    L/C,T/T,Western Union, Paypal
  • Product Origin:

    China
  • Lead Time:

    7days
  • Product Detail

5V50mA Lab Coin Cell Battery Tester For Lithium Battery Capacity Testing

Description

The Button Battery Tester is suitable for all kinds of coin cell battery such as lithium battery, NI-MH battery, Zn-Mn watch battery and so on.

Specification

Product Name
Battery Testing Equipment 5V50MA
Model No.
ACEY-BT-5V50MA
Input power
AC 220V ±10% / 50Hz
Input active power
25W
Input Resistance
≥1MΩ
Resolution
AD:16bit;DA:16bit
Voltage
Per Channel Voltage Range
25mV~5V
Discharge Min Voltage
0V
Accuracy
± 0.05% of FS
Stability
± 0.05% of FS
Current
Per Channel Current Range
Range one:5uA~1mA;
Range two:1mA~25mA;
Range three:25mA~50mA
Accuracy
± 0.05% of FS
Constant Voltage Cut-off Current
2uA;0.05mA;0.1mA
Stability
± 0.05% of FS
Power
Per Channel Output Power
0.05W
Stability
±0.1% of FS
Time
Current Response Time
(0~Full Range)<1ms
Step Time Range
≤(365*24)Hour/Step
Data Recording
Recording Condition
The minimum time interval:100ms
The minimum voltage interval:10mV
The minimum current interval:2uA;0.05mA;0.1mA
Record Frequency
10Hz
Charge
Charge Mode
Constant Current Charge、Constant Voltage Charge、Constant Current and Constant Voltage Charge、CPC
End Condition
Voltage、Current、Relative Time、Capacity、-△V
Discharge
Discharge Mode
CCD、CPD、CRD
End Condition
Voltage、Current、Relative Time、Capacity
Pulse
Charge
CCC
Discharge
CCD
Min Pulse Width
500ms
Pulse Number
Each pulse step supports 32 different pulses
Automated Switch
Automated switch from charge to discharge for each pulse
End Condition
Voltage, Test Time
Cycle
Loop Measure Range
1~65535 times
Max Steps Per Loop
254
Nested Loop
Nested loop Function,Max Support 3 Layers
Protection
Software Protection
Power-down Data Protection
Off-line Testing Function
Setting Protection Condition,Setting Parameter:Low Voltage limit、Upper Voltage limit、Low Current limit、Upper Current limit、Delay Time
Noise
<85dB
Channel Features
Constant Current Source and Constant Voltage Source with Independent pairs of Closed-loop Structure
Channel Control Mode
Independent Control
Voltage and Current Testing Sample
4-wire connecting
Database
MySQL Database
A Means of Communication of Upper Machine
TCP/IP Protocol
Data Output
EXCEL、TXT、Graph
Communication Interface
Ethernet Port
Per Unit Main Channels No.
8
Working Temperature Range
0℃~40℃
Storage Temperature Range
-10℃~50℃
Working Environment Relative Humidity Range
30% ~ 80% RH
Storage Environment Relative Humidity Range
30% ~ 90% RH
Dimensions
1U,W*D*H:480*330*45(mm)
Product details

5V50mA Lab Coin Cell Battery Tester For Lithium Battery Capacity Testing

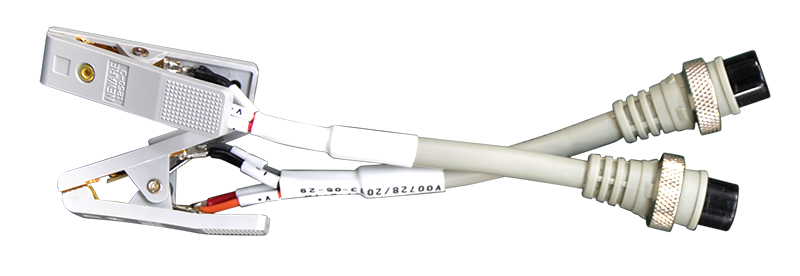

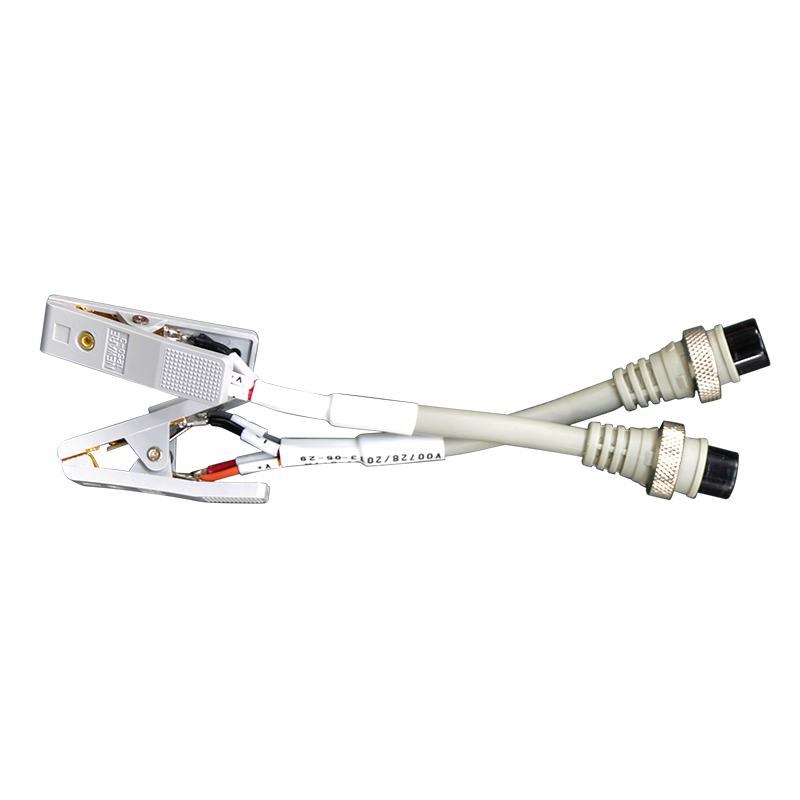

Coin Cell Clip
