XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
Brand:
ACEYItem No.:
ACEY-MPW-200SCompliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1 setPayment:
T/TProduct Origin:
ChinaLead Time:

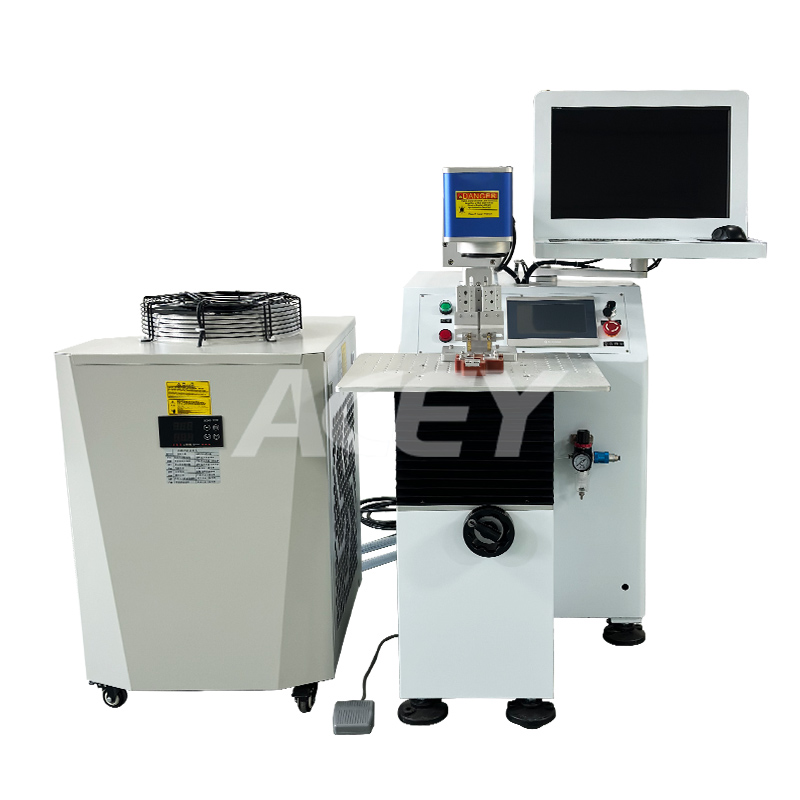

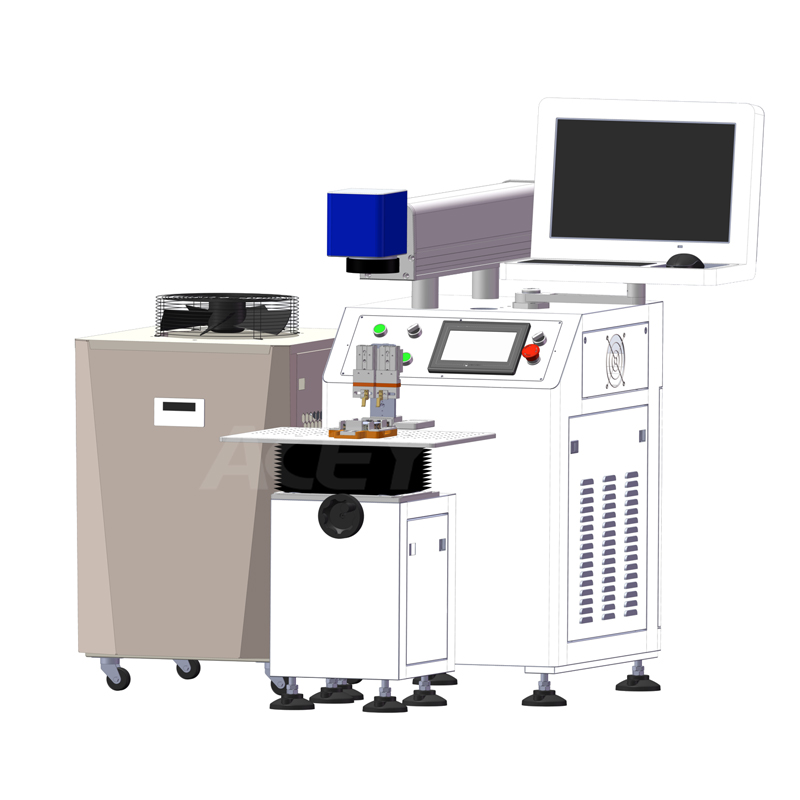

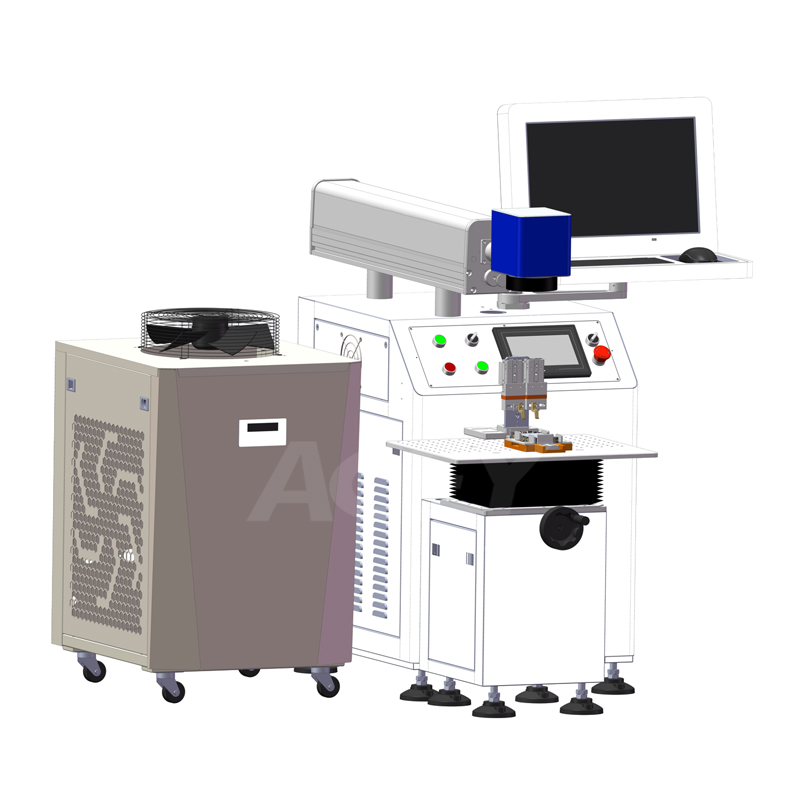

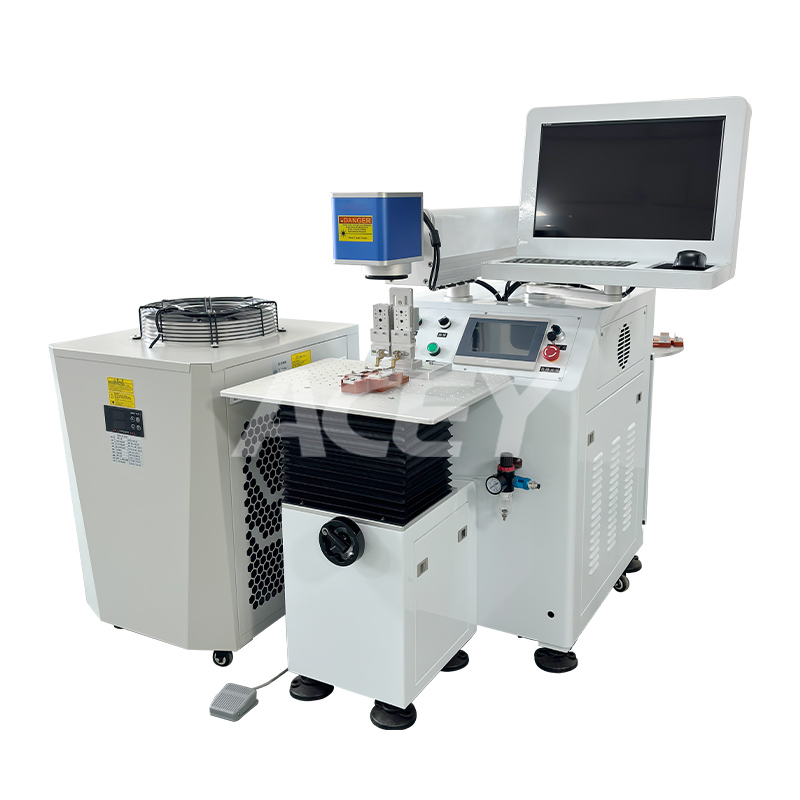

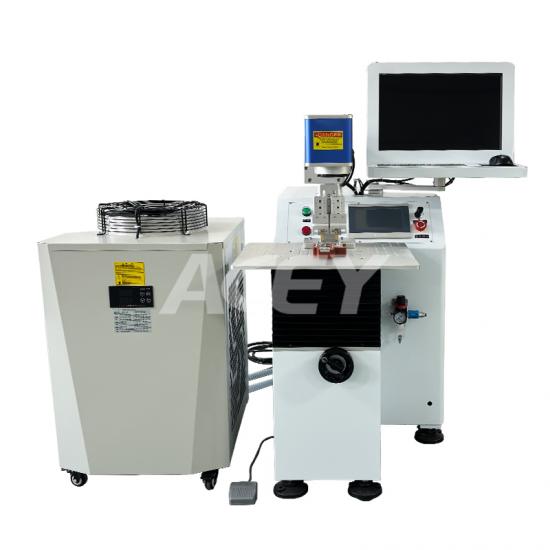

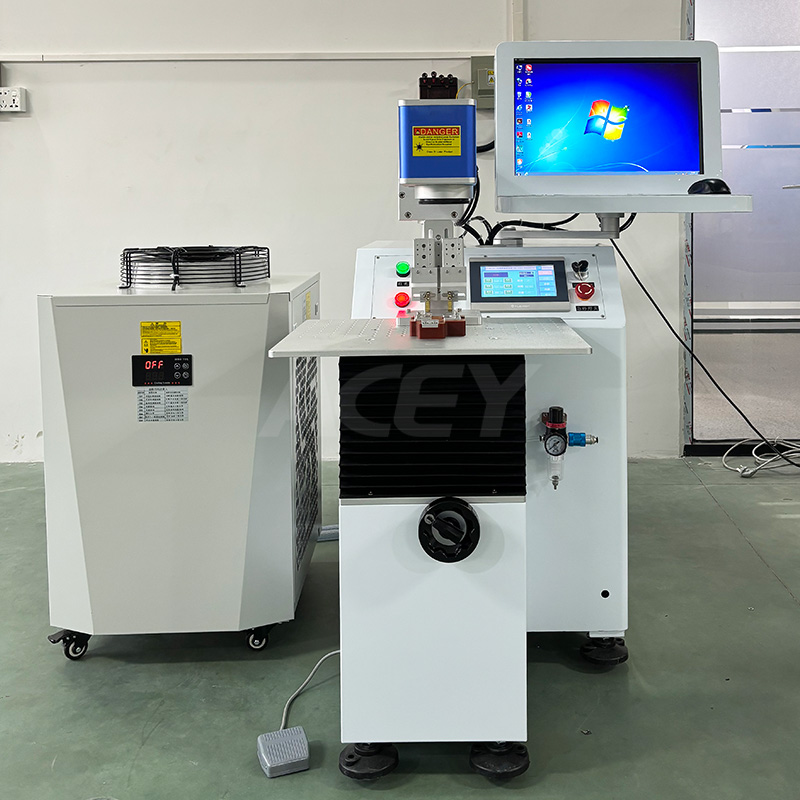

7-35 daysCell Phone Battery PCB Spot Laser Welding Machine For Polymer Lithium Battery
Product Description

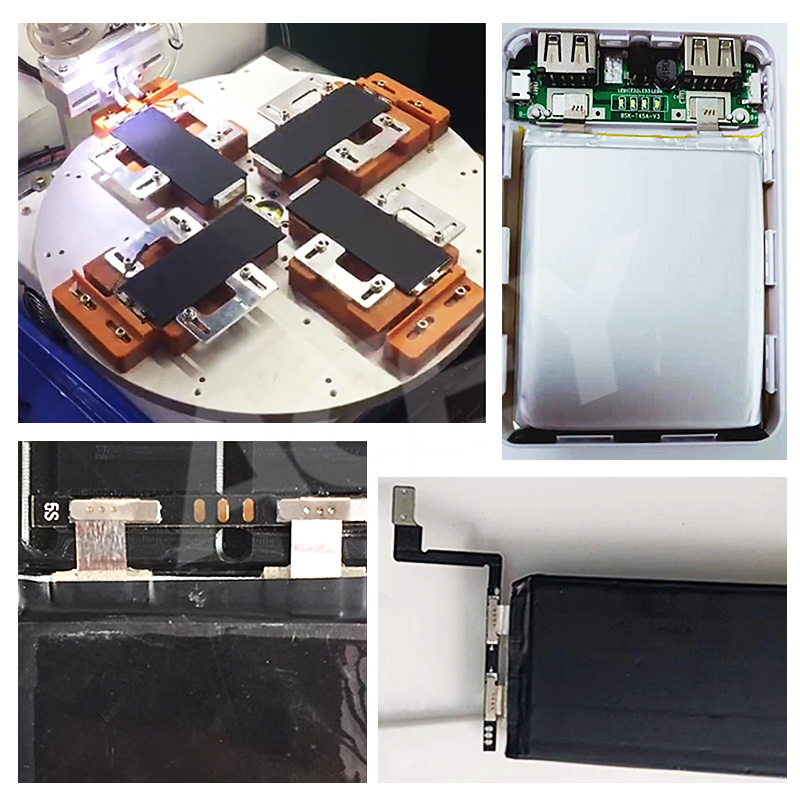

The spot laser welding machine is used for tab welding of mobile phone batteries, suitable for nickel and nickel-plated steel materials, employing lap welding and penetration welding methods.
Equipment welding process
Manually insert the battery into the insulation fixture → Manually install the PCB board into the fixture → Manually press the foot switch to complete welding
Equipment Advantages
Product Parameters
Equipment parameters
Model
ACEY-MPW-200S
Laser power
200W
Laser wavelength
1064nm
Beam quality
M2 <1.5
Laser output power
1%~100%, continuously adjustable
Laser output frequency
1%~50%KHz
Welding range
1mm-80mm
Focused light spot diameter
0.3mm-2mm
Repetitive accuracy
±0.01mm
System operating environment
WindowsXP
Cooling method
Water-cooling
Operating ambient temperature
10℃~38℃
Power Requirement
220V/50Hz/60A
Products Details
200W Automatic Laser Spot Welding Machine For Laptop Polymer Lithium Battery
ACEY-LTW-200W battery laser welding machine is used for series parallel electrode tab welding of polymer and cylindrical batteries.
200W Power Bank Polymer Battery Pack Automatic Laser Spot Welder
ACEY-MLW-200T automatic polymer battery tab laser spot welding machine is used for welding the tabs of power bank batteries.
Automatic Pouch Cell Tab Laser Spot Welding Machine For Smart Lock Battery
ACEY-SLW-200-4T laser spot welding machine is designed for smart lock polymer lithium battery packs. It uses laser welding technology to achieve fast and reliable connection between battery tabs, nickel sheets and PCB boards.
Automatic Smart Lock Polymer Battery Pack Laser Spot Welding Machine
ACEY-SLW-200-6T battery pack laser spot welder is mainly used for automatic welding of polymer battery pack PCB boards and battery tabs in series and parallel connections in mobile phones, tablets, laptops, smart locks, etc.
200W Automatic Polymer Lithium Battery Laser Spot Welder For Mobile Phone Battery
ACEY-MPW-200W automatic laser spot welder is applied to the tab welding of polymer batteries such as mobile phones and power banks.
5V 40A 128 Channels Polymer Lithium Battery Charge Discharge Machine
ACEY-PCT540-128 pouch cell charge discharge machine is used to test the voltage, capacity and other parameters of polymer batteries, and classify the battery capacity according to the test results.
7-Channel Automatic Battery Sorter Polymer Lithium Cell Voltage IR Sorting Machine
ACEY-PCSM polymer lithium battery sorting machine is a device used to automatically sort battery voltage and internal resistance of polymer lithium batteries in the fields of power batteries, 3C digital batteries, and energy storage batteries.
5V 100A 48CHS Regenerative Lithium Ion Battery Cell Formation Equipment
ACEY-BCT5100-48P lithium ion battery formation equipment is used to test the capacity, voltage and other parameters of power lithium battery, and to grade them according to performance indicators to ensure the consistency of the battery pack.
