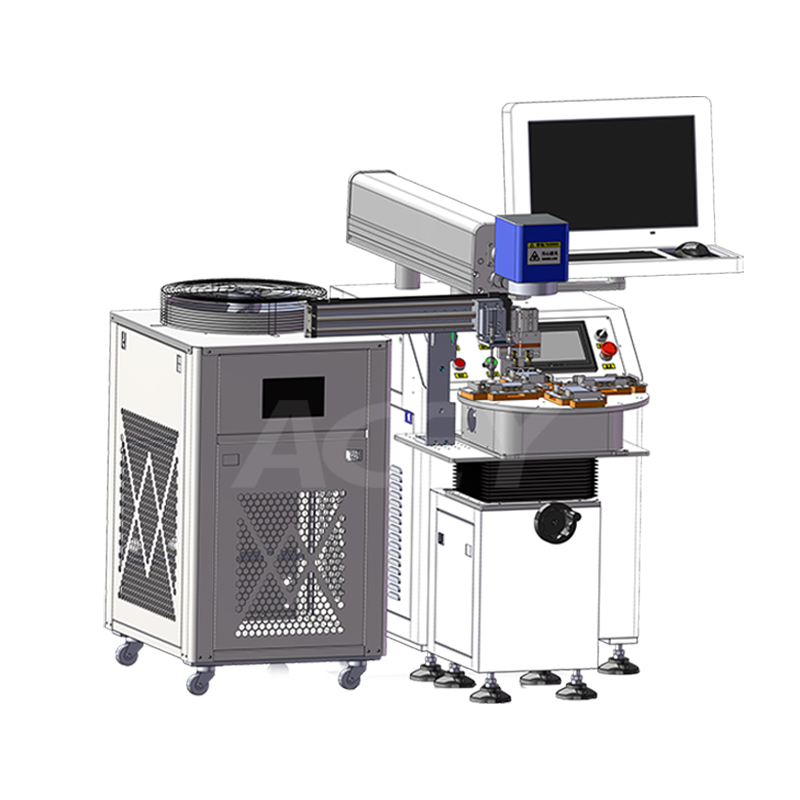

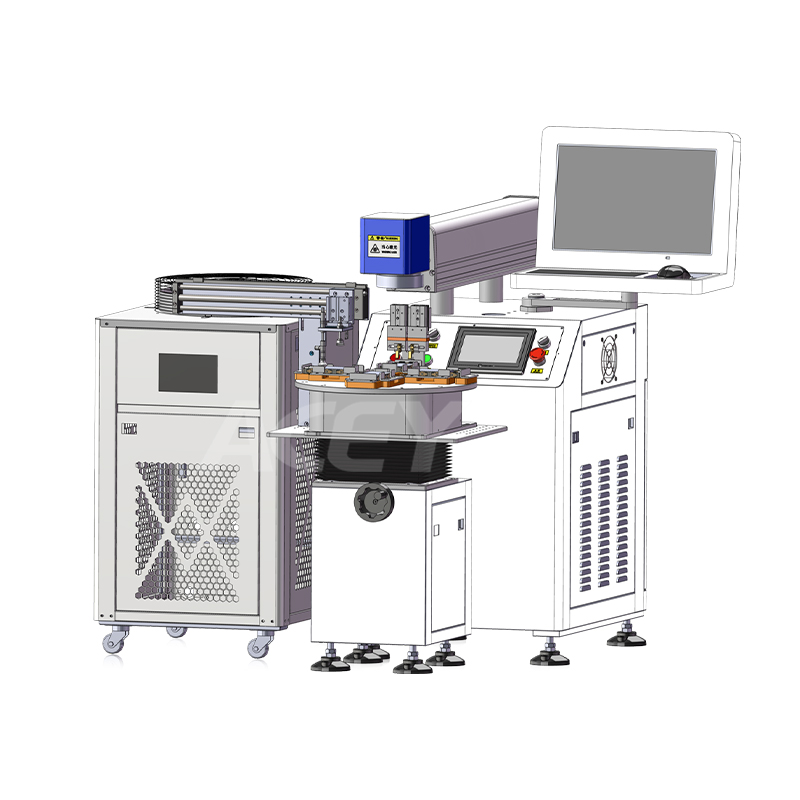

200W Power Bank Polymer Battery Pack Automatic Laser Spot Welder

ACEY-MLW-200T automatic polymer battery tab laser spot welding machine is used for welding the tabs of power bank batteries.

  • Brand:

    ACEY

  • Item No.:

    ACEY-MLW-200

  • Compliance:

    CE Certified

  • Warranty:

    One-year warranty with lifetime support

  • Order(Moq):

    1 set

  • Payment:

    T/T

  • Product Origin:

    China

  • Lead Time:

    7-35 days
INQUIRE now
Product Catalog
  • Product Detail

200W Power Bank Polymer Battery Pack Automatic Laser Spot Welder


Product Description

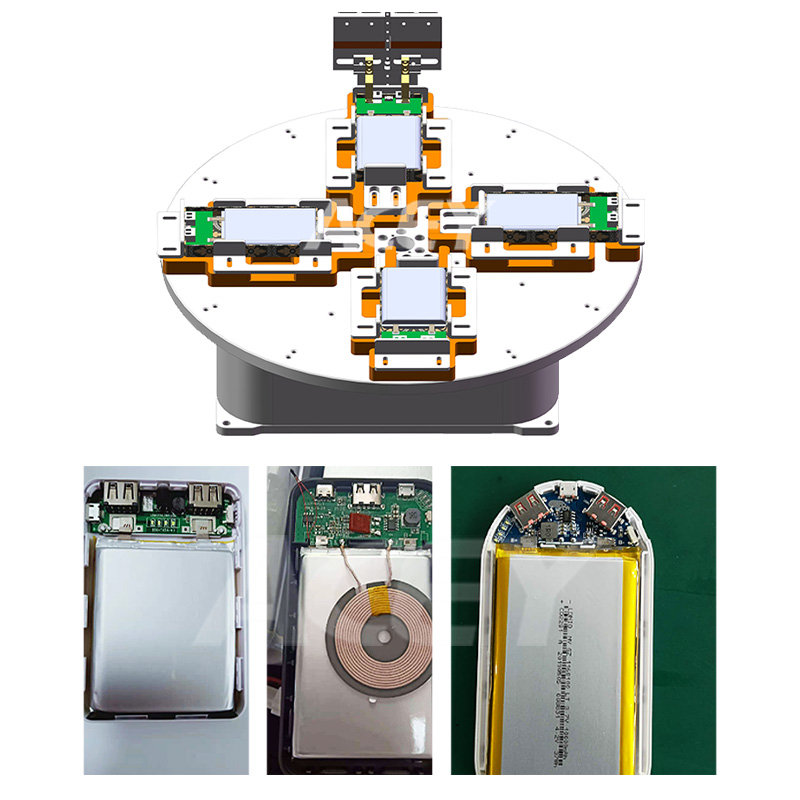

ACEY-MLW-200T polymer battery laser spot welder is specially designed for the welding of the tabs of power bank batteries. It is suitable for the overlap welding and penetration welding of nickel and nickel-plated steel materials. It can efficiently handle the welding needs of a single 5000mAh battery (or a double 10000mAh battery pack) and accurately complete the tab connection.


Equipment Advantages

  • Replace traditional solder process, save solder cost, improve product quality and added value;
  • Replace the traditional resistance welding process, improve product quality;
  • High efficiency (one person, one machine uninterrupted rotation cycle operation, about 1000-1200PCS per hour capacity);
  • High precision (using galvanometer scanning mode, solder joint deviation 0.03mm, to ensure the unity of product mass production, strong stability);
  • Good effect (each solder joint can be adjusted to different parameters, real-time control of spot energy);
  • Simple operation (control software humanized design, strong anti-sluggishness, general workers can operate);
  • Low maintenance cost (the whole machine only needs to replace the xenon lamp tube in about 8 months, and the life span is up to 8 million times).


Product Parameters

Model ACEY-MLW-200T
Laser power 200W
Laser wavelength 1064nm
Beam quality M2 <1.5
Laser output power 1%~100% continuously adjustable
Laser output frequency 1%~50%KHz
Welding range 1mm-80mm
Focused spot diameter 0.3mm-2mm
Repeat accuracy ±0.01mm
System operating environment WindowsXP
Cooling method Water cooling
Operating environment temperature 10℃~38℃
Power requirement 220V/Single phase/50Hz/60A
Complete machine weight ≈200KG


Products Details

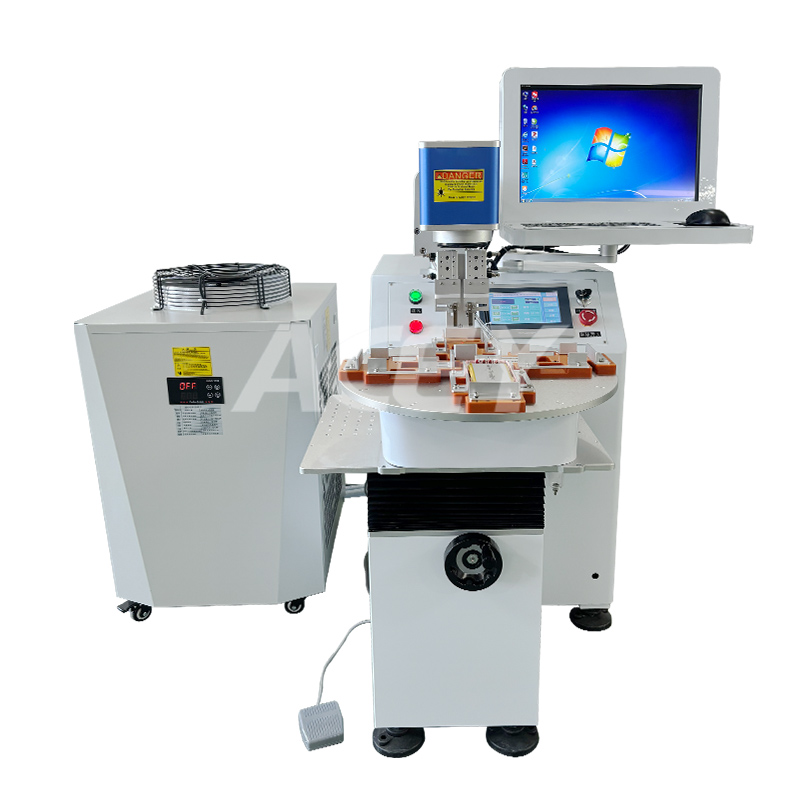

Pouch cell tab welding machine

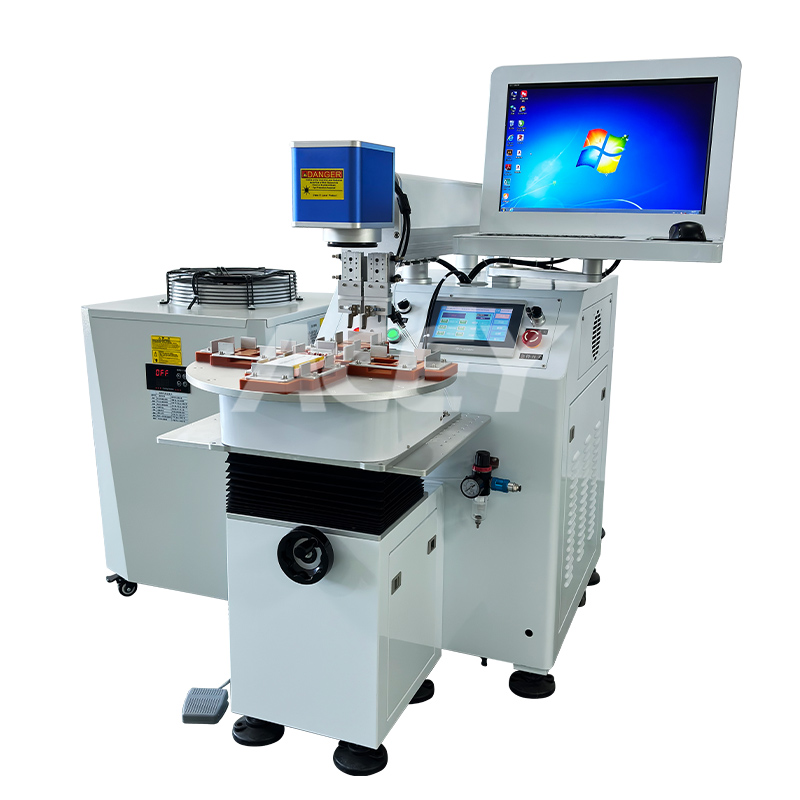

Laser welder for power bank battery
