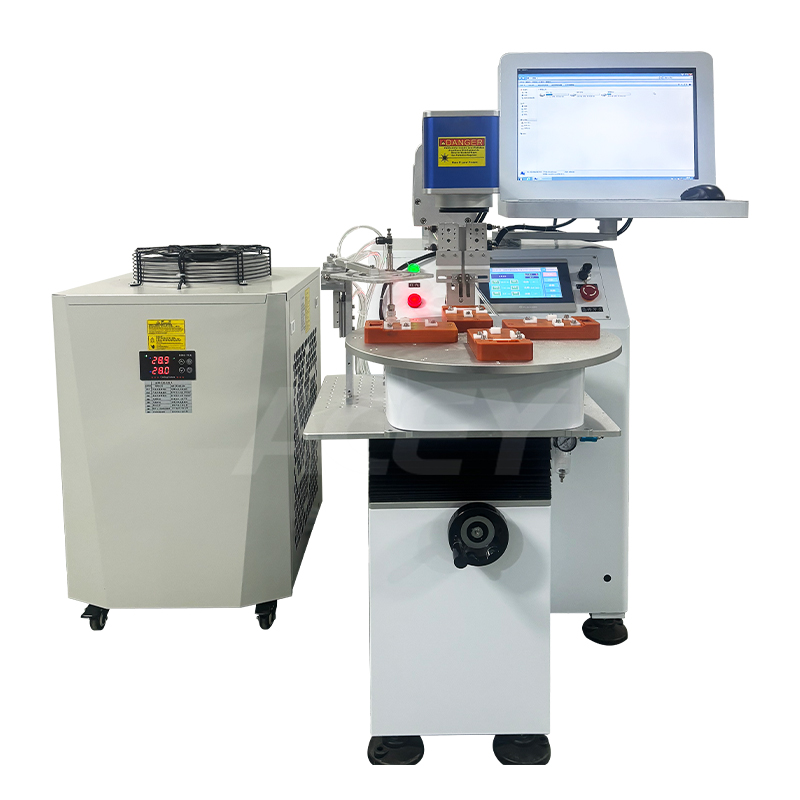

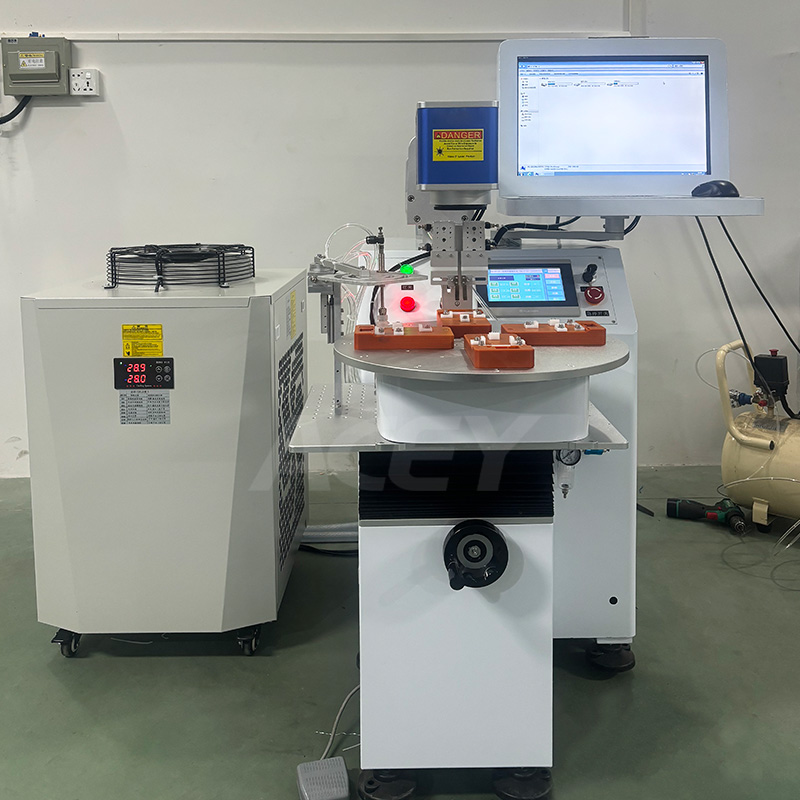

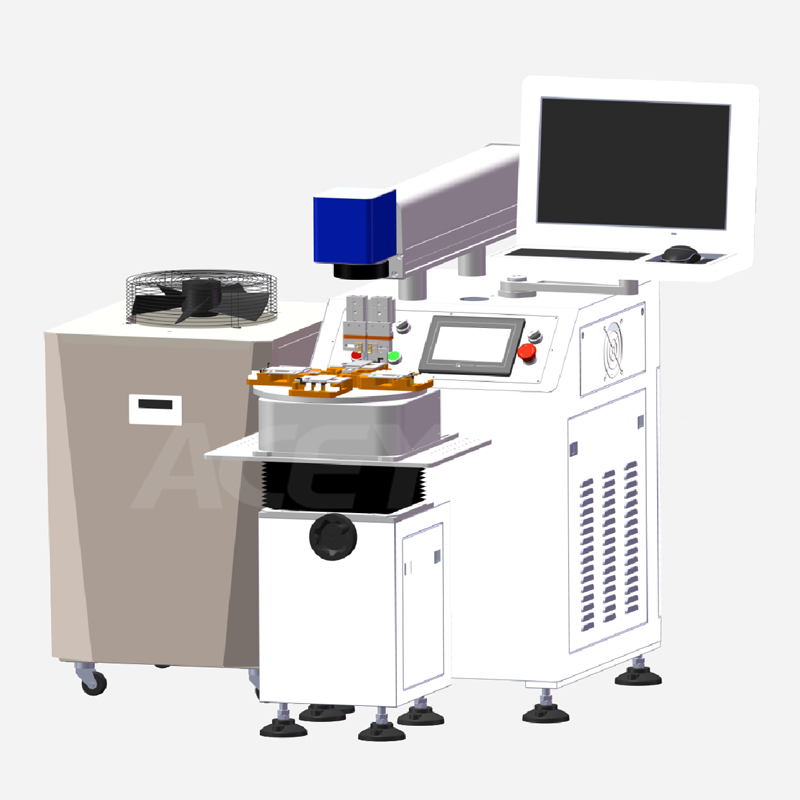

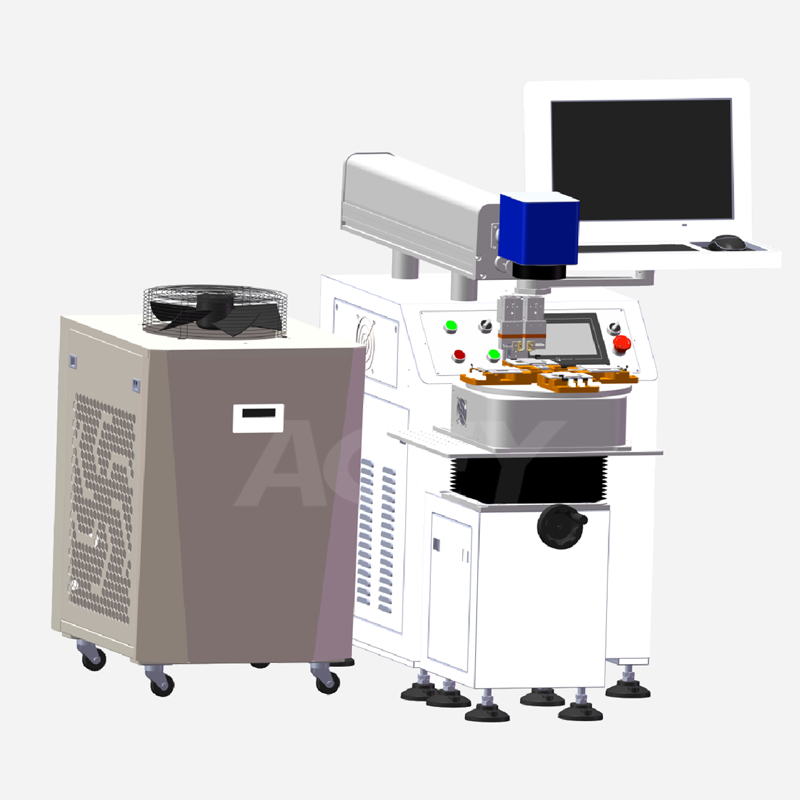

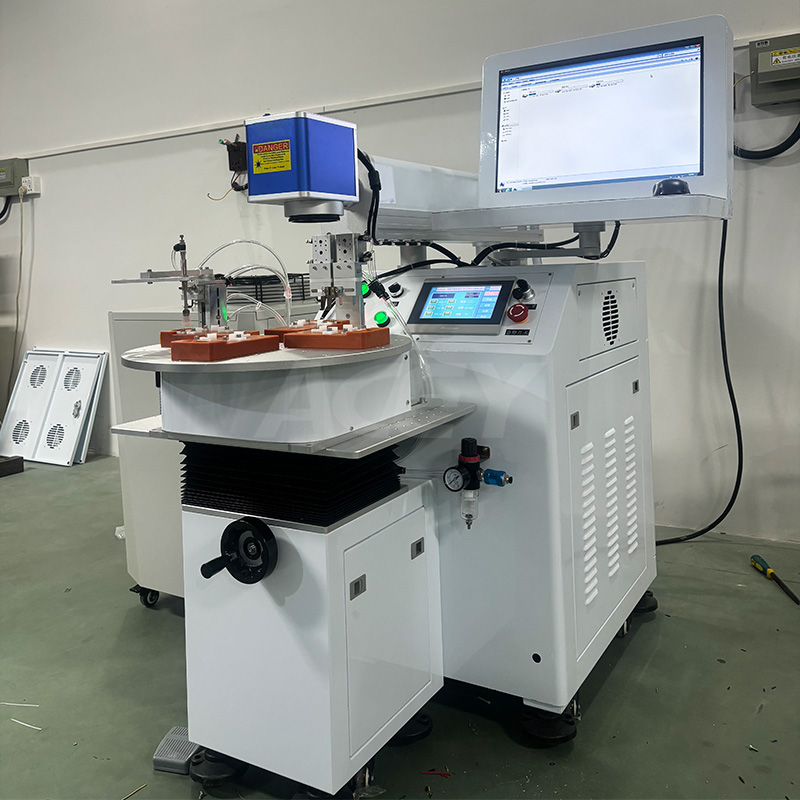

200W Automatic Polymer Lithium Battery Laser Spot Welder For Mobile Phone Battery

200W Automatic Polymer Lithium Battery Laser Spot Welder For Mobile Phone Battery

Product Description

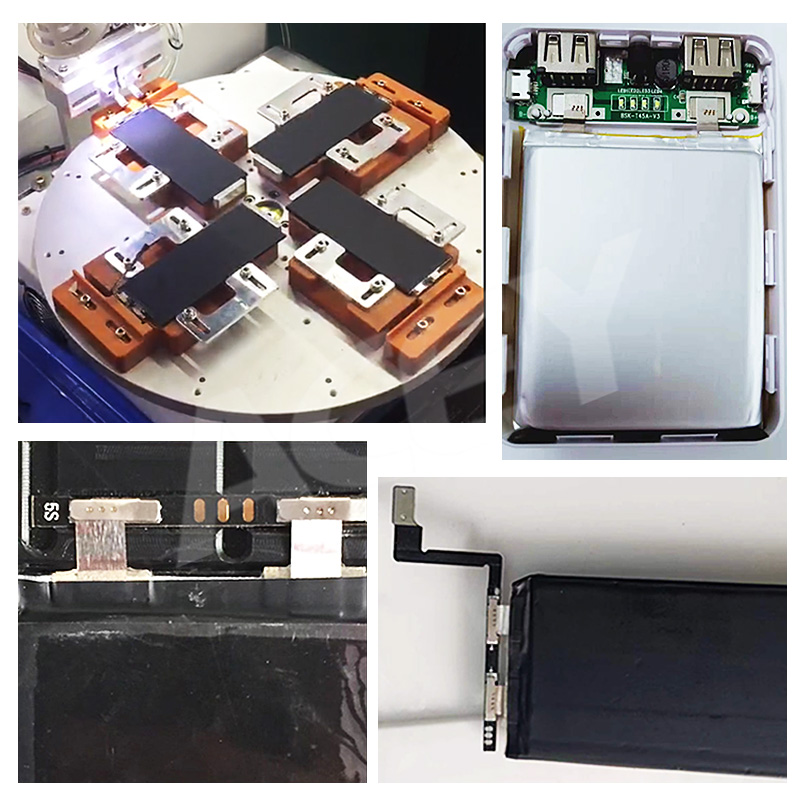

The laser spot welder is used for tab welding of mobile phone batteries and polymer batteries, suitable for nickel and nickel-plated steel materials, employing lap welding and penetration welding methods.

Equipment welding process

Manually load the battery into the fixture → Manually place the PCB protection board into the fixture → Adjust the position of the fixture and the press mechanism → Set program and adjust solder joint position → Step on the foot, cylinder down pressure, laser spot welding → Spot welding completes cylinder lifting and rotating disc rotation

Equipment Advantages

• Equipped with universal fixtures and fast welding speed (with a production capacity of about 800PCS per hour)
• High precision (using galvanometer scanning mode, within a solder joint deviation of 0.03mm, ensuring consistency in mass production and strong stability)
• Good effect (each solder joint can be adjusted with different parameters and real-time control of spot energy)
• The system is easy to operate, featuring user-friendly control software, robust poka-yoke (error-proofing) design, and is accessible for general operators without specialized training
• Low maintenance cost (the consumables for the entire machine only need to be replaced once in about 8 months, with a lifespan of up to 8 million times)

Product Parameters

Products Details
