Automatic Laser Spot Welder For Smart Lock Battery
Automatic Pouch Cell Tab Laser Spot Welding Machine For Smart Lock Battery Automatic Pouch Cell Tab Laser Spot Welding Machine For Smart Lock Battery Automatic Pouch Cell Tab Laser Spot Welding Machine For Smart Lock Battery Automatic Pouch Cell Tab Laser Spot Welding Machine For Smart Lock Battery Automatic Pouch Cell Tab Laser Spot Welding Machine For Smart Lock Battery

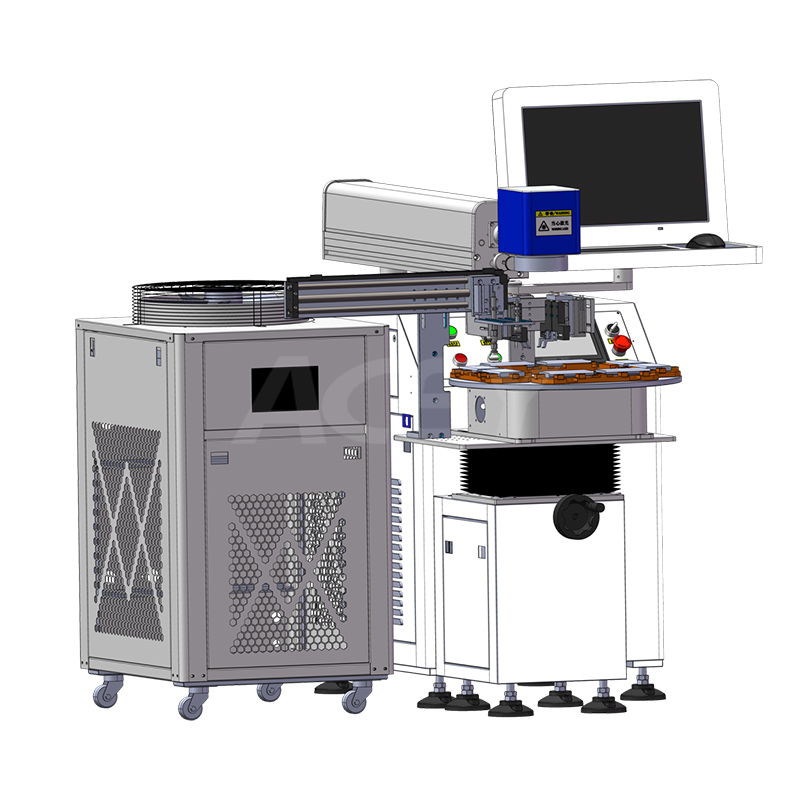

Automatic Pouch Cell Tab Laser Spot Welding Machine For Smart Lock Battery

ACEY-SLW-200-4T laser spot welding machine is designed for smart lock polymer lithium  battery packs. It uses laser welding technology to achieve fast and reliable connection between battery tabs, nickel sheets and PCB boards.

  • Brand:

    ACEY

  • Item No.:

    ACEY-SLW-200-4T

  • Compliance:

    CE Certified

  • Warranty:

    One-year warranty with lifetime support

  • Order(Moq):

    1 set

  • Payment:

    T/T

  • Product Origin:

    China

  • Lead Time:

    7-35 days
INQUIRE now
Product Catalog
  • Product Detail

Automatic Pouch Cell Tab Laser Spot Welding Machine For Smart Lock Battery


Product Description

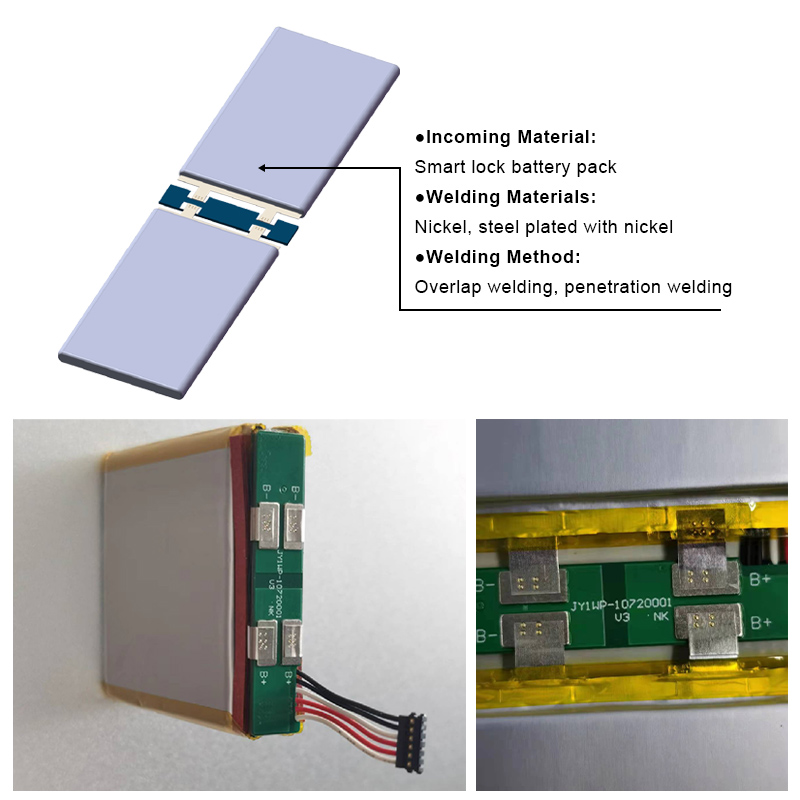

ACEY-SLW-200-4T laser spot welding machine is used for the welding of the tabs of polymer battery packs in series and parallel, such as tablet battery/ipad battery welding, smart lock battery pack welding, double-piece polymer battery series and parallel welding, etc.


Equipment Advantages

  • Replace traditional soldering to avoid detachment caused by high temperature, save tin material costs, and improve the stability of the battery pack.
  • Substitute traditional resistance welding process to enhance the quality of the battery pack.

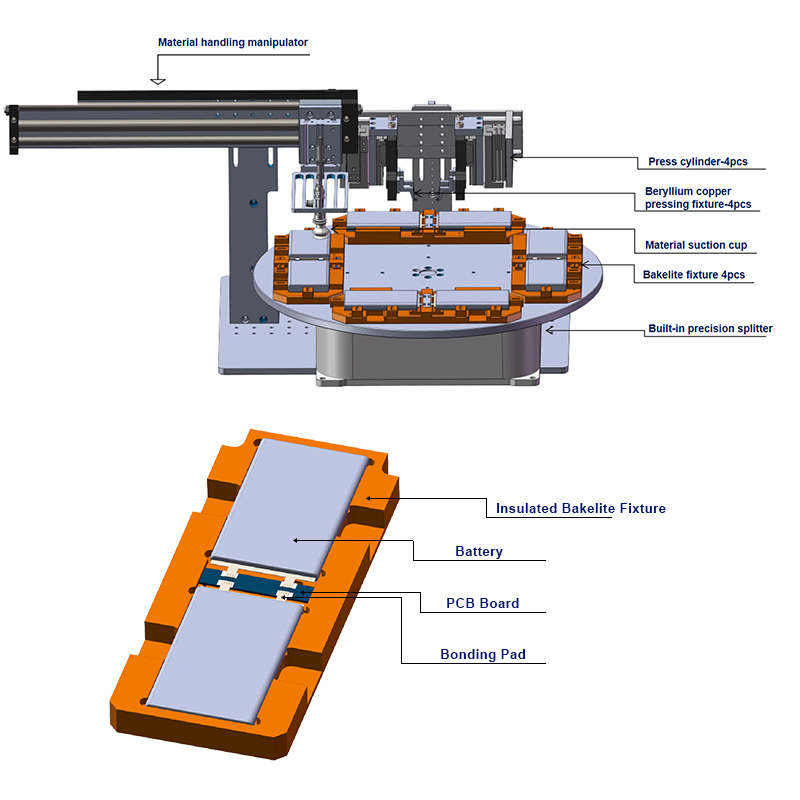

  • Utilize a 4-station turntable design and robotic arm feeding function to significantly increase production efficiency.
  • Precision pneumatic fixtures can ensure close contact between the connecting piece and the battery tab, avoiding false welding.
  • Adopt a galvanometer scanning method (during laser spot welding, the XY axis module and the welded product do not need to move) to achieve high stability and efficiency.
  • The software is easy to operate, and general workers can master the skills within 2 hours.


Product Parameters

Item No. ACEY-SLW-200-4T
Laser power 200W
 Laser wavelength 1064nm
Beam quality M2 <1.5
Laser output power 1%~100% continuous adjustable
Laser output frequency 1%~50%KHz
Welding range 1mm-80mm
Effective welding stroke 800*300mm
single welding stroke 80*80mm
 Focused spot diameter 0.3mm-2mm
Repeat accuracy ±0.003mm
System operating environment WindowsXP
Cooling method Water cooling
Operating environment temperature 10℃~38℃
Power requirement 220V/Single phase/50Hz/60A
Overall weight 350KG

Products Details

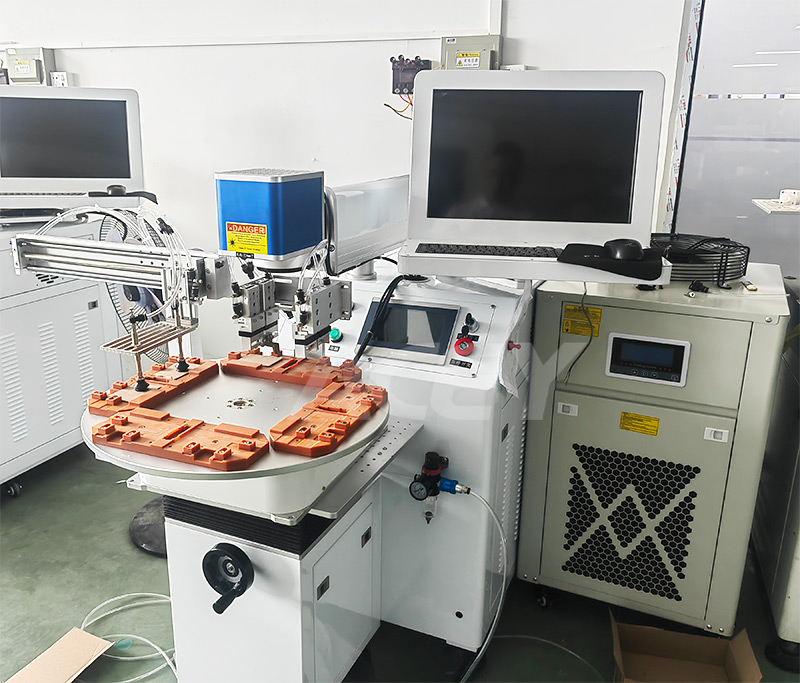

Pouch cell tab laser welding machine

Smart lock battery laser welding machine

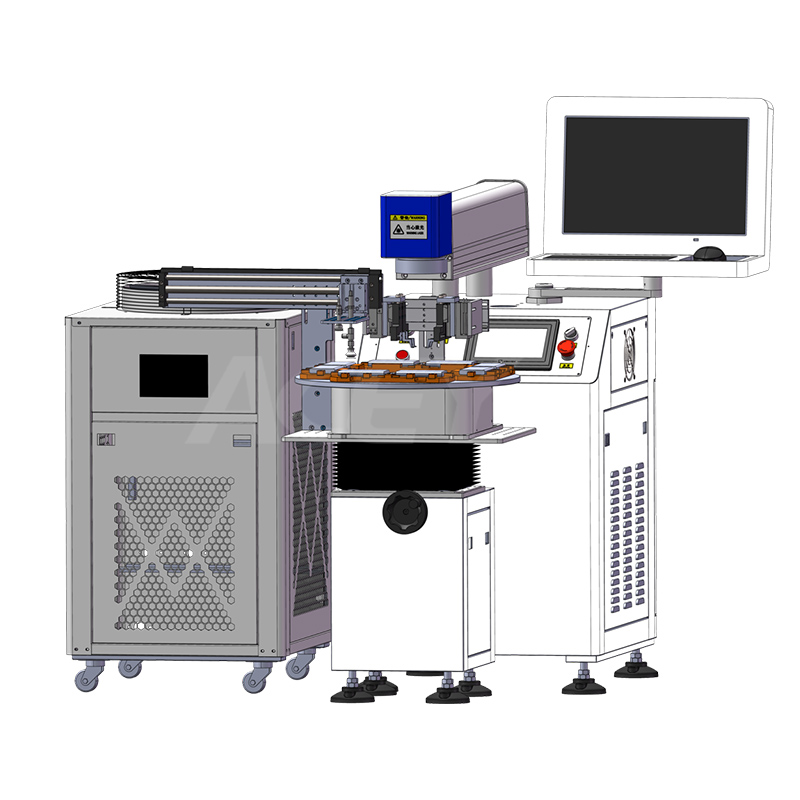

200W laser welding machine
