XIAMEN ACEY NEW ENERGY TECHNOLOGY CO., LTD.
![$this->product_detail['product_name']](/uploadfile/category/a4bf3192ea9596101d296d7077b29c55.jpg)

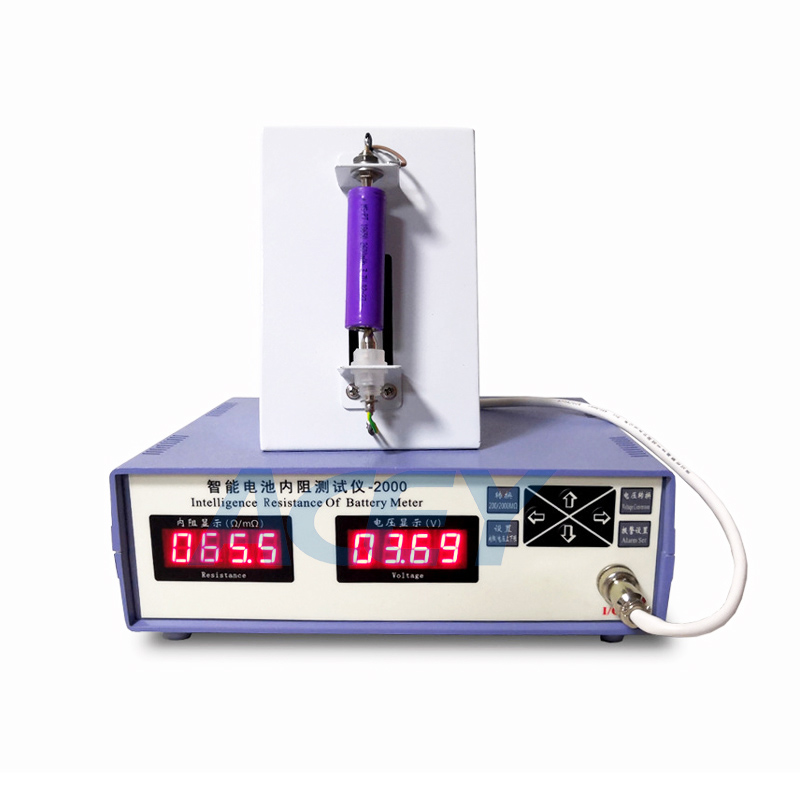

ACEY-RT200 battery internal resistance tester injects a 1kHz AC signal into the object being tested and calculates its impedance by measuring the phase difference and amplitude of voltage and current.
Brand:
ACEYItem No.:
ACEY-RT200Compliance:
CE CertifiedWarranty:
One-year warranty with lifetime supportOrder(Moq):
1setPayment:
T/TProduct Origin:
ChinaLead Time:
7-35 daysLithium Ion Battery Internal Resistance IR Tester For Li-ion/Lead-acid/Ni-Mh/Ni-Cd Battery
Description
ACEY-RT200 Lithium battery internal resistance tester is a professional device used to measure the internal resistance of lithium batteries. It can customize the range of test parameters. If the actual measurement result is not within the set range, the microcomputer system can automatically alarm. It eliminates human misjudgment and misunderstanding, ensures product quality, has fast test speed and high reliability, and is widely used in battery production, R&D and laboratories, as well as battery maintenance and fault diagnosis.
Features
Measure Range and Accuracy
Measurement items
Range
Measuring range
Resolution
Measuring time
Precision
Input resistance
Resistance
200 mΩ
0.1-200 mΩ
0.1 mΩ
100ms
±0.1 mΩ
—
2 Ω
1 mΩ-2 Ω
1 mΩ
100ms
±0.5 mΩ
—
Voltage
19.99V
0-19.99V
0.01V
100ms
±0.01 V
10K
Specification
Item No.
ACEY-RT200
Scope of application
Lithium ion, lithium polymer batteries and finished batteries
Ni-MH and Ni-Cd batteries
Lead-acid batteries and maintenance-free batteries
It is also applicable to scientific research units and manufacturers of various battery research and testing
Measuring range
internal resistance 2-200mΩ/voltage 0-19.99V
Resolution
0.1mΩ/0.01V
Measuring time
100mS
Accuracy
±1mΩ ±0.01V
Input impedance
10K
Dimension
300 x 250 x 100 (mm)
Weight
1.5kg
Product Details
Lithium Ion Battery Impedance Tester Internal Resistance Tester

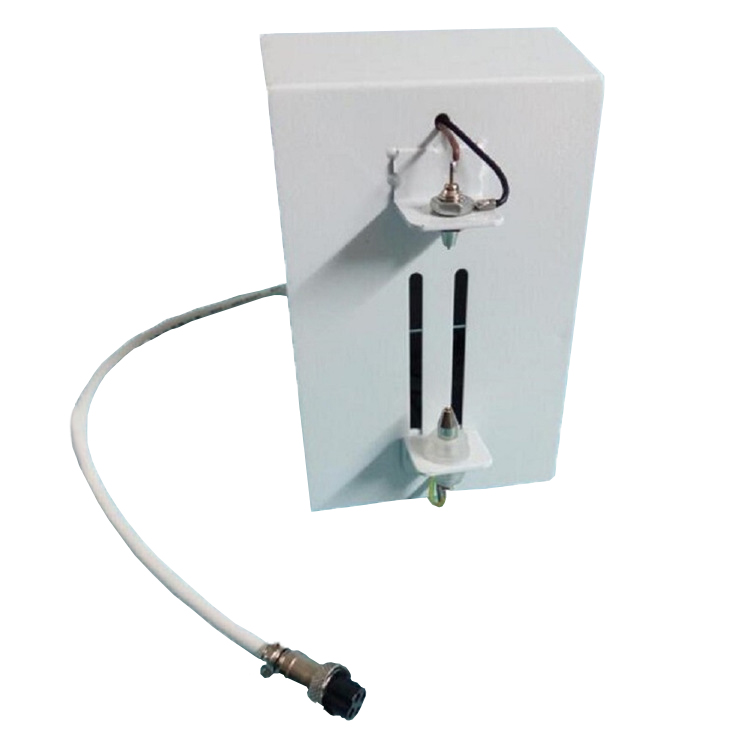

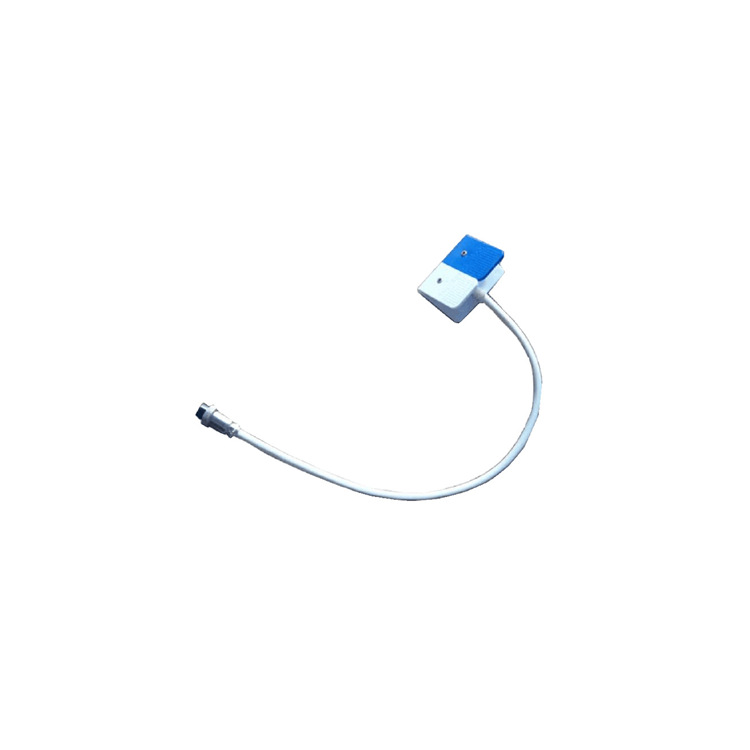

This battery internal resistance tester is used to test the voltage and internal resistance of lithium battery. It has many kinds of clamps.And It can test cylindrical battery, pouch cell and prismatic cell.
HK3561 Lithium Battery Voltage And Internal Resistance Tester
The HK3561 Battery Internal Resistance Tester is a high-precision and highly stable AC micro resistance tester that adopts the four line vector testing principle and can simultaneously measure the AC resistance and DC voltage of the tested product.
HK3560 Battery Voltage And Internal Resistance IR Tester
ACEY-HK3560 battery voltage and ir tester is suitable for low-resistance batteries, large-capacity lithium battery packs, and rapid product classification on production lines.
1500W-6000W Automatic Fiber Laser Welding Machine For Lithium Battery Pack Busbar Welding
ACEY-LWM series laser welding machine is mainly used for welding copper, aluminum, iron, nickel or their alloy metals, especially suitable for prismatic battery pack aluminum busbar or nickel transfer connection welding process.
Lab Manual Vertical Rolling Press Calendering Machine For Battery Electrode
This Lab roll press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals.
100V 30A Charge 300A Discharge Battery Comprehensive Tester
ACEY-BIT100-30A300A lithium battery comprehensive tester is a specialized device designed to assess and analyze the performance and health of lithium-ion or lithium-polymer batteries, which are commonly used in a wide range of applications, including consumer electronics, electric vehicles, energy storage systems, and more.
2 in 1 Insulation Paper Pasting Machine And Sorting Machine For Cylindrical Cell
ACEY-SS11 is an automatic device for 18650/21700/26650/32650/32700 batteries to sorting and sticker. it has been a cost-effective sticker and sorting combination integrated equipment. The two machines are loaded and received in the same direction. They can be combined with single operation or separately.
3S-24S 12V 48V 72V 200A EV Bms For Lithium Ion Battery
ACEY-MP30S001 It is specially designed for energy storage, electric motorcycles, electric tricycles, low-speed vehicles, etc.24S Product protection board scheme is suitable for lithium batteries with different chemical properties, such as lithium ion, lithium polymer, lithium iron phosphate, etc. The protective plate has strong load capacity and continues to discharge electricity Stream up to 200A.
